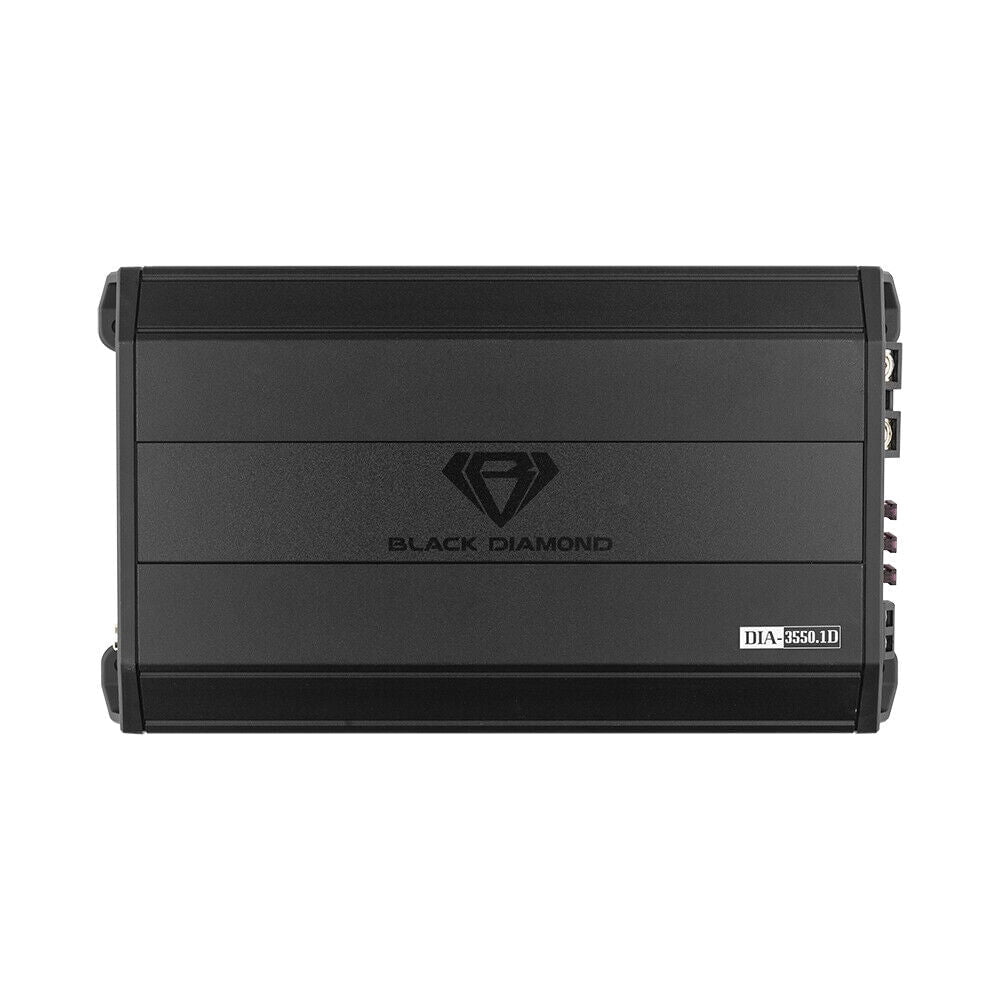

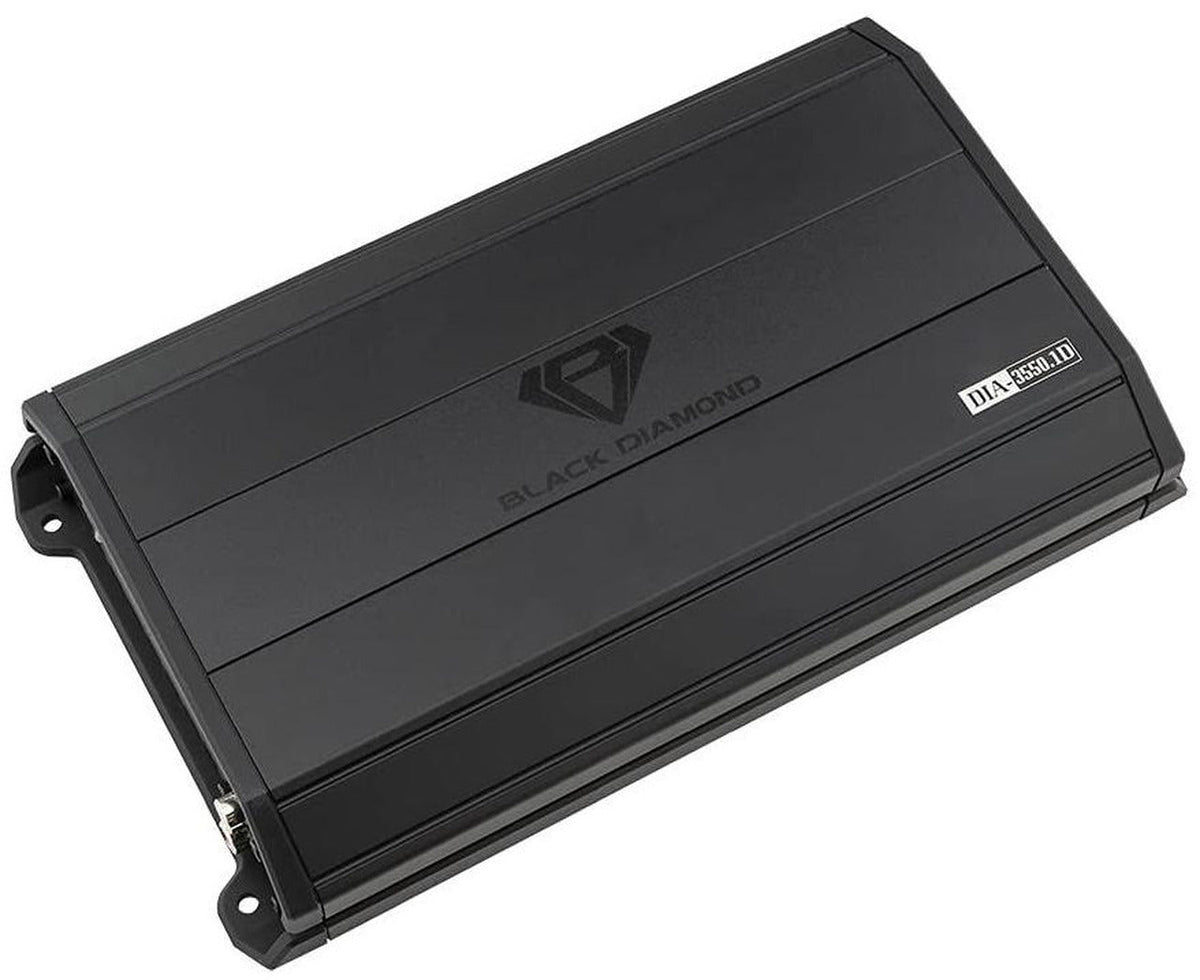

Black Diamond DIA-3550.1D Class D Monoblock Amplifier
Key features
- Three RMS output ratings: Choose from 1200 watts at 1 ohm, 800 watts at 2 ohms, or 500 watts at 4 ohms to match your subwoofer system.

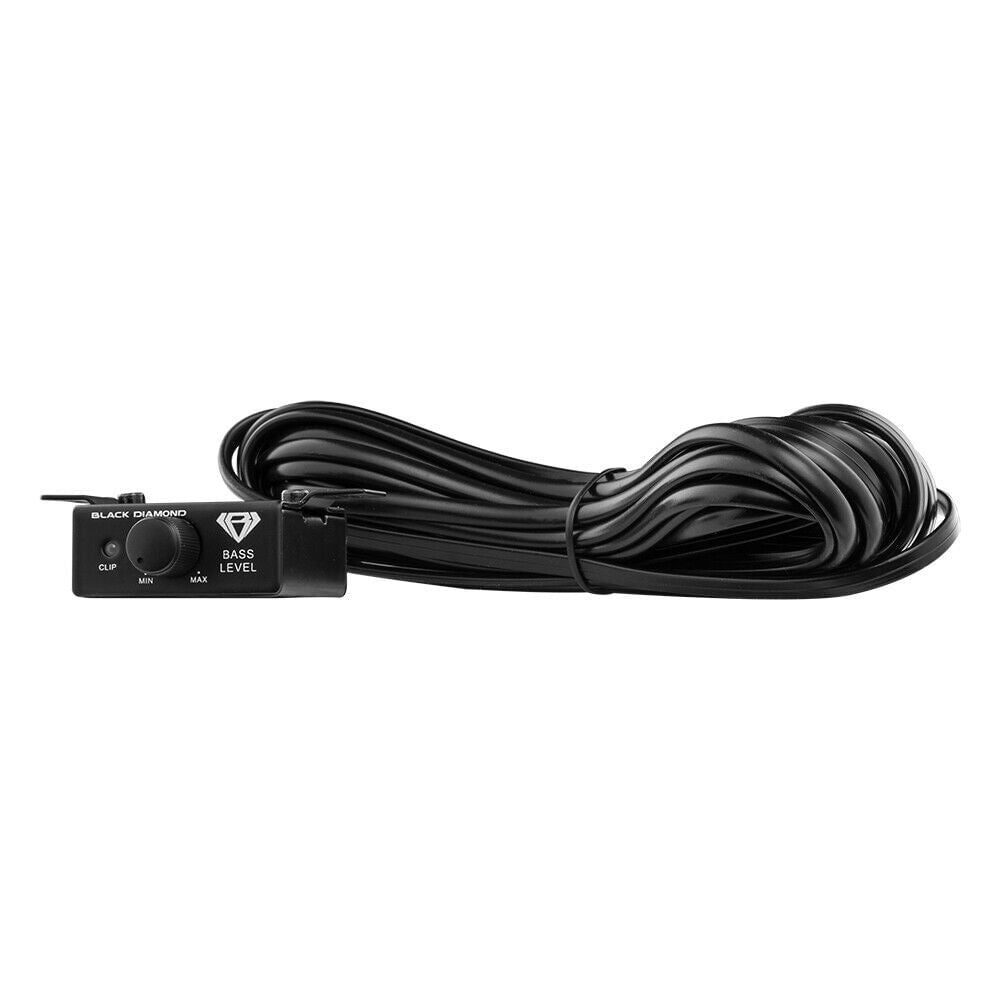

- Remote bass-level controller: Adjust bass level from the included controller.

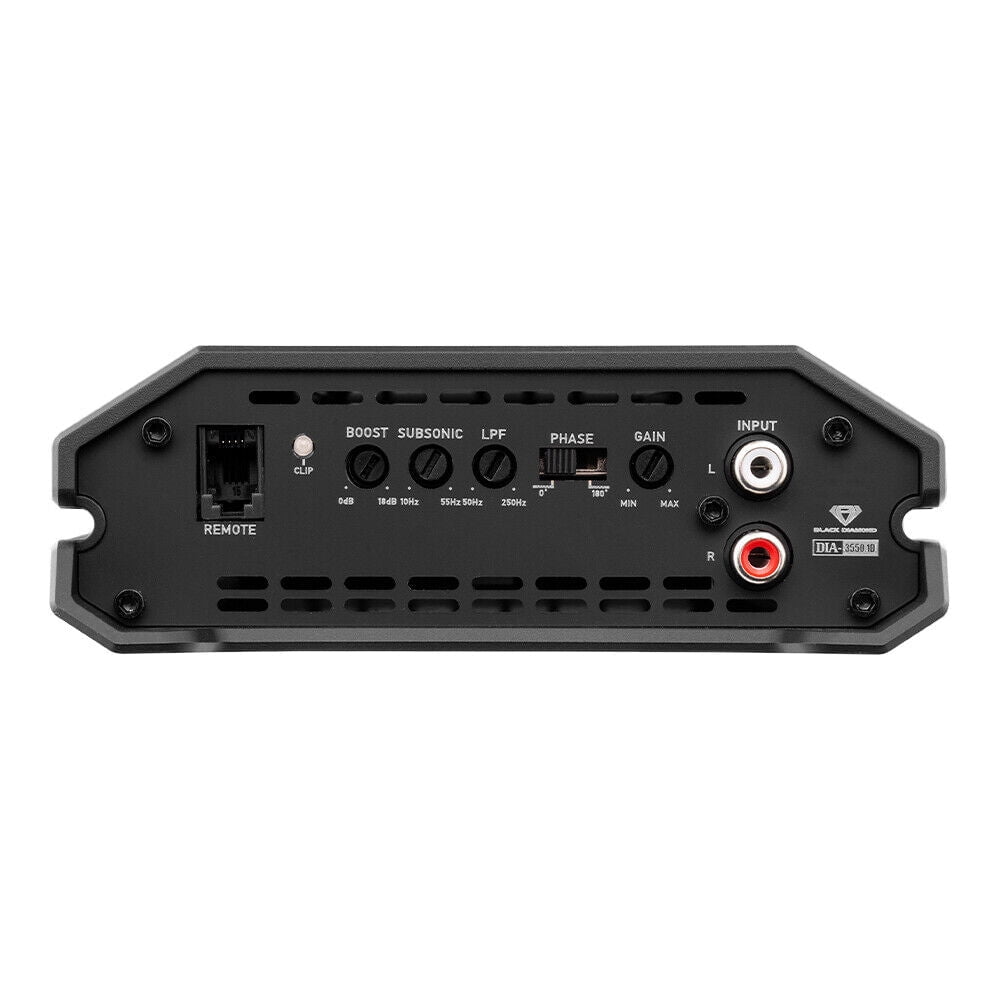

- Adjustable filtering: Set the low-pass filter from 50–250 Hz and the subsonic filter from 10–55 Hz.
- Bass boost: Adjust bass boost from 0–18 dB.
- Status indicators: Power, protection, and clipping indicators help you monitor amplifier status.
- Multiple protection features: Protection covers short circuits, heat, DC offset, and high or low voltage.
Black Diamond DIA-3550.1D Class D Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Black Diamond DIA-3550.1D Class D Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Drive a subwoofer system with the Black Diamond DIA-3550.1D Class D monoblock amplifier, rated for 1200 watts RMS at 1 ohm. Its output ratings also cover 2- and 4-ohm loads, and the included remote bass-level controller lets you adjust bass level from within reach.
Adjust the low-pass and subsonic filters, then use the bass boost control to tailor the amplifier’s settings to your system.
Key Features & Benefits
- Three RMS output ratings: Choose from 1200 watts at 1 ohm, 800 watts at 2 ohms, or 500 watts at 4 ohms to match your subwoofer system.
- Remote bass-level controller: Adjust bass level from the included controller.
- Adjustable filtering: Set the low-pass filter from 50–250 Hz and the subsonic filter from 10–55 Hz.
- Bass boost: Adjust bass boost from 0–18 dB.
- Status indicators: Power, protection, and clipping indicators help you monitor amplifier status.
- Multiple protection features: Protection covers short circuits, heat, DC offset, and high or low voltage.

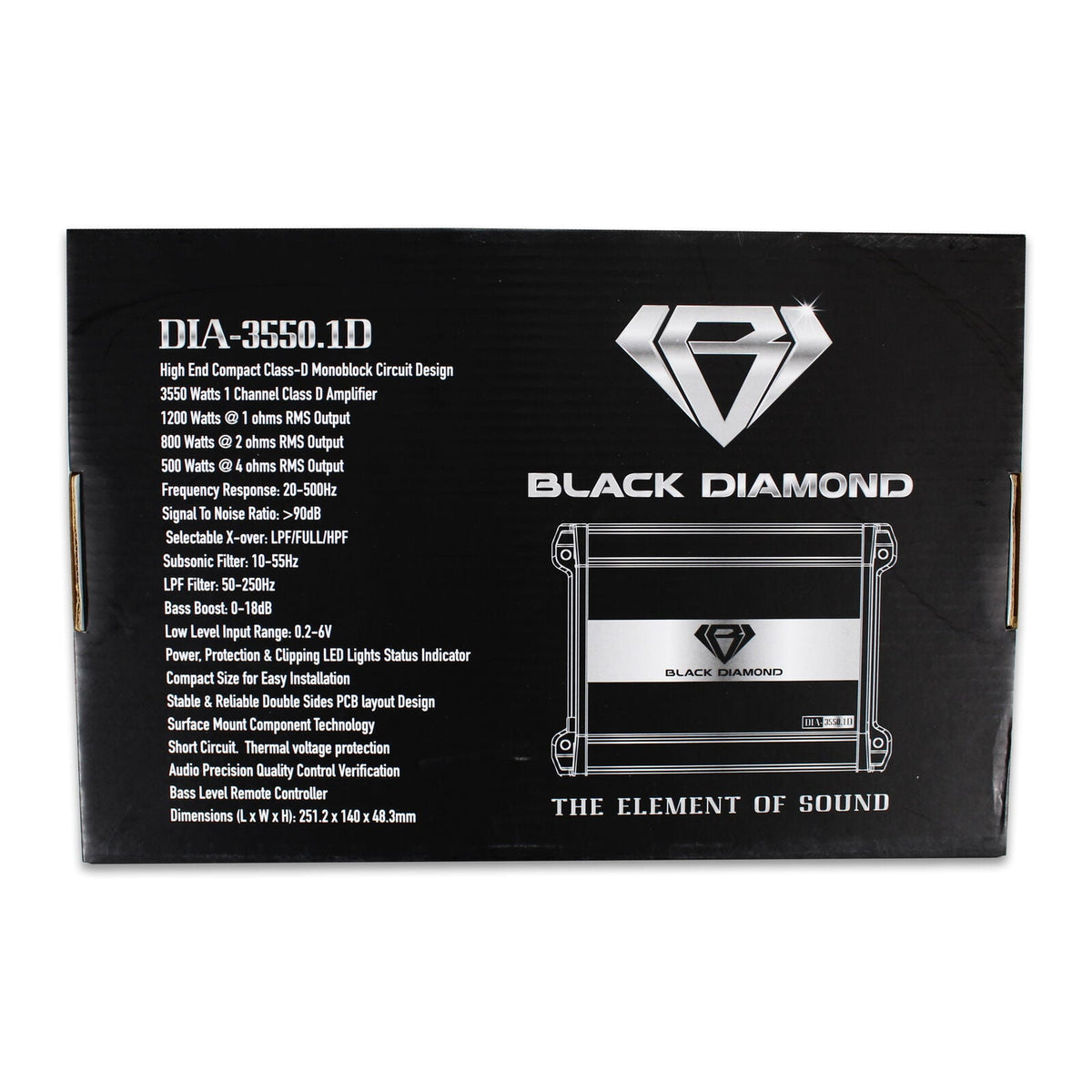

Technical Specifications
| Specification | Value |
|---|---|
| Amplifier design | Class D monoblock, one channel |
| RMS output | 1200 W × 1 at 1 ohm; 800 W × 1 at 2 ohms; 500 W × 1 at 4 ohms |
| Maximum power | 3550 W |
| Frequency response | 20–500 Hz |
| Low-pass filter | 50–250 Hz |
| Subsonic filter | 10–55 Hz |
| Bass boost | 0–18 dB |
| Signal-to-noise ratio | Greater than 90 dB |
| Low-level input | 0.2–6 V |
| Dimensions (L × W × H) | 251.2 × 140 × 48.3 mm |
Why Choose This Product?
The DIA-3550.1D gives you three stated RMS output levels across 1-, 2-, and 4-ohm loads, making impedance and power matching central to choosing your setup. Its adjustable filters and bass boost provide settings to work with as you configure the system, while the remote bass-level controller puts level adjustment within reach.
Note that 3550 watts is the maximum power rating, not the continuous RMS output. Use the RMS rating for the matching load when comparing amplifier output with your subwoofer’s power handling.
Installation & Compatibility Notes

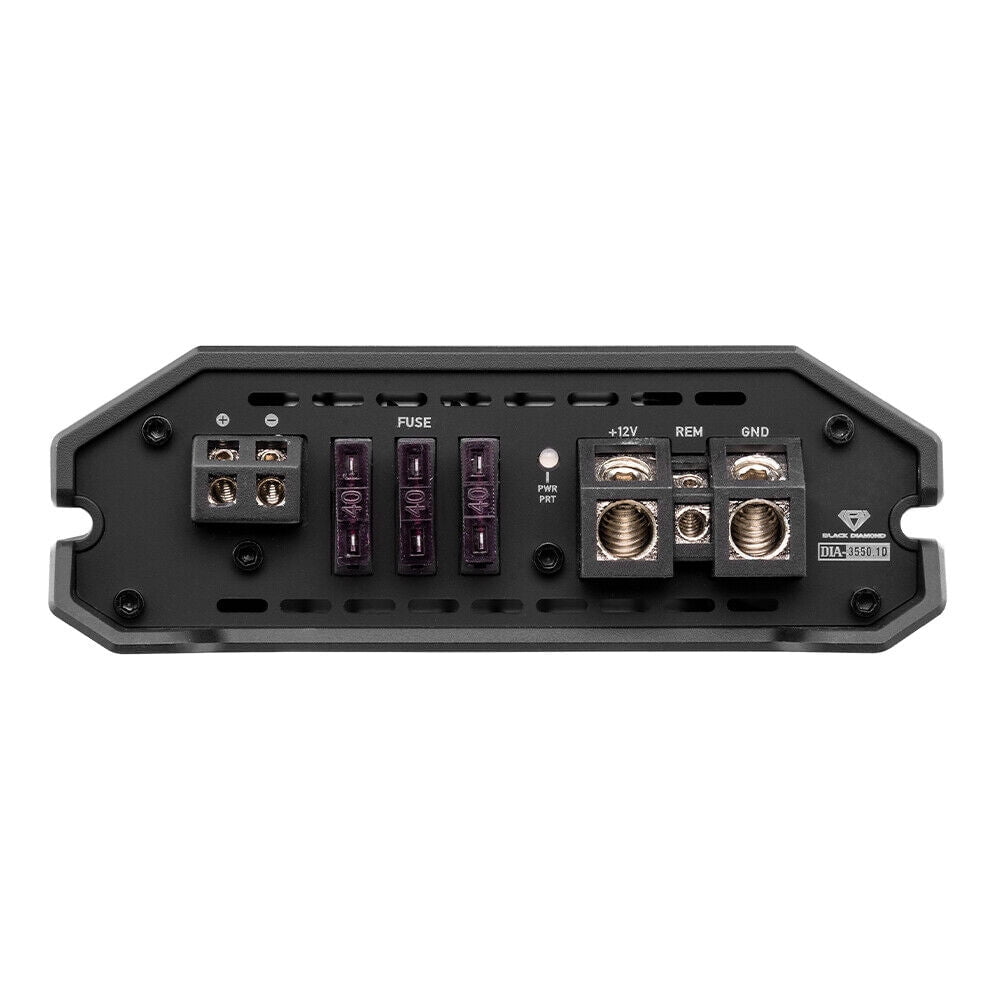

Match the subwoofer impedance and power handling to the amplifier’s output rating before installation. Use appropriate power wiring and fusing, and allow for ventilation. The amplifier measures 251.2 × 140 × 48.3 mm; check available mounting space before fitting it.
Frequently Asked Questions
What is the continuous RMS output?
It is rated at 1200 W × 1 at 1 ohm, 800 W × 1 at 2 ohms, and 500 W × 1 at 4 ohms. The 3550-watt figure is the maximum rating.
Which subwoofer impedance can this amplifier drive?
The listed output ratings cover 1-, 2-, and 4-ohm loads. Match the subwoofer system’s impedance and power handling to the corresponding rating.
What does the included remote bass-level controller do?
It gives you a remote control for adjusting bass level.
What are the amplifier’s dimensions?
Its dimensions are 251.2 × 140 × 48.3 mm (L × W × H). Check your intended mounting space against these measurements.
What should I plan for during installation?
Use appropriate power wiring and fusing, provide ventilation, and match the load and power handling before installation.
