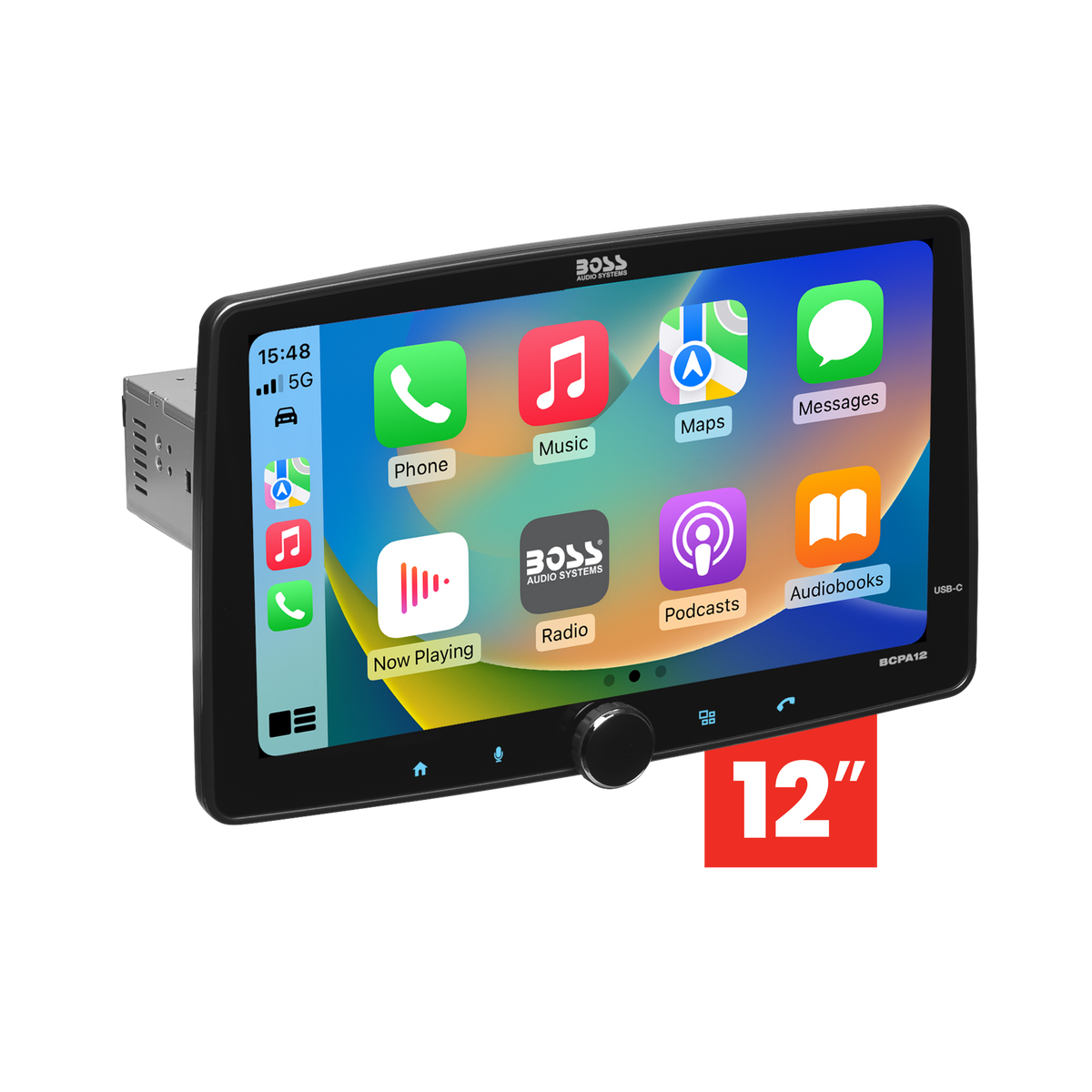

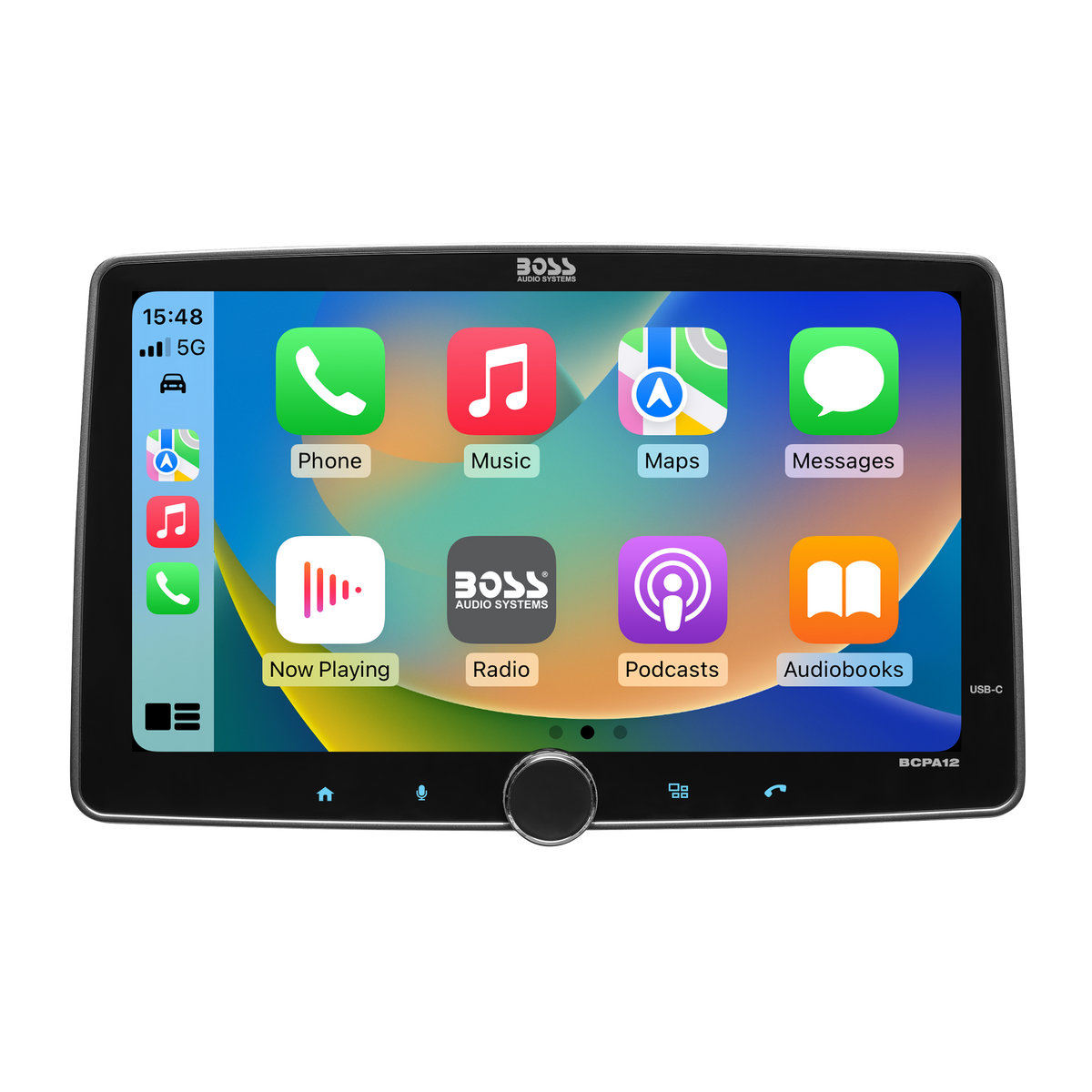

BOSS BCPA12 12-Inch Touchscreen Car Stereo with Wired CarPlay & Android Auto

Product Overview

Put a larger view of your music, maps and compatible phone apps on the dash with the BOSS Audio Systems BCPA12. This digital media receiver combines a 12-inch capacitive touchscreen with a compact single-DIN chassis, wired Apple CarPlay and Android Auto, Bluetooth calling and streaming, and AM/FM radio. The adjustable, detachable display helps you position the screen around your dashboard layout, while the physical volume knob keeps a frequently used control close at hand.

This BCPA12 is part of the 12 Volt Outlet Clearance & Closeouts selection.

Key Features & Benefits

• 12-inch touchscreen: A 1366 x 768 display provides a large interface for compatible navigation, communication and audio apps.
• Wired smartphone integration: Connect a compatible iPhone or Android phone by USB for Apple CarPlay or Android Auto. Neither feature is wireless on the BCPA12.
• Bluetooth audio and calling: Stream music and use hands-free phone functions without adding a disc player.
• Adjustable display position: Tilt the screen vertically or horizontally and adjust its height to suit the installation. The display can be detached from the receiver.
• System tuning: Built-in DSP provides equalizer adjustment, crossover settings and time alignment.
• External amplifier connections: Front, rear and subwoofer preamp outputs support an expanded audio system.
• Camera connectivity: Front and rear camera inputs support separately installed cameras.
• Customizable controls: Multicolor illumination, a physical volume knob and push-to-talk support make the receiver adaptable to your dash.

Technical Specifications

Why Choose This Product?

The BCPA12 suits drivers who want a large touchscreen without a full-size double-DIN receiver chassis. Wired phone integration brings supported apps onto the display, while Bluetooth and radio provide other listening options. Its preamp outputs and onboard sound adjustments leave room to build a system with external amplifiers and a subwoofer.

Installation & Compatibility Notes

Check both the single-DIN mounting opening and the space around the 12-inch display. The screen must not obstruct vehicle controls, vents, visibility or safe operation. A vehicle-specific dash kit, wiring harness, antenna adapter or steering-wheel-control interface may be needed. The manufacturer's design supports double-DIN openings using adapter brackets; this does not make it a universal vehicle fit.

Steering-wheel-control learning is intended for compatible analog controls and does not work with every vehicle. Where required, the external interface is sold separately. CarPlay and Android Auto require a compatible phone and a USB data connection. Cameras and their installation are separate from the receiver. Use video features only when safely parked and in accordance with the manual.

Frequently Asked Questions

Does the BCPA12 have wireless Apple CarPlay or Android Auto?

No. Both use a wired USB connection on this model. Bluetooth calling and streaming are separate functions.

Is it a single-DIN or double-DIN receiver?

The chassis is single-DIN. The large display extends beyond the chassis, so confirm screen clearance as well as the mounting opening.

Can I adjust or remove the screen?

Yes. The display supports height adjustment, vertical and horizontal tilt, and detachment from the receiver.

Can I connect a backup camera?

Yes. The receiver has rear and front camera inputs. A compatible camera, wiring and installation are required separately.

Can I connect external amplifiers?

Yes. Front, rear and subwoofer preamp outputs provide six 4-volt connections for a compatible external audio system.

Does it play CDs or DVDs?

No. It is a digital media receiver with phone integration, Bluetooth, USB playback and AM/FM radio rather than a built-in disc mechanism.
