Bulk 1/0 AWG OFC Tru Spec #TeamWeldingWire Copper Wire Red

Product Overview

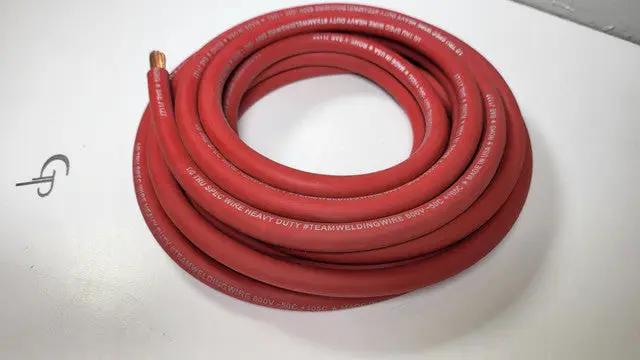

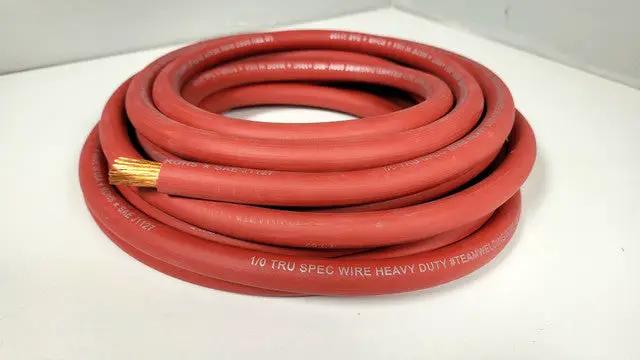

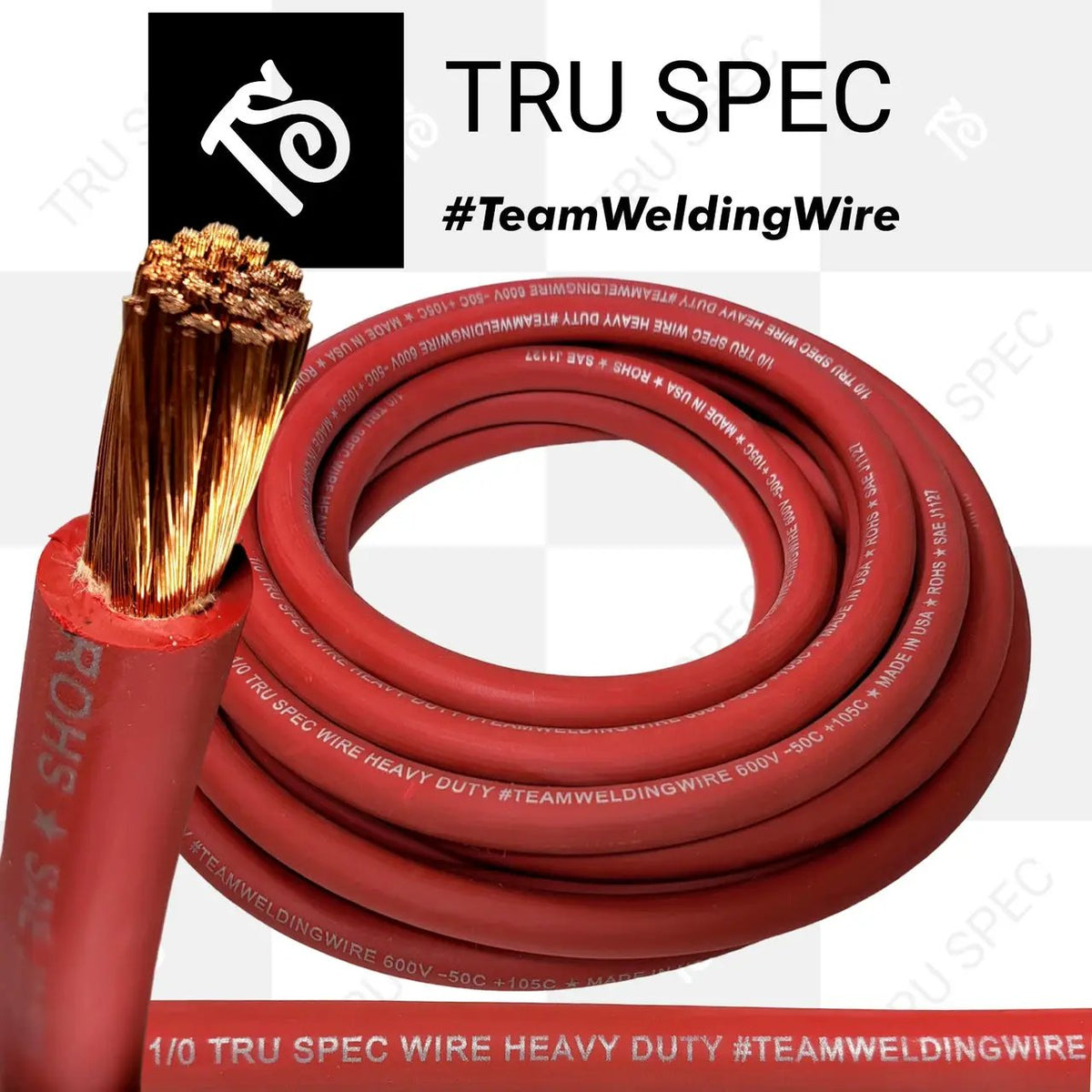

Tru Spec 1/0 AWG OFC red bulk copper wire is a USA-made wiring option with a stranded copper conductor and EPDM jacket. The red jacket provides a distinct visual choice for organizing a wiring layout. Select the bulk-length option needed for your project and check your termination requirements before ordering.

Key Features & Benefits

• 1/0 AWG copper welding-wire construction.

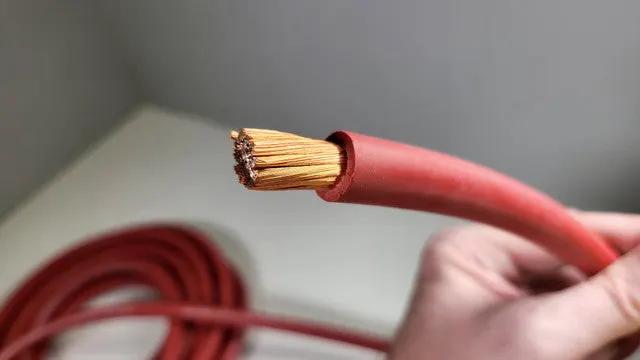

• 975 strands of 30 AWG copper in a rope-lay, bunch-stranded conductor.
• Low-smoke, halogen-free EPDM jacket with a wrapped paper separator.
• Bulk ordering options for installations needing more than a short lead.
• Made in the USA.

Technical Specifications

• Brand: Tru Spec.
• Series: #TeamWeldingWire.
• Conductor size: 1/0 AWG.
• Conductor: 975 copper strands, 30 AWG each.
• Jacket color: Red.
• Insulation thickness: 0.080 inch.
• Overall outside diameter: 0.533 inch (13.54 mm).
• Supplier-specified temperature range: -50°C to +105°C.
• Bulk option labels: 25, 50 and 100. Confirm the selected quantity before checkout.

Why Choose This Product?

The detailed strand, jacket and outside-diameter specifications make it easier to plan terminations and routing before the wire arrives. This is raw bulk cable for a planned installation, not a pre-terminated vehicle-specific harness.

Installation & Compatibility Notes

Confirm conductor size, outside diameter and compatibility with the terminals and circuit protection in your system. The supplier describes the jacket as resistant to abrasion and several automotive fluids; that does not replace proper routing and protection. Consult a qualified installer when choosing wire for a particular electrical load. No fuse, lug or vehicle-specific installation kit is described as included.

Frequently Asked Questions

Is this a pre-terminated cable?

No. This listing is for bulk wire, not a cable with installed terminals.

What conductor is used?

The supplier specifies a rope-lay, bunch-stranded copper conductor with 975 strands of 30 AWG wire.

What is the outside diameter?

The supplier lists an overall outside diameter of 0.533 inch, or 13.54 mm.

Does the red or black jacket change the wire gauge?

No. Both color listings identify the conductor as 1/0 AWG. Choose the appropriate color for your installation plan.
