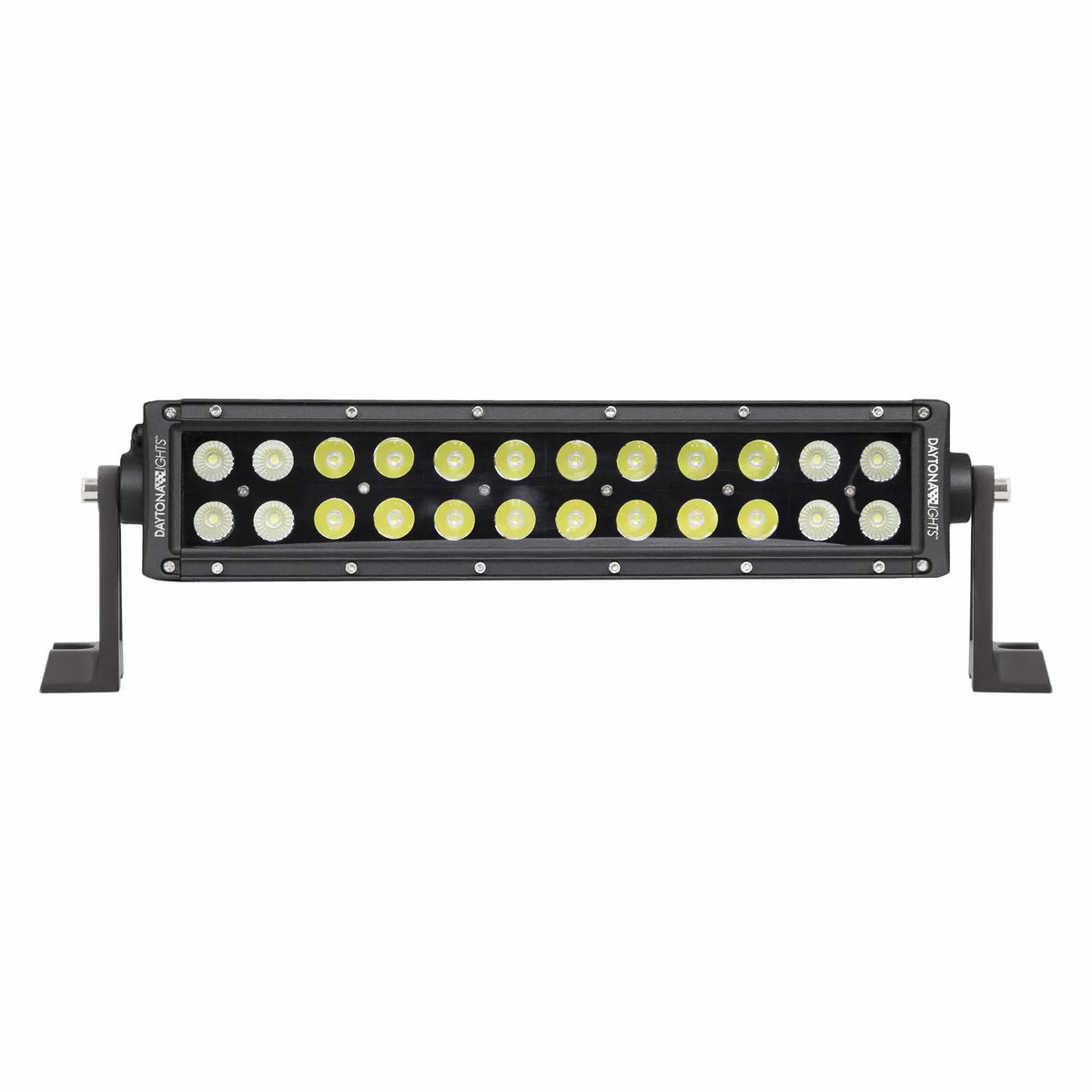

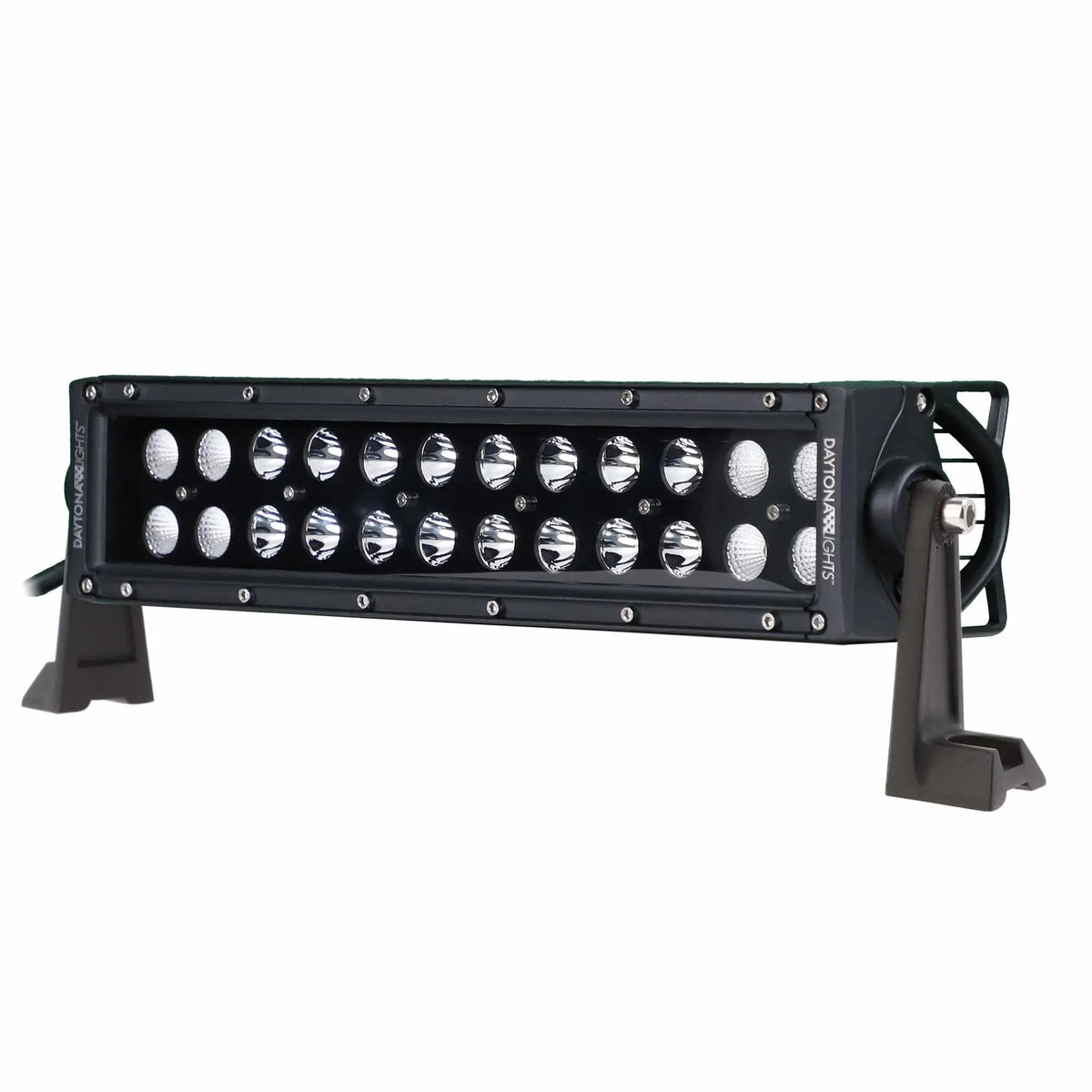

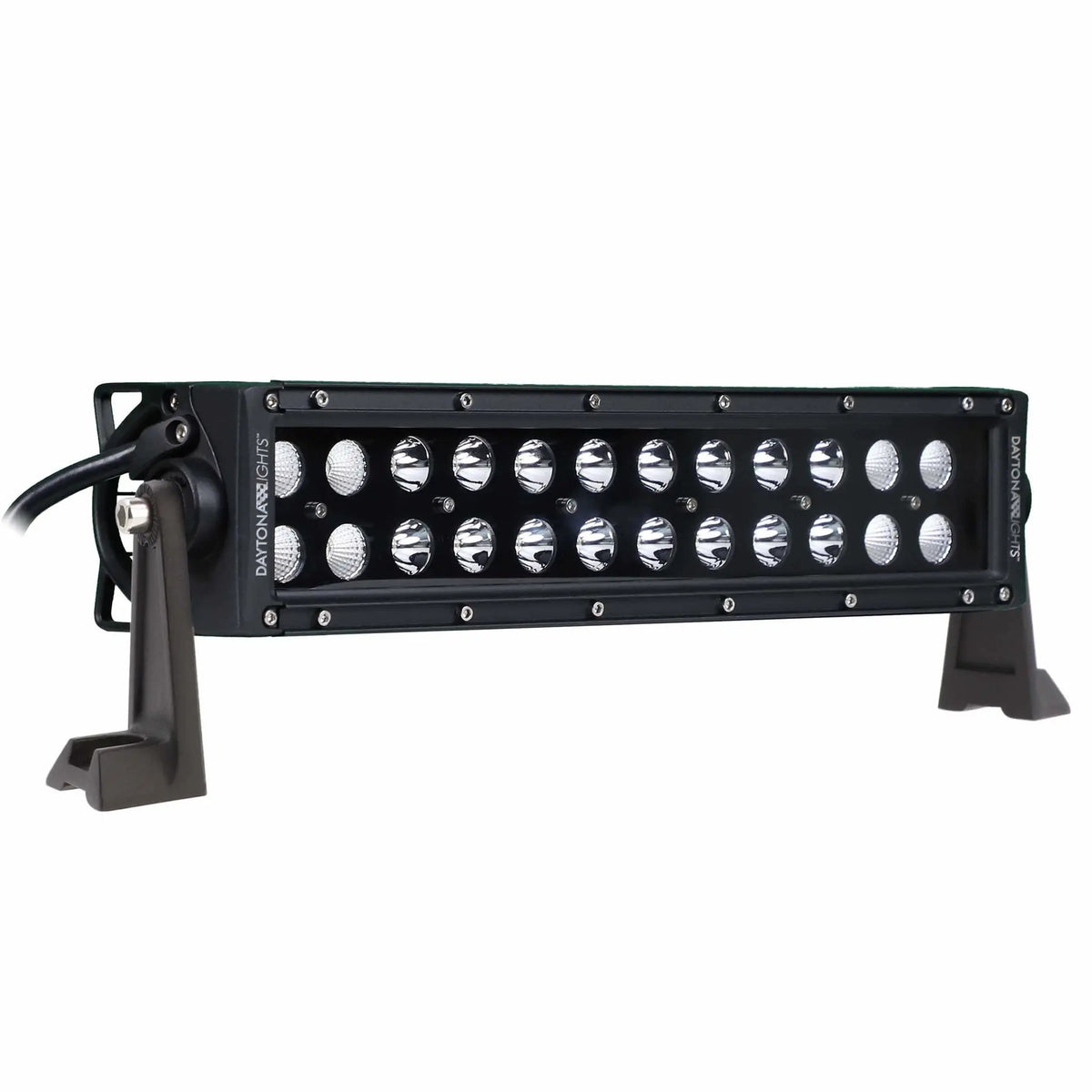

Daytona Lights DL-BDR14 14-inch Blackout Dual Row LED Light Bar
Key features
- Power: 72W
- Light output: 4,320 raw lumens
- Current draw: 5.2A at 13.8V
- Color temperature: 6000K
- LED count: 24
- IP67 rating
Daytona Lights DL-BDR14 14-inch Blackout Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Daytona Lights DL-BDR14 14-inch Blackout Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a 14-inch auxiliary LED light bar for a custom vehicle installation with the Daytona Lights DL-BDR14. Its dual-row LED design delivers 4,320 raw lumens, while a black die-cast aluminum housing and polycarbonate lens form the light bar’s exterior assembly.
Key Features & Benefits
- 4,320 raw lumens: Adds auxiliary light output for applications suited to this light bar.

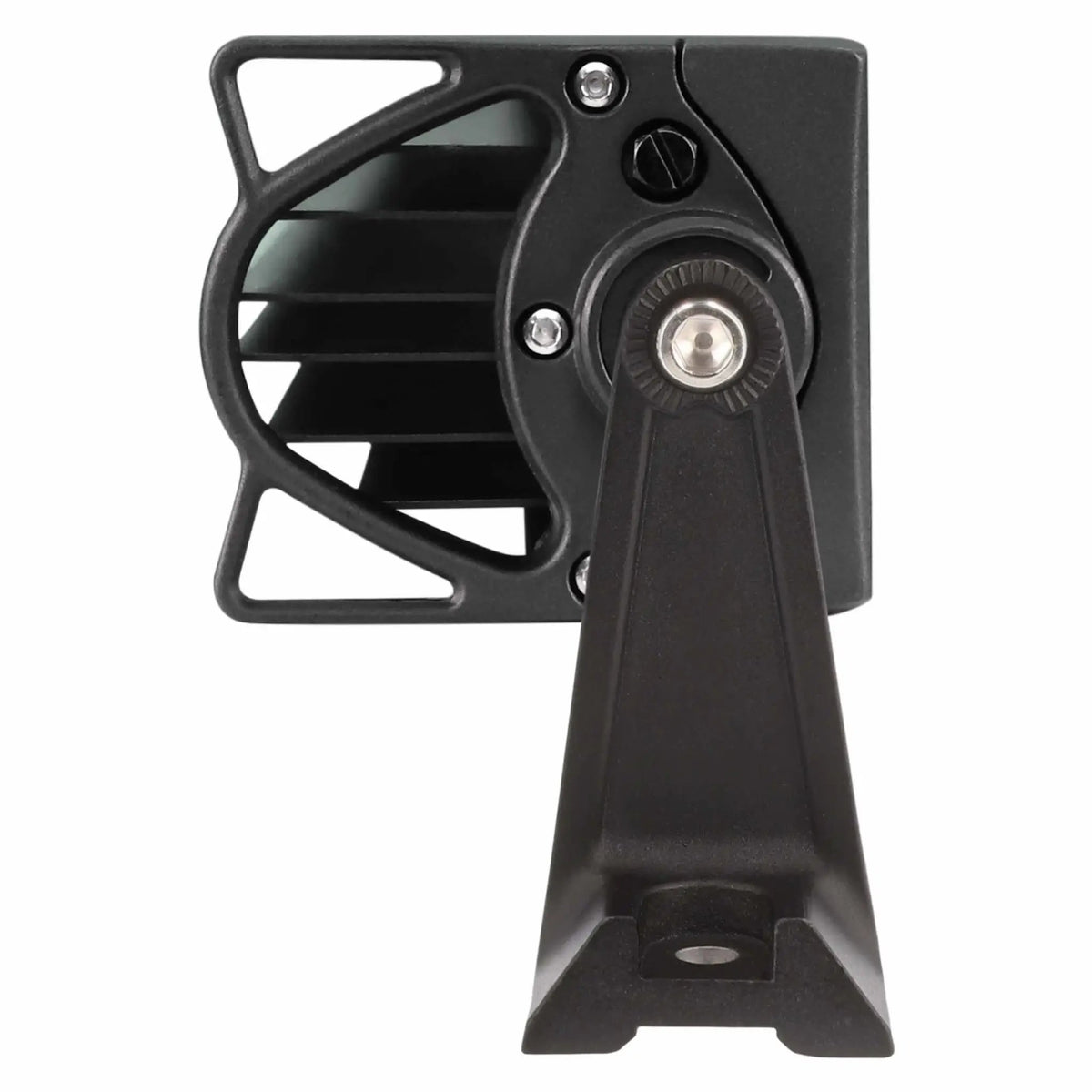

- Die-cast aluminum housing: Helps dissipate heat from the 72W light bar.
- Polycarbonate lens and breather membrane: Support exterior installation.
- Epoxy-encapsulated electronics: Protect the electronics within the assembly.
- Reverse-polarity protection: Provides protection against reverse-polarity connection.

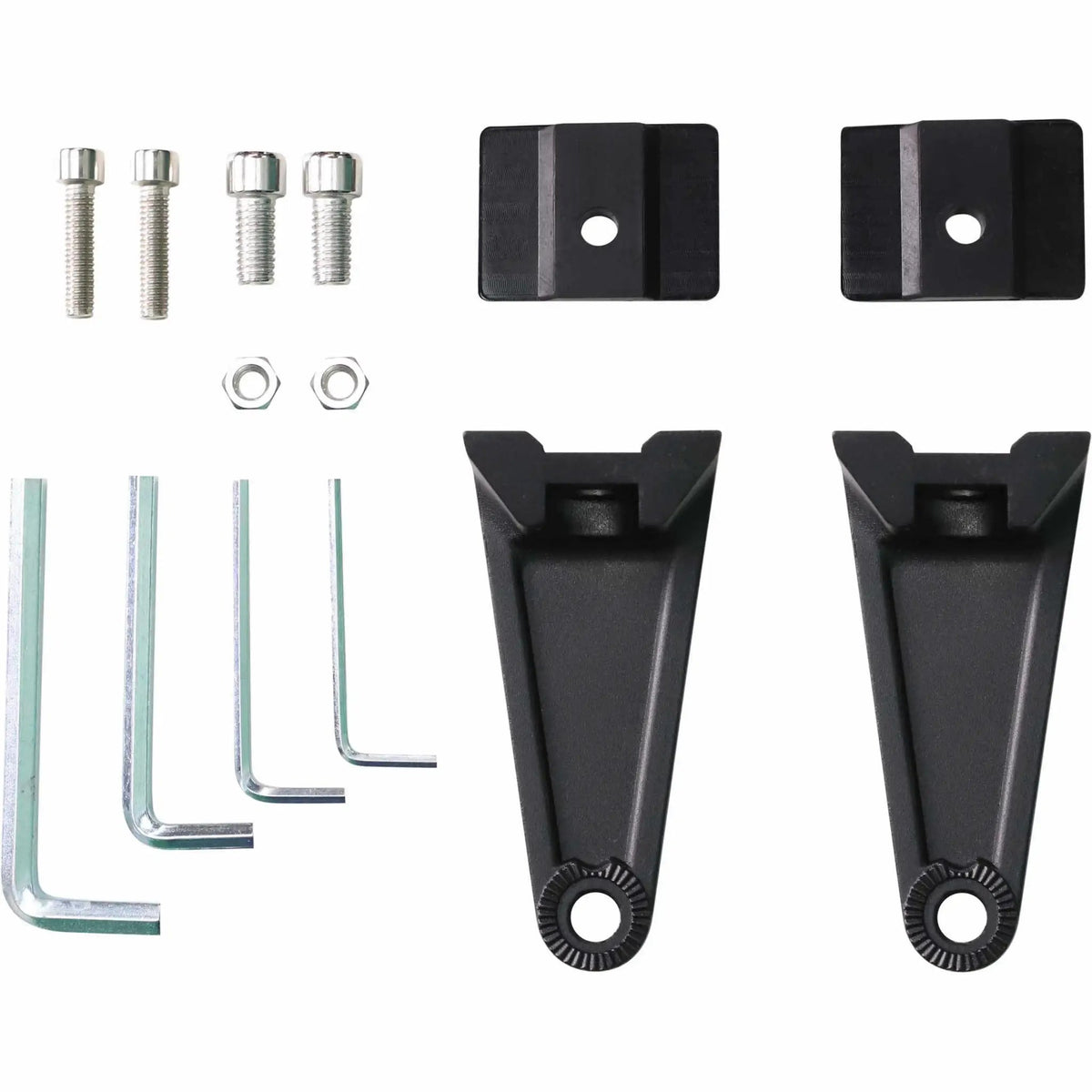

- Mount and stainless-steel hardware: The light-bar mount is included, and stainless-steel hardware is specified.
Technical Specifications
| Specification | Value |
|---|---|
| Product | Daytona Lights DL-BDR14 14-inch Blackout Dual Row LED Light Bar |
| Power | 72W |
| Light output | 4,320 raw lumens |
| Current draw | 5.2A at 13.8V |
| Color temperature | 6000K |
| LED count | 24 |
| IP rating | IP67 |
| Input voltage | 10–30V DC |
| Housing | Black die-cast aluminum |
| Lens | Polycarbonate |
| Electronics | Epoxy-encapsulated |
| Polarity protection | Reverse-polarity protection |
| Operating temperature | -40°F to 140°F |
| Breather | Military breather membrane |
| Hardware | Stainless-steel hardware |
| Included mount | Light-bar mount |
| Warranty | Manufacturer one-year limited warranty |
Why Choose This Product?
The DL-BDR14 combines a 14-inch dual-row format with a 72W rating and 6000K color temperature. Its stated voltage range and reverse-polarity protection are useful details to consider when planning a custom auxiliary-light installation.
Installation & Compatibility Notes
This light bar is for universal custom installation, not a model-specific direct replacement. Check mounting clearance, wiring requirements, and vehicle compatibility before ordering. Install and use auxiliary and colored lighting appropriately for the application.
Frequently Asked Questions
Is the DL-BDR14 a direct-fit replacement for a specific vehicle?
No. It is intended for universal custom installation, not a model-specific direct replacement.
What input voltage does this light bar use?
Its specified input voltage is 10–30V DC. Current draw is 5.2A at 13.8V.
What comes with the light bar?
A light-bar mount is included. Stainless-steel hardware is also specified.
What is the manufacturer warranty?
The product details state a manufacturer one-year limited warranty.
