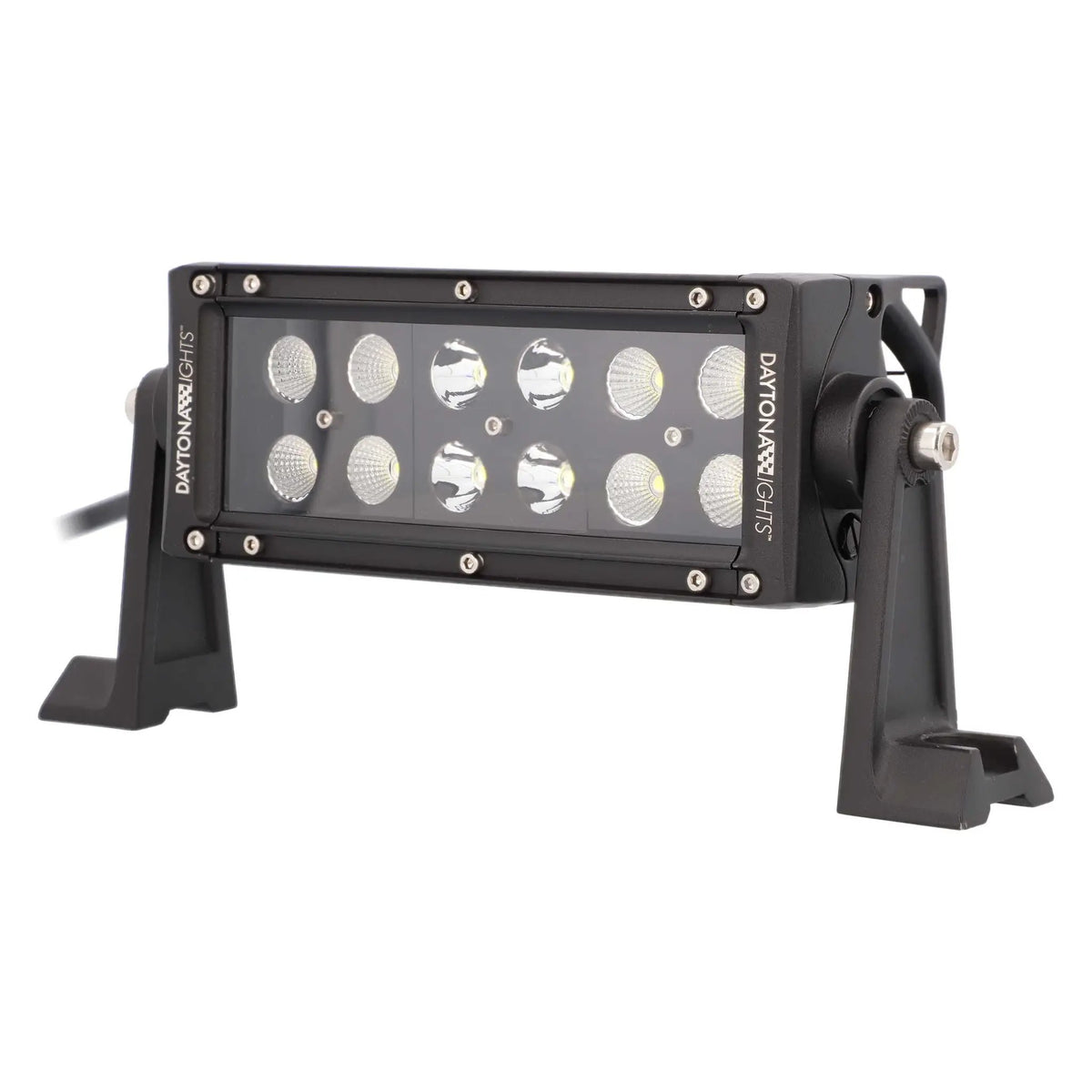

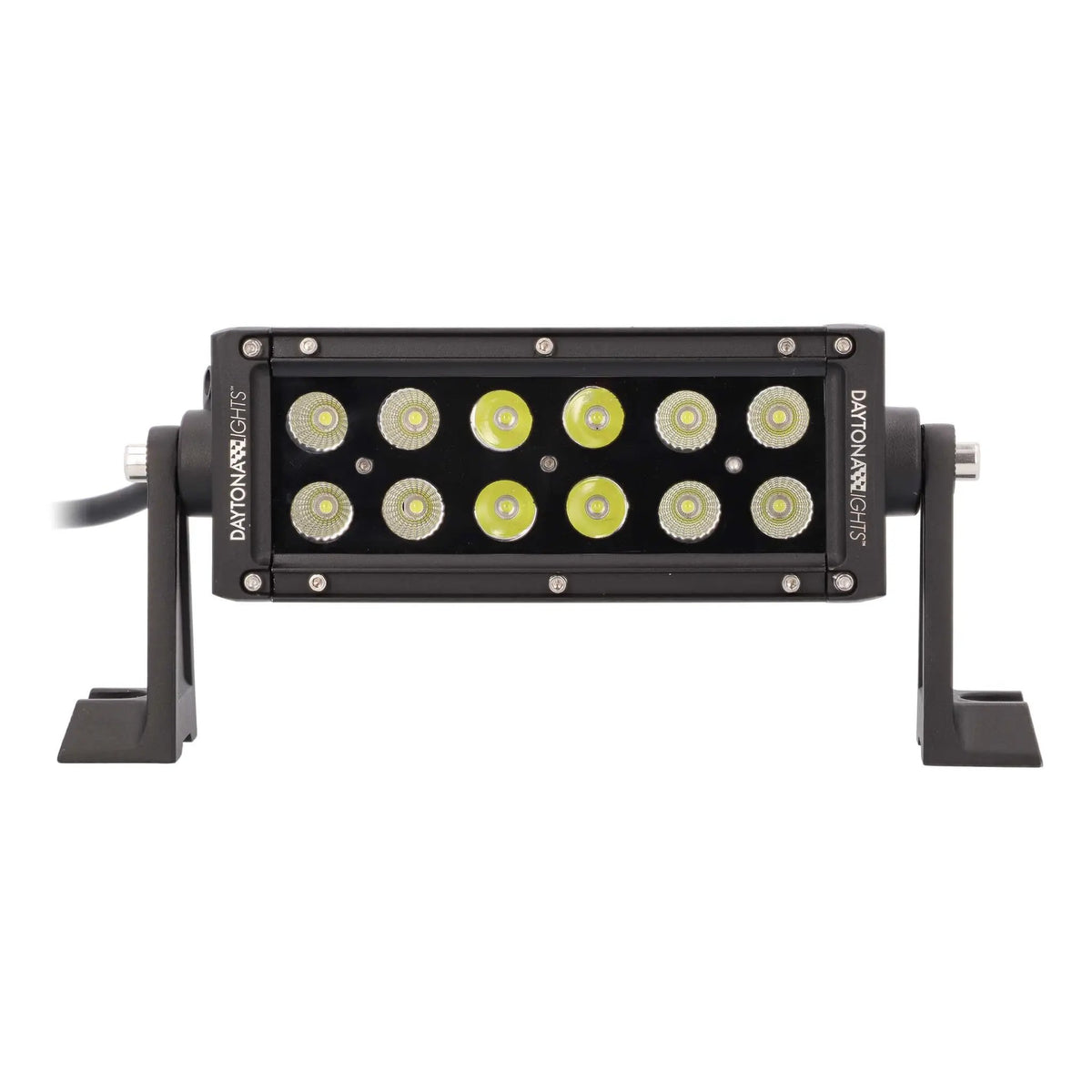

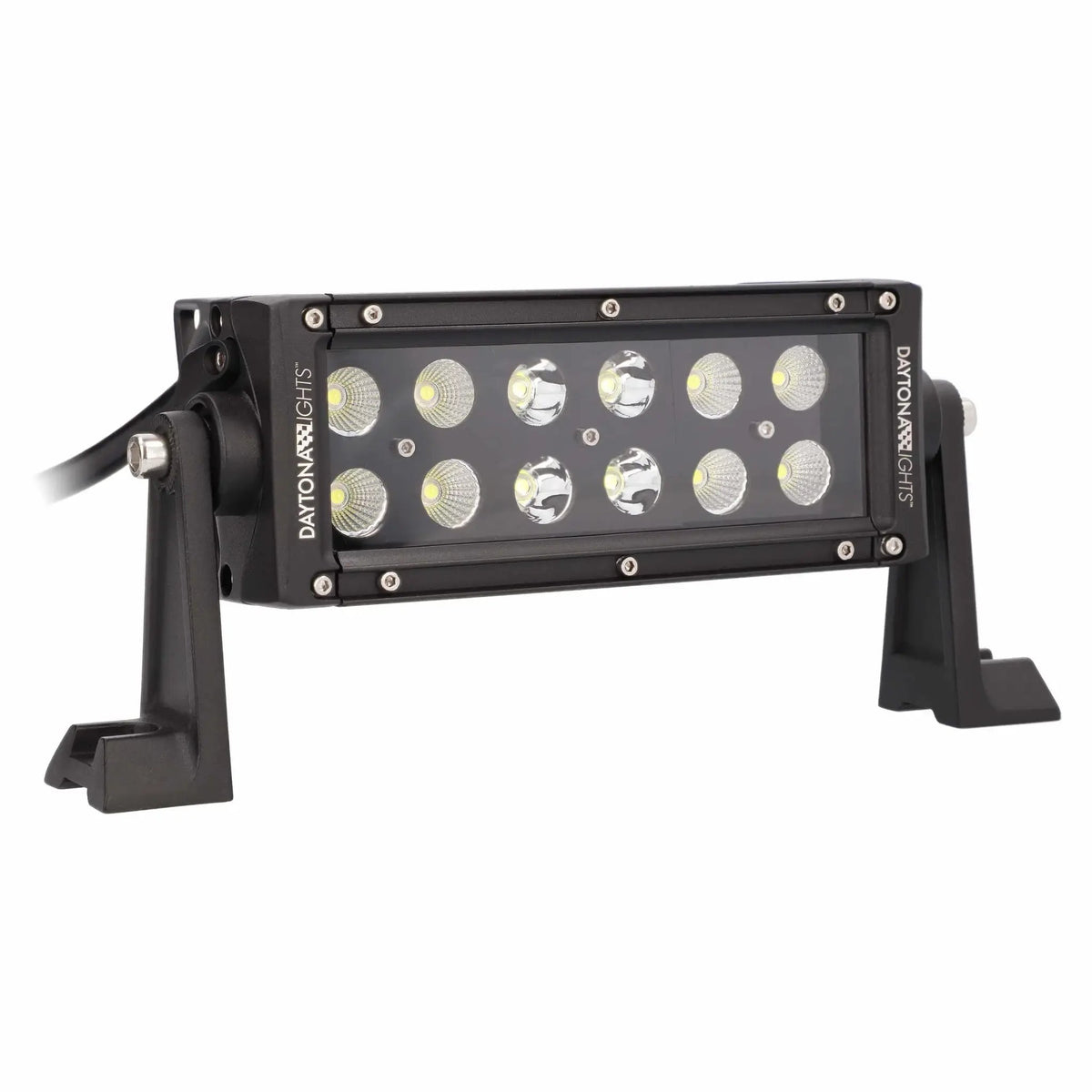

Daytona Lights DL-BDR8 8-inch Blackout Dual Row LED Light Bar
Key features
- Power: 36W
- Light output: 2,160 raw lumens
- Current draw: 2.6A at 13.8V
- Color temperature: 6000K
- LED count: 12
- IP67 rating
Daytona Lights DL-BDR8 8-inch Blackout Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Daytona Lights DL-BDR8 8-inch Blackout Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add auxiliary light with the Daytona Lights DL-BDR8 8-inch blackout dual row LED light bar. Its 36W output, 2,160 raw lumens, and black die-cast aluminum body make it a compact option for custom lighting installations.
Key Features & Benefits
- Dual-row LED design: Twelve LEDs produce 2,160 raw lumens for auxiliary lighting.

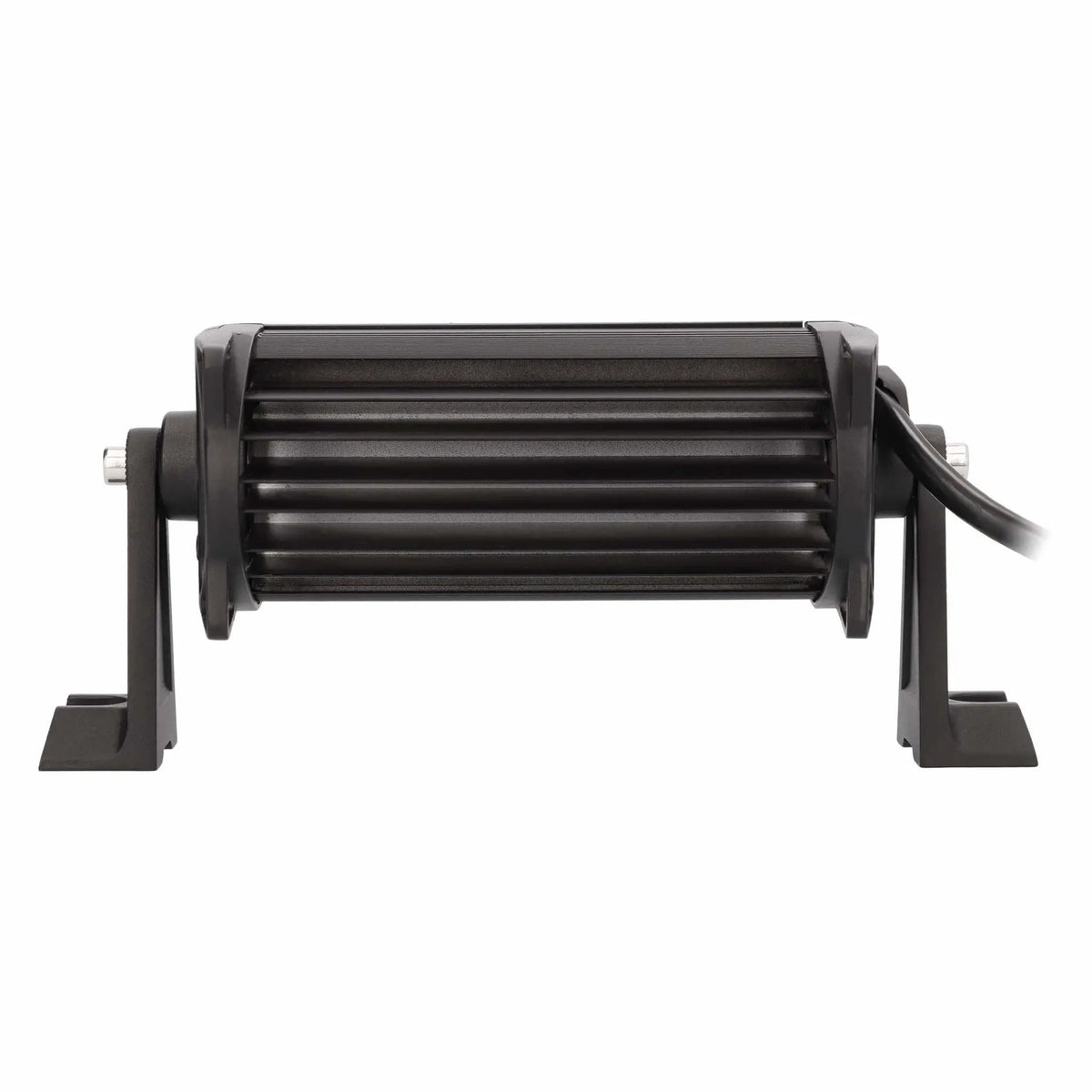

- Heat-dissipating housing: The die-cast aluminum body helps dissipate heat.
- Exterior-ready construction: An IP67 rating, polycarbonate lens, and military breather membrane support exterior installation.
- Protected electronics: Epoxy-encapsulated electronics and reverse-polarity protection are built into the light bar.
- Mounting hardware included: The package includes a light-bar mount and stainless-steel hardware.
Technical Specifications
| Brand | Daytona Lights |
|---|---|
| Model | DL-BDR8 |

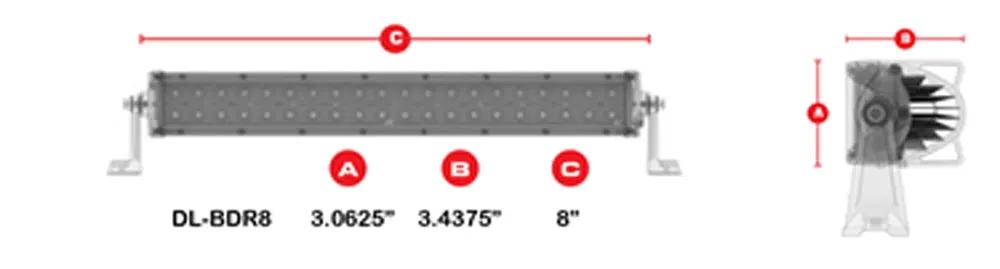

| Size | 8-inch |
| Power | 36W |
| Light output | 2,160 raw lumens |
| Current draw | 2.6A at 13.8V |
| Color temperature | 6000K |
| LED count | 12 |
| Rating | IP67 |
| Input voltage | 10–30V DC |
| Housing | Black die-cast aluminum |
| Lens | Polycarbonate |
| Electronics | Epoxy-encapsulated |
| Polarity protection | Reverse-polarity protection |
| Operating temperature | -40°F to 140°F |
| Breather membrane | Military breather membrane |
| Hardware | Stainless-steel hardware |
| Included | Light-bar mount |
| Warranty | Manufacturer one-year limited warranty |
Why Choose This Product?
The DL-BDR8 combines a compact 8-inch format with a stated 2,160 raw-lumen output. Its black housing and dual-row design offer a distinct look for custom auxiliary-light installations.
Installation & Compatibility Notes
This light bar is for universal custom installation, not a model-specific direct replacement. Check mounting clearance, wiring requirements, and vehicle compatibility before ordering. Install and use auxiliary and colored lighting appropriately for the application.
Frequently Asked Questions
What is the light bar’s power and light output?
It is rated at 36W and 2,160 raw lumens.
What voltage does the DL-BDR8 use?
Its input voltage range is 10–30V DC. Current draw is 2.6A at 13.8V.
Does this light bar directly replace a factory light?
No. It is intended for universal custom installation and is not a model-specific direct replacement.
What comes with the light bar?
A light-bar mount is included. The specifications also list stainless-steel hardware.
What should I check before ordering?
Check your mounting clearance, wiring requirements, and vehicle compatibility for the intended installation.
