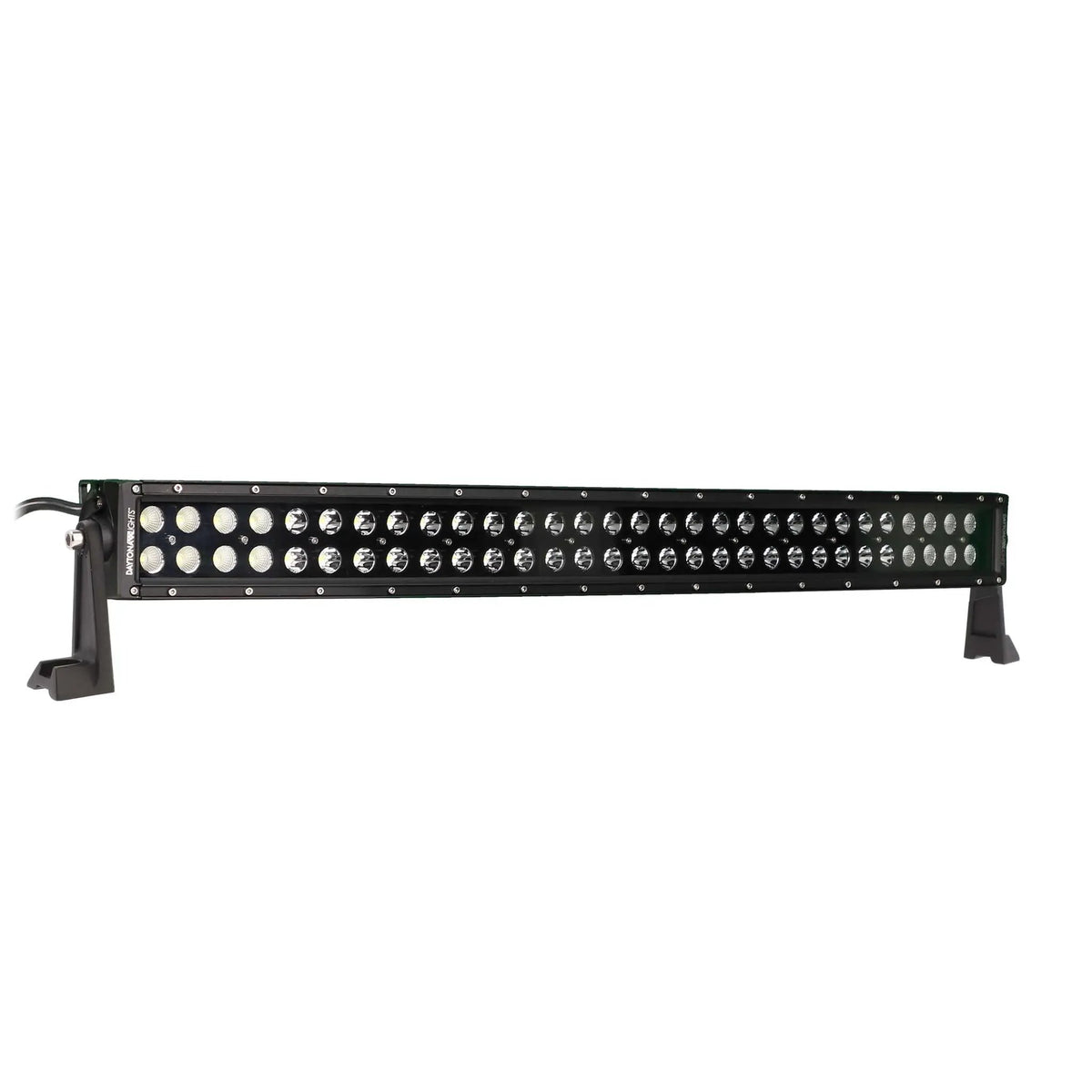

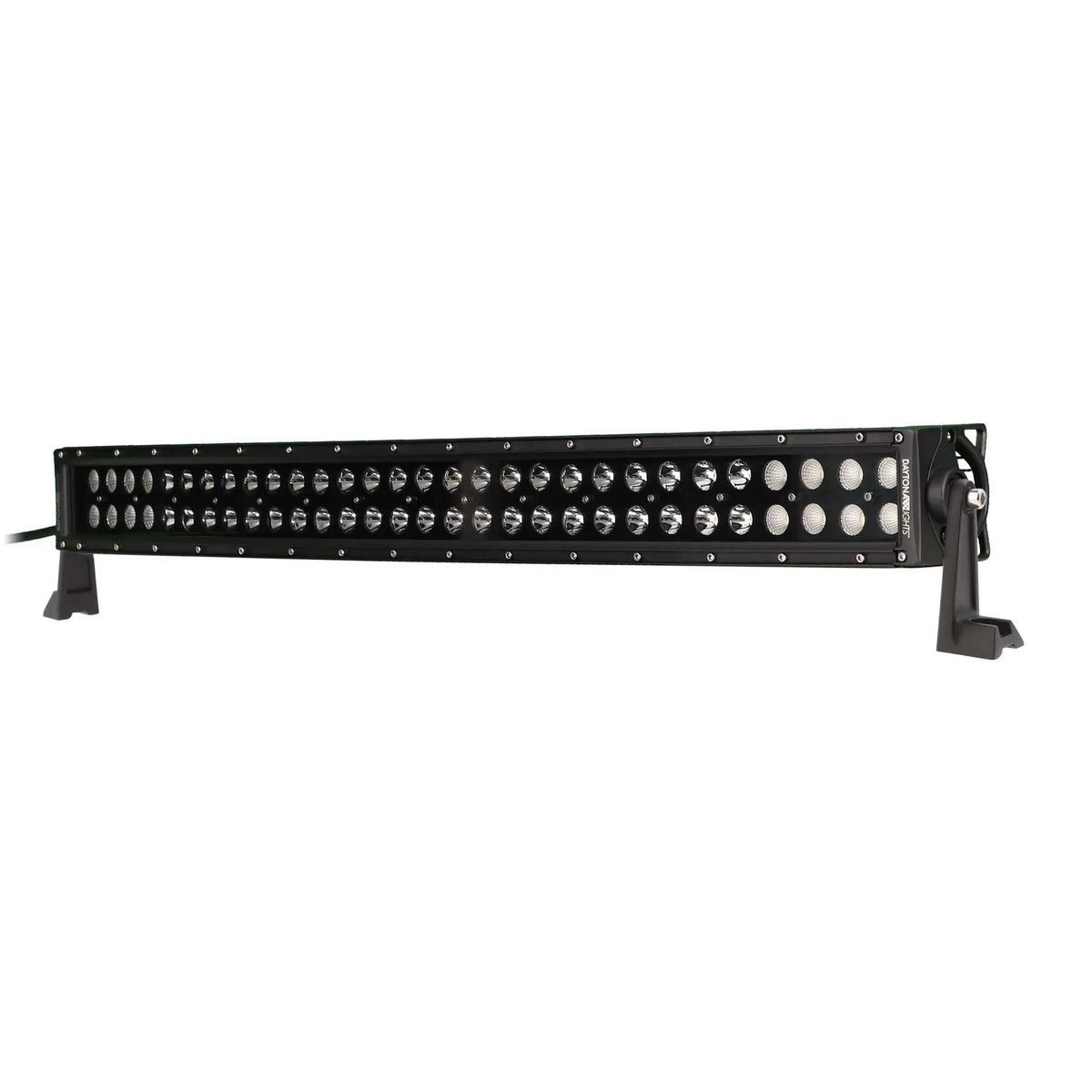

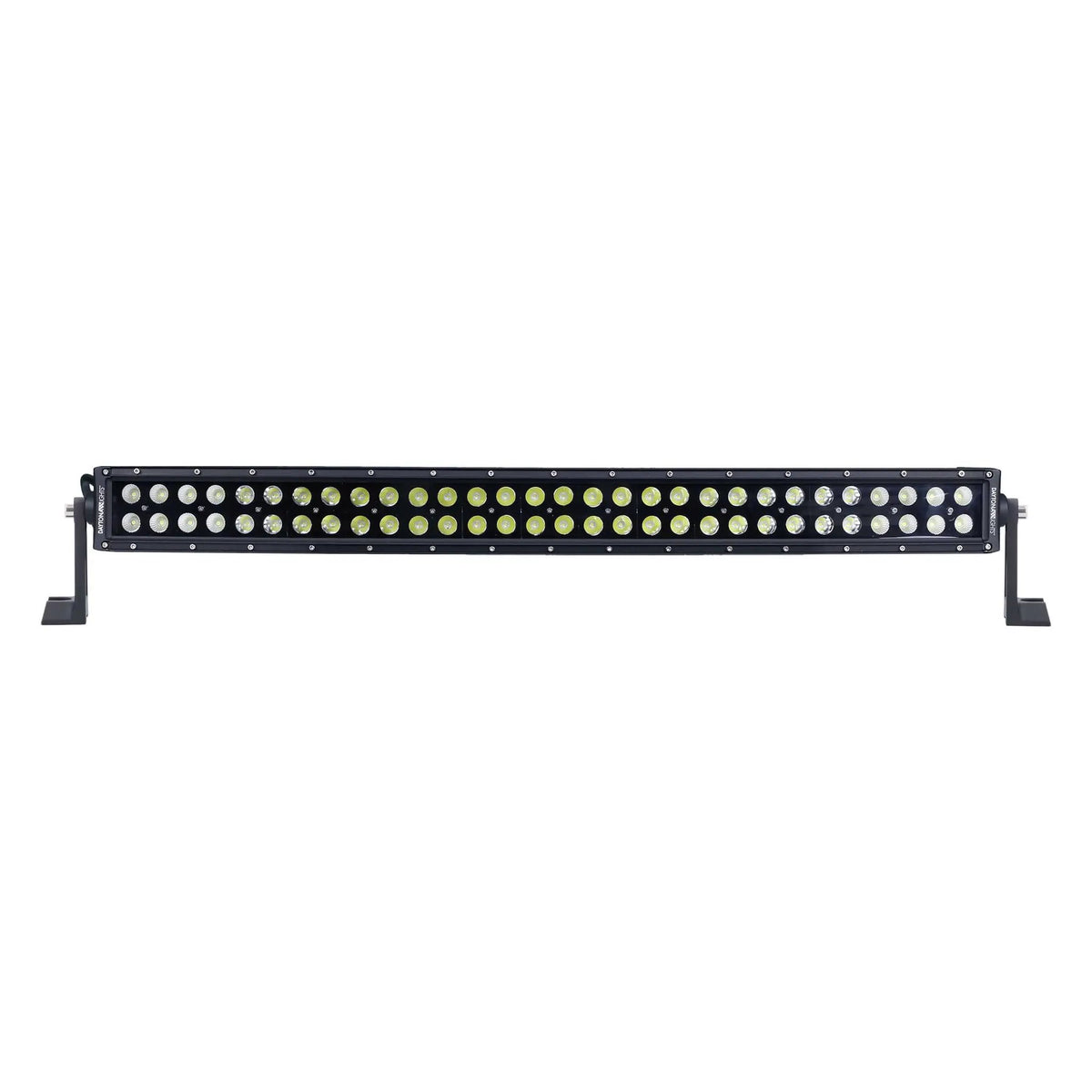

Daytona Lights DL-BDRC32 32-inch Blackout Curved Dual Row LED Light Bar
Key features
- Power: 180W
- Light output: 10,800 raw lumens
- Current draw: 12.1A at 13.8V
- Color temperature: 6000K
- Beam: 90° flood / 8° spot combination
- LED count: 60
Daytona Lights DL-BDRC32 32-inch Blackout Curved Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Daytona Lights DL-BDRC32 32-inch Blackout Curved Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add auxiliary light to a custom vehicle installation with the Daytona Lights DL-BDRC32 32-inch blackout curved dual row LED light bar. Its 90° flood and 8° spot combination beam, 10,800 raw lumens, and 6000K color temperature define its lighting setup.
Key Features & Benefits
- Combined beam: The 90° flood and 8° spot pattern brings both beam types into one light bar.

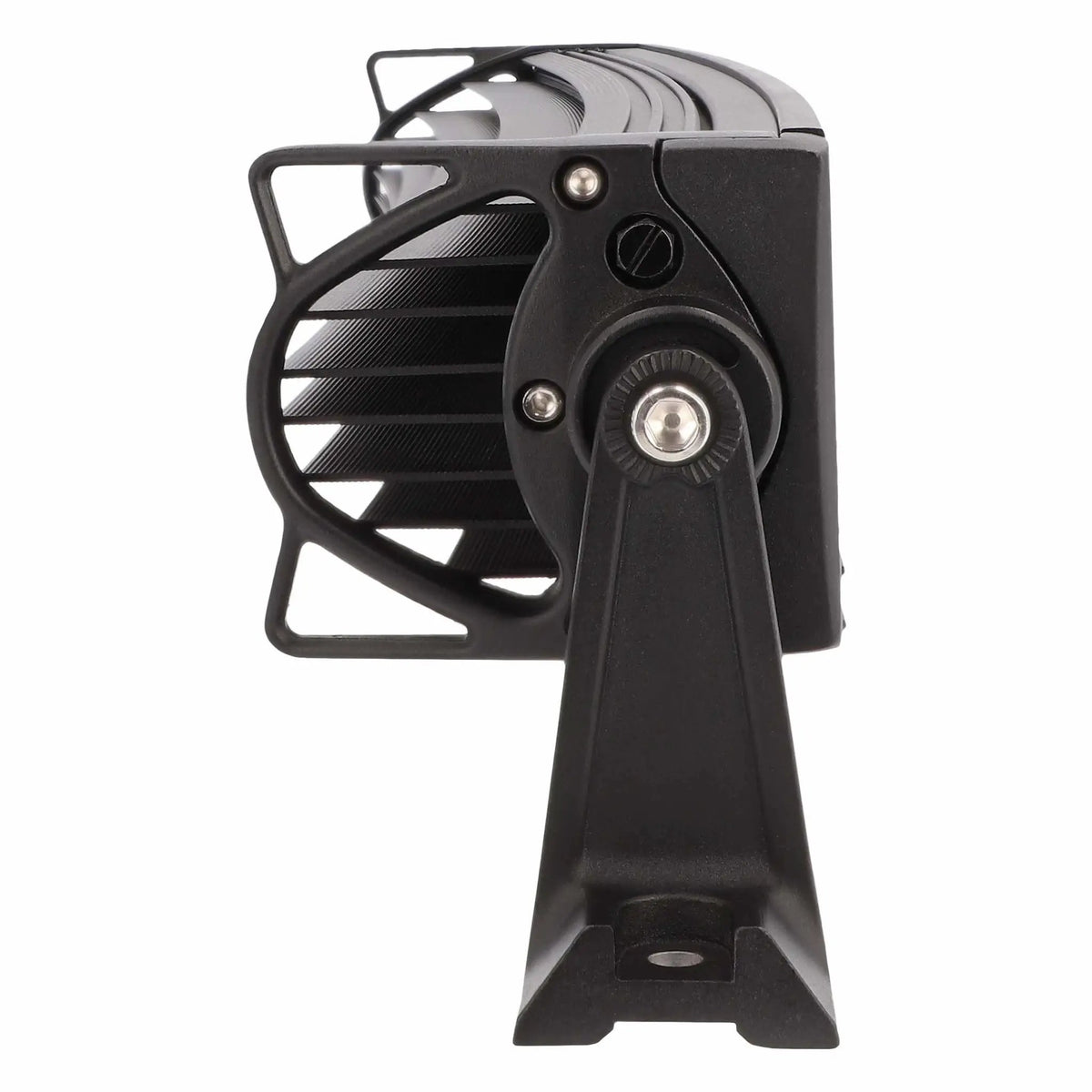

- Blackout housing: The black die-cast aluminum body gives the assembly a dark finish and helps dissipate heat.
- Exterior-ready construction: A polycarbonate lens, epoxy-encapsulated electronics, and IP67 rating are specified for the bar.
- Electrical protection: Reverse-polarity protection and a 10–30V DC input range support installation planning.

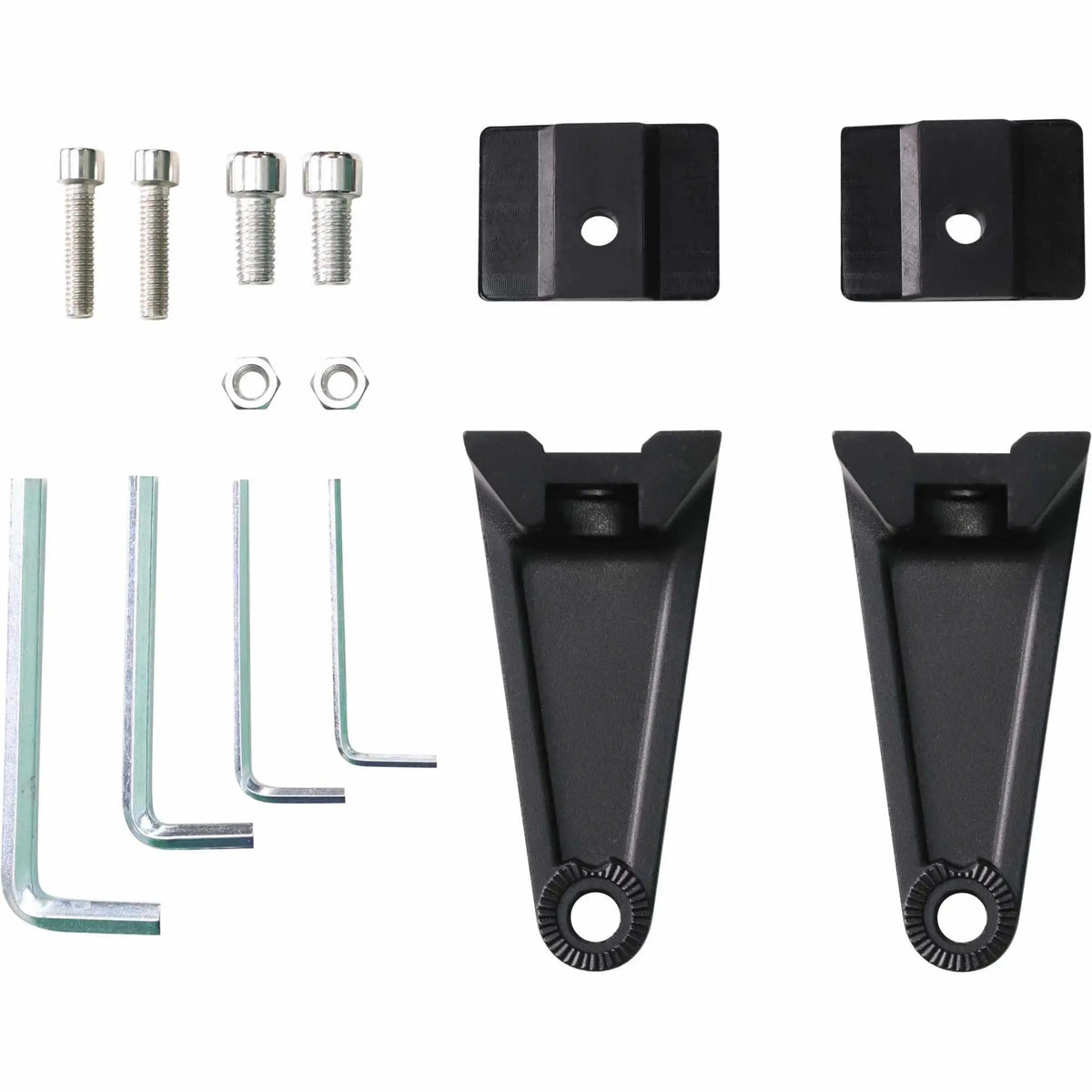

- Mount included: The light-bar mount and stainless-steel hardware are listed with the product.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Daytona Lights |
| Model | DL-BDRC32 |

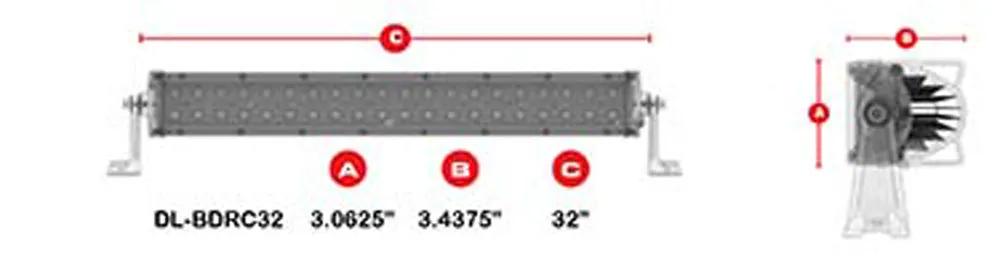

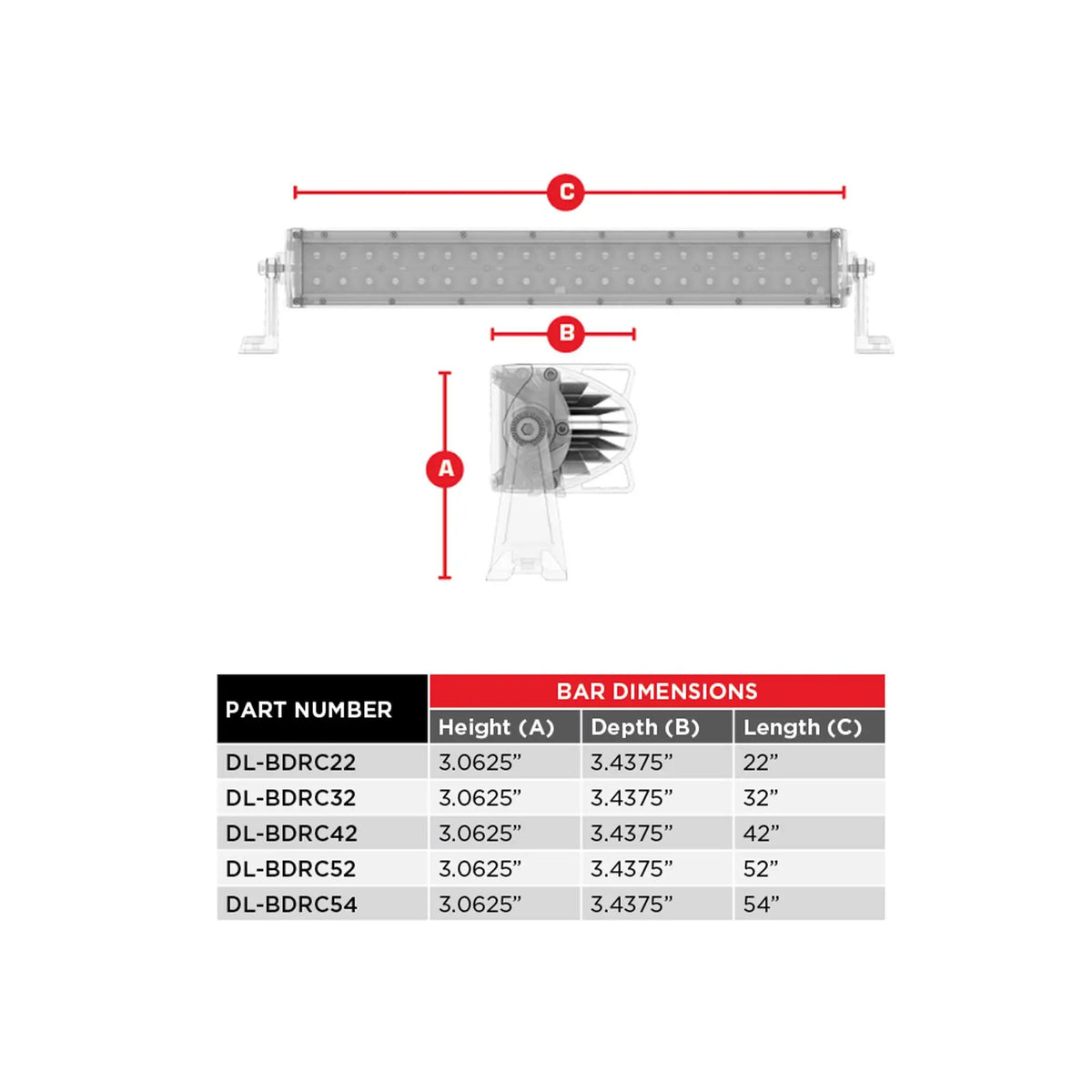

| Length | 32 inches |
| Configuration | Curved, dual row |
| Power | 180W |
| Light output | 10,800 raw lumens |
| Current draw | 12.1A at 13.8V |
| Color temperature | 6000K |
| Beam | 90° flood / 8° spot combination |
| LED count | 60 |
| Rating | IP67 |
| Input voltage | 10–30V DC |
| Housing | Black die-cast aluminum |
| Lens | Polycarbonate |
| Electronics | Epoxy-encapsulated |
| Protection | Reverse-polarity protection |
| Operating temperature | -40°F to 140°F |
| Breather | Military breather membrane |
| Hardware | Stainless steel |
| Included | Light-bar mount |
| Warranty | Manufacturer one-year limited warranty |
Why Choose This Product?
The DL-BDRC32 combines a curved, dual-row form with a flood-and-spot beam pattern. Its specified 180W power and 10,800 raw-lumen output give you key figures to consider when comparing auxiliary light bars for a custom installation.
The aluminum housing helps dissipate heat, while the breather membrane and encapsulated electronics are part of its stated construction. Its 32-inch length also gives you a concrete measurement to compare against your planned mounting space.
Installation & Compatibility Notes
This light bar is intended for universal custom installation, not as a model-specific direct replacement. Check available mounting clearance, wiring requirements, and vehicle compatibility before ordering.
Plan the electrical installation around the 10–30V DC input range and the stated current draw of 12.1A at 13.8V. Auxiliary and colored lighting must be installed and used appropriately for the application.
Frequently Asked Questions
What beam pattern does the DL-BDRC32 use?
It has a combination beam with a 90° flood pattern and an 8° spot pattern.
What are its power and current draw ratings?
The light bar is rated at 180W. Its stated current draw is 12.1A at 13.8V.
Is this a direct replacement for a specific vehicle?
No. It is for universal custom installation, not a model-specific direct replacement. Check your vehicle and mounting space before ordering.
What comes with the light bar?
A light-bar mount is included. Stainless-steel hardware is also listed in the product specifications.
What input voltage does it support?
The specified input range is 10–30V DC.
