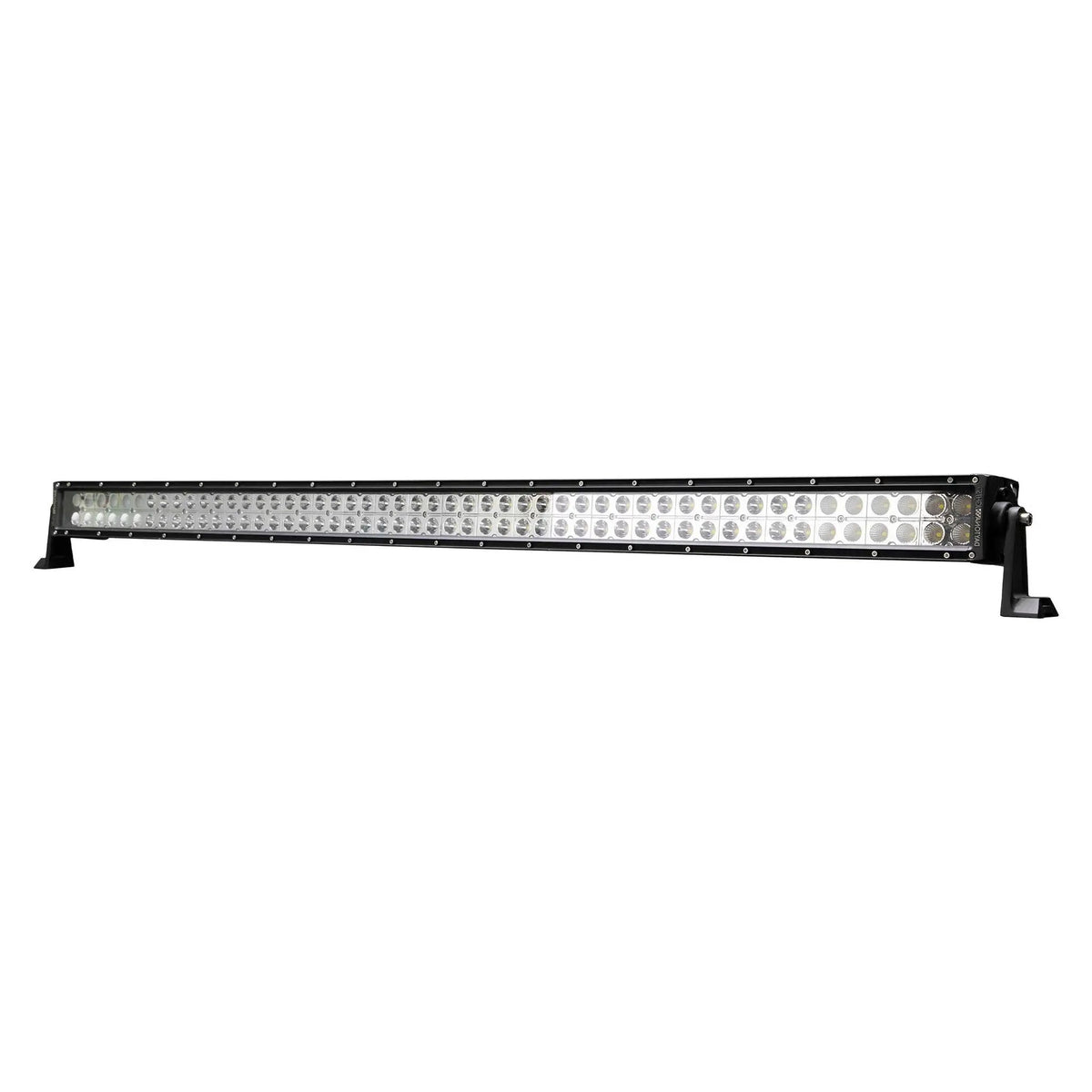

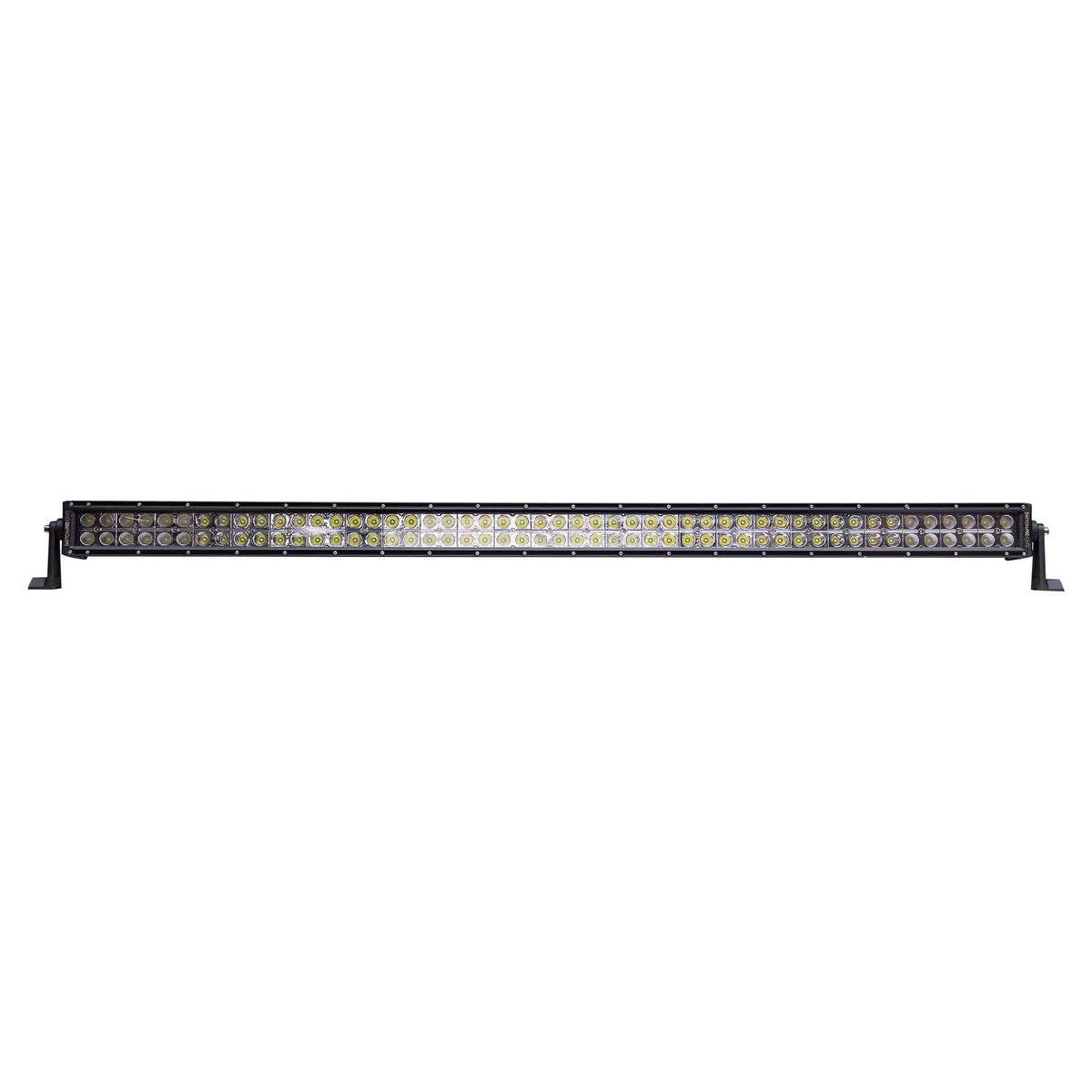

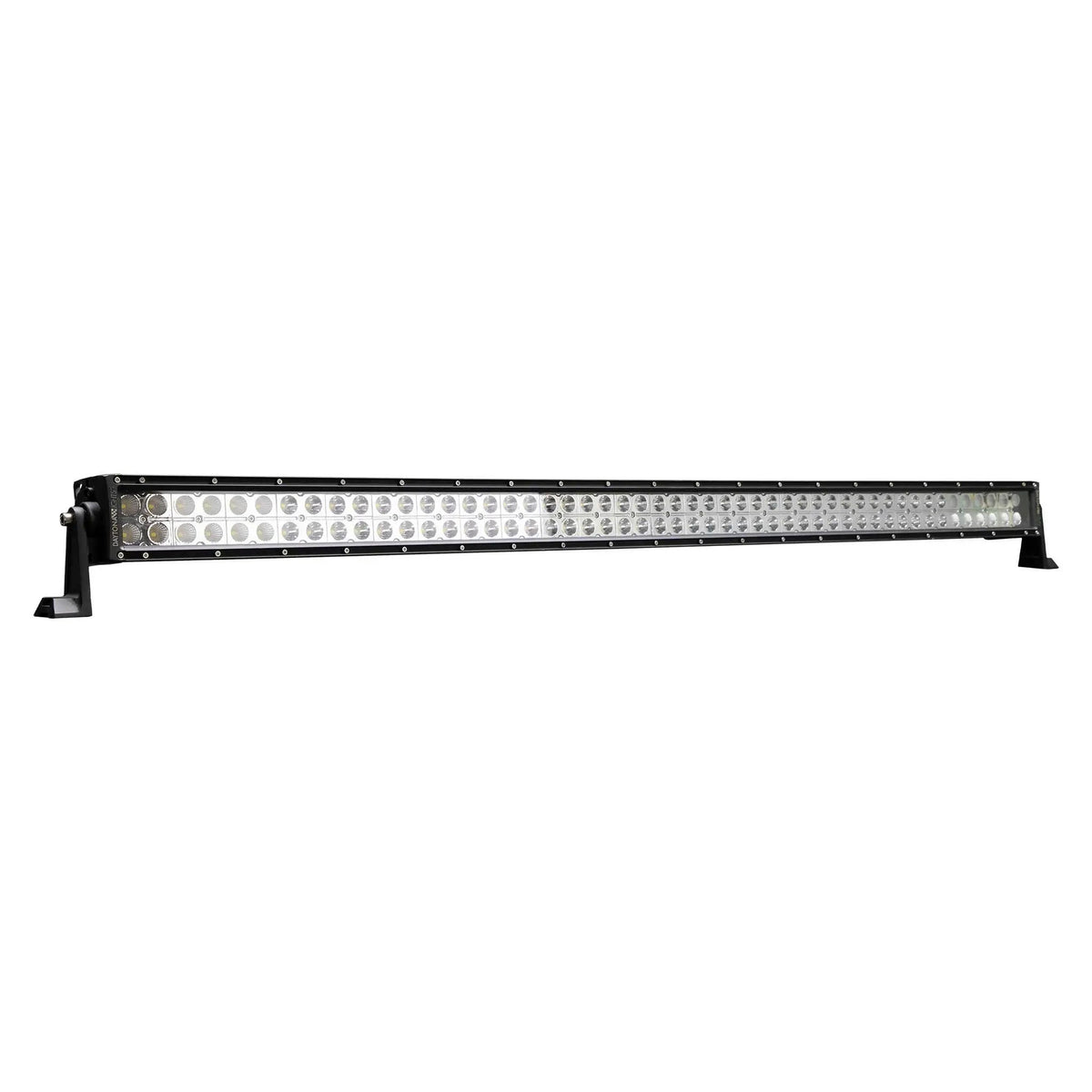

Daytona Lights DL-DR52 52-inch Dual Row LED Light Bar
Key features
- Power: 300W
- Light output: 18,000 raw lumens
- Current draw: 21.8A at 13.8V
- Color temperature: 6000K
- Beam: 90° flood / 8° spot combination
- IP67 rating
Daytona Lights DL-DR52 52-inch Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Daytona Lights DL-DR52 52-inch Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add wide-and-focused auxiliary light to a custom vehicle installation with the Daytona Lights DL-DR52 52-inch dual row LED light bar. Its 90° flood and 8° spot combination beam pairs with an 18,000 raw-lumen output and 6000K color temperature.
Key Features & Benefits
- Combination beam: The 90° flood and 8° spot pattern brings both wide and focused illumination to your setup.

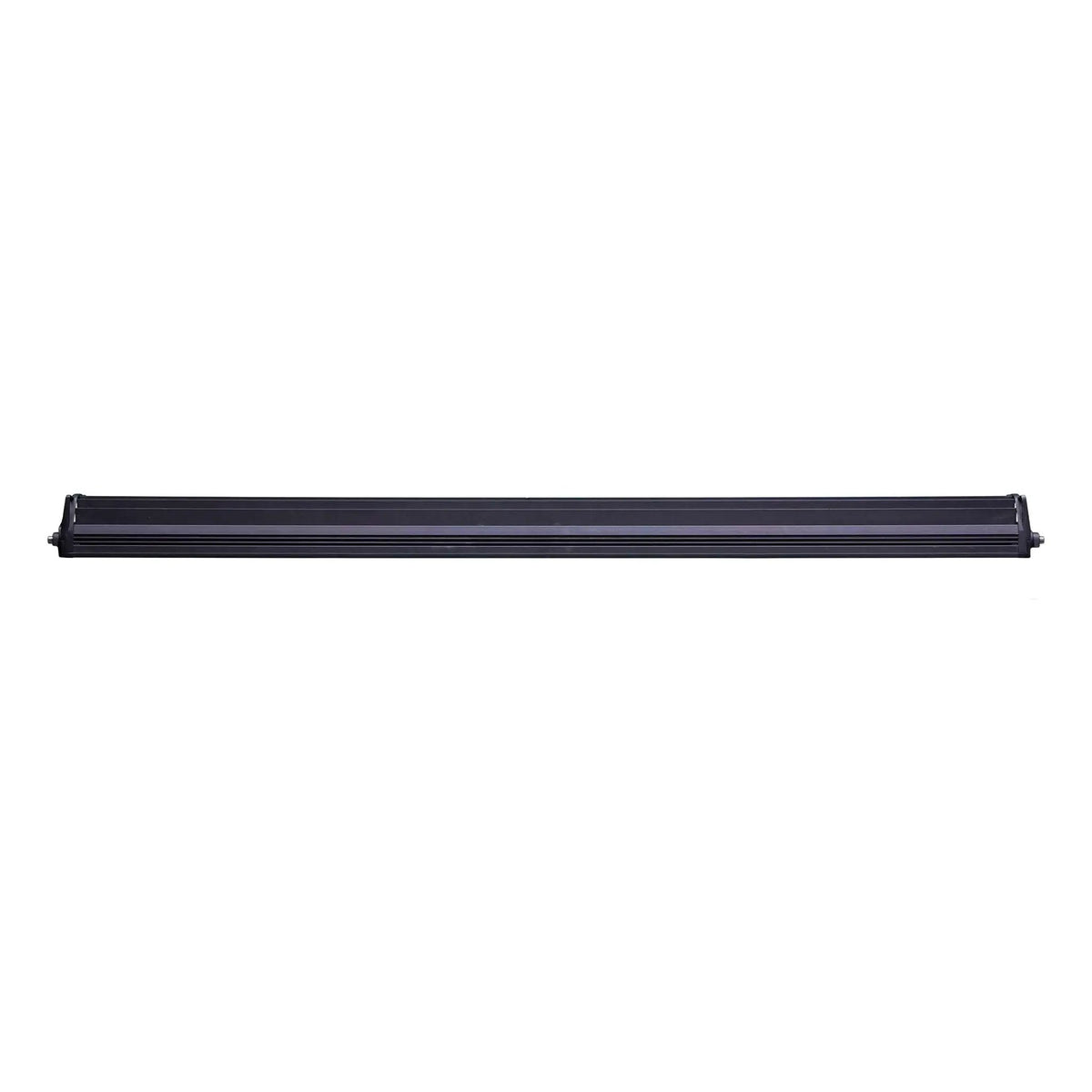

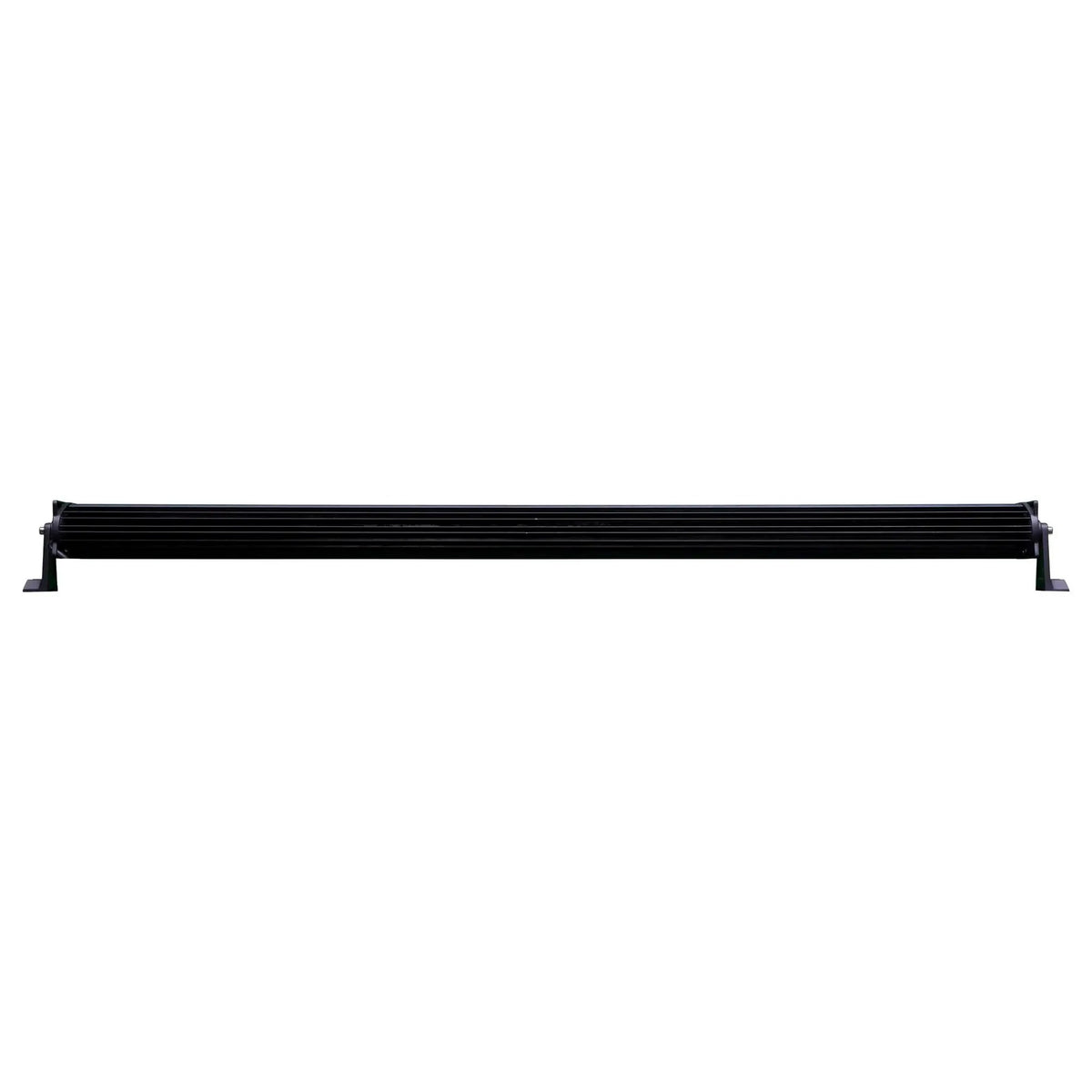

- Die-cast aluminum body: The black housing helps dissipate heat from the light bar.
- Exterior-ready construction: The polycarbonate lens, military breather membrane, and IP67 rating support exterior installation.
- Protected electronics: Epoxy-encapsulated electronics and reverse-polarity protection are built into the assembly.

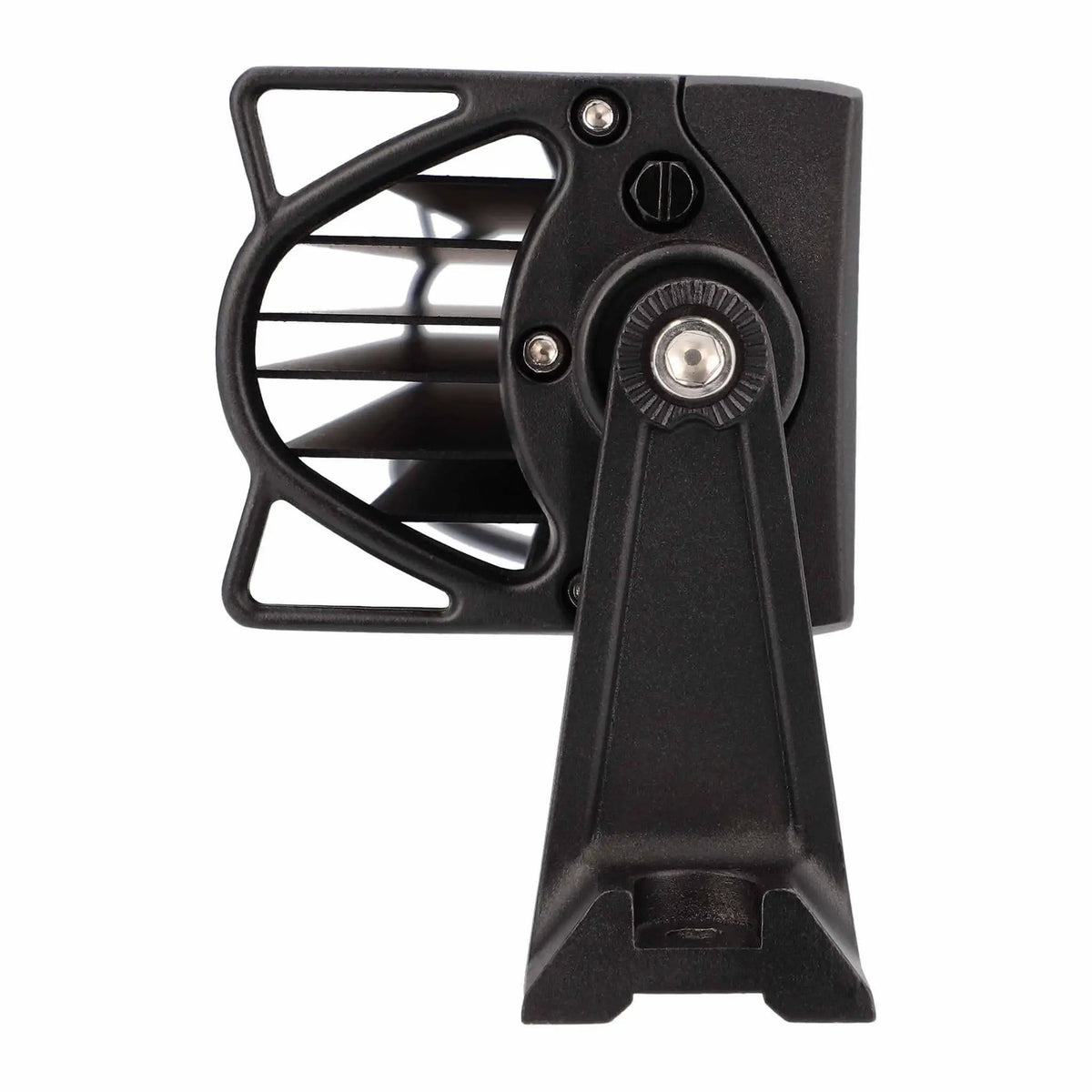

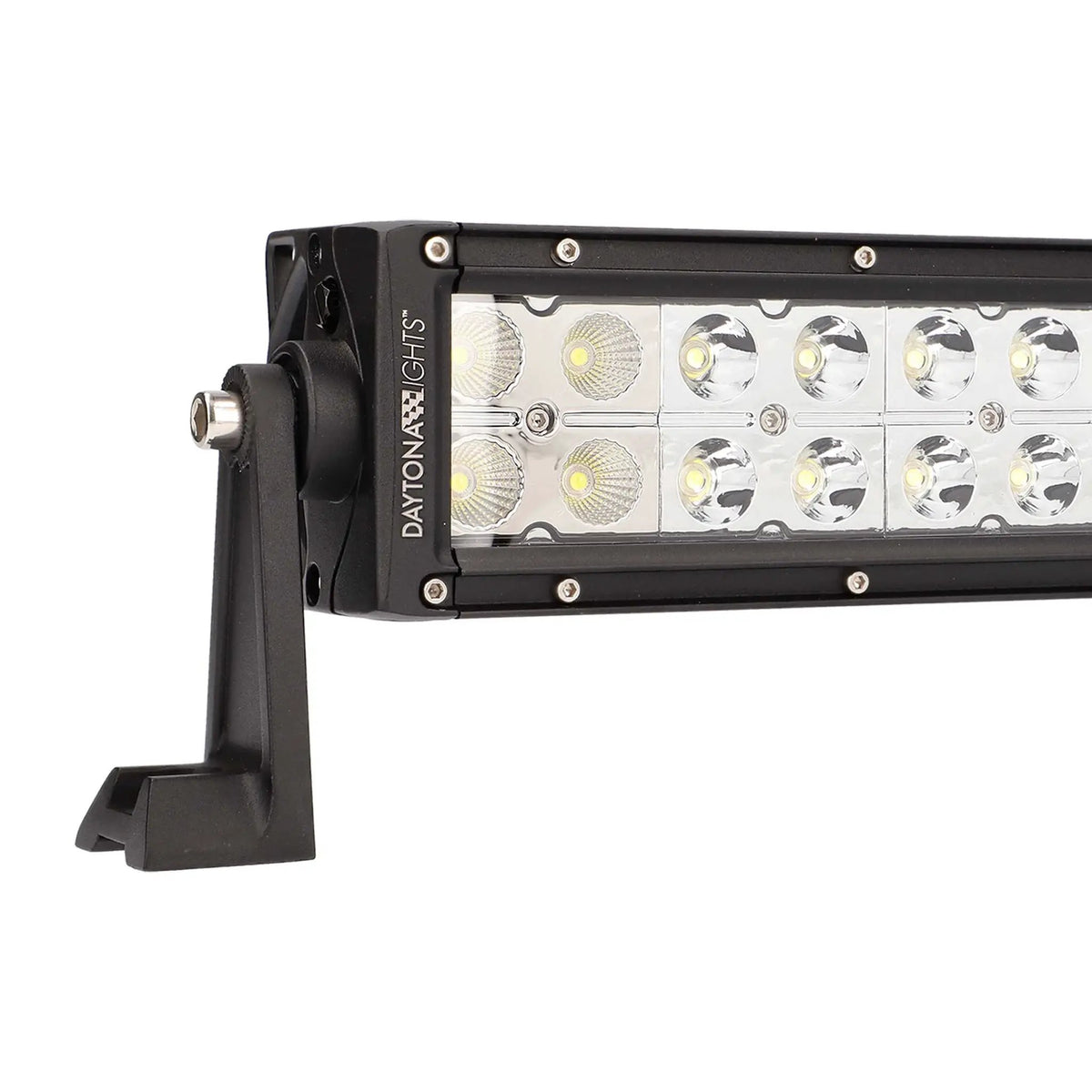

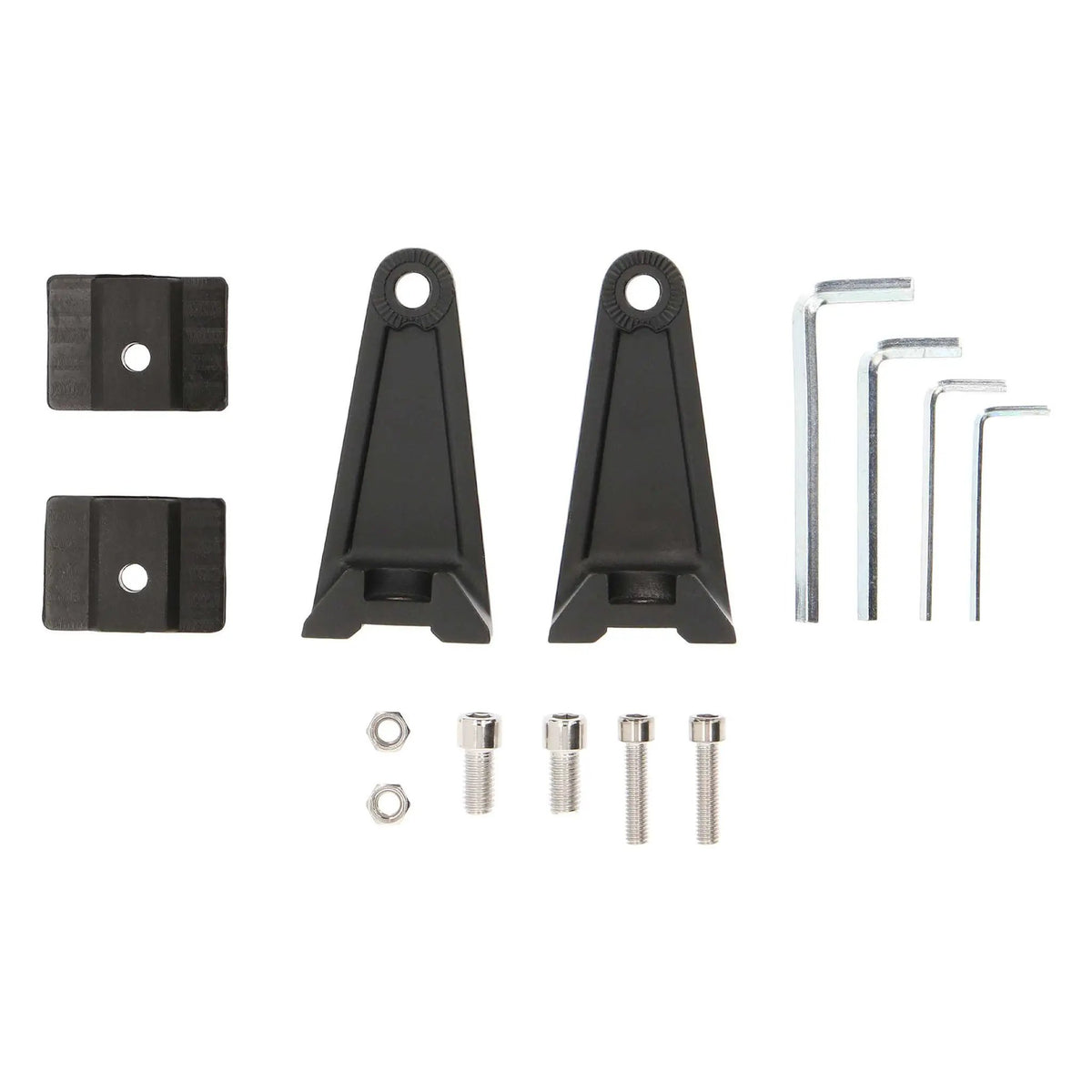

- Mount included: A light-bar mount and stainless-steel hardware are supplied.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DL-DR52 |
| Product type | 52-inch dual row LED light bar |
| Power | 300W |
| Light output | 18,000 raw lumens |
| Current draw | 21.8A at 13.8V |
| Color temperature | 6000K |
| Beam | 90° flood / 8° spot combination |
| Rating | IP67 |
| Input voltage | 10–30V DC |
| Housing | Black die-cast aluminum |
| Lens | Polycarbonate |
| Electronics | Epoxy-encapsulated |
| Polarity protection | Reverse-polarity protection |
| Operating temperature | -40°F to 140°F |
| Breather | Military breather membrane |
| Hardware | Stainless steel |
| Included | Light-bar mount |

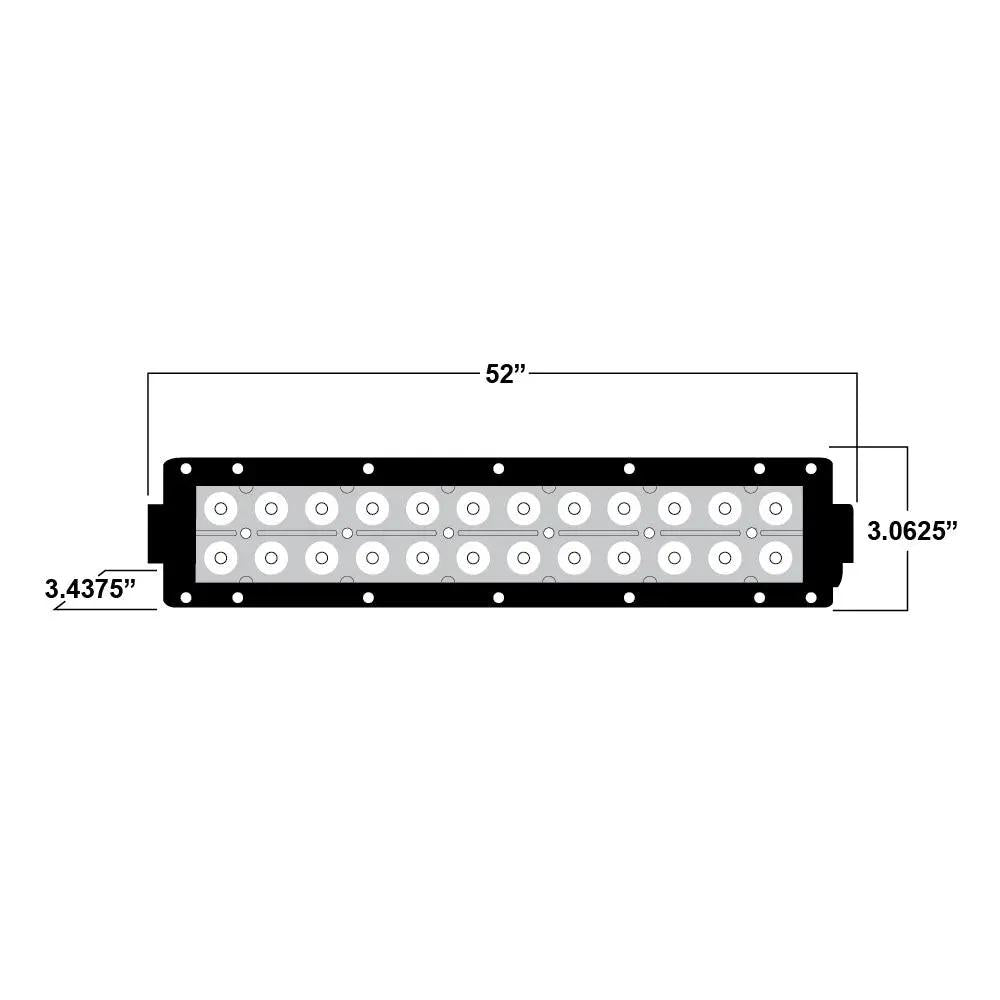

| Bar cross-section | 3.4375 inches D × 3.0625 inches H, bar only |
Why Choose This Product?
The DL-DR52 combines a broad flood pattern with a narrower spot beam in one 52-inch bar. Its stated 300W power, 21.8A current draw at 13.8V, and 10–30V DC input range give you key electrical details to consider when planning your installation.
The die-cast aluminum housing, polycarbonate lens, and epoxy-encapsulated electronics define its construction, while the supplied mount gives you a mounting component to work with during a custom setup.
Installation & Compatibility Notes
This light bar is intended for universal custom installation, not as a model-specific direct replacement. Check available mounting clearance, wiring requirements, and vehicle compatibility before ordering. The bar-only cross-section is 3.4375 inches D × 3.0625 inches H.
Confirm that your planned electrical setup accommodates the 10–30V DC input and the stated 21.8A draw at 13.8V. Auxiliary and colored lighting must be installed and used appropriately for the application.
Frequently Asked Questions
What beam pattern does the DL-DR52 use?
It combines a 90° flood beam with an 8° spot beam.
What voltage and current draw should I plan for?
The input voltage is 10–30V DC. Current draw is 21.8A at 13.8V.
What are the bar’s cross-section dimensions?
The bar-only cross-section measures 3.4375 inches D × 3.0625 inches H.
Is this a direct replacement for a specific vehicle?
No. It is for universal custom installation, not a model-specific direct replacement. Check vehicle compatibility and mounting clearance for your application.
Is a mount included?
Yes. A light-bar mount is included.
