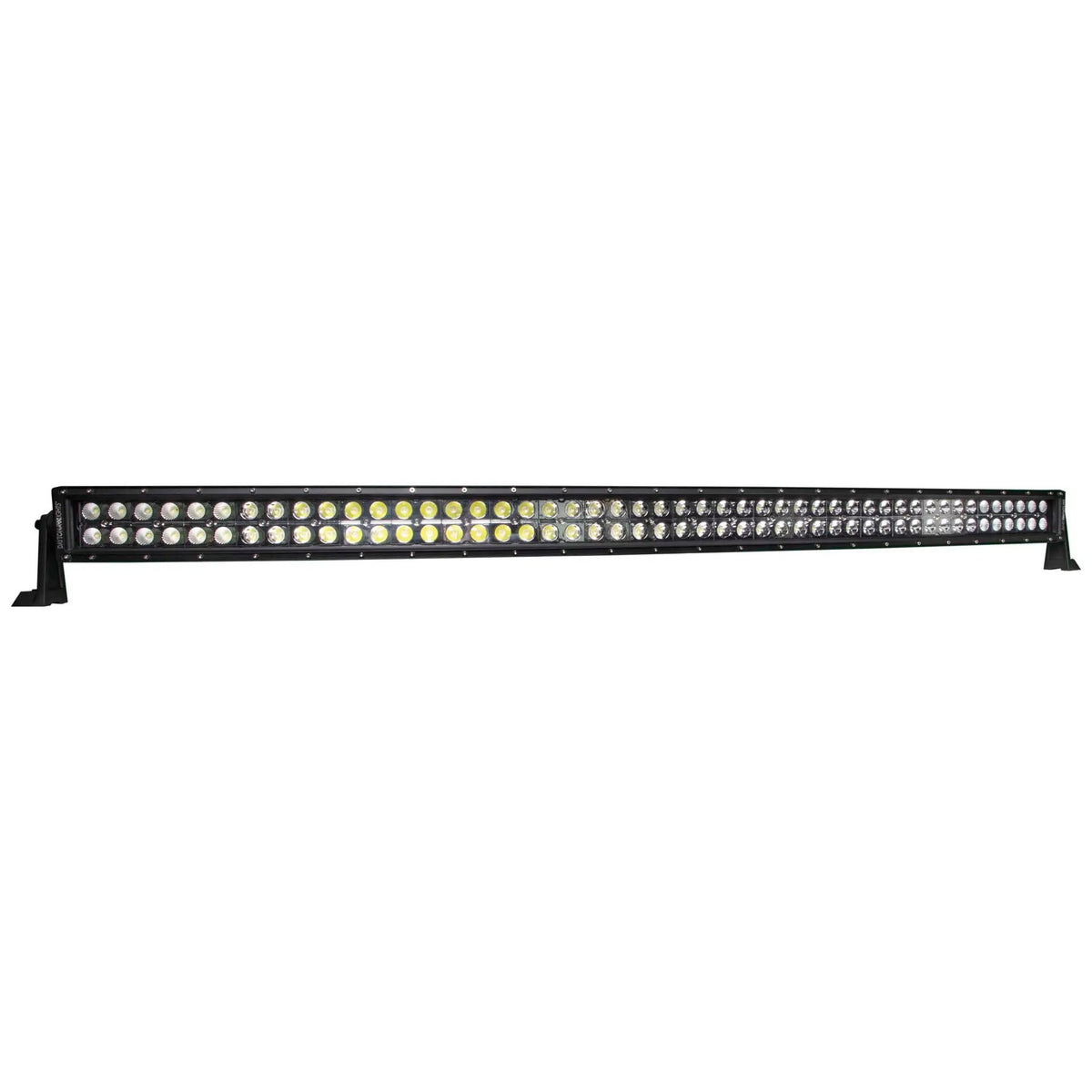

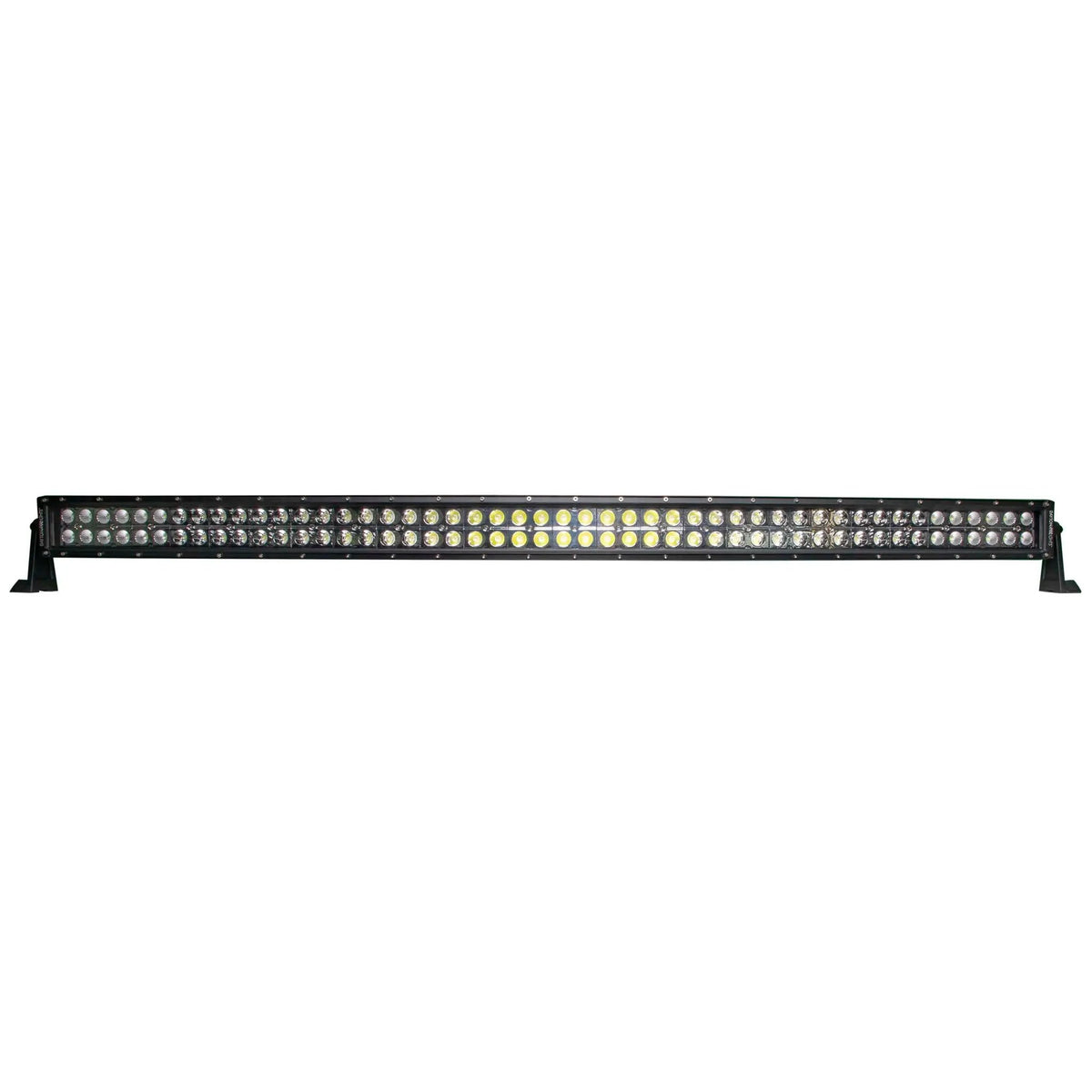

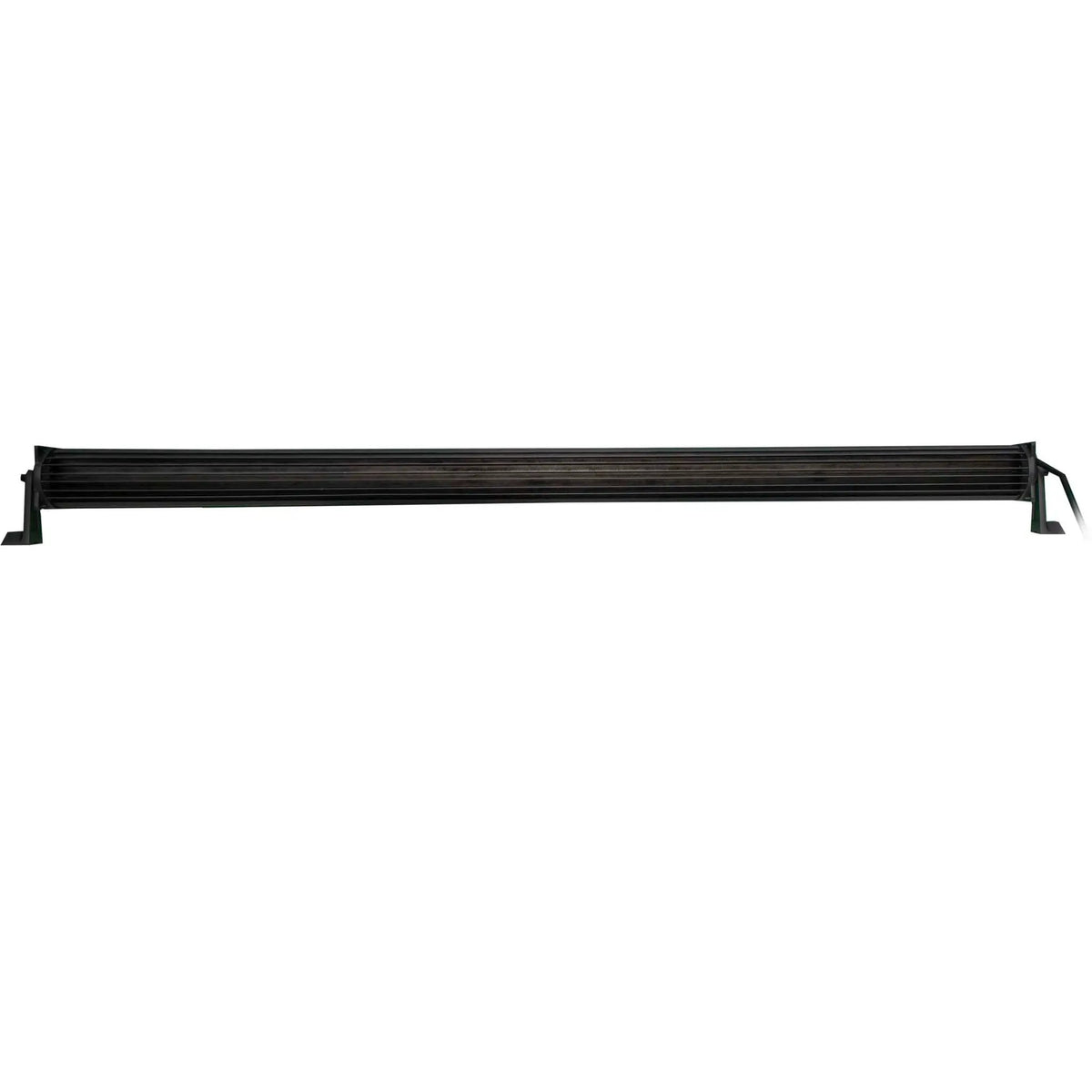

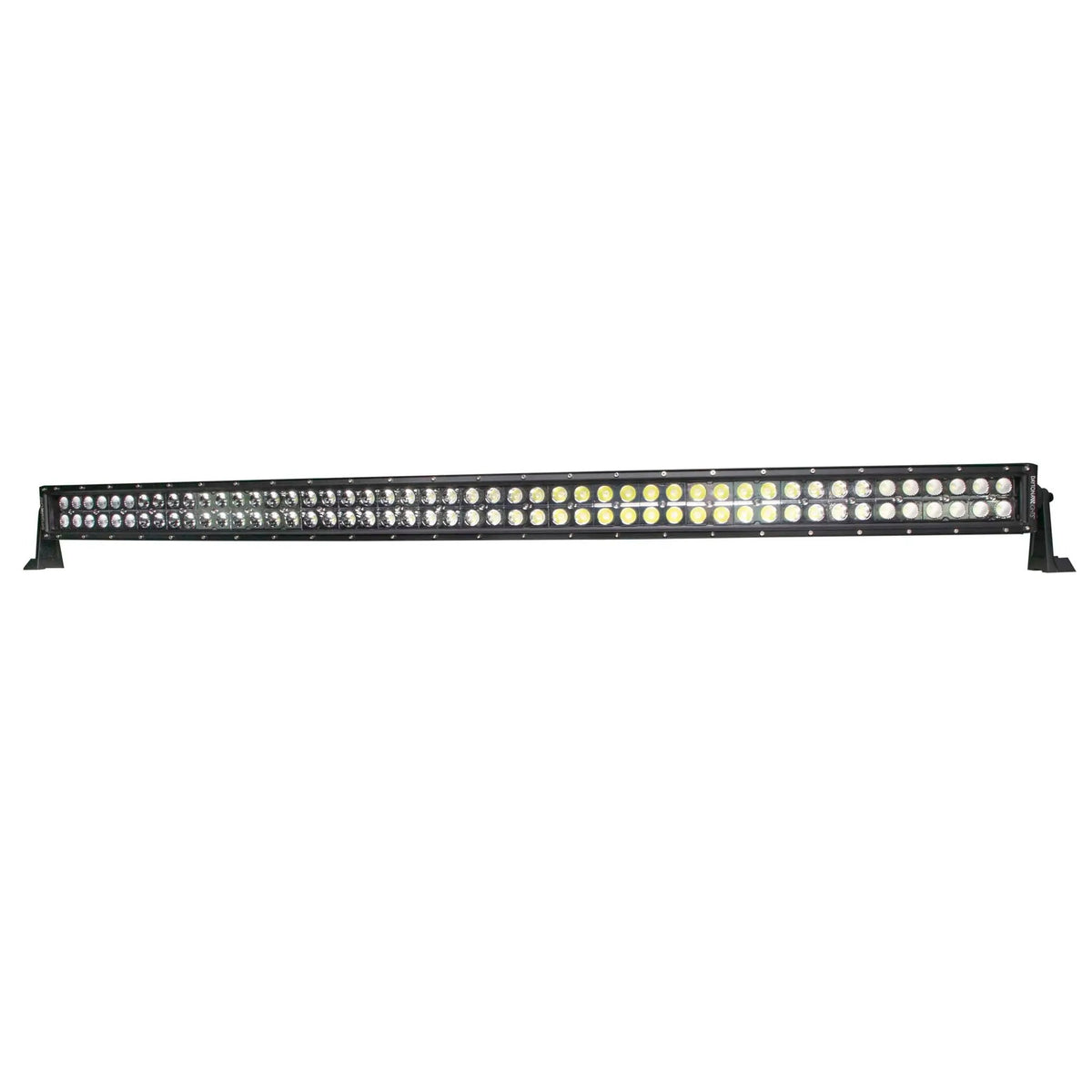

Daytona Lights DL-DRC50 50-inch Curved Dual Row LED Light Bar
Key features
- Power: 288W
- Light output: 17,280 raw lumens
- Current draw: 20.9A at 13.8V
- Color temperature: 6000K
- Beam: 90° flood / 8° spot combination
- LED count: 96
Daytona Lights DL-DRC50 50-inch Curved Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Daytona Lights DL-DRC50 50-inch Curved Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add forward-facing auxiliary light with the Daytona Lights DL-DRC50 50-inch curved dual row LED light bar. Its combination flood-and-spot beam, curved profile, and included light-bar mount make it an option for custom vehicle installations.
Key Features & Benefits
- Combined beam pattern: The wide flood and narrow spot beams bring both spread and focused light to the setup.
- Heat-dissipating housing: The die-cast aluminum body helps dissipate heat during operation.
- Exterior-focused construction: A polycarbonate lens and breather membrane support exterior installation.
- Protected electronics: Epoxy-encapsulated electronics and reverse-polarity protection are built into the assembly.

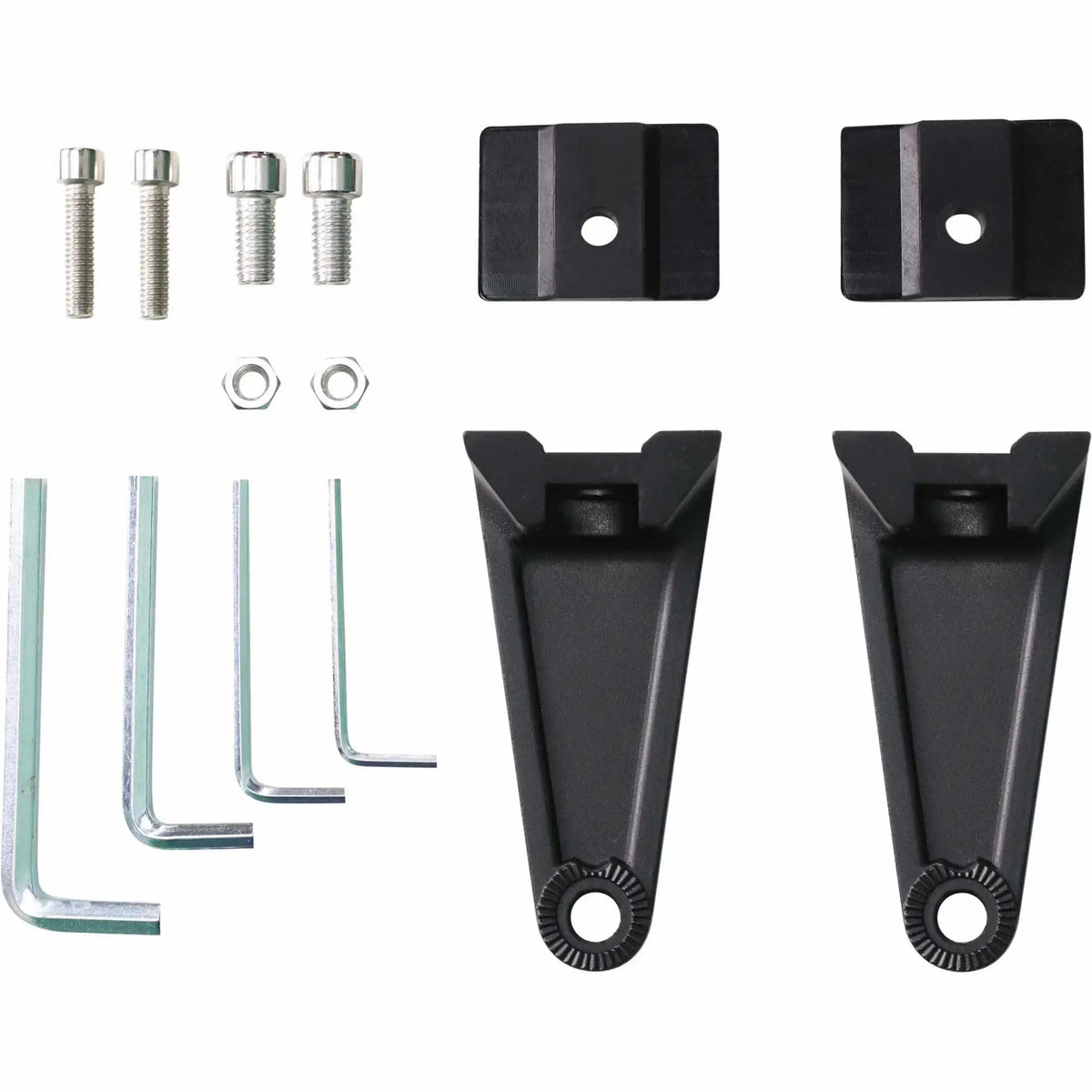

- Included mounting hardware: A light-bar mount and stainless-steel hardware are included for installation planning.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DL-DRC50 |
| Product type | 50-inch curved dual row LED light bar |
| Power | 288W |
| Light output | 17,280 raw lumens |
| Current draw | 20.9A at 13.8V |
| Color temperature | 6000K |
| Beam | 90° flood / 8° spot combination |
| LED count | 96 |
| IP rating | IP67 |
| Input voltage | 10–30V DC |
| Housing | Black die-cast aluminum |
| Lens | Polycarbonate |
| Electronics | Epoxy-encapsulated |
| Protection | Reverse-polarity protection |
| Operating temperature | -40°F to 140°F |
| Breather | Military breather membrane |
| Hardware | Stainless steel |
| Included | Light-bar mount |
| Warranty | Manufacturer one-year limited warranty |
Why Choose This Product?
The DL-DRC50 pairs a broad flood beam with a focused spot beam, giving you two beam angles in one auxiliary light bar. Its specified voltage range and protective construction help you assess whether it suits your planned installation.
Installation & Compatibility Notes
This light bar is for universal custom installation, not a model-specific direct replacement. Check mounting clearance, wiring requirements, and vehicle compatibility before ordering.
Install and use auxiliary and colored lighting appropriately for the application. The included light-bar mount does not establish fitment for a particular vehicle.
Frequently Asked Questions
Is the DL-DRC50 a direct replacement for a specific vehicle light?
No. It is intended for universal custom installation, not as a model-specific direct replacement.
What beam pattern does this light bar use?
It combines a 90° flood beam with an 8° spot beam.
What voltage does the light bar accept?
The specified input voltage is 10–30V DC. Its current draw is 20.9A at 13.8V.
What comes with the light bar?
A light-bar mount is included. Stainless-steel hardware is specified for the assembly.
What should I check before ordering?
Check available mounting clearance, wiring requirements, and compatibility with your vehicle and intended application.
