DC Audio 10.0k 10,000 watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 3000.0 W
- RMS output at 2 ohms: 5500 W
- RMS output at 1 ohm: 10000 W
DC Audio 10.0k 10,000 watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a dedicated, high-output subwoofer stage with the DC Audio 10.0k mono block amplifier. It is designed for 12V automotive systems, runs at 1 ohm, and delivers 10,000 watts RMS at 1 ohm when operating at 14.4V.

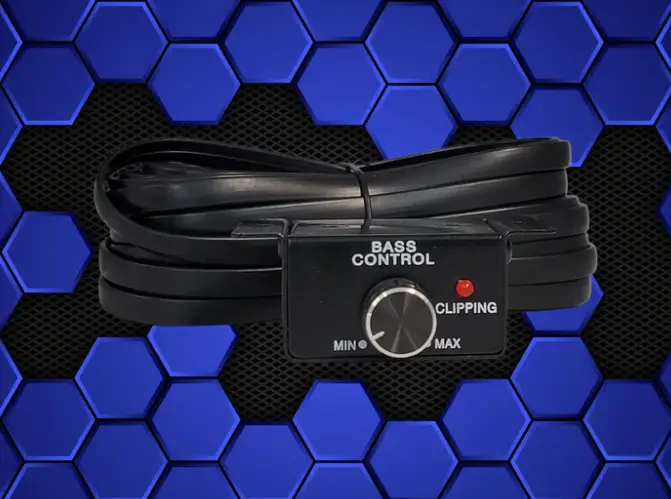

A wired bass remote with a clipping indicator lets you adjust bass from the driver’s seat and see when the amplifier is being driven into clipping.
Key Features & Benefits
- Three RMS power ratings: Choose the rating that matches your subwoofer load, from 3,000 watts at 4 ohms to 10,000 watts at 1 ohm.
- Adjustable filters: Set the low-pass and subsonic filters to shape the bass range for your subwoofer and enclosure.
- 45Hz bass boost: Adjust boost from 0 to 9 dB at 45Hz to tailor bass response.
- Driver-seat bass control: Use the wired remote to make bass-level adjustments from your vehicle.

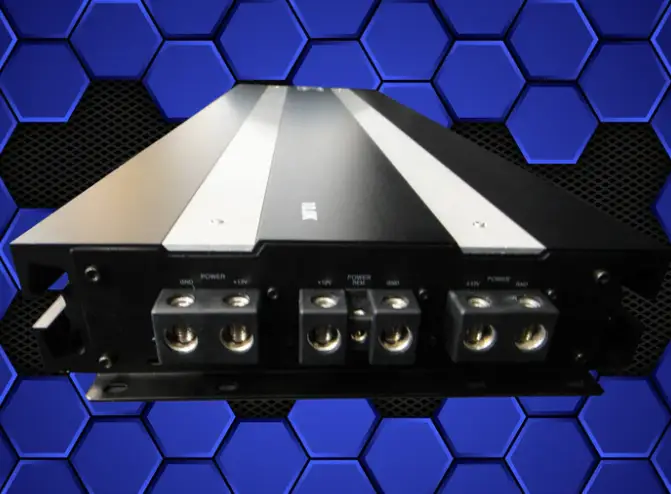

- High-current connections: Three 1/0 AWG power inputs and three 1/0 AWG ground inputs provide connection points for the amplifier’s power and ground wiring.
- System indicators: Power and Protect lights provide a quick visual status check.
Technical Specifications
| DC Amp Model: | 10.0k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 15Hz~270Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 150< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 350 amp x 3 |
| LED Status Lights | Power and Protect |
| Master/Slave | No |
| Heatsink Length | 37.0"/940mm |
| Heatsink Width | 11.5"/292mm |
| Heatsink Height | 2.6"/66mm |
| Output Power (RMS) | 3,000x1 @ 4 ohms, 5,500x1 @ 2 ohms, 10,000x1 @ 1 ohm (14.4V) |
| Operating Voltage | 14.4V operation; 15.3V maximum |
| Speaker Terminals | 8 AWG |
| Power Inputs | Triple 1/0 AWG |
| Ground Inputs | Triple 1/0 AWG |
| RCA Connections | Tiffany Style RCA Jacks; RCA Pass Thru |
| Bass Knob | Included; built-in clipping indicator |
Why Choose This Product?
The DC Audio 10.0k is built for a dedicated subwoofer channel in a high-output 12V car audio system. Its 1-ohm stability and three power and ground inputs suit installations planned around substantial current demands.
Adjustable low-pass and subsonic filters, phase shift, and bass boost give you several controls for shaping the subwoofer signal. The RCA pass-through also provides a signal path for connecting additional stages or processing devices.
Installation & Compatibility Notes
This amplifier is designed for 12V automotive systems and 14.4V operation. The maximum voltage is 15.3V; charging above that level voids the warranty. Check your system’s charging voltage before installation.
Confirm that your subwoofer load matches the amplifier’s ratings and that your installation has room for the 37.0"/940mm long, 11.5"/292mm wide, and 2.6"/66mm high heatsink. The amplifier has three 1/0 AWG power inputs, three 1/0 AWG ground inputs, and 8 AWG speaker terminals.
Frequently Asked Questions
What is the DC Audio 10.0k’s RMS output at each load?
At 14.4V, it is rated at 3,000x1 @ 4 ohms, 5,500x1 @ 2 ohms, and 10,000x1 @ 1 ohm.
Can this mono block amplifier run at 1 ohm?
Yes. The DC Audio 10.0k is 1-ohm stable.
What voltage limit should I observe?
It is designed for 14.4V operation, with a strict maximum of 15.3V. Charging above 15.3V voids the warranty.
How much space does the heatsink require?
Its dimensions are 37.0"/940mm long, 11.5"/292mm wide, and 2.6"/66mm high. Allow for suitable mounting clearance in your installation.
Can I adjust bass from the driver’s seat?
Yes. The amplifier includes a wired remote control for bass-level adjustments.
