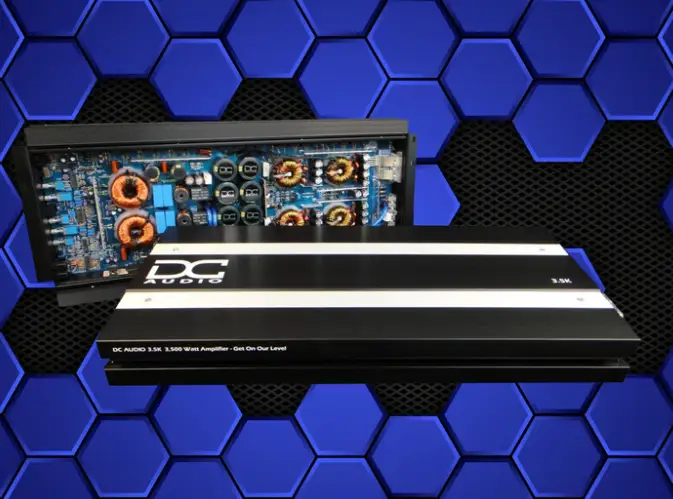

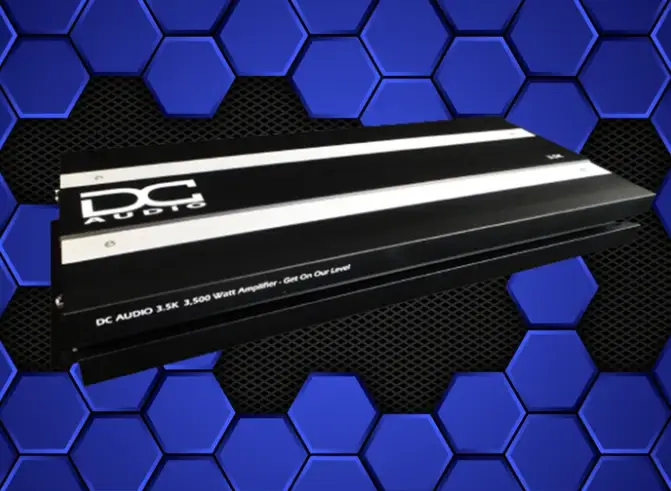

DC Audio 3.5k 3500 watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 750.0 W
- RMS output at 2 ohms: 1800 W
- RMS output at 1 ohm: 3500 W
DC Audio 3.5k 3500 watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a dedicated subwoofer system around the DC Audio 3.5k 3500 watt mono block amplifier. Its 1-ohm stability, adjustable filters, and linkable Master/Slave operation give you control over a demanding bass setup.
Use it as a single amplifier for a high-power subwoofer or pair it with a second unit for a linked system rated up to 11,000 watts.
Key Features & Benefits
- 1-ohm stability: Supports low-impedance speaker loads for high-current subwoofer builds.

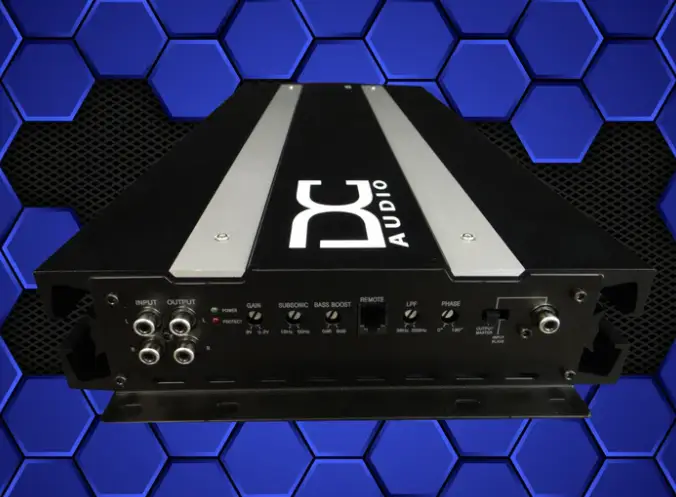

- Adjustable crossover and subsonic filter: Set the low-pass range from 35 Hz to 250 Hz and the subsonic filter from 10 Hz to 50 Hz.
- Bass shaping: Adjust bass boost from 0 to 9 dB at 45 Hz and phase shift from 0 to 180.
- Linked operation: Master/Slave capability supports pairing two amplifiers for a larger system.
- System connections: RCA pass-through supports signal routing to additional amplifiers.

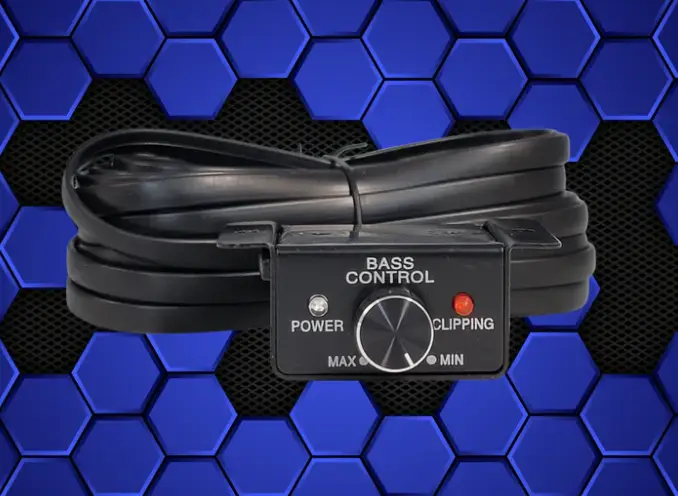

- Driver-seat adjustments: The included wired remote lets you adjust bass level, while the clip indicator helps monitor gain setting.
Technical Specifications
| DC Amp Model: | 3.5k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 200< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 350 amp |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 21.26"/540mm |
| Heatsink Width | 9.38"/238mm |
| Heatsink Height | 2.35"/59.6mm |
- Rated power: 3500 watts; up to 11,000 watts when paired with a second unit.
- Speaker load: 1-ohm stable.

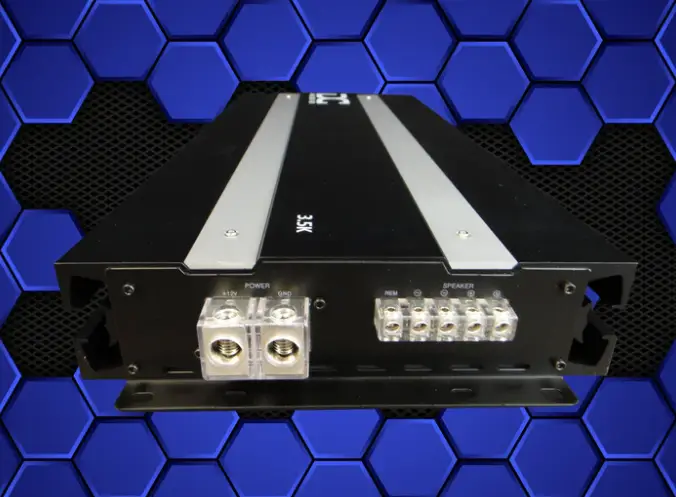

- Connections: 1/0 AWG power and ground inputs, 8 AWG speaker terminals, and RCA pass-through.
Why Choose This Product?
The DC Audio 3.5k combines subwoofer-focused filtering with bass and phase adjustments, helping you tune the signal to your system. Its Master/Slave capability gives you the option to build around one amplifier or expand with a second.
Installation & Compatibility Notes
Plan space for the heatsink, which measures 21.26 inches long, 9.38 inches wide, and 2.35 inches high. The amplifier has 1/0 AWG power and ground inputs, 8 AWG speaker terminals, and an external 350 amp fuse rating.
Confirm your subwoofer’s impedance, system wiring, and available mounting space before installation. The product details identify 1-ohm stability and linked operation; follow the amplifier’s installation instructions when configuring either setup.
Frequently Asked Questions
Can the DC Audio 3.5k operate at 1 ohm?
Yes. It is specified as 1-ohm stable.
Can I link two amplifiers?
Yes. Master/Slave operation supports a paired setup, rated up to 11,000 watts with a second unit.
What filter adjustments are available?
The low-pass crossover adjusts from 35 Hz to 250 Hz, and the subsonic filter adjusts from 10 Hz to 50 Hz. Bass boost is adjustable from 0 to 9 dB at 45 Hz.
What wiring connections does it use?
It has 1/0 AWG power and ground inputs, 8 AWG speaker terminals, and RCA pass-through.
What are the heatsink dimensions?
It measures 21.26 inches long, 9.38 inches wide, and 2.35 inches high.
