DC Audio 5.0k 5000 watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 900.0 W
- RMS output at 2 ohms: 2300 W
- RMS output at 1 ohm: 5000 W
DC Audio 5.0k 5000 watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a high-output subwoofer system around the DC Audio 5.0k mono block amplifier, with 1 Ω stability and RMS power ratings up to 5000 watts at 14.4V. Master/Slave capability allows linked operation, while onboard bass controls help you tune the signal for your setup.
Use the low-pass and subsonic filters to shape the subwoofer signal, then monitor levels from the driver’s seat with the wired remote and clipping indicator.
Key Features & Benefits
- 1 Ω stability: Supports operation with a demanding low-impedance subwoofer load.
- Master/Slave capability: Allows a second compatible unit to be linked in a paired configuration.

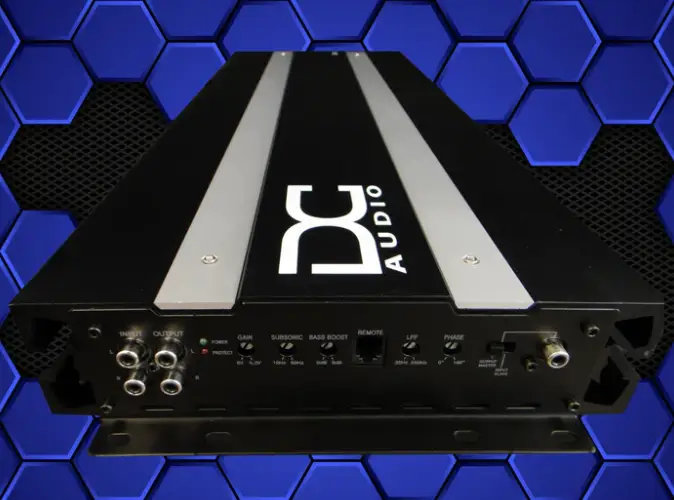

- Adjustable bass management: Low-pass, subsonic, bass boost, and phase controls let you tailor the signal.

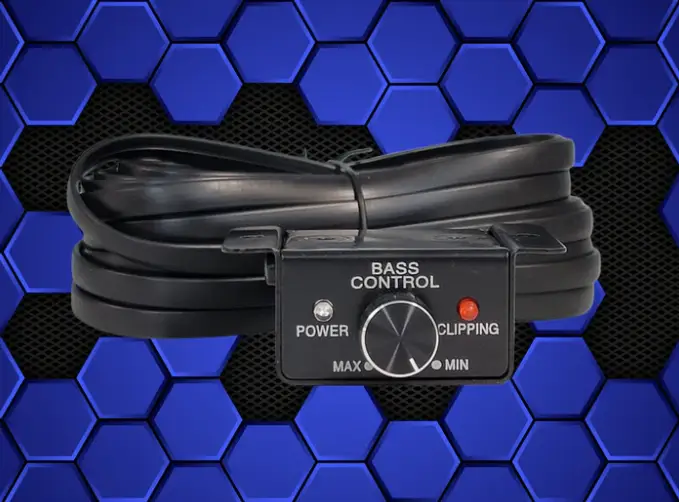

- In-cabin monitoring: The wired remote and clipping indicator help you manage levels from the driver’s seat.
- Signal pass-through: RCA pass-through output can feed additional amplifiers or processors.

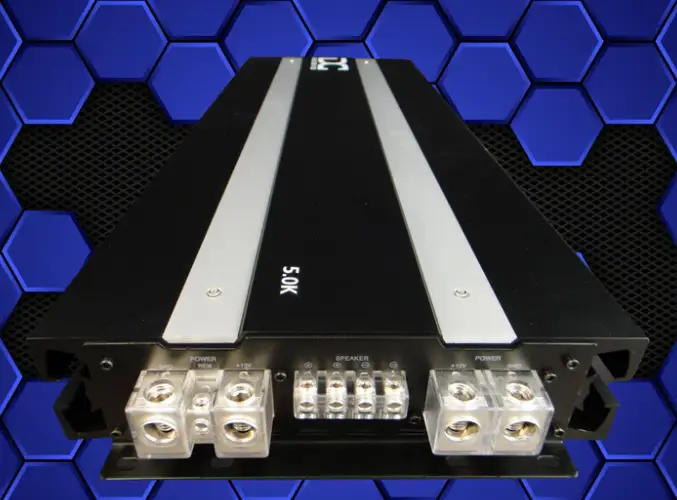

- High-current connections: Dual 1/0 AWG power and ground inputs and 8 AWG speaker terminals support the amplifier’s wiring connections.
Technical Specifications
Output Power (RMS):
- 900x1 @ 4 Ω @14.4V
- 2300x1 @ 2 Ω @14.4V
- 5000x1 @ 1 Ω @14.4V
- 10000x1 @ 2 Ω @14.4V
- Linked: 6000x1 @ 1 Ω @16V; 12000x1 @ 2 Ω @16V
- Linked: 7300x1 @ 1 Ω @18V; 14600x1 @ 2 Ω @18V
| DC Amp Model: | 5.0k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 200< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 250 amp x 2 |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 25.596"/650mm |
| Heatsink Width | 9.38"/238mm |
| Heatsink Height | 2.35"/59.6mm |
Why Choose This Product?
The DC Audio 5.0k combines high-output ratings with adjustable signal controls in a mono block amplifier for subwoofer systems. Its linked operating options provide another configuration path when a paired setup is planned. RCA pass-through also gives you a way to route signal onward to additional equipment.
Installation & Compatibility Notes
Plan your system around the intended speaker impedance, supply voltage, and the amplifier’s listed external fuse rating. For linked operation, confirm that the full system design supports the chosen configuration. Measure the installation space against the heatsink dimensions before mounting, and account for the specified power, ground, and speaker terminal sizes.
Frequently Asked Questions
What RMS power does the DC Audio 5.0k produce?
Ratings vary by impedance and supply voltage. The listed figures range from 900x1 @ 4 Ω @14.4V to 5000x1 @ 1 Ω @14.4V, with additional linked ratings shown above.
Can this amplifier operate at 1 Ω?
Yes. The product details identify the DC Audio 5.0k as 1 Ω stable.
What controls can I use to tune the subwoofer signal?
It has a variable low-pass filter, a 10 Hz–50 Hz subsonic filter, bass boost at 45 Hz, and phase shift adjustment.
What should I check before installation?
Check the planned impedance, supply voltage, wiring connections, fuse requirements, and available mounting space against the specifications above.
