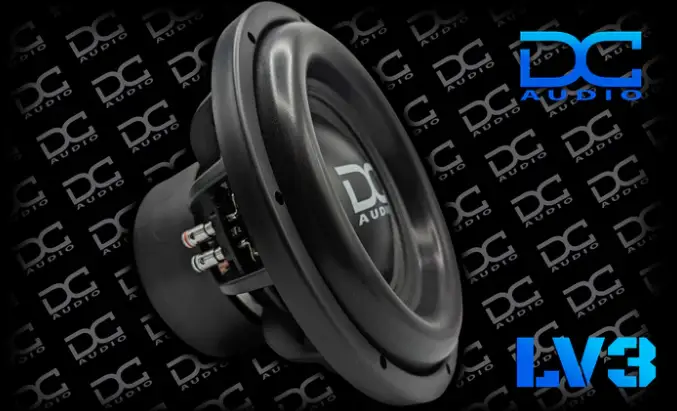

DC Audio Level 3 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1000 W
- Voice-coil options: D1, D2, D4
- Cone: non-pressed paper
- Frame: cast aluminum
- Shorting ring: 2.5 mm aluminum
DC Audio Level 3 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, controlled bass to your daily-drive audio system with the DC Audio Level 3 12" subwoofer. Its 1000W RMS rating, 22.5 mm X-max and 12-inch cone are designed for use in sealed or ported enclosures.
A rigid cone assembly, progressive spiders and a triple-stacked motor support controlled cone movement during demanding daily listening.
Key Features & Benefits
- 1000W RMS power handling: Provides the stated power rating for planning a compatible system.
- 22.5 mm X-max: Supports substantial linear excursion for deep bass output.
- Rigid cone and cast frame: The non-pressed paper cone and cast aluminum frame are built to limit flex during operation.
- Progressive suspension: Dual 8" OD semi cup progressive roll spiders help maintain balanced cone movement.
- Heat-management features: The aluminum shorting ring, coil venting and 3" voice coil support sustained playback.
Technical Specifications
| Specification | Detail |
|---|---|
| Product | DC Audio Level 3 12" subwoofer |
| Cone diameter | 12" |
| Power rating | 1000W RMS; 2000W peak |
| X-max | 22.5 mm |
| Enclosure types | Sealed or ported |
| Cone assembly | Extremely rigid non-pressed paper cone assembly |
| Surround | Multilayered polymer foam |

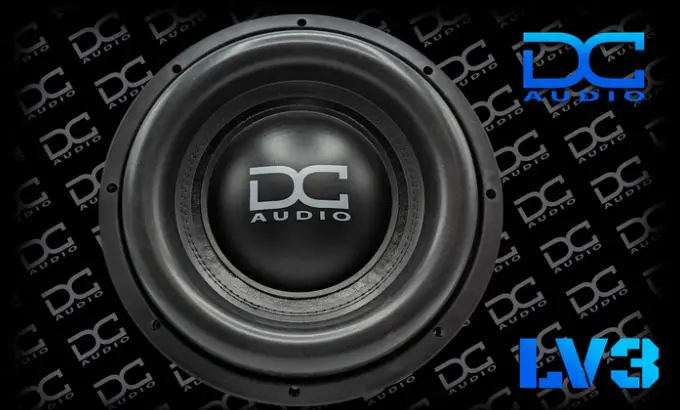

| Dust cover | Polypropylene with DC logo |
| Spiders | Dual 8" OD semi cup progressive roll spider |
| Tinsel lead wire | Extra heavy duty interweaved wire sewn to spider |
| Frame and mounting | Cast aluminum black frame / no invert mount |
| Motor assembly | FEA analyzed and optimized; fully CNC machined |
| Motor boots | Newly tooled motor boots with DC Logo and LV3 embossed |

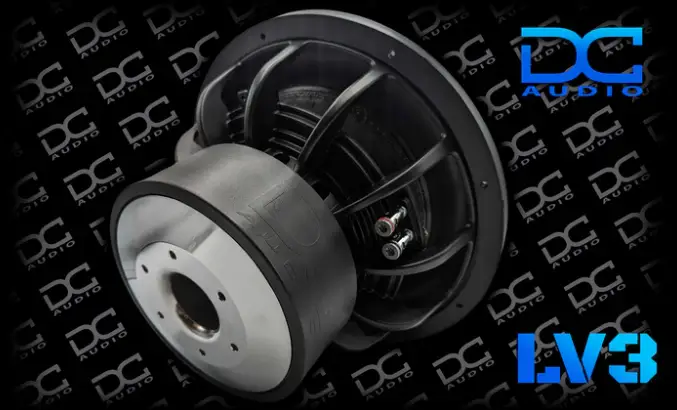

| Motor structure | Triple-stacked motor, chrome top plate and T-yoke |
| Voice coil | 3" Hi-temp Aluminum voice coil wound on a black anodized former |
| Magnet cover | Rubber magnet cover with DC and LV3 embossed logos |
| Shorting ring | 2.5mm Aluminum; reduces inductance, helps mitigate power compression, and acts as an internal heatsink with coil venting |
| Connections and mounting seal | Push terminals and rubber mounting gasket |
Why Choose This Product?
The Level 3 combines a high-power rating with suspension and motor components designed for linear, controlled movement. Its shorting ring helps reduce inductance and power compression, while the internal heatsink path and direct coil venting help manage heat during long playback.
Use it as the bass driver in a sealed or ported enclosure, with the enclosure and supporting system selected for your installation.
Installation & Compatibility Notes
Plan the enclosure and mounting space around the 12-inch subwoofer, and confirm the enclosure design suits your system. Match your amplifier and wiring to the subwoofer’s electrical requirements before installation.
The subwoofer has push terminals and a rubber mounting gasket. The listed power ratings are 1000W RMS and 2000W peak; keep those ratings distinct when planning system power.
Frequently Asked Questions
Can the Level 3 12" subwoofer be used in a sealed enclosure?
Yes. It is described for use in sealed or ported enclosures.
What do the 1000W RMS and 2000W peak ratings mean?
They are separate power ratings: 1000W RMS and 2000W peak. Keep the distinction when matching system components.
What does the 22.5 mm X-max indicate?
It is the stated X-max, describing the subwoofer’s excursion capability.
What impedance should my amplifier support?
Confirm the subwoofer’s impedance configuration and match it to the amplifier’s supported load before wiring the system.
What mounting and enclosure details should I check?
Confirm that your enclosure accommodates a 12-inch subwoofer and suits the planned sealed or ported setup.
