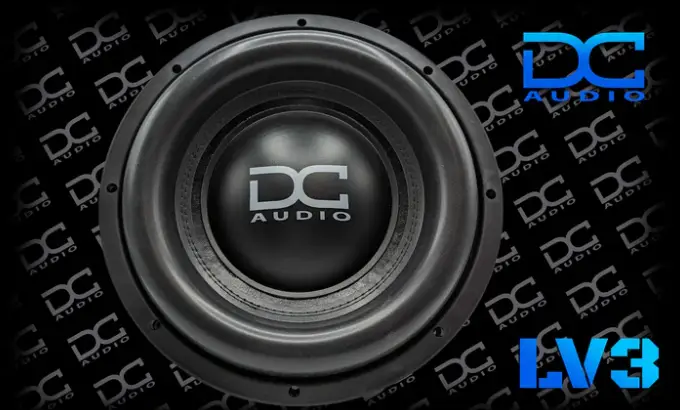

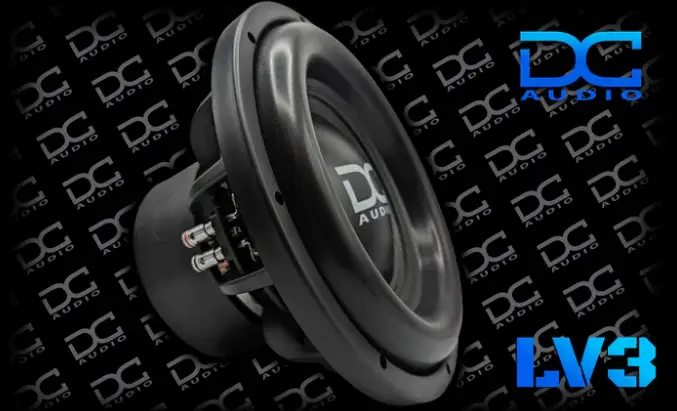

DC Audio Level 3 15" Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 1000 W
- Voice-coil options: D1, D2, D4
- Cone: non-pressed paper
- Frame: cast aluminum
- Shorting ring: 2.5 mm aluminum
DC Audio Level 3 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, forceful bass to your daily-driver system with the DC Audio Level 3 15" subwoofer. Its 1000 W RMS power handling, 22.5 mm maximum excursion, and support for sealed or ported enclosures give you flexibility when planning a high-output build.
Key Features & Benefits
- High-output design: The 15-inch cone area moves air for strong low-frequency output.
- Controlled cone travel: 22.5 mm maximum excursion supports deep, impactful bass.
- Heat management: The shorting ring and cooling paths help manage heat during extended listening.
- Reinforced construction: The machined motor, cast frame, and upgraded spiders support controlled motion under demanding use.
- Enclosure flexibility: The subwoofer is designed for use in sealed or ported enclosures.
Technical Specifications
| Product category | 15-inch subwoofer |
|---|---|
| Power handling | 1000 W RMS / 2000 W peak |
| Maximum excursion | 22.5 mm |
| Voice coil | 3" high-temperature aluminum voice coil |
| Shorting ring | 2.5 mm aluminum shorting ring |

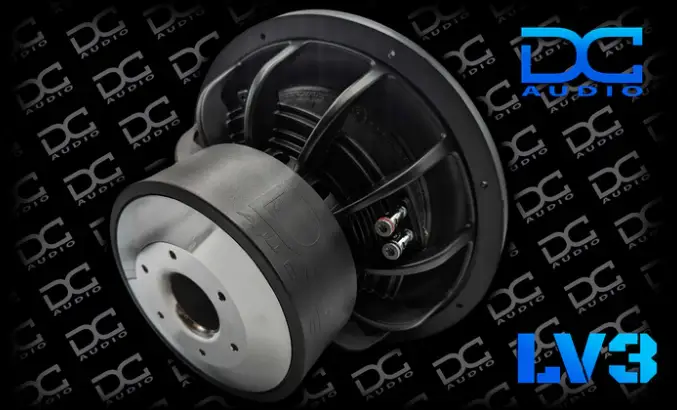

| Motor | FEA-optimized triple-stacked motor, fully CNC machined |
| Frame | Black cast aluminum frame; no invert mount |
| Spiders and lead wire | Dual upgraded progressive spiders; extra-heavy-duty interweaved tinsel lead wire sewn to the spider |
| Cone and surround | Rigid non-pressed paper cone; multilayered polymer foam surround |
| Dust cover | Polypropylene dust cover with DC logo |
| Terminals | Chrome spring-loaded push terminals |
| Magnet cover | Rubber cover with DC and LV3 embossed logos |
| Enclosure type | Sealed or ported |
Why Choose This Product?
The Level 3 combines a CNC-machined, triple-stacked motor with a rigid cast frame and progressive spiders. These construction details support consistent cone motion and control during high-output listening. Its aluminum shorting ring and integrated cooling paths help manage heat and reduce power compression during extended bass passages.
The rigid cone, multilayered foam surround, and polypropylene dust cover bring together stiffness and controlled excursion. The chrome push terminals provide a spring-loaded connection point, while the rubber magnet cover gives the assembly a finished appearance.
Installation & Compatibility Notes
Plan your system around the subwoofer’s 1000 W RMS power handling and your amplifier’s capabilities. The Level 3 is intended for sealed or ported enclosures; confirm enclosure and mounting dimensions for your installation before choosing a box.
Frequently Asked Questions
What do the RMS and peak power ratings mean?
The subwoofer is rated for 1000 W RMS and 2000 W peak. Use the RMS rating when matching it with an amplifier for sustained system power.
Can I use this subwoofer in a sealed enclosure?
Yes. It is described for use in either sealed or ported enclosures.
What does the 22.5 mm maximum excursion indicate?
It is the stated maximum cone excursion. The product description associates its increased cone travel with deeper, more impactful bass.
What should I check before fitting it in my vehicle?
Check the available mounting space and enclosure dimensions against your installation location before purchase.
