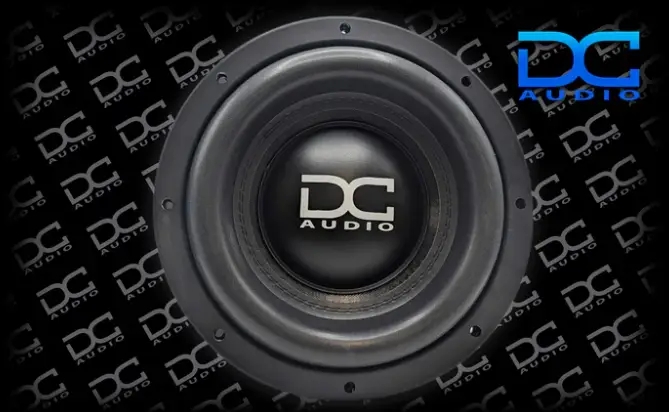

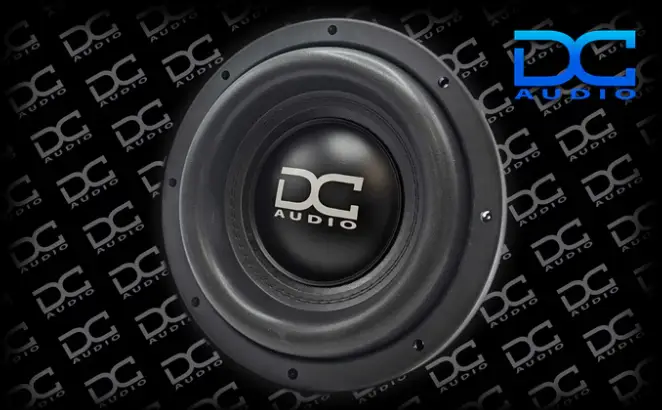

DC Audio PS3 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 1250 W
- Voice-coil options: D1, D2
- Mounting depth: 6.25 inches
- Mounting cutout diameter: 9.35 inches
- Voice-coil diameter: 3 inches
DC Audio PS3 10" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The DC Audio PS3 10" subwoofer gives your car audio build a high-power bass driver in a size suited to compact or mid-depth enclosures. Its 1250-watt RMS rating, dual voice coil options, and design for sealed, ported, or open-air installations give you several ways to plan your system.
Key Features & Benefits
- 1250 watts RMS / 2500 watts peak: Pair it with a suitable amplifier for a high-power subwoofer setup.
- Dual 1-ohm or dual 2-ohm voice coils: Choose the version that suits your amplifier load and wiring plan.
- Rigid cone assembly: The non-pressed paper cone and multilayer polymer foam surround are designed to help limit cone breakup.
- Ventilation and cooling: Rear gap venting and a pole vent support cooling during demanding use.

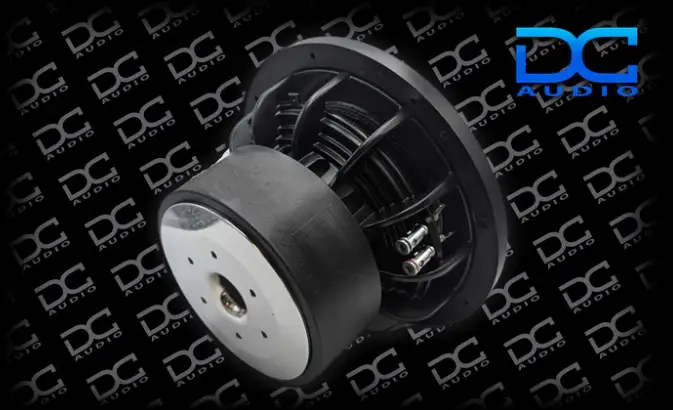

- Robust motor and frame: The triple-stacked, FEA-optimized motor, cast aluminum frame, CNC-machined assembly, and 2.5 mm aluminum shorting ring support motor control.

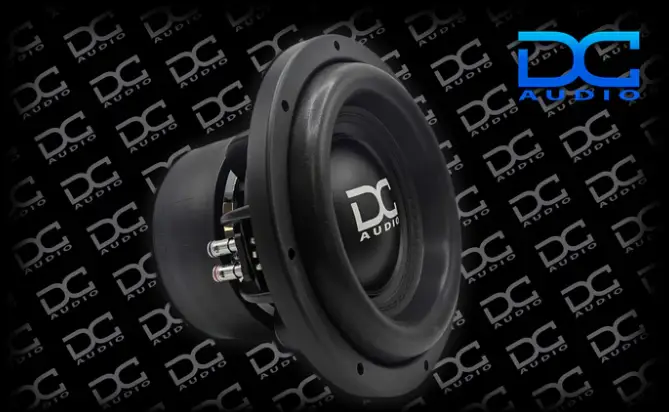

- High-temperature voice coil: The 3" coil uses a black anodized former, while chrome spring-loaded push terminals provide repeatable connections.
Technical Specifications
| Specification | PS3 Subwoofer 10" | PS3 Subwoofer 12" | PS3 Subwoofer 15" | PS3 Subwoofer 18" |
|---|---|---|---|---|
| Mounting Depth | 6.25" | 6.75" | 8.0" | 9.5" |
| Mounting Hole Diameter | 9.35" | 11" | 14.0" | 16.75" |
| Outside Driver Diameter | 11" | 12.5" | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" | 3.0" | 3.0" |
| Displacement | .15 ft³ | .16 ft³ | .18 ft³ | .22 ft³ |
| Power Handling rms/peak | 1250/2500 | 1250/2500 | 1250/2500 | 1250/2500 |
| Ohm Options | d1/d2 | d1/d2 | d1/d2 | d1/d2 |
| Sd | 303 cm² | 457 cm² | 823 cm² | 1217 cm² |
| Vas | 6.02 L | 12.64 L | 00.0 L | 000.0 L |
| Cms | 45.71 uM/n | 42.56 uM/n | 0.00 Mm/n | 0.00 Mm/n |
| Mms | 352.94 g | 453.67 g | 000 g | 000 g |
| Fs | 39.60 Hz | 36.21 Hz | 00.0 Hz | 00.0 Hz |
| Bl | 21.77 N/A | 21.65 N/A | 00.0 N/A | 00.0 N/A |
| Re | 4.11 Ohm | 4.18 Ohm | 0.0 Ohm | 0.0 Ohm |
| Le | 2.81 mH | 2.98 mH | 0.0 mH | 0.0 mH |
| Qms | 9.11 | 11.21 | 0.00 | 0.00 |
| Qes | 0.76 | 0.92 | 0.000 | 0.000 |
| Qts | 0.703 | 0.851 | 0.00 | 0.000 |
| Xmax | 23mm | 23mm | 23mm | 23mm |
| Ref SPL @1 watt | 78.65 db | 79.89 db | 00.0 db | 00.0 db |
| Suggest Sealed Box | .65 ft³ | 1.0 ft³ | 2.0 ft³ | 3.5 ft³ |
| Suggested Ported Box | 1.0 ft³ | 1.25 ft³ | 3.0 ft³ | 5.5 ft³ |
Why Choose This Product?
The PS3 combines a 3" high-temperature voice coil with a triple-stacked motor and cooling vents for a design built around high-power use. Its 10" size and suggested 0.65 ft³ sealed or 1.0 ft³ ported enclosure volumes offer distinct enclosure options for your build.
The driver is hand-built in the USA and uses a black cast aluminum frame with a rubber magnet cover. Its stated reference sensitivity is 78.65 db @1 watt.
Installation & Compatibility Notes
Allow for the 6.25" mounting depth, 9.35" mounting hole diameter, and 11" outside driver diameter when checking enclosure fit. The driver has a listed displacement of.15 ft³.
Choose the dual 1-ohm or dual 2-ohm version to suit your amplifier and planned wiring configuration. The suggested enclosure volumes are.65 ft³ sealed or 1.0 ft³ ported. The source also identifies open-air installation as an intended use.
Frequently Asked Questions
What power handling is listed for the PS3 10"?
It is rated at 1250 watts RMS and 2500 watts peak. Pair it with a suitable amplifier.
What voice coil options are available?
The listed options are dual 1 ohm and dual 2 ohm. Select the version that matches your amplifier load and wiring plan.
What enclosure volume is suggested?
The suggested volume is.65 ft³ for a sealed box or 1.0 ft³ for a ported box.
What dimensions should I check before installation?
Check the 6.25" mounting depth, 9.35" mounting hole diameter, and 11" outside driver diameter against your enclosure.
Can the PS3 10" be used in an open-air installation?
Yes. The product details identify sealed, ported, and open-air installations as intended uses.
Explore More
Shop DC Audio products at 12 Volt Outlet. Want to learn more about DC Audio? Explore the brands we sell.
| PS3 Subwoofer | 10" | 12" |
|---|---|---|
| Mounting Depth | 6.25" | 6.75" |
| Mounting Hole Diameter | 9.35" | 11" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 3.0" | 3.0" |
| Displacement | .15 ft³ | .16 ft³ |
| Power Handling rms/peak | 1250/2500 | 1250/2500 |
| Ohm Options | d1/d2 | d1/d2 |
| Sd | 303 cm² | 457 cm² |
| Vas | 6.02 L | 12.64 L |
| Cms | 45.71 uM/n | 42.56 uM/n |
| Mms | 352.94 g | 453.67 g |
| Fs | 39.60 Hz | 36.21 Hz |
| Bl | 21.77 N/A | 21.65 N/A |
| Re | 4.11 Ohm | 4.18 Ohm |
| Le | 2.81 mH | 2.98 mH |
| Qms | 9.11 | 11.21 |
| Qes | 0.76 | 0.92 |
| Qts | 0.703 | 0.851 |
| Xmax | 23mm | 23mm |
| Ref SPL @1 watt | 78.65 db | 79.89 db |
| Suggest Sealed Box | .65 ft³ | 1.0 ft³ |
| Suggested Ported Box | 1.0 ft³ | 1.25 ft³ |
| PS3 Subwoofer | 15" | 18" |
|---|---|---|
| Mounting Depth | 8.0" | 9.5" |
| Mounting Hole Diameter | 14.0" | 16.75" |
| Outside Driver Diameter | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" |
| Displacement | .18 ft³ | .22 ft³ |
| Power Handling rms/peak | 1250/2500 | 1250/2500 |
| Ohm Options | d1/d2 | d1/d2 |
| Sd | 823 cm² | 1217 cm² |
| Vas | 00.0 L | 000.0 L |
| Cms | 0.00 Mm/n | 0.00 Mm/n |
| Mms | 000 g | 000 g |
| Fs | 00.0 Hz | 00.0 Hz |
| Bl | 00.0 N/A | 00.0 N/A |
| Re | 0.0 Ohm | 0.0 Ohm |
| Le | 0.0 mH | 0.0 mH |
| Qms | 0.00 | 0.00 |
| Qes | 0.000 | 0.000 |
| Qts | 0.00 | 0.000 |
| Xmax | 23mm | 23mm |
| Ref SPL @1 watt | 00.0 db | 00.0 db |
| Suggest Sealed Box | 2.0 ft³ | 3.5 ft³ |
| Suggested Ported Box | 3.0 ft³ | 5.5 ft³ |
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
