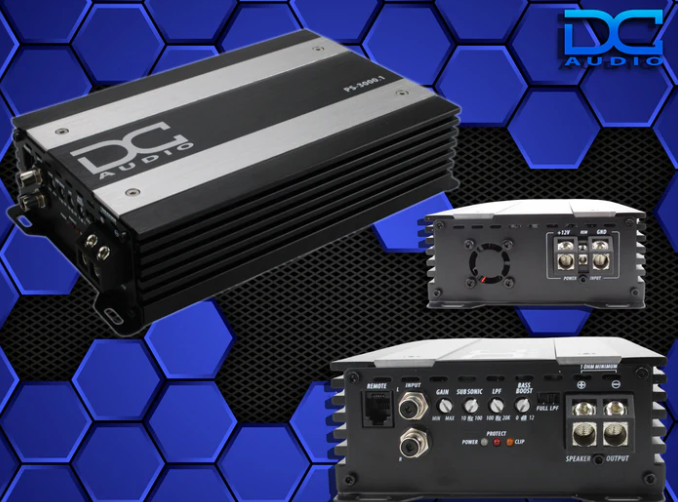

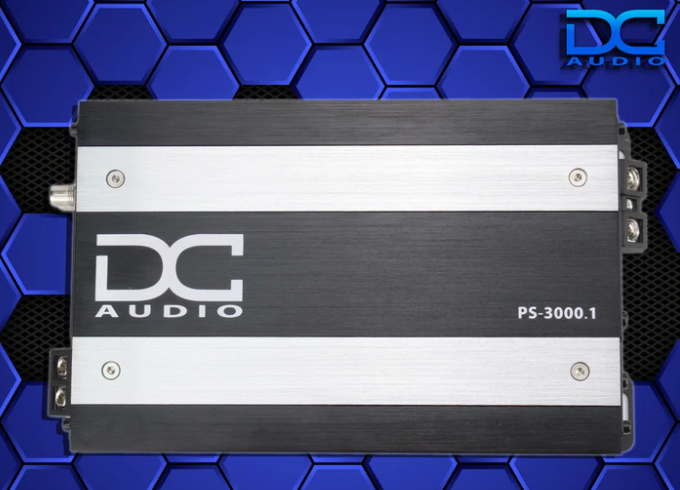

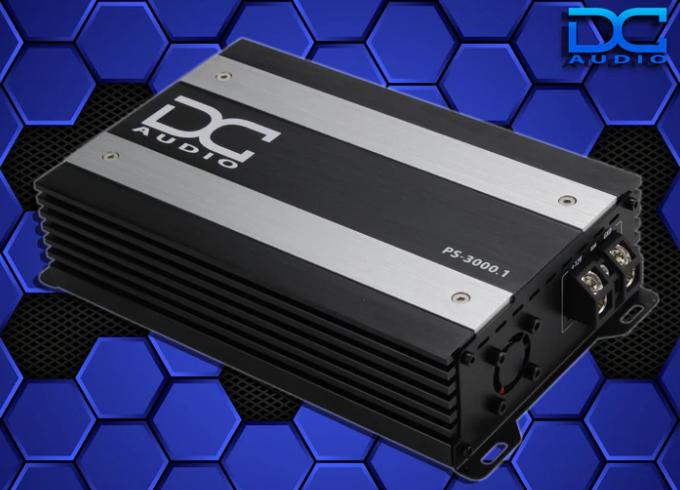

DC Audio PS3000x1 - Mini Full Range Mono Block Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 900.0 W
- RMS output at 2 ohms: 1800 W
- RMS output at 1 ohm: 3000 W
DC Audio PS3000x1 - Mini Full Range Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a high-power car audio system around the DC Audio PS3000x1 mini full-range mono block amplifier. Its compact full-bridge design delivers up to 3,000W RMS at 1 Ω, with adjustable filters and an included bass remote for system tuning.
Key Features & Benefits
- Power across three loads: Rated at 900W x 1 at 4 Ω, 1,800W x 1 at 2 Ω, and 3,000W x 1 at 1 Ω, all at 14.4V.
- Compact chassis: The heatsink measures 8.98" × 5.23" × 2.3" for easier space planning.

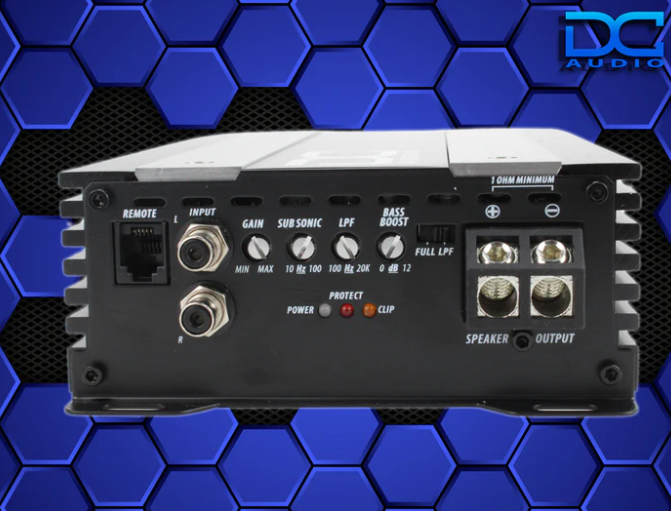

- Adjustable filtering: Variable low-pass and subsonic filters let you tune the signal for your system.
- Seated bass control: The included remote control lets you adjust bass level from the seating position.
- Clip indication: Onboard clip and status lights provide visual feedback while tuning.

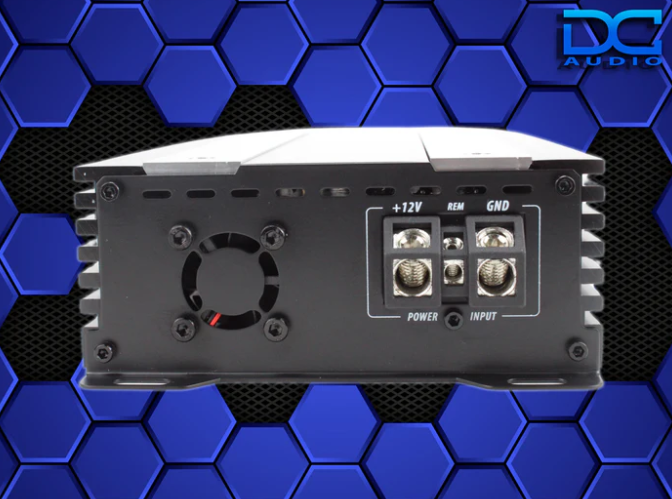

- 4 AWG input terminals: The heavy-gauge terminals accommodate 4 AWG input wiring.
Technical Specifications
| DC Amp Model: | PS 3000.1 |
|---|---|
| Input Sensitivity | 4V~0.4V |
| Frequency Response | 10Hz~20kHz |
| 12dB / Octave Crossover | YES |
| Low Pass | 50Hz ~ 15kHz |
| Subsonic Filter | Yes |
| Bass Boost | Yes |
| Phase Shift | NO |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB90 |
| Full Range Switch | Yes< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 200 amp |
| LED Status Lights | Power/Protect/Clip |
| Master/Slave | NO |
| Heatsink Length | 8.98"/228mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
- Output power at 14.4V: 4 Ω: 900W x 1; 2 Ω: 1800W x 1; 1 Ω mono: 3000W x 1 RMS.
- Amplifier type: Full-bridge mono block; 1 Ω stable.
- Input terminals: 4 AWG.
- RCA inputs: Tiffany-style RCA jacks.
Why Choose This Product?
The PS3000x1 combines a high-power mono channel with a compact heatsink and adjustable bass controls. Its rated output varies by load, giving you three stated power levels to consider when matching the amplifier to your speaker configuration.
The low-pass and subsonic filters provide adjustment options, while the clip indicator helps you monitor the signal during tuning. The full-range switch adds another configuration option for your system.
Installation & Compatibility Notes
Check your speaker load against the amplifier’s stated 1 Ω stability and power ratings before installation. Allow space for the 8.98" × 5.23" × 2.3" heatsink, and plan for the specified 4 AWG input terminals and external 200 amp fuse rating.
The amplifier’s stated output ratings are measured at 14.4V. Confirm that your system’s electrical setup and speaker configuration are appropriate for the intended load.
Frequently Asked Questions
How much power does the PS3000x1 produce?
At 14.4V, its stated RMS output is 900W x 1 at 4 Ω, 1800W x 1 at 2 Ω, and 3000W x 1 at 1 Ω.
Is this amplifier stable at 1 Ω?
Yes. The product details identify the amplifier as 1 Ω stable.
What are the heatsink dimensions?
Length is 8.98" (228mm), width is 5.23" (133mm), and height is 2.3" (60.0mm).
Does it include a bass remote?
Yes. A remote control is included for bass-level adjustment from the seating position.
What fuse rating and input terminals are specified?
The listed fuse rating is external 200 amp, and the input terminals are 4 AWG.
