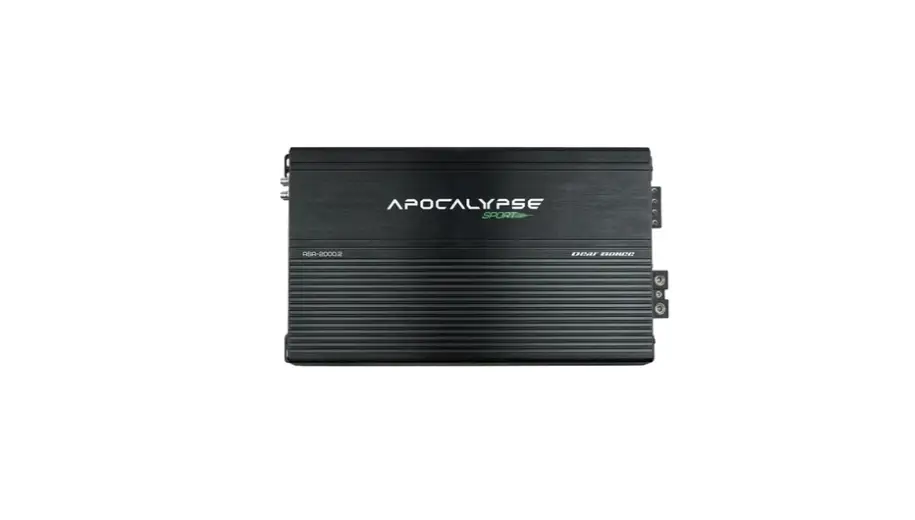

Deaf Bonce Apocalypse ASA 2000.2 2 Channel Full Range Amplifier

Product Overview

Build a high-output car audio system around the Deaf Bonce Apocalypse ASA-2000.2, a two-channel Class D full range amplifier. It delivers up to 2000W RMS per channel at 1 Ohm, with bridged output options for a single-channel setup.

Use it for a two-channel system or a bridged subwoofer channel, choosing the configuration that matches your speakers’ impedance and power requirements.

Key Features & Benefits

• High channel output: Rated at 2000W x 2 RMS at 1 Ohm and 14.4 V for systems built around low-impedance loads.
• Bridged power options: Choose 4000W x 1 at 2 Ohm or 2980 W x 1 at 4 Ohm for a bridged application.
• Adjustable filters: LPF and HPF can operate simultaneously, with separate adjustment ranges for system tuning.
• Class D design: The design offers high efficiency and a smaller heat footprint than traditional designs.
• Heavy-gauge terminals: The input terminal is 0 Ga and the output terminal is 8 Ga.

Technical Specifications

Why Choose This Product?

The ASA-2000.2 gives you several rated output options in one two-channel amplifier. Run channels at 1, 2, or 4 Ohm, or use a bridged connection at 2 or 4 Ohm, while keeping each configuration within its listed minimum load.

Its simultaneous LPF and HPF operation allows both filter types to be active together. The 12 dB/Oct crossover and broad adjustment ranges give you controls for shaping the signal around your system’s needs.

Installation & Compatibility Notes

Check the speaker load against the amplifier’s minimum ratings before choosing a channel or bridged configuration: 1 Ohm per channel and 2 Ohm bridged. The rated working voltage is 9 - 15V.

Plan the installation around the 0 Ga input terminal, 8 Ga output terminal, and amplifier dimensions of 16 x 9.4 x 2.5 inch. Confirm available mounting space and system requirements before installation.

Frequently Asked Questions

What is the ASA-2000.2’s RMS output at 14.4 V?

It is rated at 2000W x 2 at 1 Ohm, 1490 W x 2 at 2 Ohm, and 940 W x 2 at 4 Ohm.

What power does it provide when bridged?

The listed bridged ratings are 4000W x 1 at 2 Ohm and 2980 W x 1 at 4 Ohm.

What is the minimum speaker load?

The minimum permissible load is 1 Ohm per channel or 2 Ohm in a bridge connection.

Can the low-pass and high-pass filters operate at the same time?

Yes. The specifications list simultaneous LPF and HPF operation, with a 12 dB/Oct crossover.

How much space should I allow for the amplifier?

Its listed size is 16 x 9.4 x 2.5 inch. Allow for the installation space your system requires.
