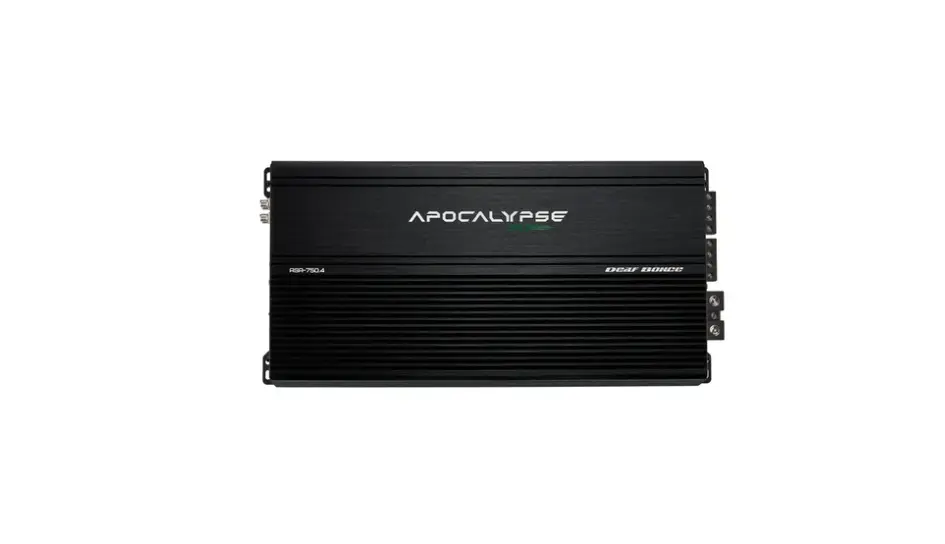

Deaf Bonce Apocalypse ASA 750.4 4 Channel Full Range Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 310 W
- RMS per channel at 2 ohms: 490 W
- Amplifier class: Class D
- Frequency response: 10 Hz - 20 kHz
- Crossover slope: 12 dB/octave
Deaf Bonce Apocalypse ASA 750.4 4 Channel Full Range Amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse ASA 750.4 4 Channel Full Range Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Deaf Bonce Apocalypse ASA 750.4 is a four-channel full-range car amplifier for building a system around multiple speaker channels. Its Class D design, selectable filter ranges, and listed power ratings give you several configuration options to consider when planning your setup.
Key Features & Benefits
- Four channels: Power four channels, with listed bridged ratings for two-channel configurations.
- Multiple load ratings: Compare the 1-, 2-, and 4-ohm ratings when matching the amplifier to your system.
- Low-pass and high-pass filters: Select from the stated filter ranges to suit your audio configuration.
- 12 dB/Oct crossover: The stated crossover slope helps you plan signal filtering.
- 9–16V working voltage: Check your system’s electrical requirements against the amplifier’s operating range.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ASA-750.4 |
| Class | D |
| Number of Channels | 4 |
| Frequency Response | 10-20000 Hz |
| RMS Power (14.4 V), 1 Ohm | 750W x 4 |
| RMS Power (14.4 V), 2 Ohm | 490W x 4 |
| RMS Power (14.4 V), 4 Ohm | 310W x 4 |
| RMS Power (14.4 V), Bridge (2 Ohm) | 1500W x 2 |
| RMS Power (14.4 V), Bridge (4 Ohm) | 980W x 2 |
| Minimum Permissible Load, Channel | 1 Ohm |
| Minimum Permissible Load, Bridge | 2 Ohm |
| Low Pass | 50-1200 / 500-12000 Hz |
| High Pass | 10-1200 / 100-12000 Hz |
| Crossover | 12 dB/Oct |
| Input Terminals | 0 Ga |
| Output Terminals | 8 Ga |
| Working Voltage | 9 - 16V |
| Signal-to-Noise Ratio | ≥ 91 dB |
| Dimensions (LxWxH) | 18.9 x 9.45 x 2.5 inches |
Why Choose This Product?
The ASA 750.4 offers four-channel and bridged power ratings, so you can compare both approaches against your system’s speaker loads. Its specified low-pass and high-pass ranges provide options for shaping the signal to suit your chosen configuration.
Installation & Compatibility Notes
Check the amplifier’s 18.9 x 9.45 x 2.5-inch dimensions against your available mounting space. Match your planned channel or bridged loads to the stated minimum permissible loads, and confirm the system operates within the 9 - 16V working-voltage range.

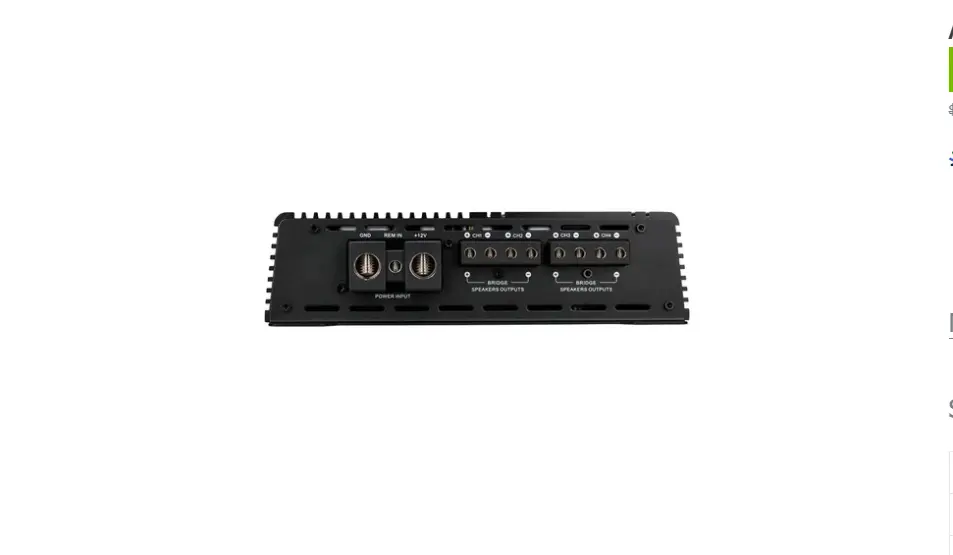

The listed terminals are 0 Ga input and 8 Ga output. Confirm your installation requirements and connections before purchase.
Frequently Asked Questions
What is the model number?
The model is ASA-750.4.
What RMS power does it provide?
At 14.4 V, the listed ratings are 750W x 4 at 1 Ohm, 490W x 4 at 2 Ohm, and 310W x 4 at 4 Ohm. Bridged ratings are 1500W x 2 at 2 Ohm and 980W x 2 at 4 Ohm.
What are the minimum permissible loads?
The listed minimum is 1 Ohm per channel and 2 Ohm bridged. Match your system’s load to the relevant rating.
How much space should I allow?
The amplifier measures 18.9 x 9.45 x 2.5 inches. Check those dimensions against your planned installation location.
