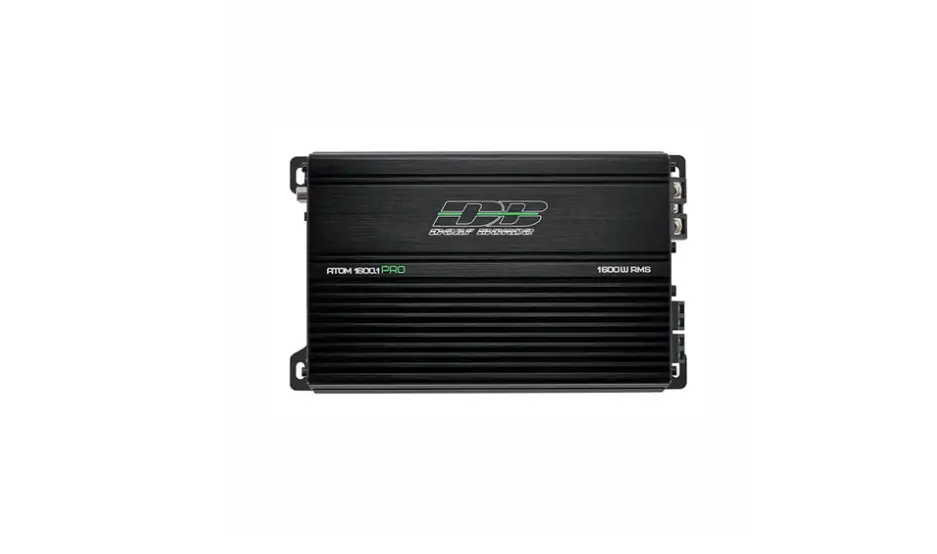

Deaf Bonce Apocalypse ATOM 1600 PRO 1600 Watt Power Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 550.0 W
- RMS output at 2 ohms: 1010 W
- RMS output at 1 ohm: 1600 W
Deaf Bonce Apocalypse ATOM 1600 PRO 1600 Watt Power Amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse ATOM 1600 PRO 1600 Watt Power Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add dedicated low-frequency power to your car audio system with the Deaf Bonce Apocalypse ATOM 1600 PRO mono amplifier. This Class D car amplifier delivers 1600 W RMS at 1 ohm with a 14.4 V supply and measures 9 x 5.5 x 2.1 inches.
Its single channel is designed for subwoofer applications, while adjustable filters let you tune the bass response for your setup.
Key Features & Benefits
- Mono output: One dedicated channel supports a subwoofer-focused system.
- Power across loads: Ratings at 1, 2, and 4 ohms help you compare output for your planned load.
- Adjustable low-pass filter: Set the cutoff from 40 - 250 Hz to shape the frequencies sent through the amplifier.
- Subsonic filter: The 10 - 50 Hz adjustment provides control over very low frequencies.
- Bass frequency adjustment: Tune within the 35 - 90 Hz range to suit your listening preferences.
- Compact dimensions: The 9 x 5.5 x 2.1 inch chassis can suit installations with limited space.
Technical Specifications
| Model | ATOM 1600 PRO |
| Class | D |
| Number of the channels | 1 |
| Frequency response | 10 - 250 Hz |
| 1 Ohm RMS Power (14.4 V) | 1600 W |
| 1 Ohm RMS Power (12 V) | 1430 W |
| 2 Ohm RMS Power (14.4 V) | 1010 W |
| 4 Ohm RMS Power (14.4 V) | 550 W |
| Minimum permissible load on the channel | 1 Ohm |
| Low pass filter | 40 - 250 Hz |
| Crossover | 12 dB/Oct |
| Subsonic filter | 10 - 50 Hz |
| Bass frequency adjustment | 35 - 90 Hz |
| Input terminal | 4 Ga |
| Output terminal | 10 Ga |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ��� 93 dB |
| Size (WxLxH) | 9 x 5.5 x 2.1 inch |
Why Choose This Product?
The ATOM 1600 PRO combines a dedicated mono channel with adjustable low-pass, subsonic, and bass-frequency controls. Its listed power ratings at different impedances and supply voltages help you assess how it aligns with your subwoofer system before choosing a configuration.
Installation & Compatibility Notes
Plan your installation around the amplifier’s 9 x 5.5 x 2.1 inch dimensions, 9 - 15 V working voltage, and 1 Ohm minimum permissible channel load. Confirm that your subwoofer’s load meets this minimum and that your available installation space accommodates the chassis.

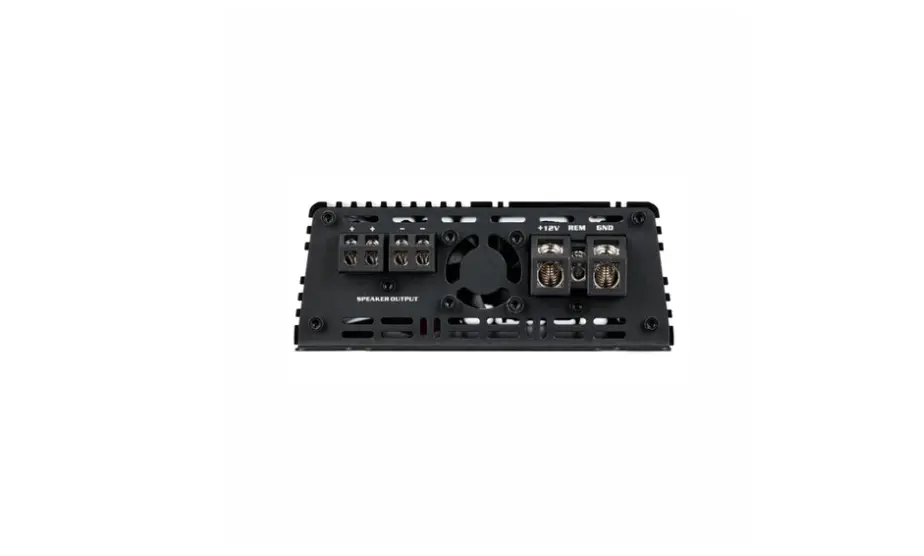

The listed terminals are 4 Ga input and 10 Ga output. Check your system’s connection requirements and installation plan before purchase.
Frequently Asked Questions
What is the ATOM 1600 PRO’s RMS power at 1 ohm?
It is rated at 1600 W RMS at 14.4 V and 1430 W RMS at 12 V.
What is the minimum permissible load?
The minimum permissible load on the channel is 1 Ohm.
Can I use this amplifier with a 2-ohm or 4-ohm load?
The listed ratings are 1010 W RMS at 2 Ohm and 550 W RMS at 4 Ohm, both at 14.4 V.
What are the filter adjustment ranges?
The low-pass filter ranges from 40 - 250 Hz, the subsonic filter from 10 - 50 Hz, and bass frequency adjustment from 35 - 90 Hz.
How much space should I allow for the amplifier?
Its listed size is 9 x 5.5 x 2.1 inch (WxLxH). Compare these dimensions with your intended mounting space.
