Deaf Bonce Apocalypse ATOM 9.5K PRO | 9500 Watt Power Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 3420.0 W
- RMS output at 2 ohms: 5650 W
- RMS output at 1 ohm: 9500 W
Deaf Bonce Apocalypse ATOM 9.5K PRO | 9500 Watt Power Amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse ATOM 9.5K PRO | 9500 Watt Power Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

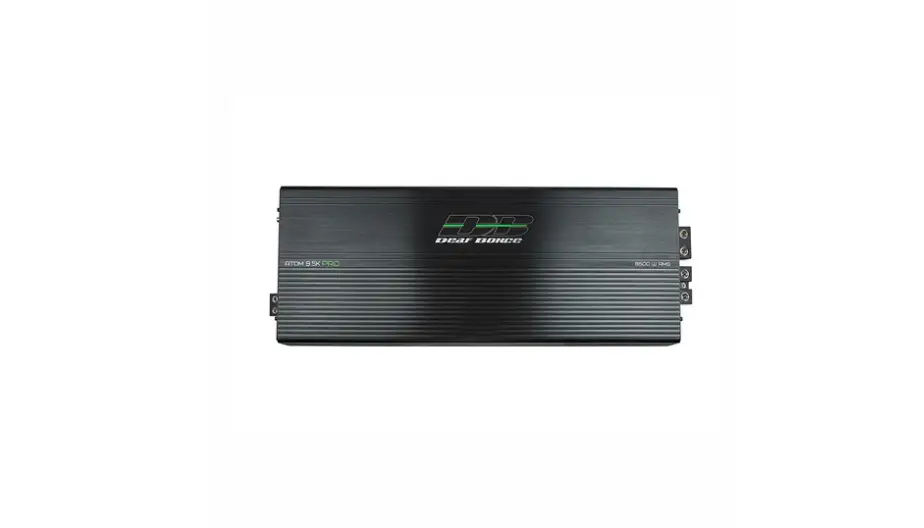

The Deaf Bonce Apocalypse ATOM 9.5K PRO is a mono Class D car audio amplifier for high-power subwoofer systems. It delivers up to 9500 W RMS at 1 Ohm and 14.4 V, with adjustable bass and filter controls for shaping the signal.
Key Features & Benefits
- Single-channel design: One mono output is dedicated to a subwoofer channel or a small multi-sub setup.

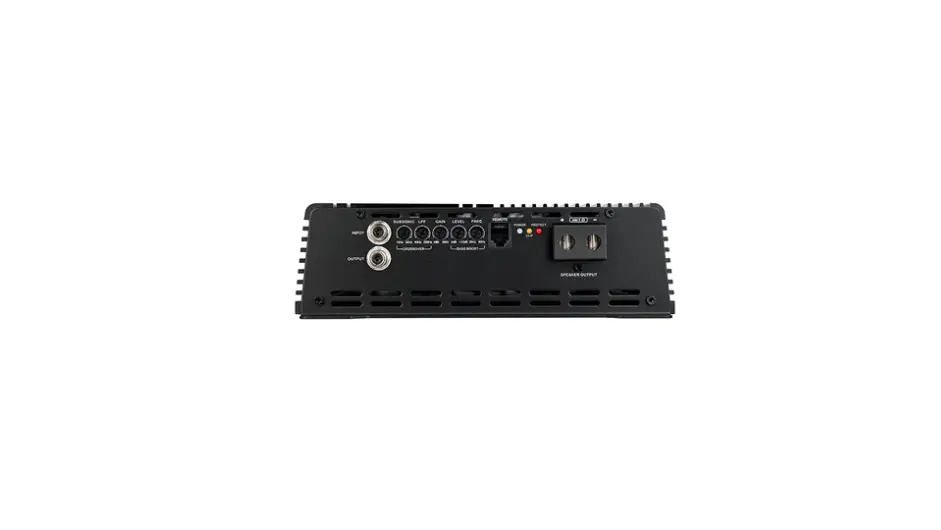

- Adjustable low-pass filter: Set the crossover from 40–250 Hz to define the upper range sent to the subwoofer.
- Subsonic control: The 10–50 Hz filter lets you reduce ultra-low content below your chosen setting.
- Bass adjustment: Choose a frequency from 35–90 Hz to tailor the bass emphasis.

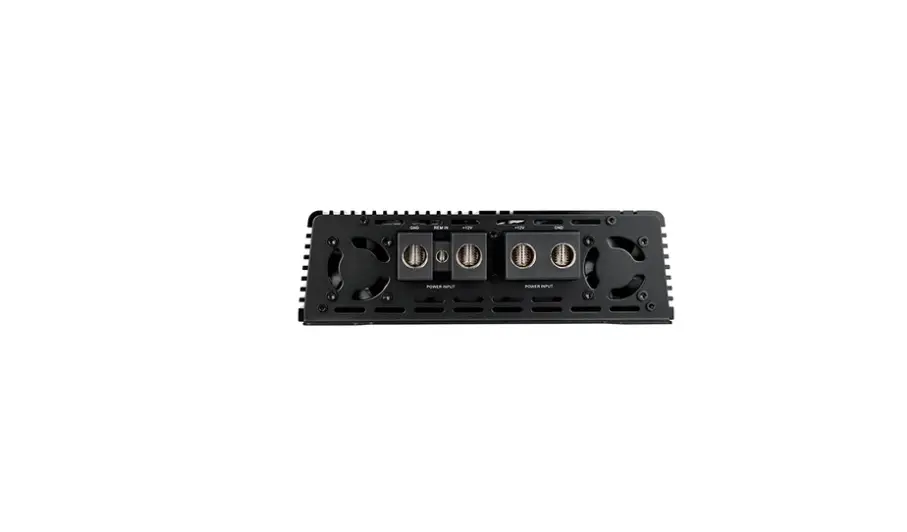

- Heavy-gauge terminals: The amplifier uses a 0 Ga input terminal and a 4 Ga output terminal.
Technical Specifications
| Model | ATOM 9.5K PRO |
| Class | D |
| Number of the channels | 1 |
| Frequency response | 10 - 250 Hz |
| 1 Ohm RMS Power (14.4 V) | 9500 W |
| 1 Ohm RMS Power (12 V) | 8050 W |
| 2 Ohm RMS Power (14.4 V) | 5650 W |
| 4 Ohm RMS Power (14.4 V) | 3420 W |
| Minimum permissible load on the channel | 1 Ohm |
| Low pass filter | 40 - 250 Hz |
| Crossover | 12 dB/Oct |
| Subsonic filter | 10 - 50 Hz |
| Bass frequency adjustment | 35 - 90 Hz |
| Input terminal | 0 Ga |
| Output terminal | 4 Ga |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ��� 85 dB |
| Size (WxLxH) | 20.8 x 8.6 x 2.6 inch |
Why Choose This Product?
The ATOM 9.5K PRO offers different RMS power ratings for 1, 2, and 4 Ohm loads, with separate 1 Ohm ratings at 12 V and 14.4 V. These figures help you compare its output with your subwoofer setup and vehicle supply voltage.
Its adjustable filters give you control over the bass range sent to the subwoofer. The 20.8 x 8.6 x 2.6 inch dimensions also give you specific measurements to use when planning a mounting location.
Installation & Compatibility Notes
The minimum permissible channel load is 1 Ohm, and the working voltage is 9–15 V. Match your subwoofer load and vehicle electrical system to the amplifier’s ratings before installation.
Plan for the listed 0 Ga input and 4 Ga output terminals, and check the mounting space against the amplifier’s dimensions. Confirm that your chosen wiring and system components meet the installation requirements for your setup.
Frequently Asked Questions
What is the maximum listed RMS power?
The amplifier is rated at 9500 W RMS at 1 Ohm and 14.4 V. At 1 Ohm and 12 V, its listed rating is 8050 W RMS.
What is the minimum permissible load?
The minimum permissible load on the channel is 1 Ohm. Keep your subwoofer wiring configuration within that rating.
Can I use a 2 Ohm or 4 Ohm load?
Yes. The listed RMS ratings are 5650 W at 2 Ohm and 3420 W at 4 Ohm, both at 14.4 V.
What frequency controls does the amplifier have?
It has a 40–250 Hz low-pass filter, a 10–50 Hz subsonic filter, and bass frequency adjustment from 35–90 Hz.
What mounting space should I allow?
The listed size is 20.8 x 8.6 x 2.6 inch (WxLxH). Check your available mounting space against these measurements.
