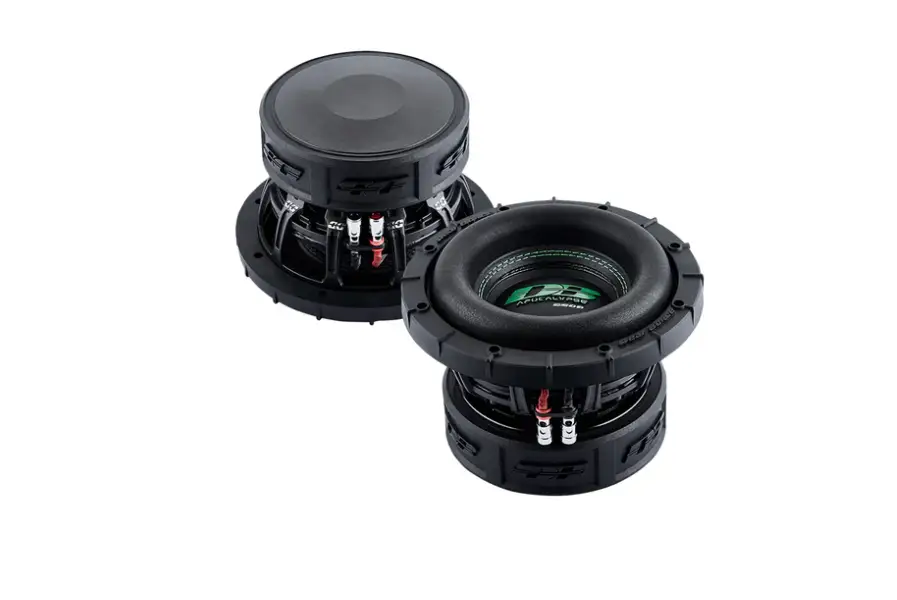

Deaf Bonce Apocalypse DB-SA2508 D1/D2 8" Subwoofer
Key features
- Subwoofer size: 8.0 inches
- RMS power per subwoofer: 800 W
- Voice-coil options: D1, D2
- Voice-coil diameter: 2.5 in
- Magnet type: Ferrite
- Xmax: 14 mm
Deaf Bonce Apocalypse DB-SA2508 D1/D2 8" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse DB-SA2508 D1/D2 8" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring substantial low-frequency output to a compact car audio build with the Deaf Bonce Apocalypse DB-SA2508 D1/D2 8-inch subwoofer. Its 800 W RMS rating, dual-voice-coil impedance options, and 2.5-inch voice coil are designed for high-power system planning.
Key Features & Benefits
- 800 W RMS power handling: Provides a continuous power rating for matching the subwoofer with appropriate amplification.
- Dual-voice-coil options: The listed 1+1 / 2+2 Ohm configurations offer wiring flexibility when designing a compatible amplifier load.
- 2.5-inch voice coil: Its larger surface area helps dissipate heat during demanding use.
- Pressed-paper cone and foam surround: These materials support controlled cone movement and low-frequency response.
- Aluminum frame and ferrite magnet: The rigid chassis and magnetic motor form the driver’s compact structure.
Technical Specifications
| Model | DB-SA2508 D1/D2 |
| Type | Subwoofer |
| Size | 8 inch |
| Voice coil size | 2.5 inch |
| Cone | Pressed paper |
| Magnet | Ferrite |
| Voice coil wire | CCA |
| Surround | Foam |
| RMS Power | 800 W |
| MAX Power | 1600 W |
| Frame | Alu |
| Impedance | 1+1 / 2+2 Ohm |
| SPL | 84.7 / 85 dB |
| Fs | 35 / 35.9 Hz |
| Qts | 0.55 / 0.56 |
| BL | 18.3 / 21.4 |
| Vas (L) | 19 / 19.7 |
| Xmeh | 28.00 / 28.00 mm |
| Xmax | 14.00 / 14.00 mm |
| Mounting depth | inch (132.7 mm) |
| Cut-out dimension | inch (189 mm) |
| Gross weight | 20 lb (9 kg) |
Why Choose This Product?
The DB-SA2508 combines an 8-inch footprint with a listed 800 W RMS rating, making it an option to consider when planning a high-power car audio system around a compact driver. Its Fs values of 35 / 35.9 Hz and Xmax of 14.00 / 14.00 mm provide useful reference points for evaluating its low-frequency characteristics and excursion.
The CCA voice coil wire combines copper-clad aluminum construction with a light weight, while the ferrite magnet supports the motor assembly. The listed 1600 W MAX rating is a peak figure; use the 800 W RMS rating when considering continuous power handling.
Installation & Compatibility Notes
Plan for the listed 189 mm cut-out dimension and 132.7 mm mounting depth, and check available space before installation. Match the amplifier and wiring plan to the intended 1+1 or 2+2 Ohm coil configuration and the subwoofer’s power ratings.
The specification lists the dimensions as “inch (132.7 mm)” and “inch (189 mm).” Confirm the mounting measurements against your installation location before cutting or fitting.
Frequently Asked Questions
What power rating should I use when matching an amplifier?
Use the 800 W RMS rating as the continuous power-handling reference. The listed 1600 W MAX rating is the peak figure.
What impedance configurations are listed?
The specifications list 1+1 / 2+2 Ohm. Choose a wiring plan that matches the amplifier’s supported load.
How much mounting space does this subwoofer require?
The listed cut-out dimension is 189 mm, and the mounting depth is 132.7 mm. Check both against your available mounting location.
What are the cone and surround made from?
The cone is pressed paper, and the surround is foam.
What enclosure volume should I consider?
The specifications list Vas (L) as 19 / 19.7. Enclosure planning should account for the applicable model configuration and the rest of your system design.
Explore More
Shop the Deaf Bonce Apocalypse DB-SA2508 D1/D2 at 12 Volt Outlet. Want to learn more about Deaf Bonce? Explore our Deaf Bonce brand profile.
| Model | DB-SA2508 D1/D2 |
| Type | Subwoofer |
| Size | 8 inch |
| Voice coil size | 2.5 inch |
| Cone | Pressed paper |
| Magnet | Ferrite |
| Voice coil wire | CCA |
| Surround | Foam |
| RMS Power | 800 W |
| MAX Power | 1600 W |
| Frame | Alu |
| Impedance | 1+1 / 2+2 Ohm |
| SPL | 84.7 / 85 dB |
| Fs | 35 / 35.9 Hz |
| Qts | 0.55 / 0.56 |
| BL | 18.3 / 21.4 |
| Vas (L) | 19 / 19.7 |
| Xmeh | 28.00 / 28.00 mm |
| Xmax | 14.00 / 14.00 mm |
| Mounting depth | inch (132.7 mm) |
| Cut-out dimension | inch (189 mm) |
| Gross weight | 20 lb (9 kg) |
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
