Deaf Bonce Apocalypse DB-SA255 D1/D2 15" Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 1000 W
- Voice-coil options: D1, D2
- Voice-coil diameter: 2.5 in
- Xmax: 15 mm
- Mounting depth: 187.9 mm
Deaf Bonce Apocalypse DB-SA255 D1/D2 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse DB-SA255 D1/D2 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

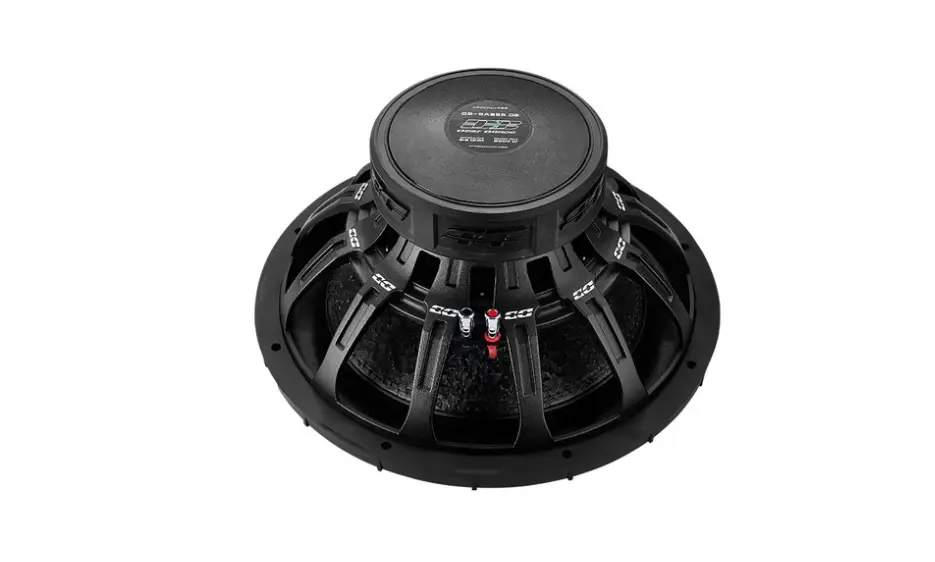

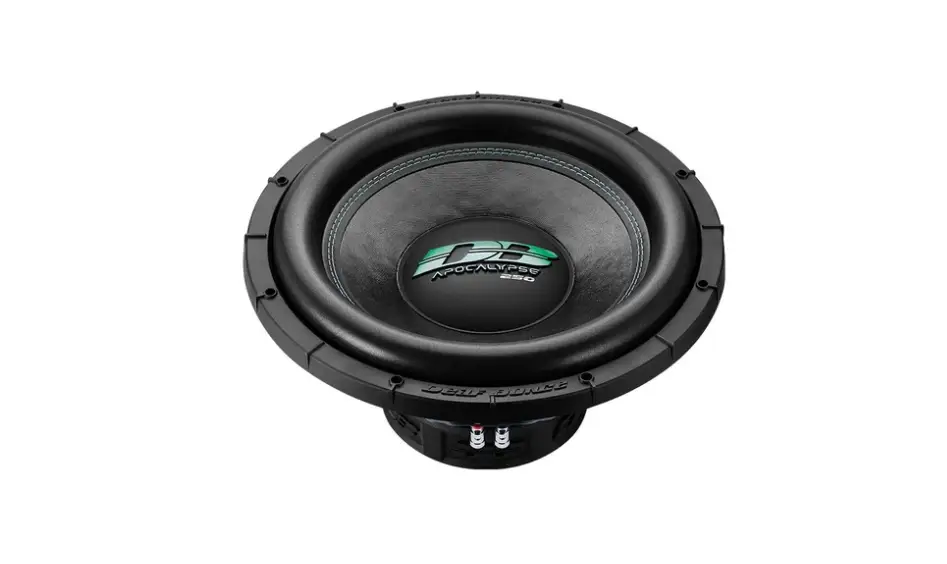

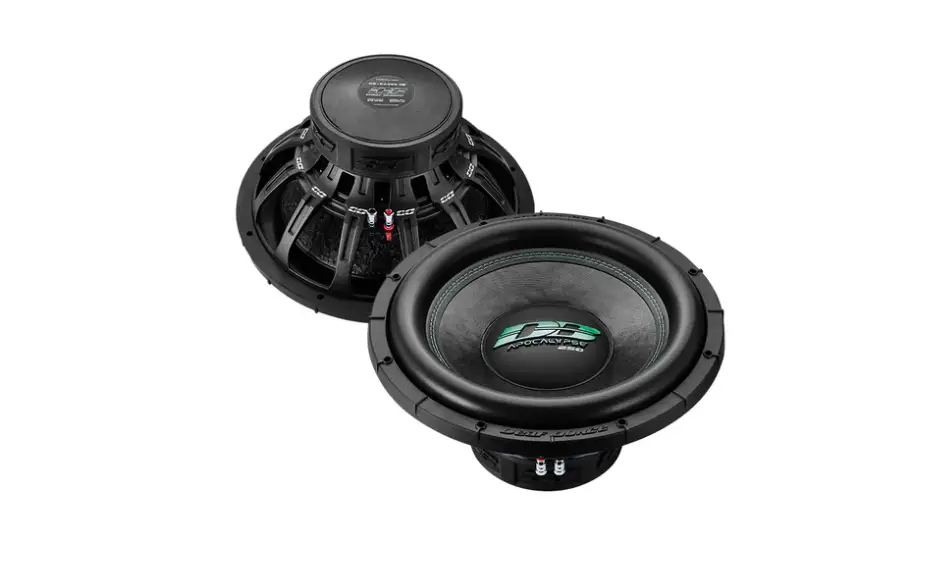

The Deaf Bonce Apocalypse DB-SA255D1 / DB-SA255D2 15-inch subwoofer is designed for high-output bass in car audio systems. Its 1000 W RMS rating, 2.50-inch voice coil and dual-coil impedance options make amplifier matching and system planning important parts of the setup.
Key Features & Benefits
- 1000 W RMS power handling: Use the continuous rating as a reference when matching an amplifier for sustained bass.
- Dual voice coils: The listed 1+1 / 2+2 Ohm options provide different wiring possibilities for system planning.
- 15-inch cone: The large driver is intended to move air for impactful low-frequency output.
- Paper cone and foam surround: These materials form the moving assembly that produces the subwoofer’s bass output.
- Aluminum frame and ferrite magnet: These construction details define the driver’s motor and supporting structure.
Technical Specifications
| Model | DB-SA255D1 / DB-SA255D2 |
| Type | Subwoofer |
| Size | 15 inch |
| Voice coil size | 2.50 inch |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | Copper |
| Surround | Foam |
| RMS Power | 1000 W |
| MAX Power | 2000 W |
| Frame | Alu |
| Impedance | 1+1 / 2+2 Ohm |
| SPL | 87.10 / 87.50 dB |
| Fs | 32.20 / 32.86 Hz |
| Qts | 0.51 / 0.55 |
| BL | 20.12 / 20.83 |
| Vas | 61.30 / 62.10 L |
| Xmax | 15.00 / 15.00 mm |
| Mounting depth | 7.40 inch |
| Cut-out dimension | 14.09 inch |
| Gross weight | 29.98 lb (13.60 kg) |
Why Choose This Product?
This subwoofer combines high power handling with two listed dual-coil impedance options, giving you key details to consider when planning a car audio system. Its published Fs, Qts and Vas values can also inform enclosure design, so use the specifications when selecting a suitable enclosure rather than relying on size alone.
Installation & Compatibility Notes
Check available mounting space against the 7.40-inch mounting depth and 14.09-inch cut-out dimension before installation. Match the selected coil configuration to an amplifier that supports the resulting load, and account for the enclosure in your system planning.
Frequently Asked Questions
What is the difference between the DB-SA255D1 and DB-SA255D2?
The listed impedance options are 1+1 / 2+2 Ohm. Confirm the specific variant and its coil impedance before choosing an amplifier or wiring configuration.
How should I use the 1000 W RMS and 2000 W MAX ratings?
The specifications list 1000 W RMS and 2000 W MAX. Use the RMS figure as the continuous power-handling reference when matching an amplifier.
Will this 15-inch subwoofer fit my vehicle?
Compare the mounting depth and cut-out dimension with your available installation space. Vehicle fit depends on the space and mounting arrangement in your specific installation.
What should I consider when choosing an enclosure?
Use the listed Fs, Qts and Vas values to guide enclosure planning. The product details do not specify a particular enclosure design or volume.
