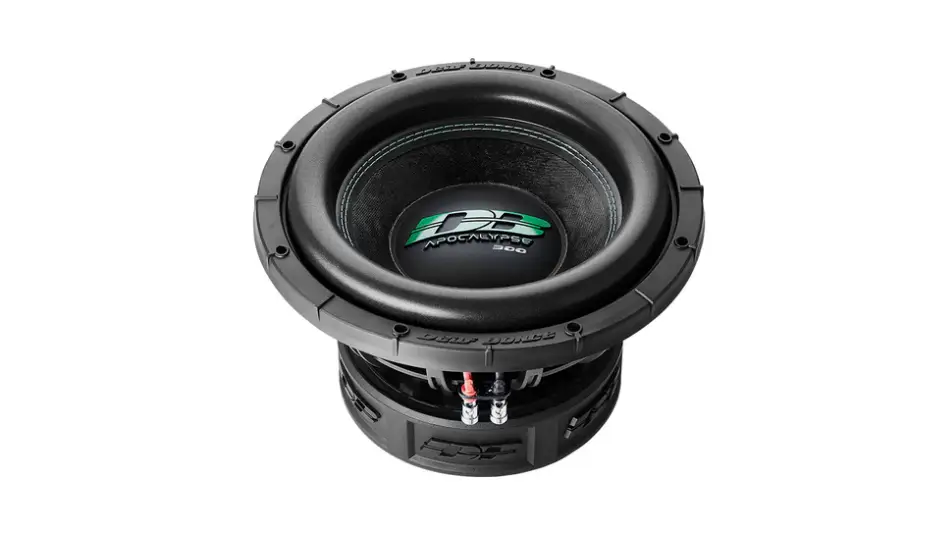

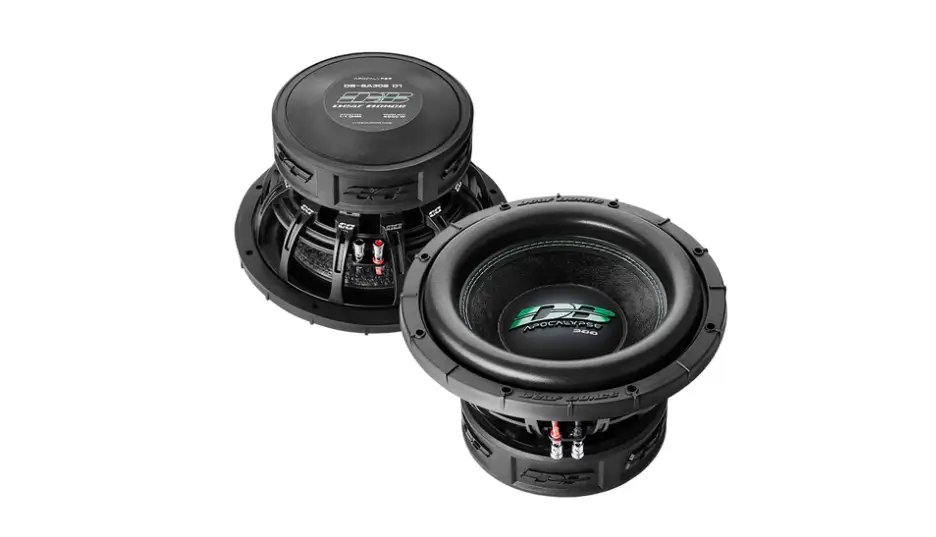

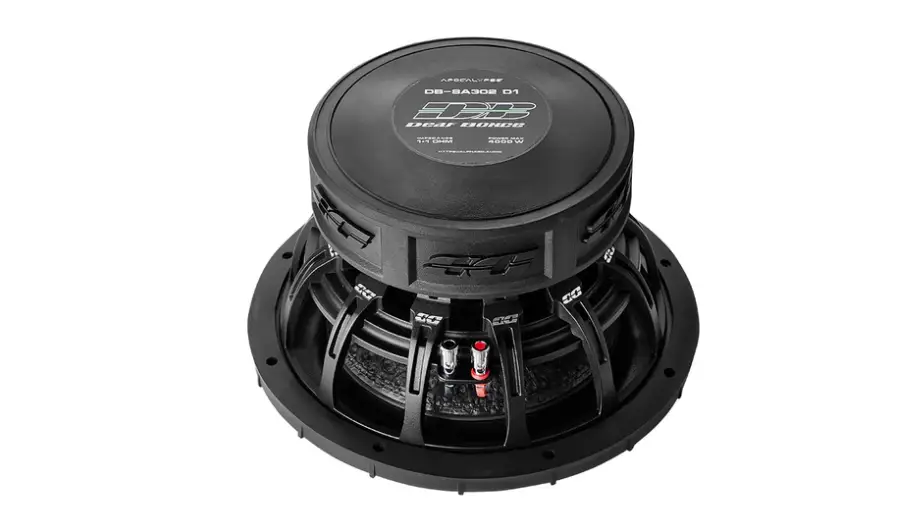

Deaf Bonce Apocalypse DB-SA302 D1/D2 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 2000 W
- Voice-coil options: D1, D2
- Voice-coil diameter: 3 in
- Xmax: 18 mm
- Mounting depth: 179.5 mm
Deaf Bonce Apocalypse DB-SA302 D1/D2 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse DB-SA302 D1/D2 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring high-output bass to a demanding car audio build with the Deaf Bonce Apocalypse DB-SA302 D1/D2 12-inch subwoofer. Its 2000 W RMS rating, 3.00-inch voice coil, and two impedance options make it a purpose-built choice for systems planned around substantial bass output.
Key Features & Benefits
- Two impedance options: Choose the 1+1 Ohm or 2+2 Ohm model to match your amplifier and system design.
- 2000 W RMS rating: The continuous power rating helps you assess amplifier pairing for sustained use.
- 3.00-inch voice coil: The large coil is specified for high-current handling and sustained power.
- 18.00 mm Xmax: The stated linear excursion gives you a key measurement when comparing bass drivers.
- Paper cone and foam surround: These materials support the subwoofer’s stated cone and suspension design.
- Aluminum frame and ferrite magnet: The specified construction details help you assess the driver for your build.
Technical Specifications
| Model | DB-SA302D1 / DB-SA302D2 |
| Type | Subwoofer |
| Size | 12 inch |
| Voice coil size | 3.00 inch |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | CCAW |
| Surround | Foam |
| RMS Power | 2000 W |
| MAX Power | 4000 W |
| Frame | Alu |
| Impedance | 1+1 / 2+2 Ohm |
| SPL | 86.30 / 86.70 dB |
| Fs | 35.16 / 35.67 Hz |
| Qts | 0.30 / 0.34 |
| BL | 20.04 / 20.84 |
| Vas | 21.00 / 24.00 L |
| Xmax | 18.00 / 18.00 mm |
| Mounting depth | 7.07 inch |
| Cut-out dimension | 11.00 inch |
| Gross weight | 36.16 lb (16.40 kg) |
Why Choose This Product?
The DB-SA302 D1/D2 combines a 12-inch driver with two impedance choices, so you can select the version that suits your planned amplifier load. Its Fs, Qts, and Vas values provide useful parameters for enclosure planning, while the 2000 W RMS rating distinguishes continuous power handling from the 4000 W maximum rating.
Installation & Compatibility Notes
Plan for a 7.07-inch mounting depth and an 11.00-inch cutout. Check the available mounting space and enclosure design before installation.
Choose the D1 or D2 version according to its listed impedance and your amplifier’s supported load. Confirm the amplifier’s power and impedance requirements before connecting the subwoofer.
Frequently Asked Questions
What is the difference between the DB-SA302D1 and DB-SA302D2?
The listed impedance options are 1+1 Ohm and 2+2 Ohm. Match the selected version to your amplifier and system design.
What do the 2000 W RMS and 4000 W MAX ratings mean?
2000 W is the stated RMS power rating. 4000 W is the stated maximum power rating.
How much space does installation require?
The listed mounting depth is 7.07 inches, and the cutout dimension is 11.00 inches. Allow for these measurements when planning the mounting location.
Which enclosure should I use?
Use the listed Fs, Qts, and Vas values when planning an enclosure. Confirm the enclosure design suits the selected D1 or D2 version.
