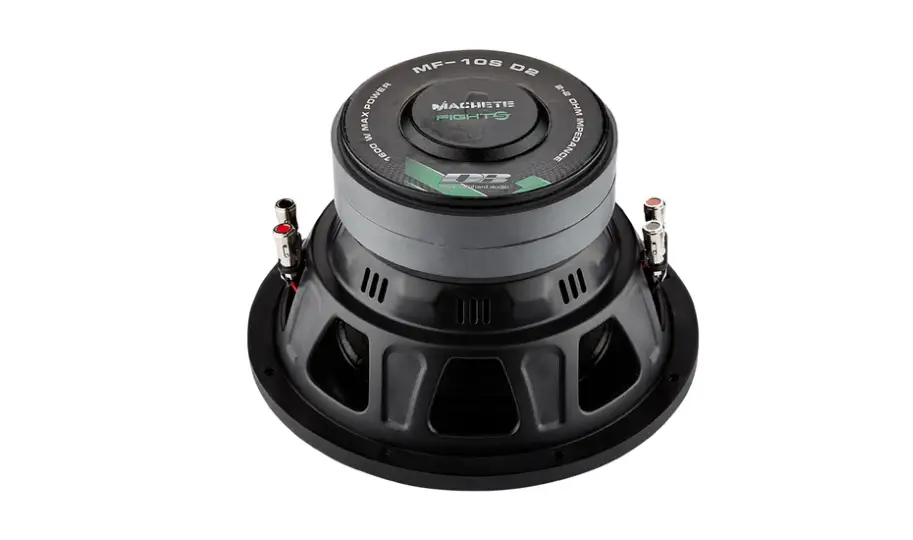

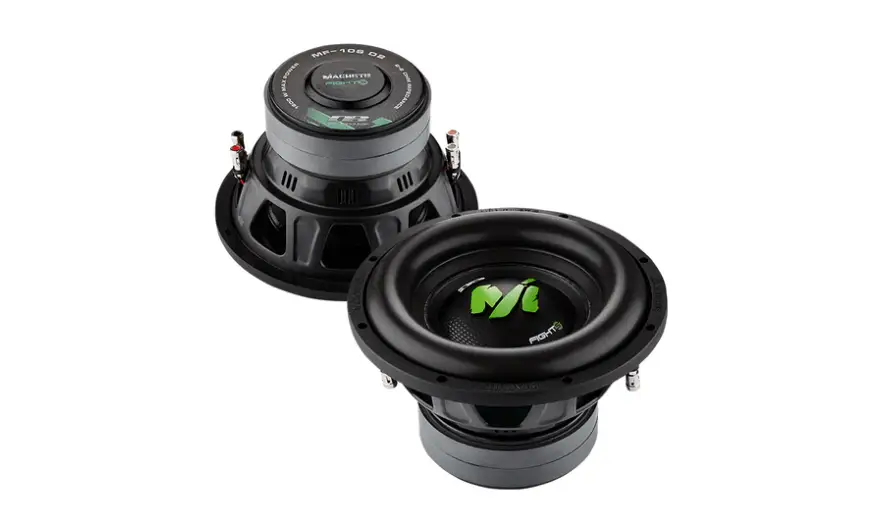

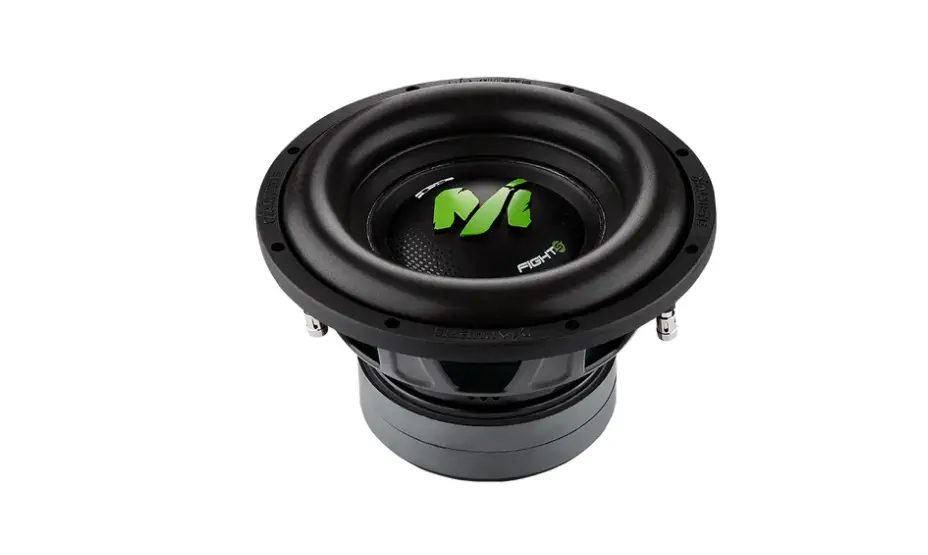

Deaf Bonce Machete MF-10S D2/D4 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 800 W
- Voice-coil options: D2, D4
- Voice-coil diameter: 2.5 in
- Xmax: 14 mm
- Magnet type: Ferrite
Deaf Bonce Machete MF-10S D2/D4 10" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Deaf Bonce Machete MF-10S D2/D4 10" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a powerful car-audio system around the Deaf Bonce Machete MF-10S D2/D4 10-inch subwoofer. It handles 800W RMS, with a 1600 W maximum rating, and uses dual 2+2 Ohm voice coils for wiring flexibility.
Its 10-inch driver, 5.6-inch mounting depth, and 8.9-inch cutout measurement give you key dimensions to check when planning an installation.
Key Features & Benefits
- Power handling: The 800W RMS rating supports demanding amplified music, while 1600 W is the stated maximum rating.
- Dual voice coils: The 2+2 Ohm configuration allows series or parallel wiring to suit different amplifier loads.
- 10-inch driver: The compact footprint can be considered for trunk or under-seat installation plans.
- Paper cone and foam surround: This combination provides the stated balance of stiffness, damping, and controlled cone movement.
- Steel frame and ferrite magnet: These components form the subwoofer’s mounting structure and motor assembly.
Technical Specifications
| Model | Machete MF-10S D2/D4 |
| Type | Subwoofer |
| Size | 10" |
| Voice coil size | 2.5" |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | CCAW |
| Surround | Foam |
| RMS Power | 800W |
| MAX Power | 1600 W |
| Frame | Steel |
| Impedance | 2+2 Ohm |
| SPL | 84,00 dB |
| Fs | 36,00 Hz |
| BL | 18.00 |
| Vas | 20,50 L |
| Xmeh | 28 mm |
| Xmax | 14.00 mm |
| Mounting depth | 5.6" (143 mm) |
| Cut-out dimension | 8.9" (228 mm) |
| Gross weight | 16.4 lb (7.4 kg) |
Why Choose This Product?
The MF-10S D2/D4 combines substantial power handling with a dual-voice-coil design, giving you flexibility when matching the subwoofer to an amplifier load. Its 2.5-inch voice coil, ferrite magnet, and steel frame are specific components to consider for a high-power car-audio build.
The listed Fs of 36,00 Hz and Vas of 20,50 L are useful driver parameters when planning an enclosure. The 14.00 mm Xmax describes its stated maximum linear cone travel.
Installation & Compatibility Notes
Check the available mounting depth and cutout against your planned location before installation. Confirm that your amplifier supports the load created by your chosen series or parallel voice-coil wiring.
Use the listed Fs and Vas when evaluating enclosure design. The product details do not specify a particular enclosure volume or tuning frequency.
Frequently Asked Questions
What do the 800W RMS and 1600 W MAX ratings mean?
800W is the listed RMS power rating. 1600 W is the listed maximum power rating.
What impedance does this subwoofer use?
It has a dual 2+2 Ohm voice-coil configuration. The coils can be wired in series or parallel to suit different amplifier loads.
How much mounting space should I plan for?
Allow for a 5.6" (143 mm) mounting depth and an 8.9" (228 mm) cutout.
What do Fs and Vas tell me when choosing an enclosure?
The listed Fs is 36,00 Hz, and Vas is 20,50 L. Use these driver parameters as part of enclosure planning.
Explore More
Shop for the Deaf Bonce Machete MF-10S D2/D4 at 12 Volt Outlet. Want to learn more about Deaf Bonce? Explore our Deaf Bonce brand profile.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
