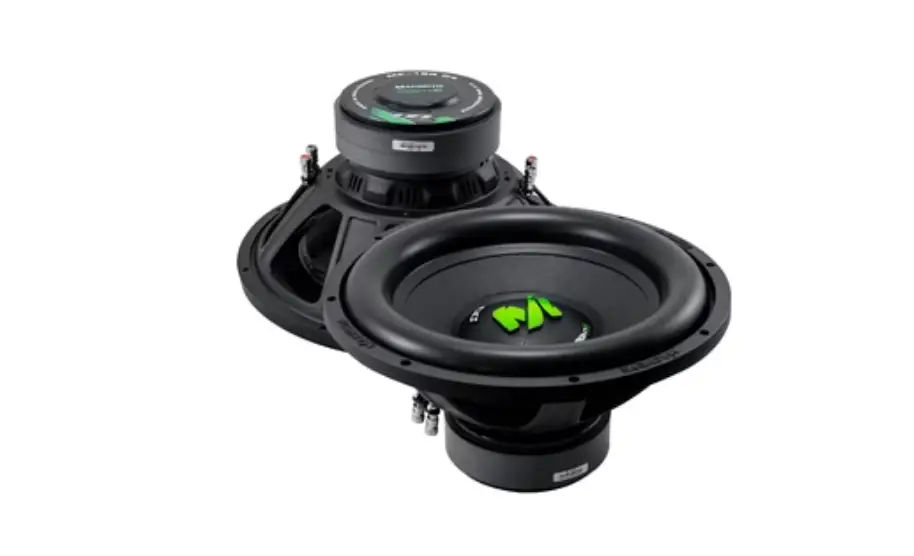

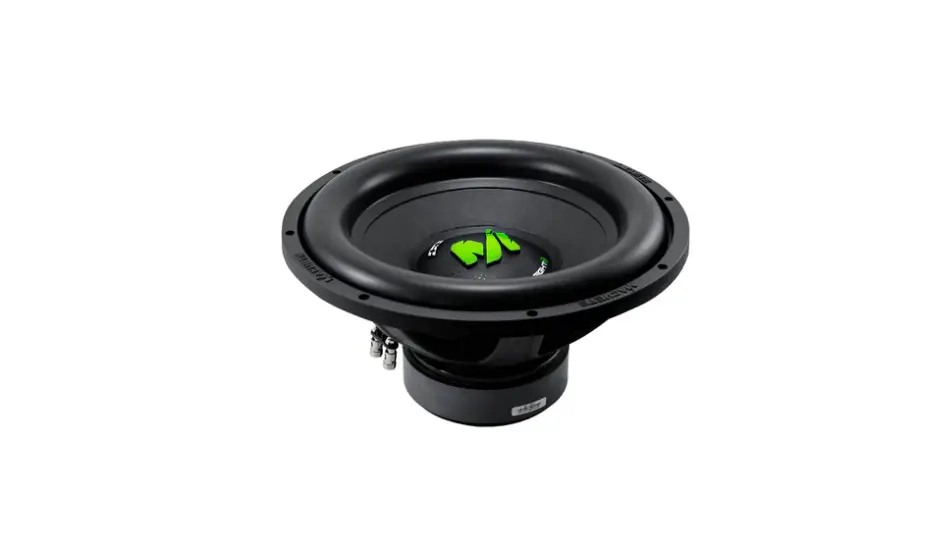

Deaf Bonce Machete MF-15R D2/D4 Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 1200 W
- Voice-coil options: D2, D4
- Voice-coil diameter: 3 in
- Xmax: 15 mm
- Mounting depth: 182 mm
Deaf Bonce Machete MF-15R D2/D4 Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Deaf Bonce Machete MF-15R D2/D4 Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add substantial low-frequency output to a high-power car audio build with the Deaf Bonce Machete MF-15R D2/D4 15-inch subwoofer. It combines 1200W RMS power handling with dual-impedance options for amplifier and enclosure planning.
Its 15-inch driver is described for use in sealed or ported enclosures, giving you options when planning a system around your available space and sound goals.
Key Features & Benefits
- 1200W RMS power handling: Supports high-power system designs when paired with suitable equipment.
- 2+2/4+4 Ohm impedance: Offers wiring options for matching the subwoofer to an amplifier.
- 3-inch voice coil: The specified coil size supports heat dissipation and current handling during demanding playback.
- Paper cone and foam surround: These materials form the moving assembly for bass reproduction and excursion.

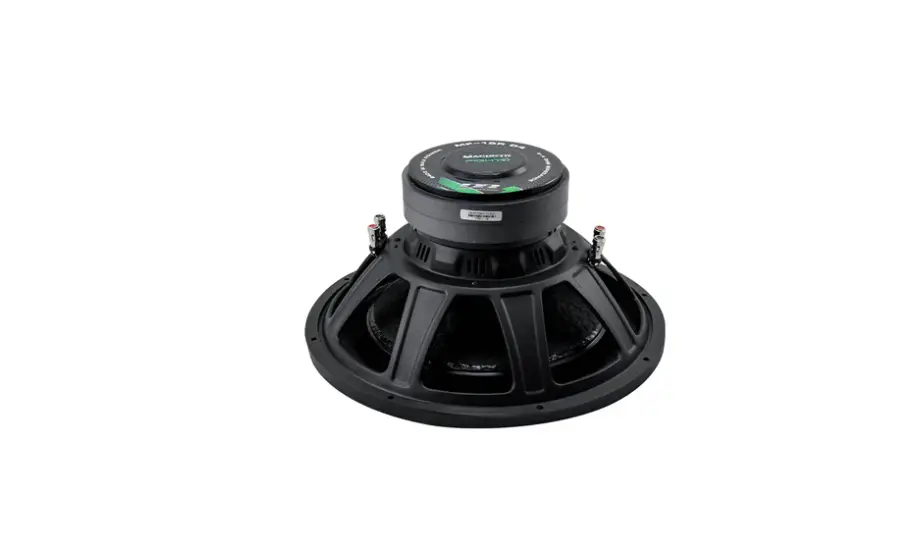

- Steel frame and ferrite magnet: The listed motor and frame materials define the subwoofer’s construction.
Technical Specifications
| Model | Machete MF-15R D2/D4 |
| Type | Subwoofer |
| Size | 15" |
| Voice coil size | 3" |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | CCAW |
| Surround | Foam |
| RMS Power | 1200W |
| MAX Power | 2400 W |
| Frame | Steel |
| Impedance | 2+2/4+4 Ohm |
| SPL | 89,00 / 89,20 dB |
| Fs | 35,00 / 36,00 Hz |
| BL | 15,20 / 21,20 |
| Vas | 64,90 / 65,80 L |
| Xmeh | 30 mm |
| Xmax | 0.59" (15.00 mm) |
| Mounting depth | 7.1" (182 mm) |
| Cut-out dimension | 13.9" (355 mm) |
| Gross weight | 24.2 lb (11 kg) |
Why Choose This Product?
The Machete MF-15R D2/D4 pairs a 15-inch cone with a 1200W RMS rating for builds focused on strong bass output. Its listed impedance configurations give you options when selecting an amplifier and planning the system’s wiring.
The specifications also include Fs and Vas values, which are useful reference points when designing an enclosure. Choose sealed or ported construction according to your installation plan.
Installation & Compatibility Notes
Allow for a mounting depth of 7.1" (182 mm) and a 13.9" (355 mm) cutout. Check these measurements against your enclosure before installation.
Match the amplifier and wiring plan to the selected 2+2 or 4+4 Ohm configuration. Account for the 1200W RMS rating when planning the system; the 2400 W figure is the maximum power rating, not the RMS rating.
Frequently Asked Questions
What is the difference between the RMS and MAX power ratings?
The subwoofer is rated at 1200W RMS and 2400 W MAX. Use the RMS figure when considering continuous power handling.
What impedance options does the Machete MF-15R D2/D4 have?
The listed configurations are 2+2/4+4 Ohm. Match the chosen configuration and wiring plan to your amplifier.
Will it fit my enclosure?
Check that the enclosure provides a 13.9" (355 mm) cutout and at least 7.1" (182 mm) of mounting depth.
Can I use it in a sealed or ported enclosure?
The product details describe use in both sealed and ported setups. The listed Fs and Vas values can help inform enclosure planning.
