Deaf Bonce MACHETE MFA-2.520 | 520 Watt 2-channel amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 520 W
- RMS per channel at 2 ohms: 750 W
- Amplifier class: Class D
- Frequency response: 20 Hz - 20 kHz
- Crossover slope: 12 dB/octave
Deaf Bonce MACHETE MFA-2.520 | 520 Watt 2-channel amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce MACHETE MFA-2.520 | 520 Watt 2-channel amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a flexible car audio system with the Deaf Bonce MACHETE MFA-2.520, a two-channel Class D amplifier rated for stereo or bridged operation. It delivers 750 W x 2 at 2 Ohm or 520 W x 2 at 4 Ohm, with a 1500 W x 1 bridged rating at 4 Ohm.

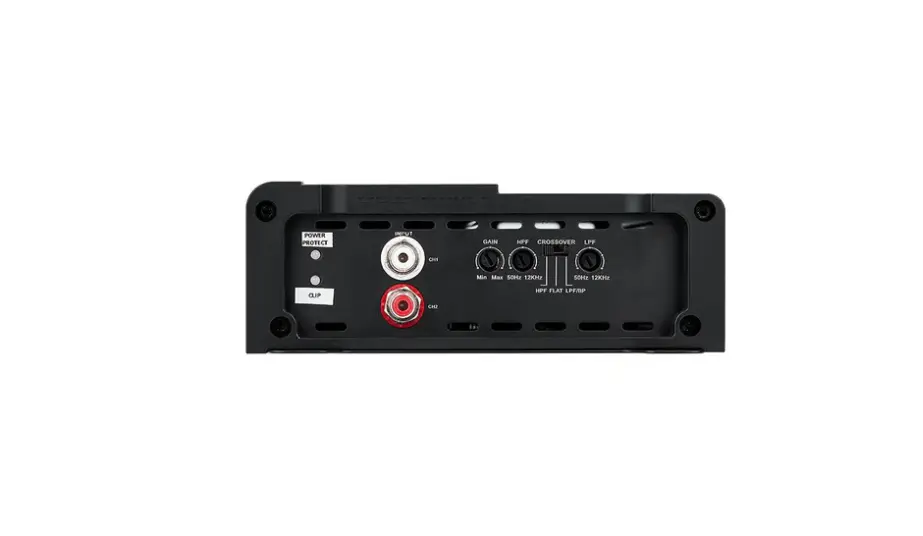

Use its adjustable low-pass and high-pass filters to shape your system’s crossover settings, with both filters able to operate simultaneously.
Key Features & Benefits
- Two-channel Class D design: Supports stereo system configurations in a compact amplifier format.
- Power at two stereo loads: Choose between 750 W x 2 at 2 Ohm and 520 W x 2 at 4 Ohm, both rated at 14.4 V.
- Bridged output: The 1500 W x 1 rating at 4 Ohm provides an option for a single-channel setup.
- Adjustable filters: Low-pass and high-pass ranges of 50-12000 Hz give you broad crossover adjustment.
- Simultaneous filter operation: LPF and HPF can operate together for crossover management in supported configurations.

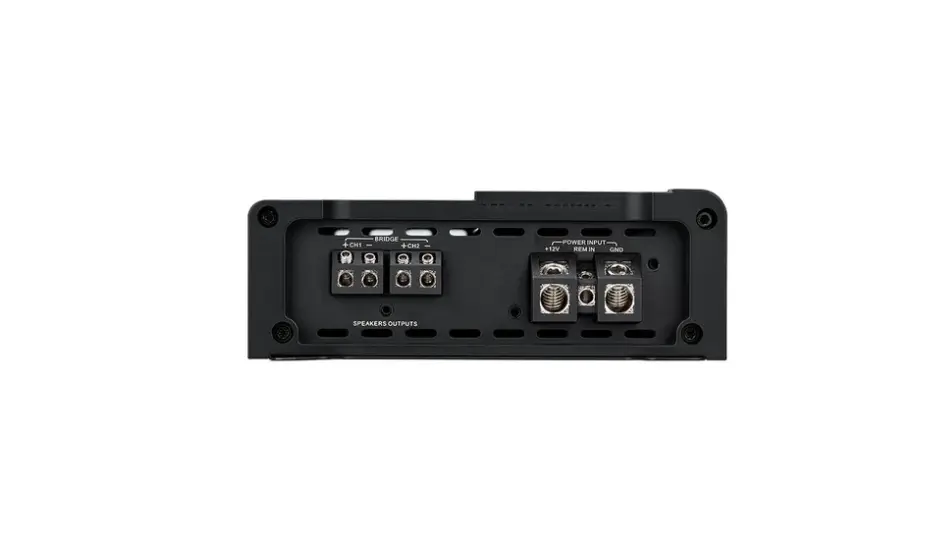

- Installation connections: The amplifier has a 4 Ga input terminal and an 8 Ga output terminal.
Technical Specifications
| Model | MFA-2.520 |
| Class | D |
| Number of the channels | 2 |
| Frequency response | 20-20000 Hz |
| 2 Ohm RMS Power (14.4 V) | 750 W x 2 |
| 4 Ohm RMS Power (14.4 V) | 520 W x 2 |
| 4 Ohm RMS Power (Bridge) | 1500 W x 1 |
| Minimum permissible load on the channel | 2 Ohm |
| Minimum permissible load in a bridge connection | 4 Ohm |
| Input SPL | 0.4 - 8V |
| Low pass filter | 50-12000 Hz |
| High pass filter | 50-12000 Hz |
| LPF and HPF simultaneous operation | True |
| Crossover | 12 dB/Oct |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ��� 90 dB |
| Size (WxLxH) | 11 x 6 x 2.2 inch |
Why Choose This Product?
The MFA-2.520 gives you a choice between two-channel output and a bridged configuration, with separate minimum load ratings for each. Its broad filter ranges and 12 dB/Oct crossover slope let you tailor signal separation to your system setup.
A frequency response of 20-20000 Hz covers a full audio range. The stated size is 11 x 6 x 2.2 inch, useful when planning where the amplifier will fit in your installation.
Installation & Compatibility Notes
Match speaker impedance to the listed minimum load: 2 Ohm per channel or 4 Ohm when bridged. The amplifier’s working voltage is 9 - 15V. Check your vehicle’s available space and electrical system against the listed dimensions and voltage before installation.
Plan connections around the 4 Ga input and 8 Ga output terminals. Confirm your source unit’s output falls within the 0.4 - 8V input range.
Frequently Asked Questions
How much power does the MFA-2.520 deliver at 2 Ohm?
It is rated at 750 W x 2 RMS at 2 Ohm and 14.4 V.
What is its power rating at 4 Ohm?
For two-channel operation, it is rated at 520 W x 2 RMS at 4 Ohm and 14.4 V. Its bridged rating is 1500 W x 1 at 4 Ohm.
What is the minimum load when the amplifier is bridged?
The minimum permissible load in a bridge connection is 4 Ohm.
Can the low-pass and high-pass filters operate together?
Yes. The specifications state that LPF and HPF simultaneous operation is supported.
What are the amplifier’s dimensions?
Its listed size is 11 x 6 x 2.2 inch (WxLxH).
Explore More
Want to learn more about Deaf Bonce? Explore our Deaf Bonce brand profile. Shop the Deaf Bonce MACHETE MFA-2.520 at 12 Volt Outlet for a two-channel amplifier with a bridged setup option.
