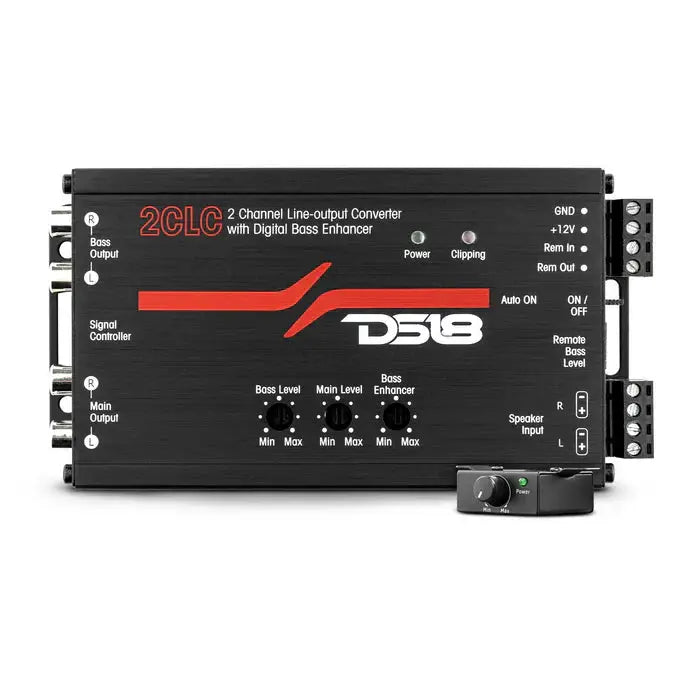

DS18 2CLC 2 Channel Line Output Converter with Digital Bass Enhancer
Key features
- Speaker-level inputs: 2 channels
- Maximum preamp output: 9 V RMS
- Outputs: Separate main and bass amplifier connections
- Turn-on options: Signal sensing or remote input
- Dash remote: Level control included
- Current draw: 150 mA
DS18 2CLC 2 Channel Line Output Converter with Digital Bass Enhancer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add an external subwoofer and amplifier to a factory audio system without replacing the radio. The DS18 2CLC 2-channel line output converter turns speaker-level input into preamp output and includes a digital bass enhancer with adjustable controls.
Use the included dash remote to adjust the level while driving, and choose signal sensing or remote activation for Auto ON.
Key Features & Benefits
- Two-channel speaker-level input: Connect a factory audio signal to the converter for use with an external amplifier and subwoofer.
- Adjustable bass enhancement: Shape bass response with the bass enhancer control, including adjustment of bass roll-off.
- Main and bass outputs: Separate output paths provide level-matching controls for each output.
- Dash remote included: Adjust the level from +0dB to -19dB from the driver’s seat.
- Selectable Auto ON: Choose signal sensing or remote-in activation to suit the installation.
- Power and clip indicators: Check the unit’s power and clipping status at a glance.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 2CLC |
| Maximum Speaker Level Input | 400 watts per channel |
| Maximum Preamp Output | 9V rms |
| Dash Level Remote Control | +0dB / - 19 dB |
| Frequency Response | 10Hz-100kHz; + 1dB |
| Total Harmonic Distortion | 0.01% |
| Signal To Noise Ratio | >110dB |
| Input Impedance | 20K Ohms |
| Output Impedance | 150 Ohms |
| Power Draw | 150mA |
| Recommended Fuse Rating | 1 Amp |
| Speaker Level Input | 2 channels |
| Bass Enhancer | Adjustable control of bass roll-off |
| Selectable Auto ON | Signal sensing or remote in |
| Remote Output | Up to 150mA |
| Amplifier Outputs | Dual; Main / Bass output |
| Level Matching Controls | Main / Bass output level knob |
| Dash Remote Level Control | Included |
| LED Indicators | Power / Clip |
| Overall Length | 6.18" / 157mm |
| Overall Width | 3.22" / 82mm |
| Overall Height | 1.25" / 32mm |
| Heatsink Length | 5.39" / 137mm |
| Gross Single Unit Weight | 11oz |
| Shipping Measurement L x W x H (Inches) | 8.25 x 7 x 1.87 |
| Weight (lb) | 1.5 |
| M/C Measurement L x W x H (Inches) | 17.5 x 14.75 x 10.25 |
| M/C Weight (lb) | 28 |
| M/C Qty | 20 Pcs |
Why Choose This Product?
The 2CLC combines speaker-level conversion, bass enhancement, and separate main and bass outputs in one unit. Its included dash remote puts level adjustment within reach, while the power and clip indicators offer a quick visual check during use.
Installation & Compatibility Notes
Plan the installation around the converter’s 6.18" x 3.22" x 1.25" overall dimensions. Check the audio system’s signal and the connected equipment’s input requirements before installation. The recommended fuse rating is 1 Amp.
Frequently Asked Questions
Can the DS18 2CLC work with a factory radio?
It accepts two channels of speaker-level input and is described for adding an external amplifier and subwoofer to a factory system without replacing the radio.
What level can the dash remote adjust?
The included dash remote control is rated from +0dB to - 19 dB.
How can the converter turn on?
Select signal sensing or remote-in activation using the Auto ON feature.
What should I check before installing it?
Confirm that your system’s signal and connected amplifier are suitable for the 2CLC’s input and output requirements, and allow space for its listed dimensions.
