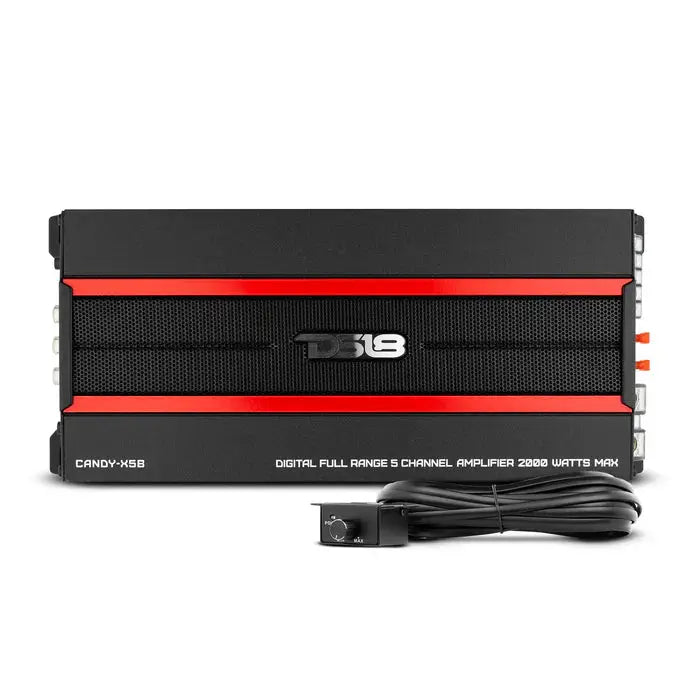

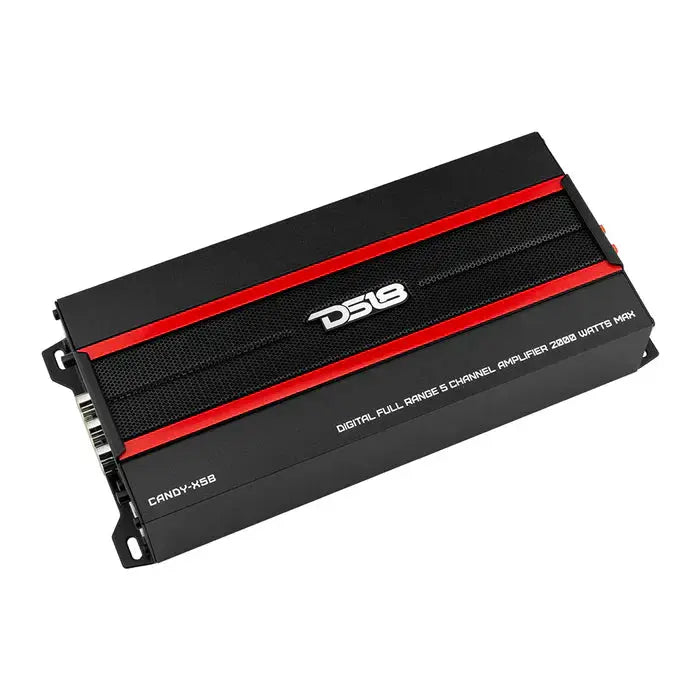

DS18 CANDY-X5B Full Range 5-Channel Class D Car Amplifier 2000 Watts
Key features
- Amplifier channels: 5
- High-pass filter: 40–250 Hz
- Subwoofer low-pass filter: 50–150 Hz
- Low-level input range: 0.2–6 V
- Subwoofer level control: remote dash control included
- Power input terminals: 4 AWG
DS18 CANDY-X5B Full Range 5-Channel Class D Car Amplifier 2000 Watts is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a front, rear, and subwoofer system around one compact amplifier with the DS18 CANDY-X5B 5-channel Class D car amplifier. It combines four full-range speaker channels with a dedicated subwoofer channel, plus RCA and Hi/Lo inputs for system integration.
Key Features & Benefits
- Five-channel design: Run front and rear speakers alongside a subwoofer from one amplifier.
- Class D construction: A compact amplifier design helps accommodate space-conscious installations.

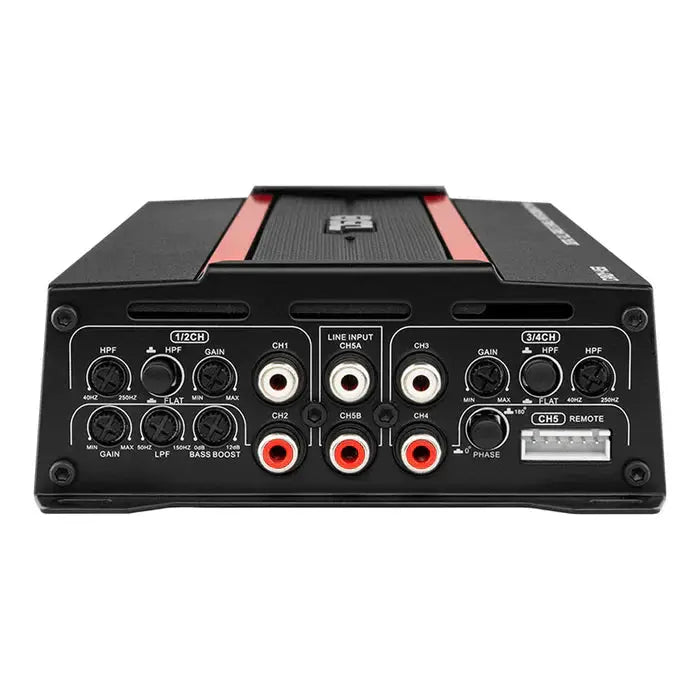

- RCA and Hi/Lo inputs: Choose an input type suited to your audio system’s connection.

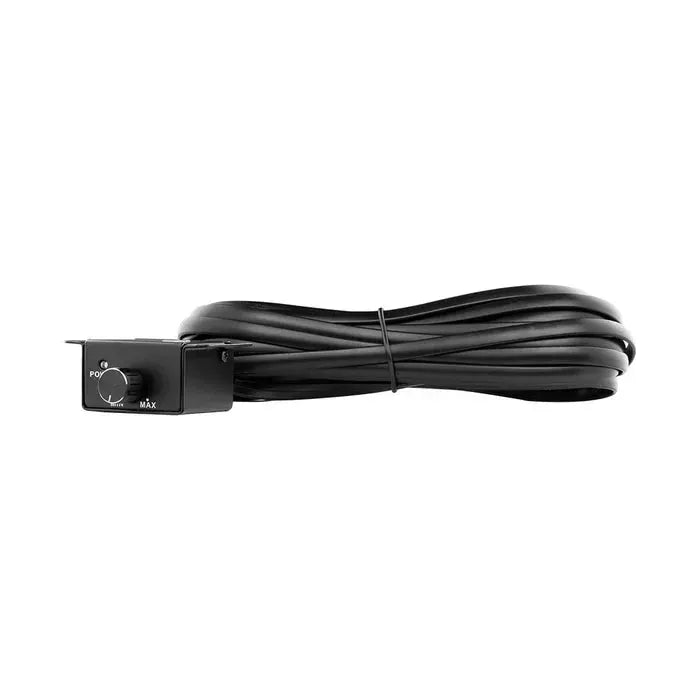

- Subwoofer level control: Adjust sub level from the included remote dash-mount control.
- Adjustable sound shaping: Crossover options and subwoofer bass boost let you tailor the output.
- Protection features: Thermal, overload, short-circuit, and voltage input protection help guard the amplifier.
Technical Specifications
| Amplifier Class | Digital (Class D) |
|---|---|
| Amplifier Type | Stereo Full Range + Subwoofer |
| Number of Channels | 5 |
| Minimum Impedance | 2 ohm / 1 ohm (Sub) |
| Total Watts (Peak) | 2000W |
| RMS Power @ 4 Ohm | 80W x 4 + 220W (Sub) |
| RMS Power @ 2 Ohm | 125W x 4 + 360W (Sub) |
| RMS Power @ 1 Ohm | 500W (Sub) |
| RMS Power @ 4 Ohm Bridge | 250W x 2 |
| Frequency Response | 20Hz-20kHz |
| Signal-to-Noise Ratio | >80 dB |
| X-Over | HPF/FLAT (Fixed LPF Sub) |
| X-Over Range | 40-250Hz (50-150Hz Sub) |
| Bass Boost | 0dB–12dB (Sub) |
| Bass Boost Frequency | Fixed at 40Hz |
| Inputs | RCA and Hi/Lo inputs |
| Remote Level Control | Yes / Remote Dash Mount |
| Cooling | No cooling fan |
| Thermal Protection | Yes (>180°F) |
| Over-Load Protection | Yes |
| DC Output Protection | No |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (9-16V) |
| Input Impedance | 10K ohm |
| Finish | Black Matte |
| Power Input Terminal Size | 4Ga |
| Fuse Size | 40A x 2 |
| Dimensions | 11" L x 5" W x 1.87" H (280mm × 127mm × 47.5mm) |
| Heatsink Length | 9.96" (253mm) |
| Weight | 5.5 (gross single unit) |
Why Choose This Product?
The CANDY-X5B brings speaker and subwoofer amplification together in a single chassis. That five-channel layout can simplify a multi-channel system plan, while the subwoofer’s separate crossover and bass controls give you ways to shape its output.
Its compact dimensions provide a clear starting point when planning an installation. The listed power ratings also let you compare the amplifier’s output at different impedances before choosing compatible speakers and a subwoofer.
Installation & Compatibility Notes
Measure the intended mounting area against the amplifier’s listed dimensions, including the 9.96" heatsink length. Check speaker and subwoofer impedance against the channel-specific minimum impedance and power ratings.

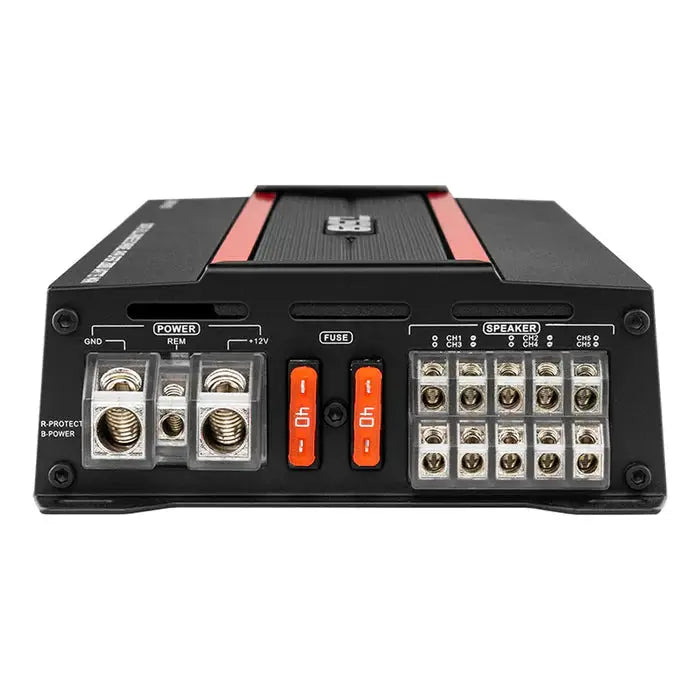

The amplifier accepts RCA and Hi/Lo inputs. Its listed voltage input protection range is 9-16V, and the power input terminal size is 4Ga. Confirm your system connections and electrical requirements before installation.
Frequently Asked Questions
Does the CANDY-X5B power both speakers and a subwoofer?
Yes. It has four full-range channels and a dedicated subwoofer channel.
What does the 2000W rating mean?
2000W is the stated peak rating. RMS output is listed separately by impedance, including 80W x 4 + 220W (Sub) at 4 ohm.
What input connections does it accept?
It has RCA and Hi/Lo inputs for connection to an audio system with a matching output.
Can I adjust subwoofer level from the driver’s seat?
Yes. A remote dash-mount level control is listed.
Will it fit in my vehicle?
Compare the mounting space with its dimensions: 11" L x 5" W x 1.87" H. Vehicle-specific fitment is not listed.
