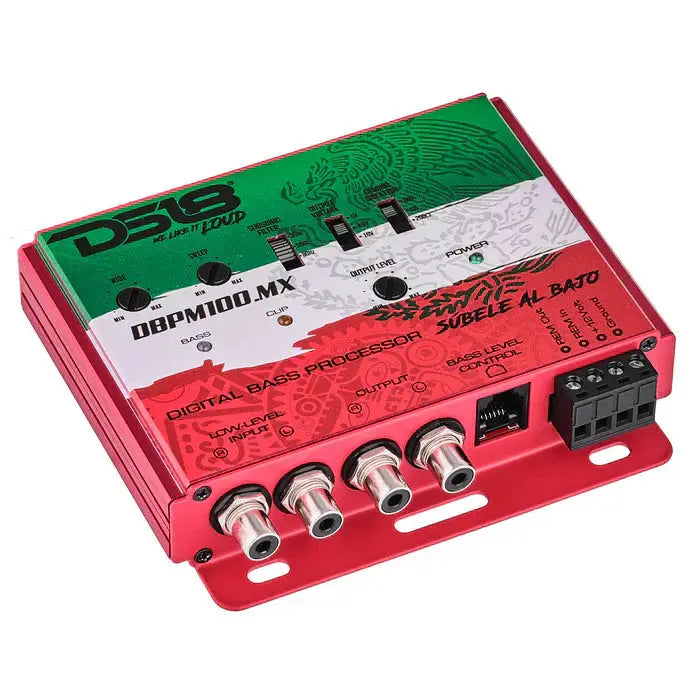

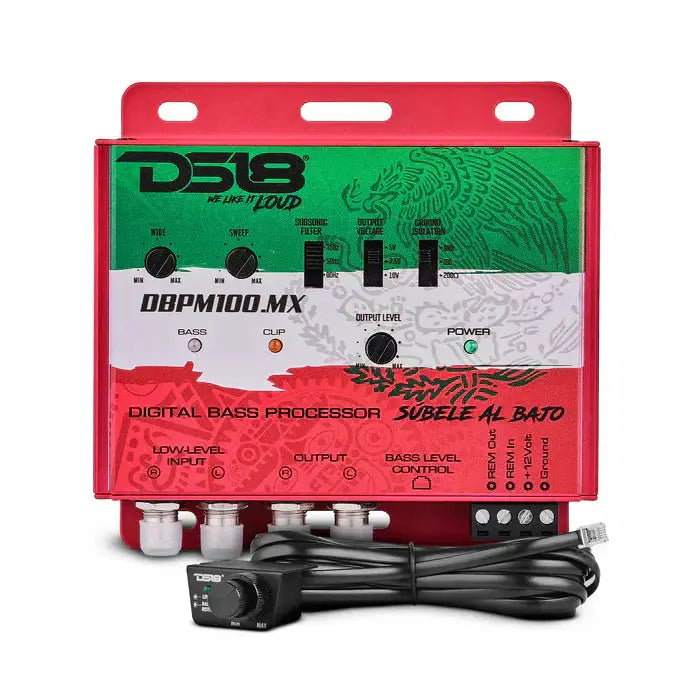

DS18 DBPM100.MX Digital Bass Processor - Mexico Design
Key features
- Operating voltage: 8–17 V
- Subsonic filter settings: 35, 50 or 80 Hz

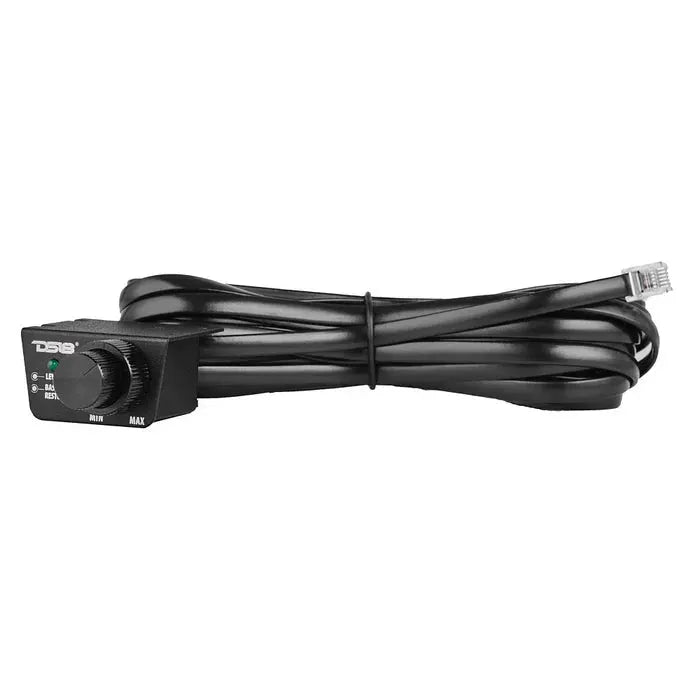

- Remote control: Dual-knob dash control
- Indicators: Power, bass enhancement and clipping
- Circuit board: Corrosion-resistant coating
DS18 DBPM100.MX Digital Bass Processor - Mexico Design is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Shape your car audio system’s low end with the DS18 DBPM100.MX Digital Bass Processor, a signal processor for bass adjustment and enhancement. Its selectable subsonic filtering, sweepable center frequency, and dual-knob dash remote give you hands-on control over bass shaping and level.
The Mexico Design version adds a Red/Green/White theme color option. Its compact aluminum housing fits installations where space is limited.
Key Features & Benefits
- Dash control: Adjust bass level from the remote instead of reaching for the processor.
- Selectable subsonic cutoff: Choose 35, 50, or 80Hz to filter ultra-low frequencies.
- Adjustable bass shaping: Set the center frequency from 75Hz to 120Hz and the wide Q factor from 1 to 3.
- Selectable output voltage: Choose 5V, 7.5V, or 10V to match the processor output to your amplifier chain.
- Signal monitoring: Power, Bass Enhancer, and Clip LEDs help you observe processor status.
- Compact construction: An aluminum housing and anti-corrosion-coated PCB suit space-conscious installations.
Technical Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 8-17V |
| Power Consumption | 0.24A |
| Remote Turn-on (Input / Output) | Yes |
| Remote Level Control (Bass Enhancer) | Yes |
| Ground Isolation Switch | Yes (GND/ISO/200Ω) |

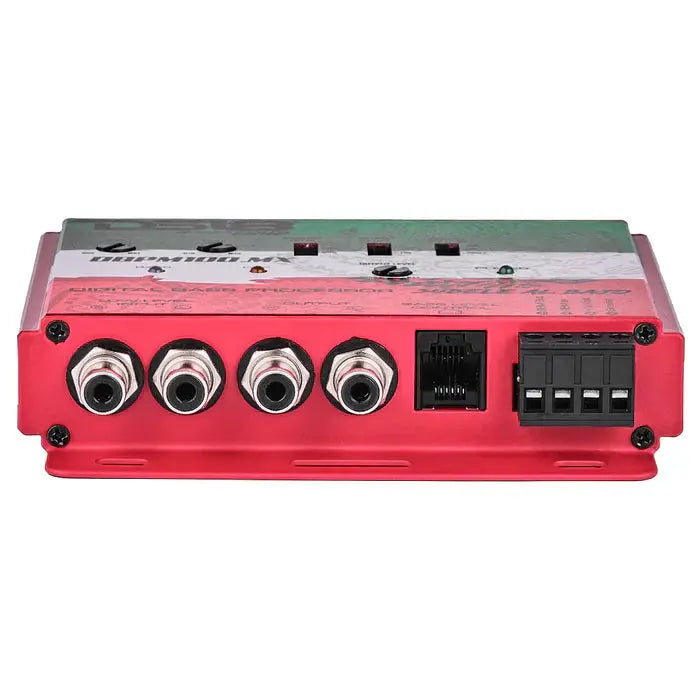

| RCA Connector Type | Tiffany (Silver) |
| Frequency Response | 10Hz-20kHz |
| Subsonic Infrasonic Cut-off | 35/50/80Hz (selectable) |
| Gain | 0~8.8V |
| Center Frequency (Sweep) | 75Hz~120Hz |
| Q Factor (Wide) | 1~3 |
| Output Voltage Selectable | 5V/7.5V/10V |
| Output Impedance | 100 ohms |
| Input Impedance | 20 kΩ |
| SNR | 120dB |
| THD | 0.0022% |
| Hi-Level Speaker Input | No |
| Auto Turn-on Function | No |
| LED Indicator | Power / Bass Enhancer / Clip |
| PCB/Construction | Anti-corrosion coating on the PCB |
| Housing | Aluminum |
| Overall size | 4.72" × 4.4" × 1" (120 × 113 × 26 mm) |
| Remote Level Control (additional) | Yes |
| Custom Features | Surface Mount Component Technology; Quality Control verified with Audio Precision instruments; Mexico Theme color option Red/Green/White |
Why Choose This Product?
The DBPM100.MX combines bass level control with adjustments for gain, center frequency, and subsonic cutoff. That lets you shape the processor’s output around your system rather than relying on a single fixed bass setting.
Its 120dB SNR and 0.0022% THD ratings describe its signal-to-noise ratio and total harmonic distortion. Tiffany (Silver) RCA connectors and selectable output voltage provide defined connection and output options for a compatible amplifier chain.
Installation & Compatibility Notes
This processor is designed for low-level input; it does not have a hi-level speaker input. Check that your source provides a compatible low-level connection before planning the installation.
It operates at 8-17V and has remote turn-on input and output. The auto turn-on function is listed as No, so plan activation around the remote or head-unit control. Allow for the stated unit dimensions when choosing a mounting location.
The ground isolation switch offers GND/ISO/200Ω settings. Confirm connection and grounding requirements for your system during installation.
Frequently Asked Questions
Does the DBPM100.MX accept speaker-level input?
No. It has no hi-level speaker input and is intended for a compatible low-level source.
Can the processor turn on automatically?
Its auto turn-on function is listed as No. Remote turn-on input and output are provided for integration with a head unit or amplifier system.
What subsonic cutoff settings are available?
You can select 35Hz, 50Hz, or 80Hz.
How can I match its output to my amplifier chain?
Select 5V, 7.5V, or 10V output voltage. The listed gain adjustment range is 0~8.8V.
How much space should I allow for the processor?
The overall size is 4.72" × 4.4" × 1" (120 × 113 × 26 mm). Check the available mounting space against these dimensions.
