DS18 DBPX200.MX Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator – Mexico Design SKU: DBPX200.MX
Key features
- Operating voltage: 9–16 V
- Current draw: 0.18 A
- Recommended fuse: 1 A
- Inputs: Balanced line-level and high-level speaker
- Remote control: Dual-knob dash-mount bass and volume control
- Indicators: Power, bass enhancement and clipping
DS18 DBPX200.MX Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator – Mexico Design SKU: DBPX200.MX is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

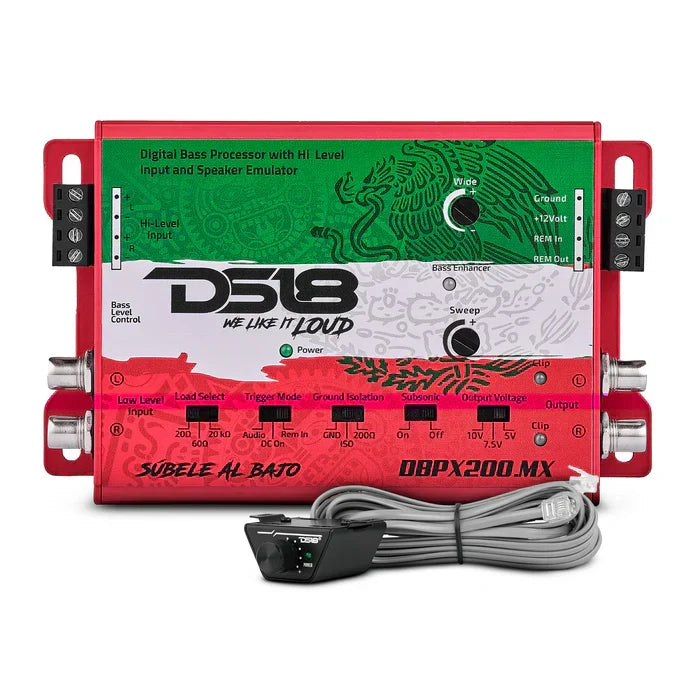

Add adjustable bass processing to an OEM or aftermarket car audio system with the DS18 DBPX200.MX digital bass processor. Its hi-to-low signal converter and speaker emulator support high-level integration, while the Mexico-themed design brings red, green, and white detail to your installation.
Key Features & Benefits
- High-level integration: Two-channel speaker inputs connect with OEM systems that do not have separate line-level outputs.
- Adjustable bass shaping: Sweep the center frequency from 75Hz to 120Hz and adjust the Q factor from 1 to 4.
- Selectable output voltage: Choose 5V, 7.5V, or 10V to suit the connected audio equipment.
- Dash remote with clip indicator: Adjust bass and level from the remote, with visual feedback while tuning.
- Automatic turn-on: Audio/DC sensing can power the processor on when a signal is present.

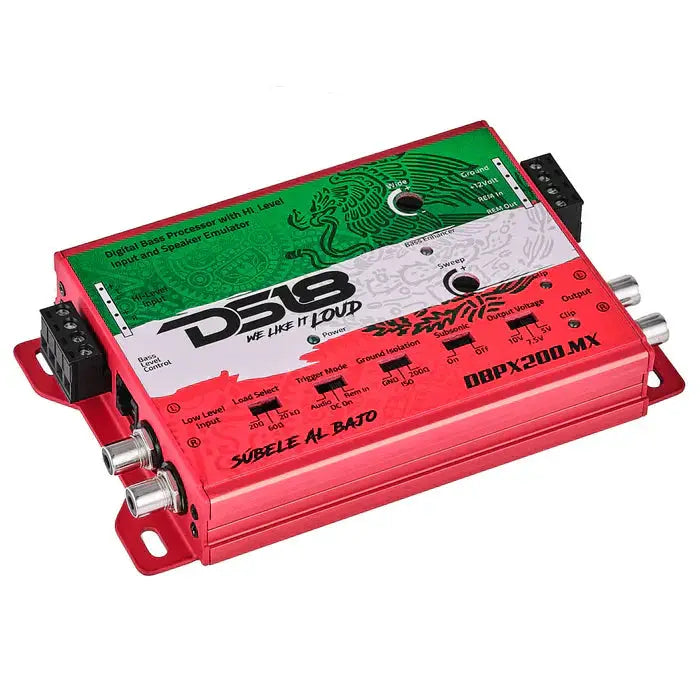

- Compact aluminum housing: The 6-inch-long chassis is designed for installations with limited space.
Technical Specifications
| Specification | Value |
|---|---|
| Model | DBPX200.MX |
| Product type | Digital bass processor with hi-to-low signal converter and speaker emulator |
| Operating voltage | 9–16V |
| Power consumption | 0.18A |
| Recommended fuse rating | 1A |
| Power input terminal size | 16ga |
| LED indicator | Power / Bass Enhancer / Clipping |
| Hi-level speaker input | 2 Channels |
| Auto turn-on function | Yes (Audio/DC) |
| Remote turn-on | Input / Output |
| Remote level control | Yes (Bass Enhancer/Level) |
| Remote level control with clip indicator | Yes |
| RCA connector type | Tiffany (Silver) |
| Housing material | Aluminum |
| Body color / finish | Red / Green / White (Mexico Theme) |
| Frequency response | 10Hz–20kHz |
| S/N ratio | 95dB |
| THD | 0.05% |
| Input sensitivity (Low-Level) | <8.8V |
| Input sensitivity (Hi-Level) | >15V |
| Input impedance | 20Kohms |
| Output voltage selectable | 5V / 7.5V / 10V |
| Output impedance | 110ohms |
| Balanced input noise rejection | >45dB |
| Stereo separation | >50dB |
| Subwoofer LPF frequency cut-off | No (Full Range Signal) |
| Subwoofer infrasonic frequency cut-off | Selectable (Off/50Hz) |
| Gain | 0–8.8V |
| Center frequency (sweep) | 75Hz–120Hz |
| Q factor (wide) | 1–4 |
| Compact size | Yes |
| Surface mount component technology | Yes |
| Quality control verification | Verified using Audio Precision Instruments |
| Overall dimensions | Length 6" / 153mm; Width 3.7" / 95mm; Height 1.1" / 28mm |
| Ground isolation switch | Yes |
| Extra features | Hi-Level to Low-Level Signal Converter and Speaker Emulator |
Why Choose This Product?
The DBPX200.MX combines signal conversion and bass adjustment in one compact component. Its selectable output voltage, adjustable bass controls, and speaker-level inputs give you several ways to integrate and tune a system without relying on a separate line-level output from the source.
Installation & Compatibility Notes
The processor is designed for OEM or aftermarket systems using its two-channel hi-level inputs. Confirm that your source signal and installation space suit the listed input requirements and 6" / 153mm by 3.7" / 95mm by 1.1" / 28mm dimensions.
Its operating voltage is 9–16V, recommended fuse rating is 1A, and power input terminal size is 16ga. Check your system’s electrical and connection requirements before installation.
Frequently Asked Questions
Can the DBPX200.MX connect to a factory audio system?
It has two-channel hi-level speaker inputs for OEM integration, including systems without separate line-level outputs.
Can I adjust the bass from the dashboard?
Yes. The product includes a dual-knob dash remote for bass enhancer and level adjustment, with a clip indicator.
What output voltage options does it have?
You can select 5V, 7.5V, or 10V output voltage.
Does it apply a fixed subwoofer low-pass cutoff?
The listed subwoofer LPF frequency cut-off is “No (Full Range Signal).” The infrasonic cut-off is selectable between Off and 50Hz.
How much space does it need?
Its overall dimensions are Length 6" / 153mm; Width 3.7" / 95mm; Height 1.1" / 28mm. Check the intended mounting location against these measurements.
