DS18 DSP2.6DBT 2-Channel In and 6-Channel Out Digital Sound Processor with Bluetooth and LCD Screen
Key features
- RCA inputs: 2 channels
- RCA outputs: 6 channels
- Channel equalizer: 3 independent parametric bands per channel
- Crossover filters: Butterworth, Linkwitz-Riley and Bessel
- Tuning control: Bluetooth app for iOS and Android
- Operating voltage: 10–15 V DC
DS18 DSP2.6DBT 2-Channel In and 6-Channel Out Digital Sound Processor with Bluetooth and LCD Screen is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Take control of your car audio tuning with the DS18 DSP2.6DBT, a 2-channel in, 6-channel out digital sound processor. Bluetooth control, a mobile app, and an LCD screen give you several ways to adjust and monitor your system.
Key Features & Benefits
- Six processing outputs: Route two unbalanced RCA inputs across six channels for flexible amplifier and speaker routing.
- App-based tuning: Use the DS18 DSP2.6DBT App on iOS or Android to adjust settings, monitor the processor, and save presets.

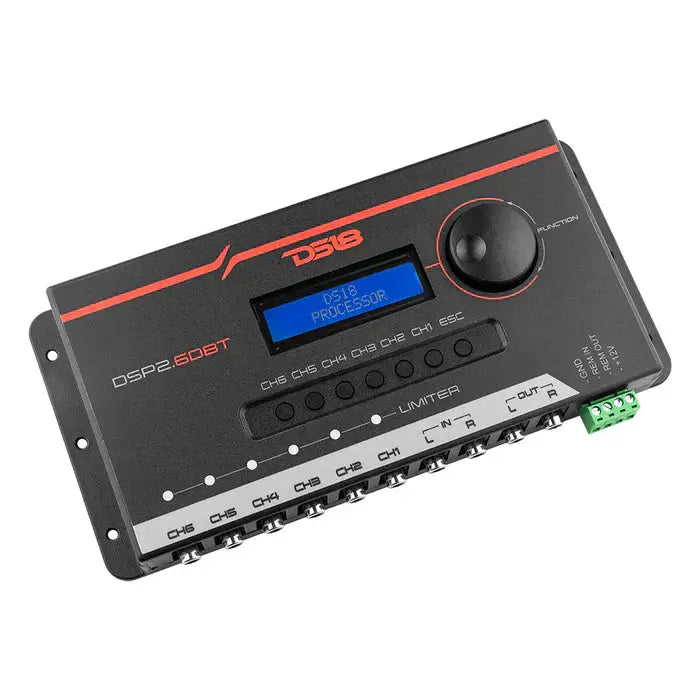

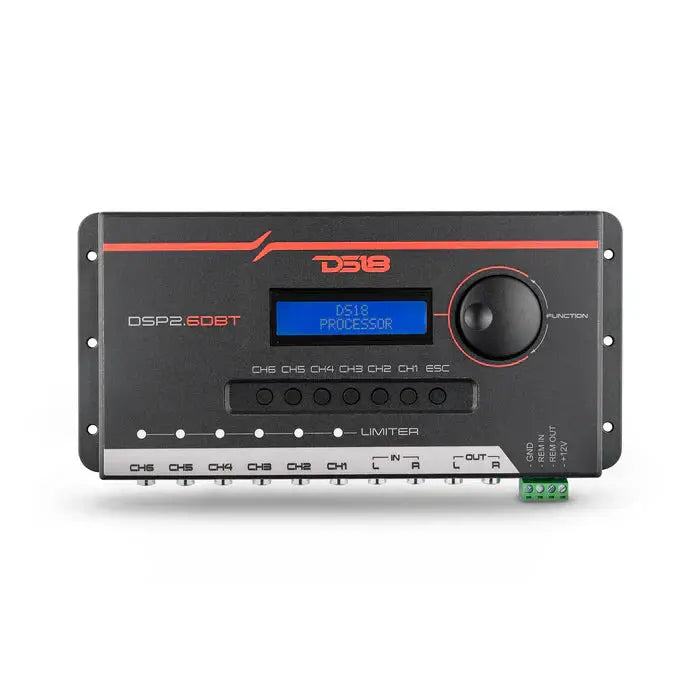

- On-device LCD: Check status and navigate settings at the processor during setup and adjustments.
- Per-channel equalization: Three independent bands per channel support targeted frequency-response adjustments.
- Selectable crossover filters: Choose Butterworth, Linkwitz-Riley, or Bessel filter types to shape crossover behavior between drivers.
- 24-bit, 48 kHz processing: High-resolution digital processing supports detailed EQ and crossover tuning.
Technical Specifications
| Model | DSP2.6DBT |
|---|---|
| Input / output channels | 2-channel input / 6-channel output |
| Input signal | Unbalanced RCA |
| Maximum input signal | Up to 6 V RMS |
| Input impedance | 47 kΩ |
| Equalizer | 3 independent bands per channel (6 total) |
| Crossover filter types | Butterworth, Linkwitz-Riley, or Bessel |
| Processing resolution | 24-bit |
| Sample rate | 48 kHz |
| Latency | 1.08 ms |
| THD+N | Max 0.01% |
| SNR | 100 dB |
| Power requirements | 10–15 V DC; 5 W typical |
| Fuse | 2 A |
| Dimensions | 1.18" x 9.84" x 4.72" (30 x 250 x 120 mm) |
| Weight | 382 g |
| Control | Bluetooth interface and LCD screen |
| Mobile app | DS18 DSP2.6DBT App for iOS and Android |
Why Choose This Product?
The DSP2.6DBT gives you six processing outputs from two RCA input channels, with EQ and crossover controls for shaping each part of your system. Save app presets for different songs or genres, then use the LCD for status and navigation while making adjustments.
Its stated 1.08 ms latency, maximum 0.01% THD+N, and 100 dB SNR provide useful figures to consider when comparing processors for a multi-channel car audio setup.
Installation & Compatibility Notes

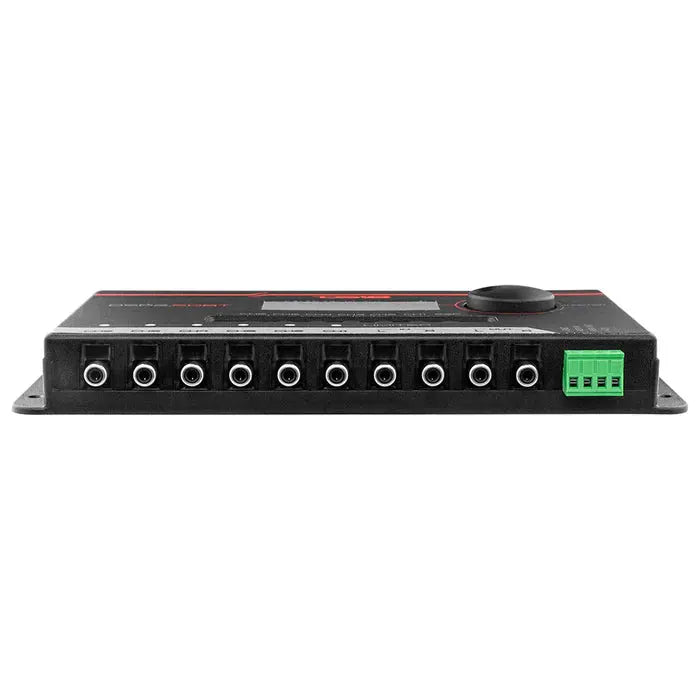

Plan your signal path around the processor’s unbalanced RCA inputs and six outputs. Confirm that your system’s source, amplifiers, and intended routing suit this 2-in/6-out layout.
The processor requires 10–15 V DC, draws 5 W typical, and uses a 2 A fuse. Check the available mounting space against its dimensions: 1.18" x 9.84" x 4.72" (30 x 250 x 120 mm).
Frequently Asked Questions
How many input and output channels does the DS18 DSP2.6DBT have?
It accepts two channels of unbalanced RCA signal and provides six processing/output channels.
How can I adjust the processor?
You can use its Bluetooth interface and the DS18 DSP2.6DBT App for iOS or Android. The on-device LCD provides status and navigation.
Can I save different tuning settings?
The app lets you save presets for songs or genres, as well as tune and monitor the processor.
Which crossover filter types are available?
You can choose Butterworth, Linkwitz-Riley, or Bessel filter types.
What power and fuse requirements should I plan for?
It operates on 10–15 V DC, uses 5 W typical, and is fused at 2 A.
