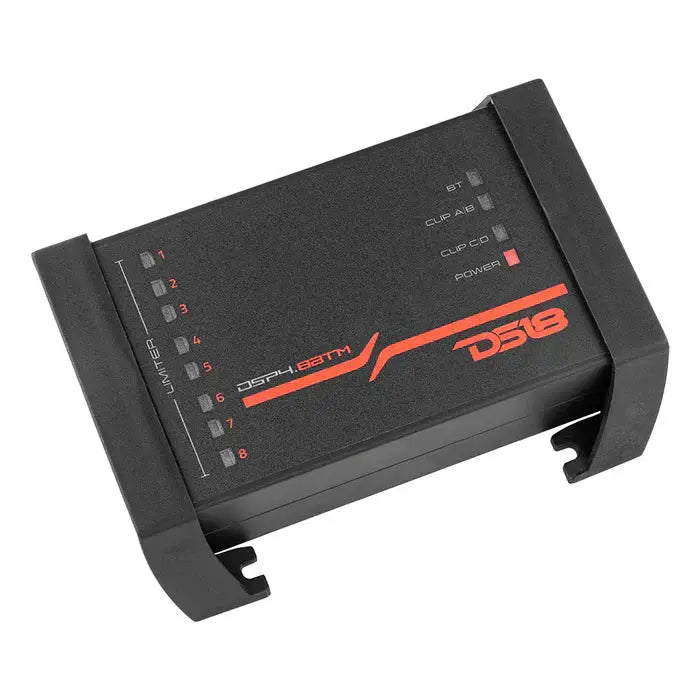

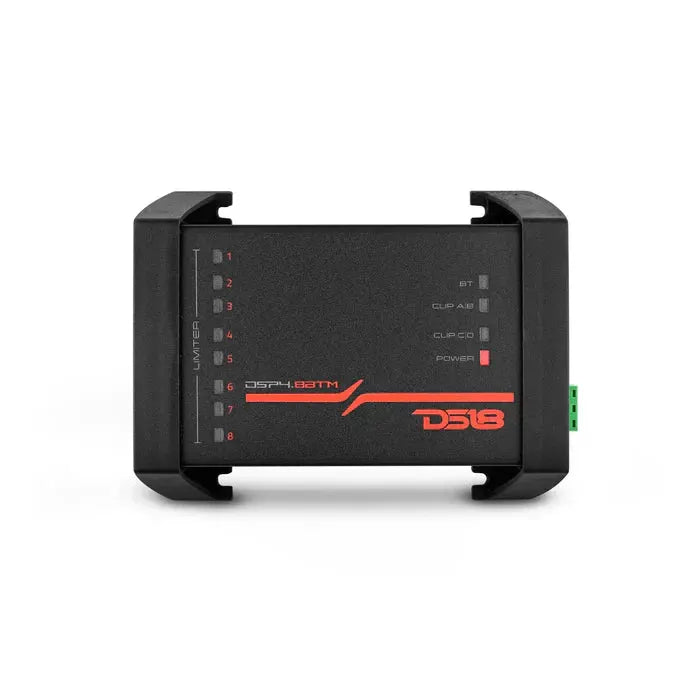

DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth and LCD Screen
Key features
- RCA inputs: 4 channels
- RCA outputs: 8 channels
- Channel equalizer: 8 independent parametric bands per channel
- Crossover filters: Butterworth, Linkwitz-Riley and Bessel
- Tuning control: Bluetooth app for iOS and Android
- Operating voltage: 10–15 V DC
DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth and LCD Screen is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Shape a multi-amplifier car audio system with the DS18 DSP4.8BTM, a 4-channel-in, 8-channel-out digital sound processor. Bluetooth app control, channel-by-channel tuning, and flexible signal routing give you detailed control over how your system is balanced.
Adjust the sound from a mobile device, then save up to three configurations for quick recall. The eight processed outputs let you tune channels individually for a more tailored system setup.
Key Features & Benefits
- Bluetooth app control: Access tuning settings and manage presets through the DS18 DSP4.8BTM app, available on the App Store and Google Play.
- Eight parametric EQ bands per channel: Adjust targeted frequency regions to shape each output to your system.
- Selectable crossover filters: Choose Butterworth, Linkwitz-Riley, or Bessel filter types and match the slope to your tuning goals.
- Flexible signal routing: Route inputs A, B, C, or D, or use the listed input combinations to suit different signal paths.
- Time alignment: Set delay by time or distance to help coordinate speaker arrival in the listening area.
- Three memory settings: Save preferred configurations for quick changes between setups.
Technical Specifications

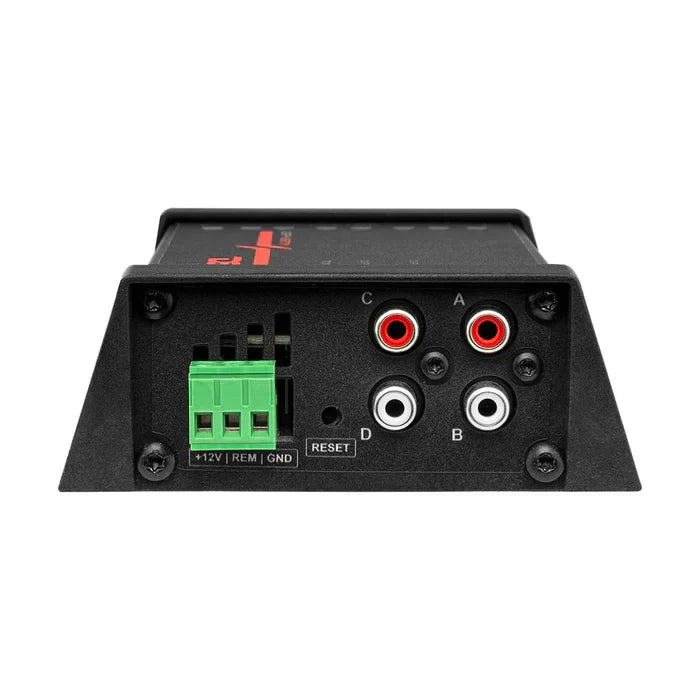

| Input channels | 4; RCA, electronically symmetrical |
|---|---|
| Maximum input level | 4.00 Vrms (+14 dBu) |
| Input impedance | 100 kΩ |

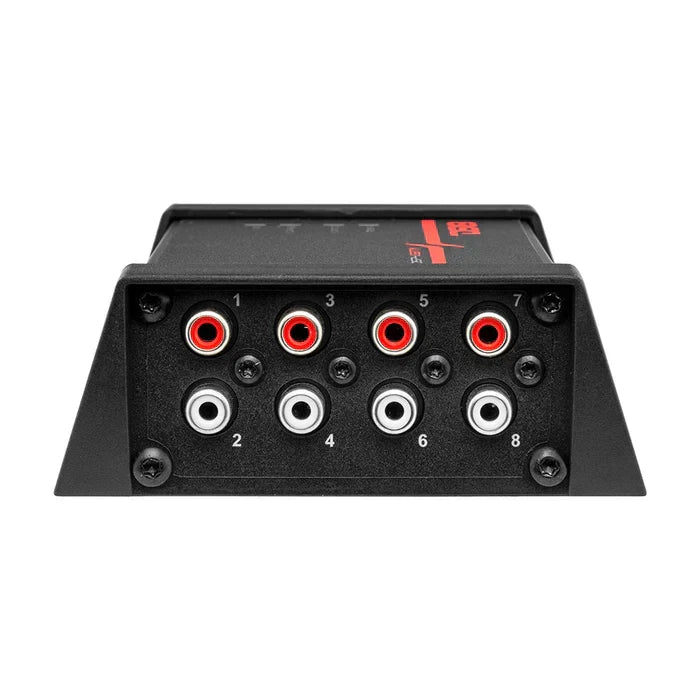

| Output channels | 8; RCA, electronically symmetrical |
| Maximum output level | 3.50 Vrms (+13 dBu) |
| Output impedance | 100 Ω |
| Equalizer | 8 parametric bands per channel |
| Equalizer gain | -12 to +12 dB |
| Q factor | 0.6 to 9.9 |
| Crossover filter types | Butterworth, Linkwitz-Riley, and Bessel |
| Crossover slopes | 6/12/18/24/36/48 dB per octave |
| Routing options | A / B / C / D; A+B, A+C, B+C |
| Time alignment / delay | 0–18.95 ms; 0–6500 mm |
| Phase | 0° or 180° inversion |
| Frequency response | 10 Hz–24 kHz (-1 dB) |
| THD+N | < 0.01% |
| Signal latency | < 0.6 ms |
| Bit rate | 32-bit |
| Sampling frequency | 96 kHz |
| DC power supply | 10–15 V |
| Maximum current | 300 mA |
| Dimensions | 5.6" × 4.25" × 1.6" |
| Weight | 277 g |
| Memory | Three memories |
Why Choose This Product?
The DSP4.8BTM gives you eight separately processed outputs from four inputs, making it a central tuning point for a multi-amplifier build. Its EQ, crossover, routing, and time-alignment controls let you shape the system around your chosen signal path and speaker setup.
With 96 kHz sampling, 32-bit processing, and signal latency below 0.6 ms, it provides detailed digital processing for custom car audio installations.
Installation & Compatibility Notes
Plan your source and amplifier connections around the processor’s four RCA inputs and eight RCA outputs. Confirm that your system’s signal levels and installation space suit the stated input and output limits and the 5.6" × 4.25" × 1.6" dimensions.
The unit uses a 10–15 V DC power supply and has a maximum current draw of 300 mA. Check your system layout and power requirements before installation.
Frequently Asked Questions
How many inputs and outputs does the DS18 DSP4.8BTM have?
It has four RCA inputs and eight RCA outputs, all electronically symmetrical.
How do I control and tune the processor?
Use Bluetooth to access settings through the DS18 DSP4.8BTM app, available on the App Store and Google Play.
Can I adjust each output separately?
Each channel has eight parametric EQ bands, with gain from -12 to +12 dB and a Q factor from 0.6 to 9.9.
What crossover options are available?
You can select Butterworth, Linkwitz-Riley, or Bessel filters, with slopes of 6/12/18/24/36/48 dB per octave.
What power supply does it require?
The specified DC power supply range is 10–15 V, and maximum current is 300 mA.
How many setups can I save?
The processor has three memories for storing preferred configurations.
