DS18 EQX7PRO High Volt 7-Band Equalizer with High Level Input, Auto Turn On And High Volt Led Indicator
Key features
- Equalizer: 7 bands
- Outputs: 3 stereo RCA pairs for front, rear and subwoofer
- Subwoofer crossover: Selectable 60 or 120 Hz
- Operating voltage: 11–15 V
- High-level input: Speaker-level input with automatic turn-on
- Controls: Master level, subwoofer level and front/rear fader
DS18 EQX7PRO High Volt 7-Band Equalizer with High Level Input, Auto Turn On And High Volt Led Indicator is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Shape bass, mids, and highs across a multi-amp car audio system with the DS18 EQX7PRO 7-band graphic equalizer. Its high-level input, auto turn-on, and dedicated front, rear, and subwoofer outputs support integration with factory radios and separate amplification pathways.
Key Features & Benefits
- Seven fixed frequency bands: Adjust specific parts of the audio range to tailor your system’s sound.
- High-level input: Accept a speaker-level signal from a factory radio through the integrated converter.

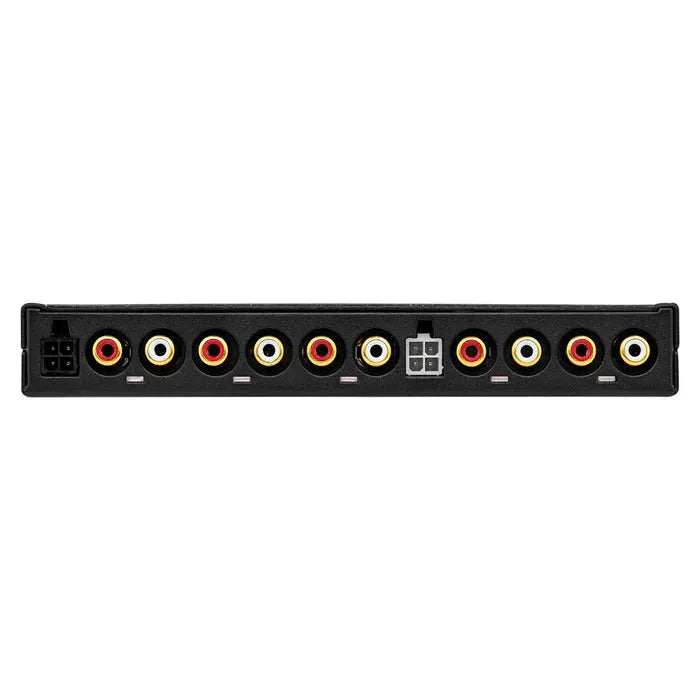

- Three RCA outputs: Send separate signals to front, rear, and subwoofer amplification.
- Auto and remote turn-on: Choose automatic power-on with a factory source or use the remote turn-on input and output.
- Subwoofer crossover: Select a passive low-pass filter point for the subwoofer channel.

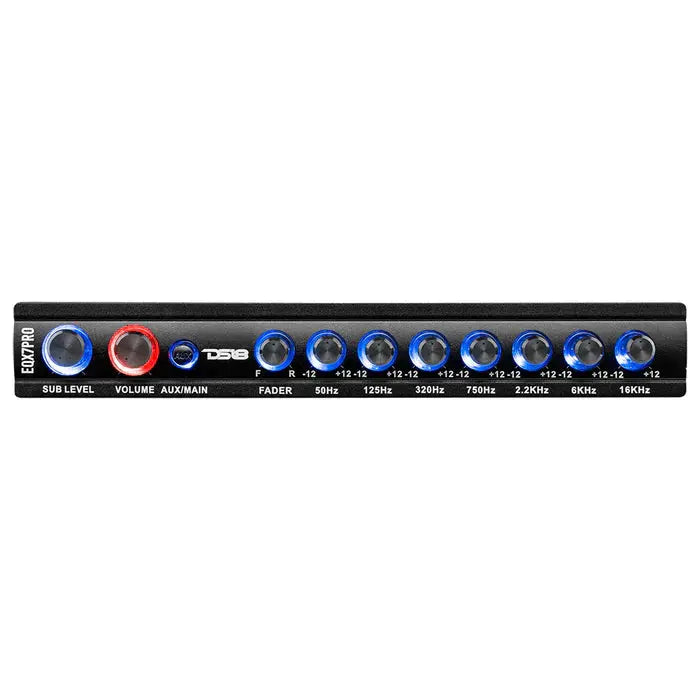

- Front-panel indicators: Blue backlit controls and per-band 7V LED indicators make adjustment status easy to see.
Technical Specifications
| Specification | Details |
|---|---|
| Model | EQX7PRO |
| Product type | 7-band graphic equalizer |
| Frequency bands | 50Hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz, 16kHz |
| Boost/cut range | Up to 12dB per band; 15dB for subwoofer frequencies |
| Frequency response | 20Hz–30kHz |
| Signal-to-noise ratio | 100dB |
| Total harmonic distortion | 0.005% |
| Output voltage | 8V |
| Subwoofer output | 9V |
| Output impedance | 2kΩ |
| Outputs | Front, rear, and subwoofer RCA |
| Inputs | Main RCA, Aux RCA, and high-level input |
| Subwoofer low-pass filter | 60/120Hz points; 12dB/Oct slope |
| Turn-on | Auto turn-on; remote turn-on input/output |
| Indicators and controls | Blue backlit controls; 7V LED indicator for each band |
| Connectors | Gold-plated |
| Housing | Metal/aluminum, satin black |
| Mounting | Mounting brackets |
| Operating voltage | 11–15V |
| Dimensions | 7" L × 4.4" D × 1.18" H |
| Weight | 1.85 lb |
Why Choose This Product?
The EQX7PRO gives you band-by-band tone adjustment alongside separate front, rear, and subwoofer outputs. That combination makes it a practical tuning hub when your system uses multiple amplifier paths. Its high-level input and automatic turn-on also support factory-radio integration without relying only on RCA-level input.
Installation & Compatibility Notes

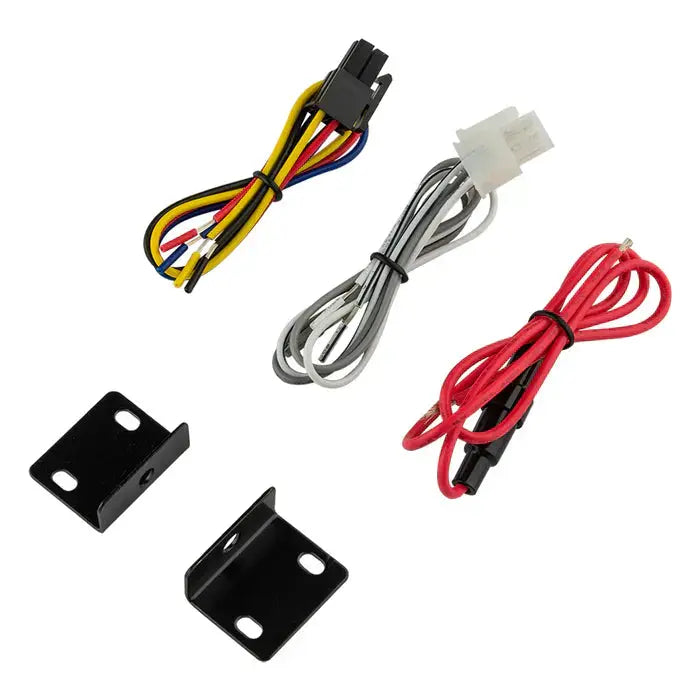

Plan a mounting location that provides access to the front-panel controls. The supplied mounting brackets allow placement beside the source unit or under the dash. Check the available space against the equalizer’s dimensions and confirm the vehicle’s electrical system operates within 11–15V.
Use the high-level input for a speaker-level factory-radio signal, or connect through the Main or Aux RCA inputs. Confirm your system’s signal connections and amplifier layout before installation.
Frequently Asked Questions
Can the EQX7PRO connect to a factory radio?
Yes. Its high-level input accepts a speaker-level signal, and the integrated converter changes that signal to line level for the equalizer.
Which frequency points can I adjust?
The seven fixed bands are 50Hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz, and 16kHz.
Does it have a subwoofer crossover?
Yes. The subwoofer channel has a passive low-pass filter with 60Hz and 120Hz points and a 12dB/Oct slope.
How much room should I allow for mounting?
The unit measures 7" L × 4.4" D × 1.18" H. Check the proposed location for clearance and front-panel access.
