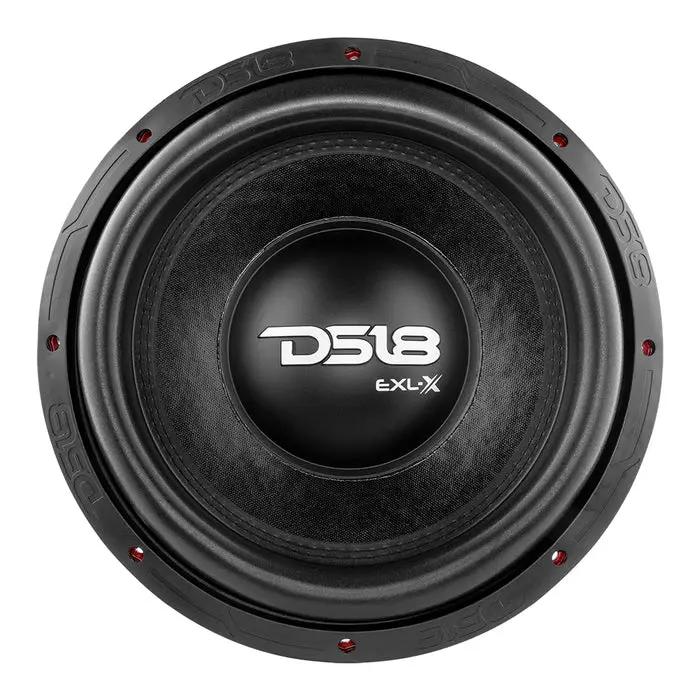

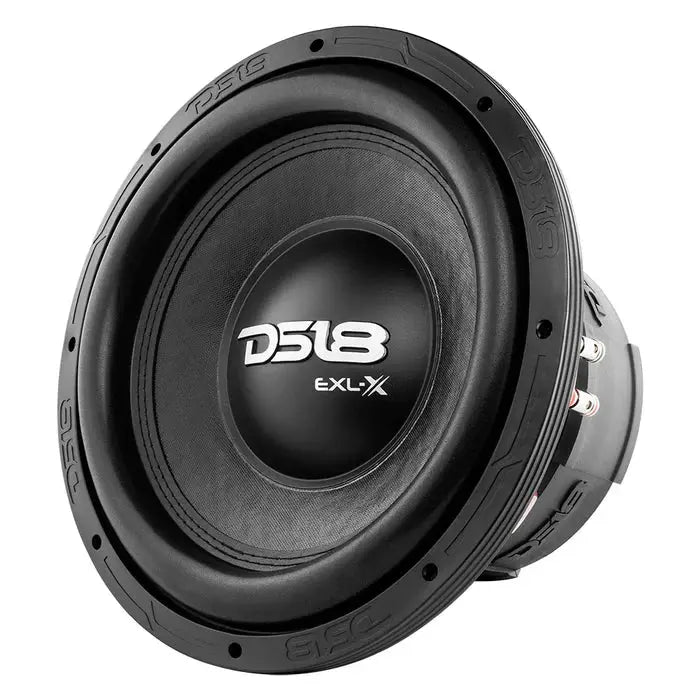

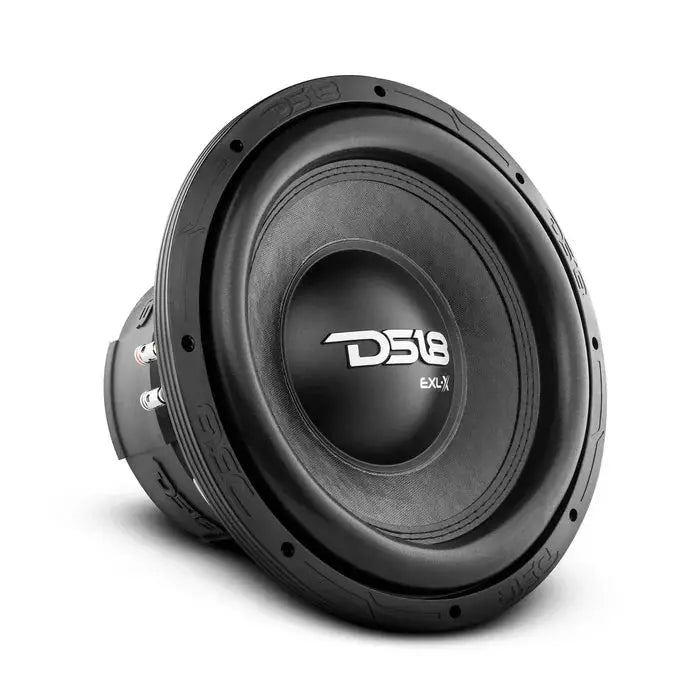

DS18 EXL-X12.4D EXL-X 12" Subwoofer 2500 Watts Dvc 4-Ohms
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1250 W
- Voice-coil options: D4
- Frequency response: 30 Hz–1.7 kHz
- Voice-coil diameter: 2.57 inches
- Magnet material: Ferrite
DS18 EXL-X12.4D EXL-X 12" Subwoofer 2500 Watts Dvc 4-Ohms is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The DS18 EXL-X12.4D is a 12-inch dual-voice-coil car subwoofer built to deliver substantial low-frequency output in high-power audio systems. Its 1250W RMS power handling, 4+4-ohm coils, and ported enclosure recommendation give you key details for planning a bass-focused installation.
Key Features & Benefits
- High power handling: The 1250W RMS rating and 2500W maximum rating describe its sustained and peak power capacity.
- Dual 4-ohm voice coils: The 4+4-ohm configuration offers wiring options when matching the subwoofer to an amplifier.
- 12-inch cone: The 304.8mm nominal diameter provides cone area for moving air and producing bass.
- Specified ported enclosure: The recommended 36L internal volume and 50Hz tuning provide a defined starting point for enclosure planning.

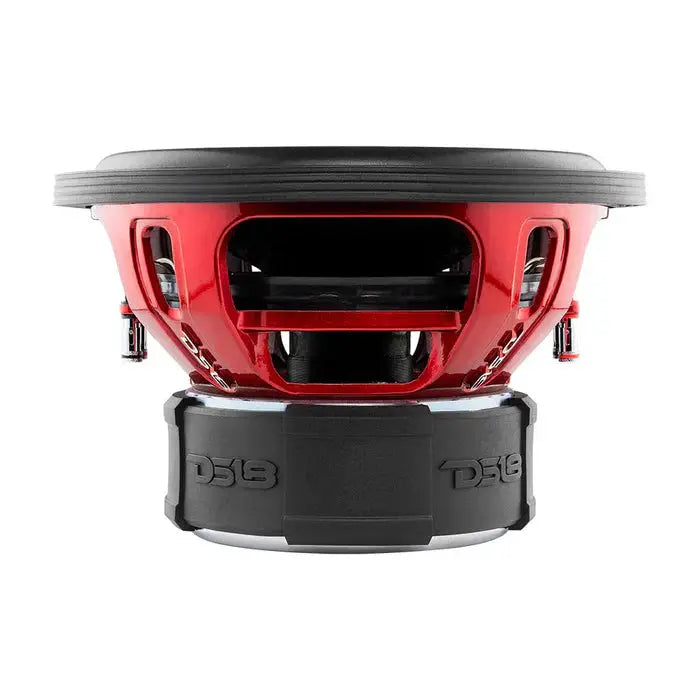

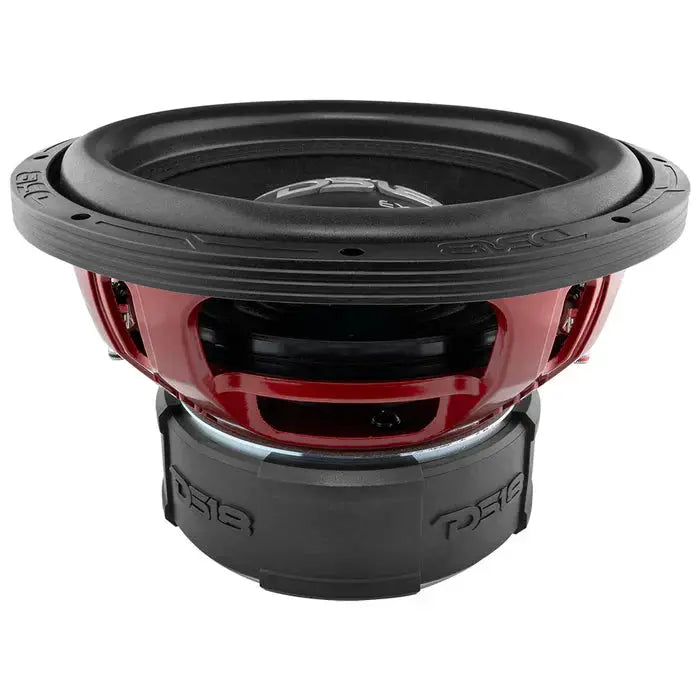

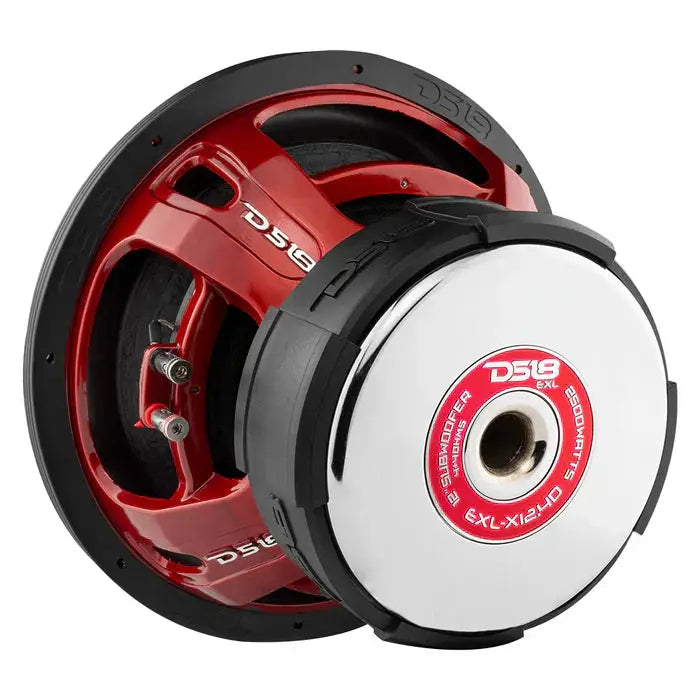

- Distinctive construction: The aluminum basket has a glossy red finish, making the subwoofer visually prominent in installations where it is visible.
- Listed response range: The 30Hz–1.7kHz frequency response describes the stated range for system-planning purposes.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Diameter | 12" / 304.8mm |
| Nominal Impedance | 4+4 ohms |
| RMS Power Handling | 1250W |
| MAX Power Handling | 2500W |
| Sensitivity | 88dB (1w/1m) |
| Frequency Response | 30Hz-1.7kHz |
| Voice Coil Diameter | 2.57" / 65.2mm |
| Voice Coil Former Material | Black Aluminum |
| Cone Material | Non-Pressed Paper + Glass fiber |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Weight | 2 x 105 oz |
| Displacement Volume | 3L / 0.105 ft3 |
| Recommended Enclosures (Ported): Internal Volume | 36L / 1.27 ft3 |
| Port Size | 1.89" x 12.28" x 13.8" / 48.1 x 312 x 351mm |
| Port Tuning Frequency | 50Hz |
| Ported Box Output Response | 42Hz |
| Overall Diameter | 12.6" / 321mm |
| Overall Depth | 8.14" / 207mm |
| Free Air Resonance | 56Hz |
Why Choose This Product?
The EXL-X12.4D combines high stated power handling with a dual-coil design, so you can consider different wiring arrangements when selecting an amplifier. Its listed cone, surround, voice coil former, and basket materials give you concrete construction details to weigh when planning a car audio system.
For a ported build, the specified enclosure volume, port dimensions, and tuning frequency offer useful design targets. The subwoofer is also described for sealed use, giving you another enclosure approach to consider for your installation.
Installation & Compatibility Notes
Allow for the 12.6-inch overall diameter and 8.14-inch overall depth when checking the mounting location and available clearance. The stated 3L / 0.105 ft3 displacement volume is relevant when calculating enclosure space.
Match the amplifier and wiring plan to the subwoofer’s 4+4-ohm coils and power ratings. For a ported enclosure, use the listed 36L / 1.27 ft3 internal volume, port size, and 50Hz tuning as the product’s stated recommendation.
Frequently Asked Questions
What are the power ratings for the DS18 EXL-X12.4D?
It is rated for 1250W RMS power handling and 2500W maximum power handling. Consider the RMS rating when matching it with an amplifier.
What does 4+4 ohms mean?
The subwoofer has two 4-ohm voice coils. The available wiring configuration and resulting load depend on how the coils are connected.
What are the recommended ported enclosure dimensions?
The listed recommendation is 36L / 1.27 ft3 internal volume, with a 1.89" x 12.28" x 13.8" / 48.1 x 312 x 351mm port and 50Hz tuning.
How much mounting space should I allow?
Check for 12.6" / 321mm of overall diameter and 8.14" / 207mm of overall depth at the intended mounting location.
Can this subwoofer be used in a sealed enclosure?
The product details describe use in both sealed and ported configurations. The specific enclosure recommendation provided is for a ported design.
