DS18 EXL-X6.4D EXL-X 6.5" Subwoofer 800 Watts Dvc 4-Ohms
Key features
- Subwoofer size: 6.5 inches
- RMS power per subwoofer: 400 W
- Voice-coil options: D4
- Frequency response: 40–820 Hz
- Voice-coil diameter: 2 inches
- Magnet material: Ferrite
DS18 EXL-X6.4D EXL-X 6.5" Subwoofer 800 Watts Dvc 4-Ohms is backordered and will ship as soon as it is back in stock.
Description
Description
The DS18 EXL-X6.4D is a 6.5-inch subwoofer with dual 4-ohm voice coils. It provides a compact option for a dedicated bass enclosure, with 400 watts RMS power handling and an 800-watt maximum rating.

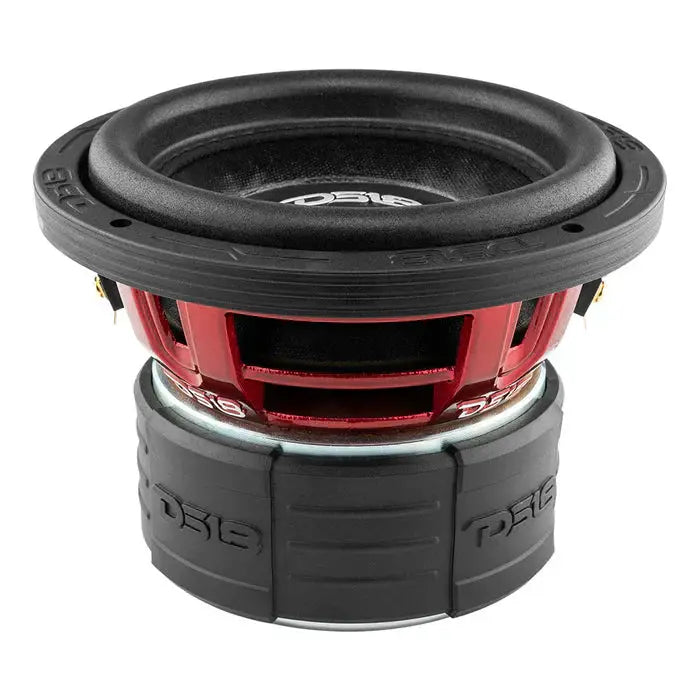

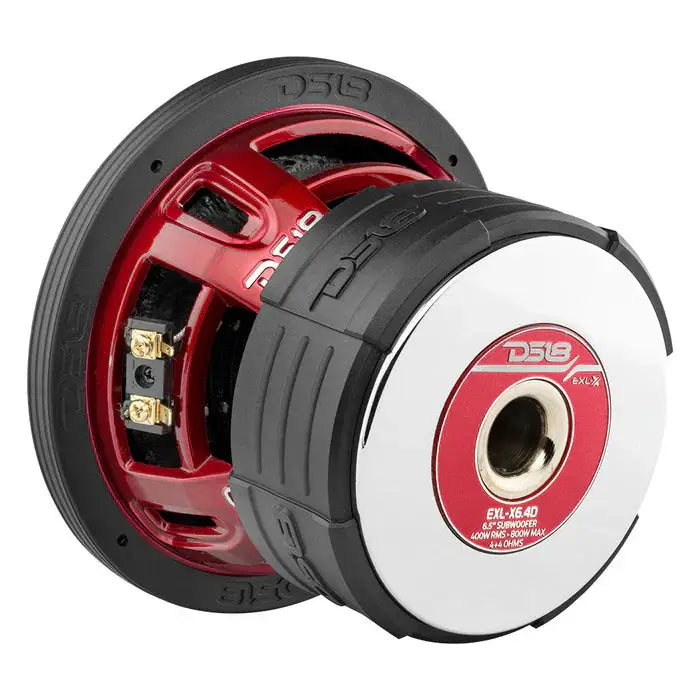

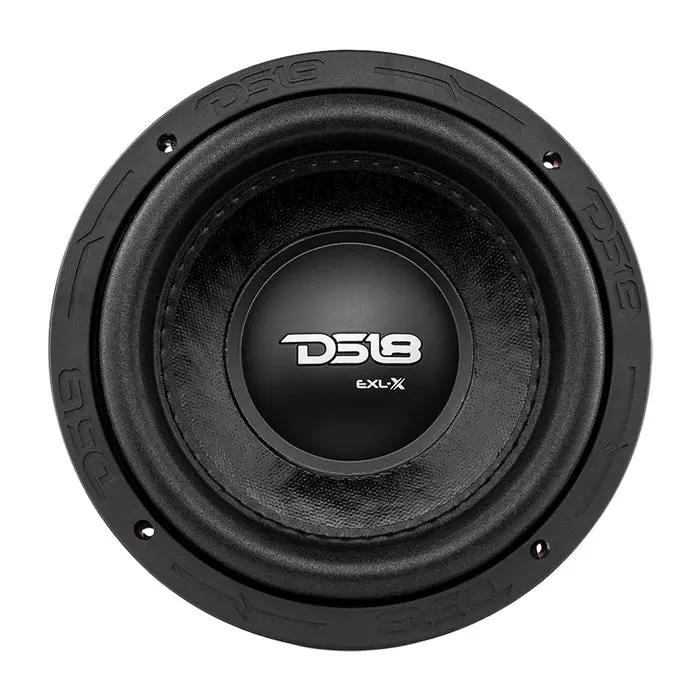

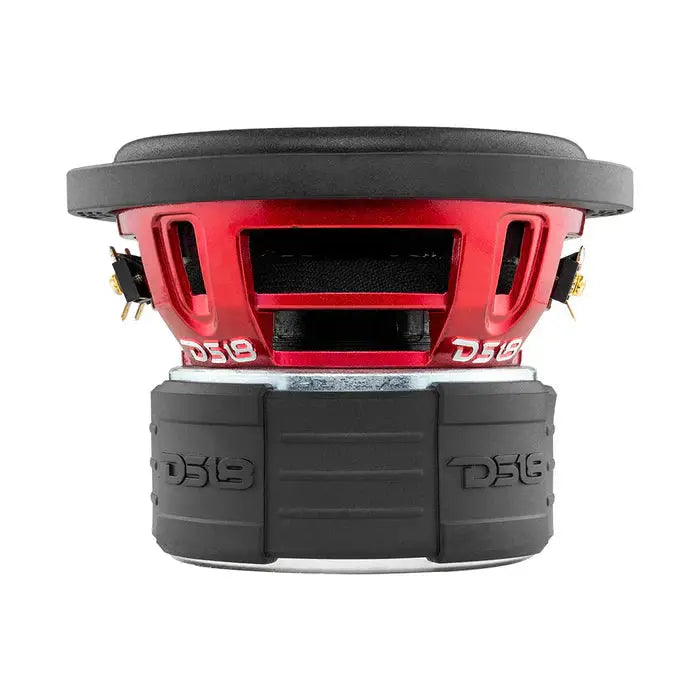

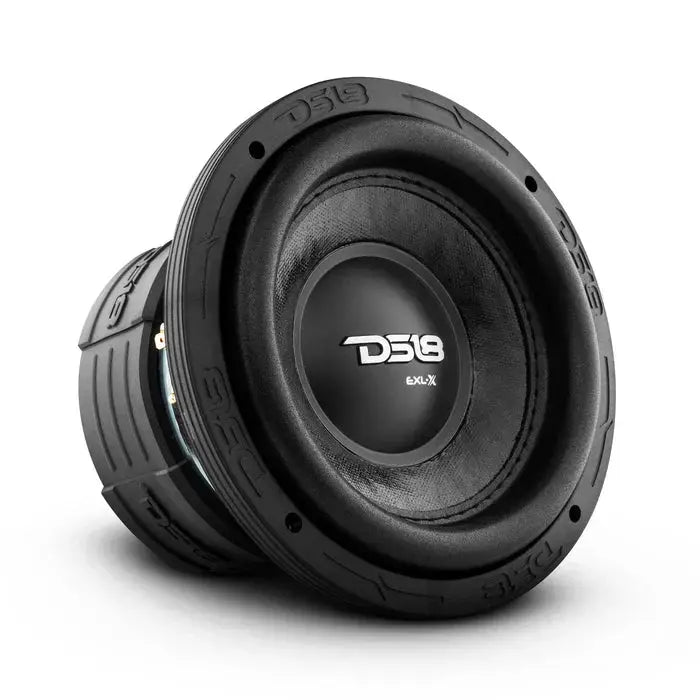

Subwoofer construction
- Dual 4-ohm voice coils
- 2-inch voice coil diameter
- Ferrite magnet and red aluminum basket
- Foam surround
Enclosure planning
DS18 lists both sealed and ported enclosure applications. The mounting cutout is 5.78 inches and mounting depth is 4.25 inches. Confirm the enclosure design and final wired impedance before selecting amplifier power; the two coils must be included in that wiring plan.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
