DS18 GEN-X110LD Bass Package GEN-X104D 10" Subwoofer In a Ported Box 800 Watts
Key features
Drivers included; amplifier not included
- Compatible woofer size: 10 inches
- Woofer mounting capacity: 1
- Port tuning: 35 Hz
- Enclosure design: Ported
- RMS power per subwoofer: 400 W
- Enclosure construction: MDF
DS18 GEN-X110LD Bass Package GEN-X104D 10" Subwoofer In a Ported Box 800 Watts is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

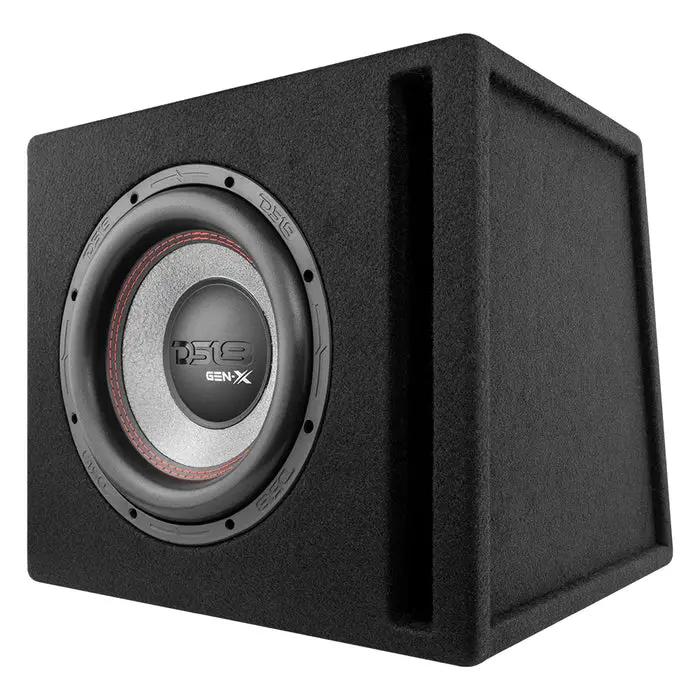

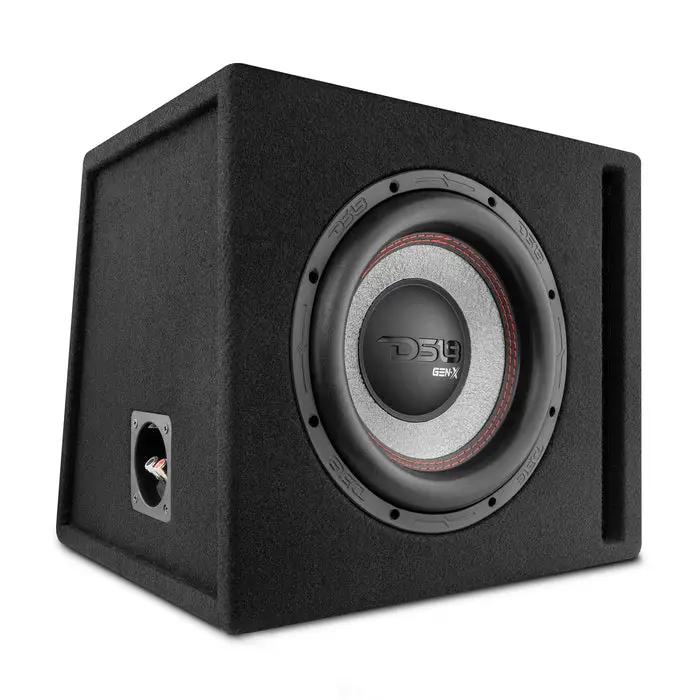

Bring low-frequency weight to your car audio system with the DS18 GEN-X110LD bass package. It pairs a GEN-X104D 10-inch subwoofer with a front-ported enclosure tuned to 35 Hz for deep bass in a compact package.
Key Features & Benefits
- 10-inch GEN-X104D subwoofer: A single driver delivers a focused bass setup.
- 35 Hz port tuning: The enclosure is designed to extend bass into lower frequencies.
- 2-ohm nominal impedance: The dual 4-ohm voice coils are wired in parallel for a 2-ohm load.
- 400W RMS handling: The rating helps you match the subwoofer to an appropriately rated amplifier.

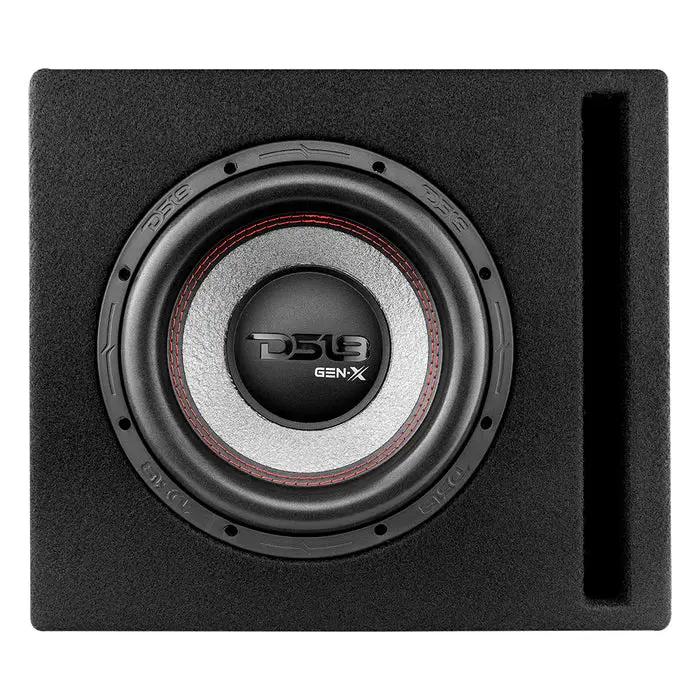

- Front-ported enclosure: The port location offers placement flexibility in a vehicle.
- Carpeted MDF construction: The 1/2-inch MDF enclosure has a black carpet finish.
Technical Specifications
| Package | DS18 GEN-X110LD Bass Package |
|---|---|
| Subwoofer | GEN-X104D, 10" |
| Included components | 1 x GEN-X104D 10" subwoofer inside the ported enclosure |
| Nominal impedance | 2 ohms (from parallel-wired dual 4-ohm coils) |
| Power handling | RMS 400W; MAX 800W |
| Voice coil diameter | 2" |
| Magnet | Ferrite, 66 oz |
| Voice coil former | Black aluminum |
| Sensitivity | 90 dB (1W/1m) |
| Frequency response | 29–250 Hz |
| Enclosure type | Front-ported |
| Enclosure internal volume | 36.3 L |
| Port tuning | 35 Hz |
| Enclosure material and finish | 1/2" MDF; black carpet |
| Overall dimensions | 15.75" L x 14" W x 14" H |
| Recommended HI Pass crossover | 120 Hz |
Why Choose This Product?
This package brings the subwoofer and ported enclosure together in one compact bass setup. Its front port and 36.3 L enclosure are designed for vehicle installations where you want a single 10-inch driver without a larger enclosure footprint.
The stated 120 Hz HI Pass crossover recommendation gives you a starting point for blending the subwoofer with front-stage speakers.
Installation & Compatibility Notes
Measure the intended installation space against the enclosure’s overall dimensions before purchase. Confirm that your amplifier supports a 2-ohm nominal load and is suitable for the subwoofer’s power handling.
Use the recommended 120 Hz HI Pass crossover guidance when planning system integration. Confirm the crossover settings and installation requirements for your audio equipment.
Frequently Asked Questions
What is included in the DS18 GEN-X110LD bass package?
It includes one GEN-X104D 10-inch subwoofer inside a ported enclosure.
What impedance does the package present?
The nominal impedance is 2 ohms, from the subwoofer’s parallel-wired dual 4-ohm coils.
How much power can the subwoofer handle?
Its power handling is rated at 400W RMS and 800W MAX.
How much installation space should I allow?
The enclosure measures 15.75" L x 14" W x 14" H. Compare these dimensions with the space available in your vehicle.
