DS18 | SKU:
$15.00 off

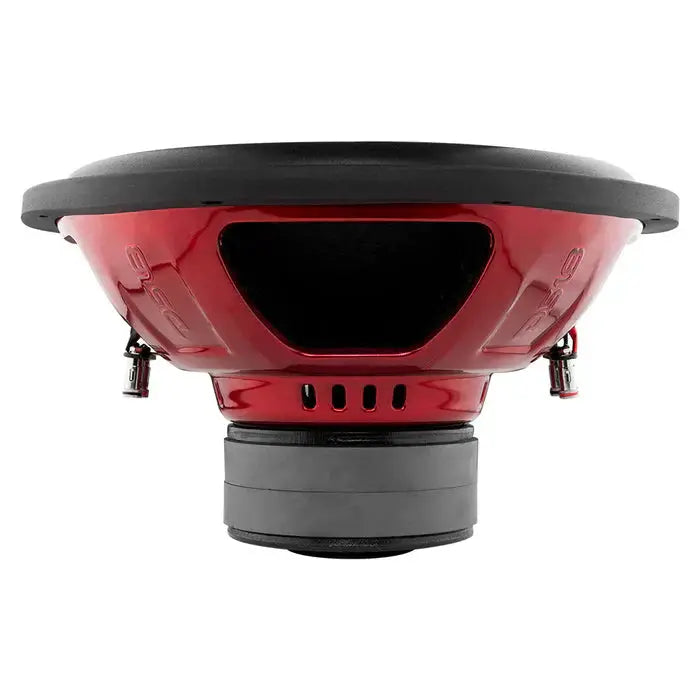

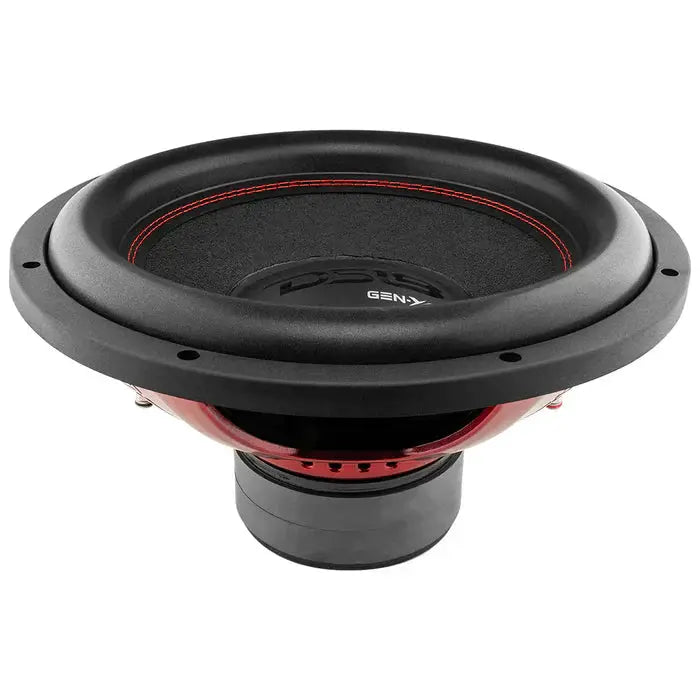

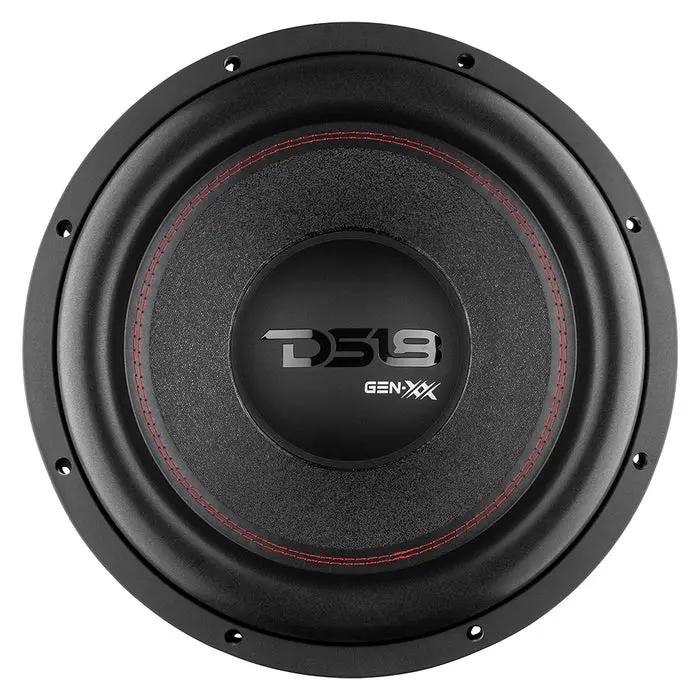

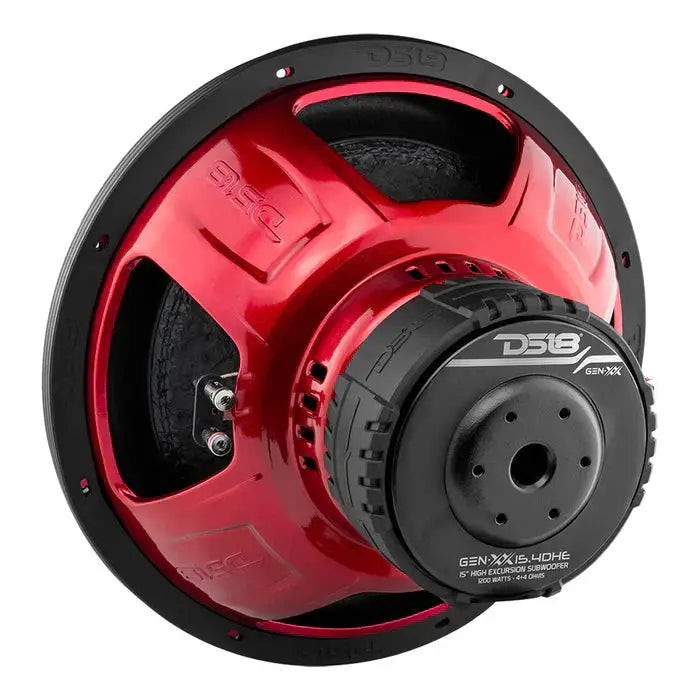

DS18 GEN-XX15.4DHE GEN-XX 15" Subwoofer 1600 Watts Dvc 4-Ohm Double Magnet High Excursion
Sale price
$174.99
Regular price
$189.99
Unit price
Shipping calculated at checkout.
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 600 W
- Voice-coil options: D4
- Frequency response: 20 Hz–1 kHz
- Voice-coil diameter: 2 inches
- Magnet material: Ferrite
DS18 GEN-XX15.4DHE GEN-XX 15" Subwoofer 1600 Watts Dvc 4-Ohm Double Magnet High Excursion is backordered and will ship as soon as it is back in stock.
Description
Description
DS18 GEN-XX15.4DHE 15" High Excursion Car Subwoofer 1200 Watts 4-Ohm DVC Double Magnet
High excursion is now the mainstream and usually this feature is very expensive and enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user.
The GEN-XX15.4DHE is the answer to that issue.
This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 600w RMS and 1200w Max this sub does not require large amounts of power to come alive and beat up the block.
Highlights
- High Excursion surround for a very high amount of xmax.
- Great power handling of 600w RMS and 1200w max.
- Long three voice coil and extended magnet to accommodate the xmax increase.
- FS of 30 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 15" |
| Nominal Impedance | 4 + 4 Ohms |
| RMS Power Handling | 600 Watts |
| MAX Power Handling | 1200 Watts |
| Sensitivity (1w/1m) | 87.4 dB |
| Frequency Response | 20Hz - 1KHz |
| Recommended Lo Pass Crossover | 80Hz |
| MOTOR | |
| Voice Coil Diameter | 2" |
| VC Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color and Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 136 oz |
| Displacement Volume | 3.26L |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | Vas 105.083 L |
| Excursion (one way) | Xmax 25mm |
| Free Air Resonance | Fs 27 Hz |
| Mechanical Factor | Qms 3.658 |
| Electrical Factor | Qes 0.583 |
| Total Factor | Qts 0.503 |
| Mechanical Mass | Mms 309.67g |
| Mechanical Compliance | Cms 0.112mm/N |
| BL Factor | BL 24.045N/A |
| Voice Coil Inductance | Le 0.6741mH |
| Cone Area | Sd 814.332cm2 |
| DC Resistance | Re 3.2+3.2 ohms |
| Efficiency Bandwidth Product | EBP 46.3 |
| MEASUREMENTS | |
| Overall Diameter | 10.28" / 261 mm |
| Overall Depth | 7.21" / 183 mm |
| Front Mount Baffle Cutout | 9.14" / 232 mm |
| Mounting Depth | 6.15" / 156mm |
| Motor Diameter | 6.15" / 156mm |
Box Info
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
