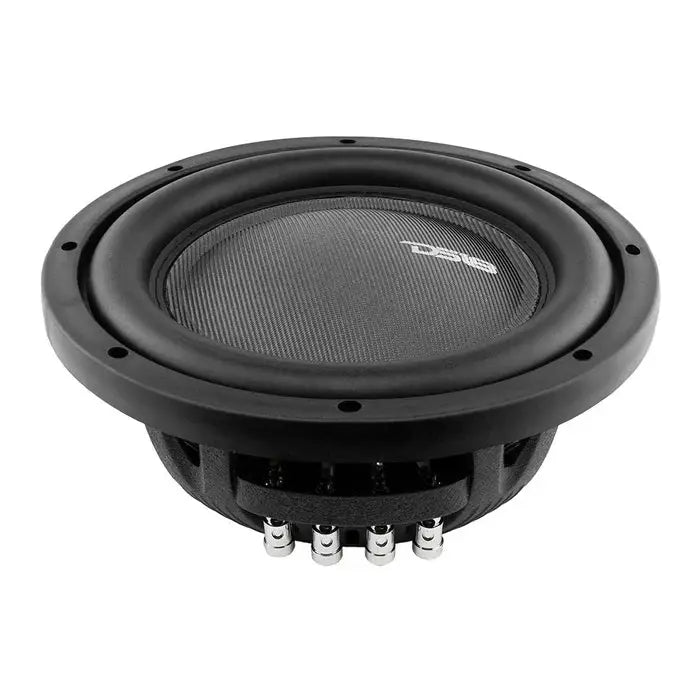

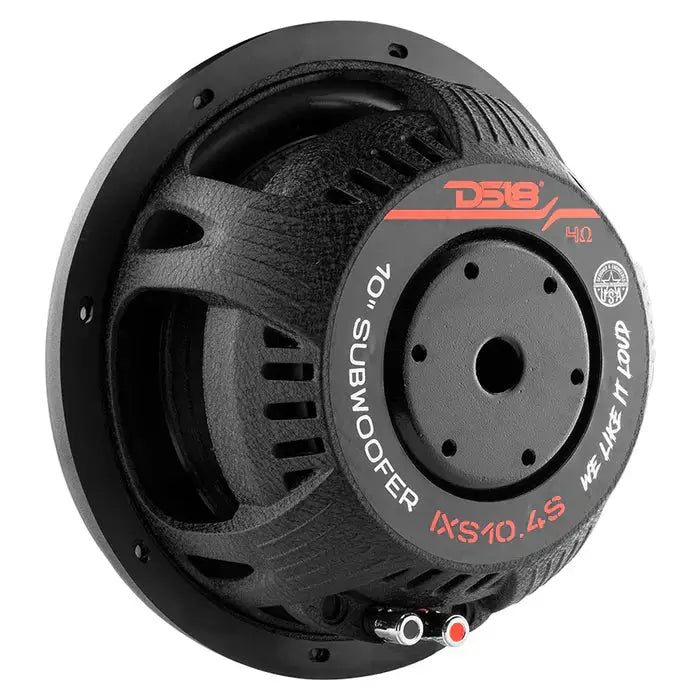

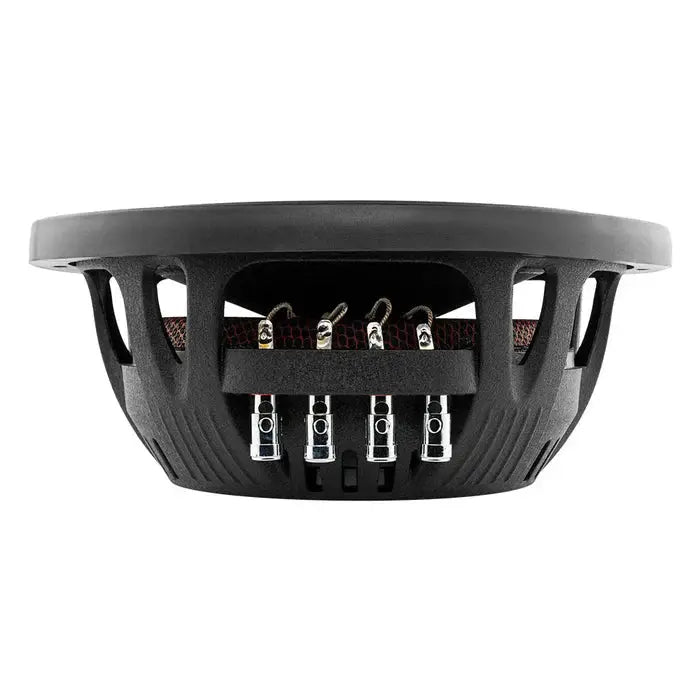

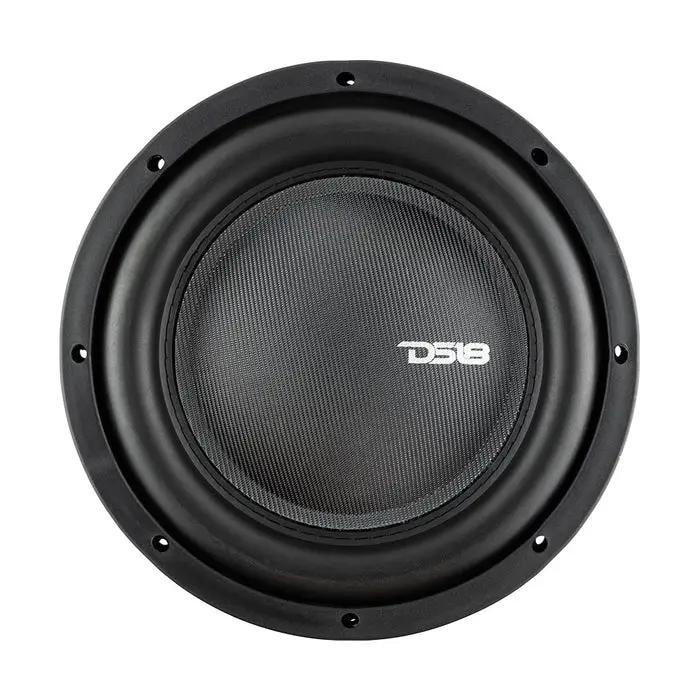

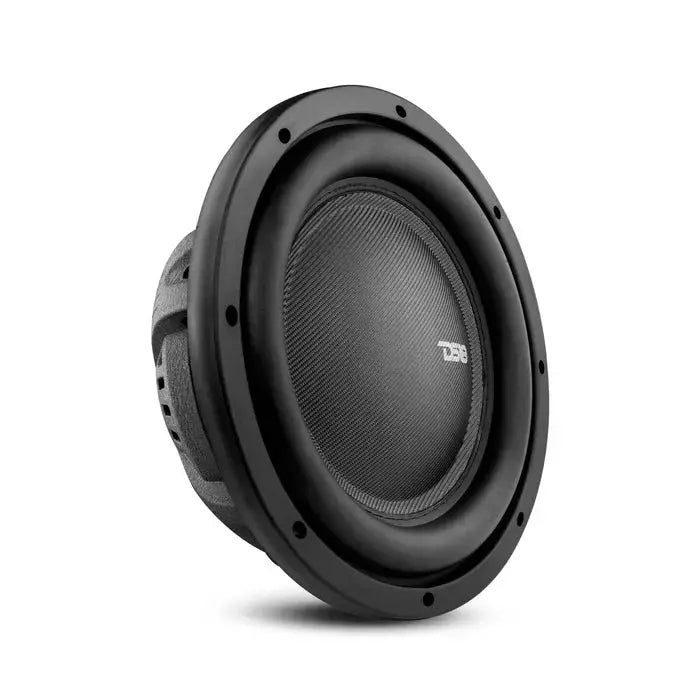

DS18 IXS10.4S IXS Shallow 10" Subwoofer 1200 Watts SVC 4-Ohm
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 600 W
- Voice-coil options: S4
- Frequency response: 20–800 Hz
- Voice-coil diameter: 2.5 inches
- Magnet material: Ferrite
DS18 IXS10.4S IXS Shallow 10" Subwoofer 1200 Watts SVC 4-Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring low-frequency sound to a compact car-audio installation with the DS18 IXS10.4S IXS shallow 10-inch subwoofer. Its 3.66-inch mounting depth and 600W RMS power handling suit builds where space is limited and an appropriately matched amplifier is available.
The single 4-ohm voice coil and 10-inch size make this subwoofer a specific option for sealed enclosures with at least 14.2 L of internal volume.
Key Features & Benefits
- Shallow mounting depth: The 3.66-inch mounting depth helps with planning installations where depth is restricted.
- Power handling: The subwoofer is rated at 600W RMS and 1200W maximum.
- Single 4-ohm voice coil: This load provides a clear specification for selecting a suitable amplifier.
- Sealed enclosure recommendation: The minimum internal volume is 14.2 L (0.5 ft³), with an F3 of 44 Hz.
- Specified construction: A paper cone, stitched rubber surround, aluminum basket, and ferrite magnet define its materials.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal diameter / impedance | 10" (254 mm) / 4 ohms |
| RMS / maximum power handling | 600W RMS / 1200W MAX |
| Sensitivity | 84 dB (1W/1m) |
| Frequency response | 20–800 Hz |
| Mounting depth | 3.66" (93 mm) |
| Overall depth | 4.48" (114 mm) |
| Cutout | 9.25" (235 mm) |
| Displacement | 0.9 L |
| Recommended sealed enclosure internal volume | Minimum 14.2 L (0.5 ft³) |
| Sealed enclosure F3 | 44 Hz |
| Voice coil | 2.5" (63.5 mm) aluminum; single voice coil (SVC); copper winding |
| Cone | Paper |
| Dust cap | Fiberglass |
| Surround | Stitched rubber |
| Basket | Aluminum |
| Magnet | Ferrite |
| Overall diameter | 10.63" (270 mm) |
| Cutout | 9.25" (235 mm) |
| Mounting depth | 3.66" (93 mm) |
| Weight | 62 oz (driver only) |
| Vas | 20 L |
| Fs | 38 Hz |
| Qts | 0.602 |
| Mms | 145.6 |
| Re | 3.6 Ω |
Why Choose This Product?
The IXS10.4S combines a 10-inch driver with a shallow mounting profile, making depth an important selection point for compact car-audio builds. Its stated sealed-box recommendation gives you a defined enclosure volume to use when planning the system.
The 600W RMS rating, 4-ohm impedance, and 84 dB sensitivity provide key figures for comparing the subwoofer with other components. Its frequency response is listed as 20–800 Hz.
Installation & Compatibility Notes
Check the available mounting space against the 3.66-inch mounting depth, 4.48-inch overall depth, 9.25-inch cutout, and 10.63-inch overall diameter. The driver weighs 62 oz.
For the stated sealed enclosure recommendation, allow at least 14.2 L (0.5 ft³) of internal volume. Match the amplifier to the subwoofer’s 4-ohm impedance and 600W RMS rating, and account for the enclosure’s 0.9 L displacement when planning available internal volume.
Frequently Asked Questions
What do the 600W RMS and 1200W MAX ratings mean?
The listed ratings are 600W RMS and 1200W maximum power handling. Use the RMS rating when comparing continuous amplifier output.
What amplifier load should I plan for?
This is a single voice coil subwoofer with a 4-ohm impedance. Select an amplifier that supports that load and is appropriately matched to its 600W RMS rating.
How much mounting space does the IXS10.4S need?
Its mounting depth is 3.66" (93 mm), overall depth is 4.48" (114 mm), cutout is 9.25" (235 mm), and overall diameter is 10.63" (270 mm).
What sealed enclosure volume is recommended?
The listed minimum sealed enclosure internal volume is 14.2 L (0.5 ft³). The specified sealed-box F3 is 44 Hz.
What does the package include?
The supplied product details specify the subwoofer’s weight as 62 oz (driver only); they do not list other included items.
