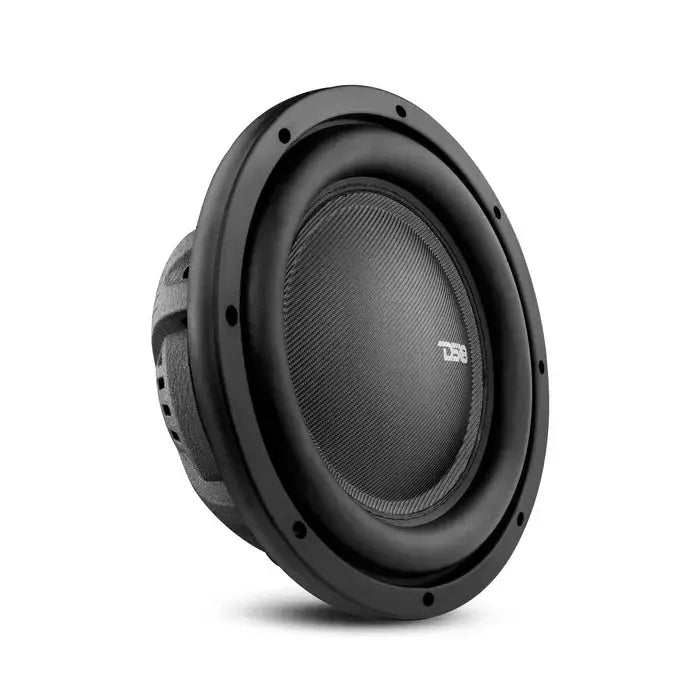

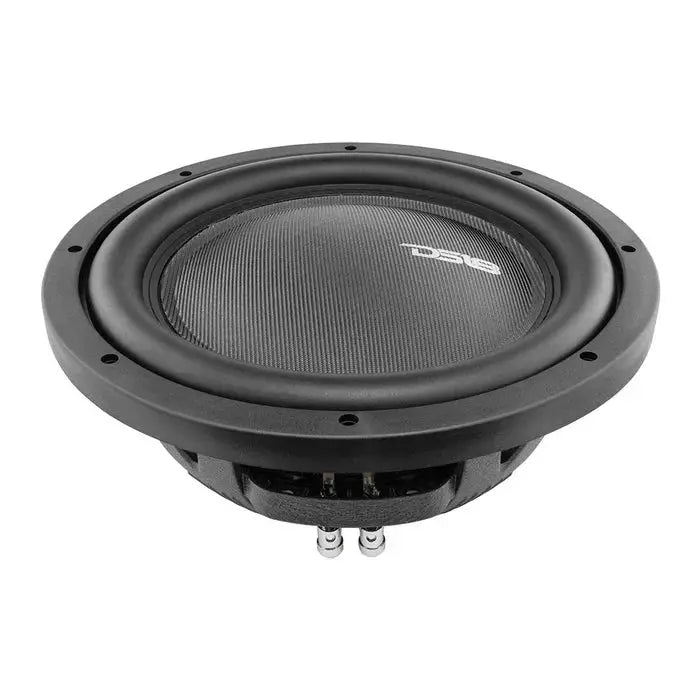

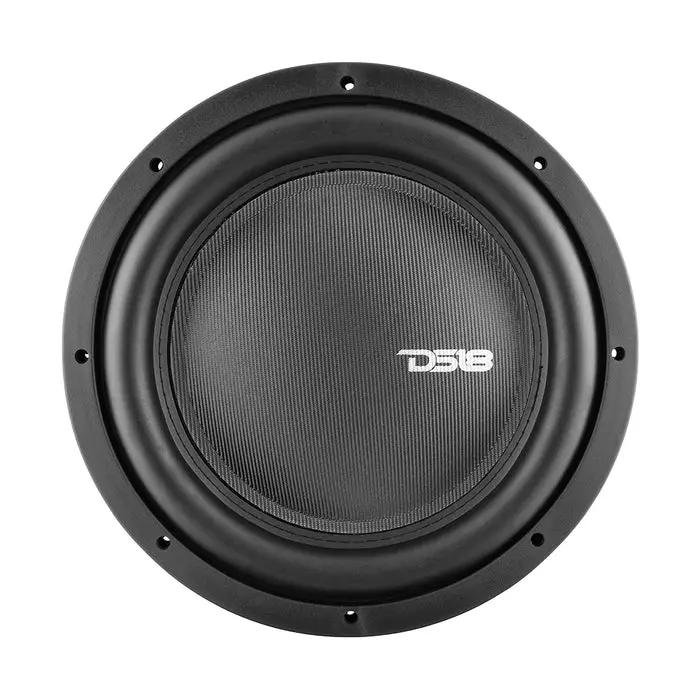

DS18 IXS12.4S IXS Shallow 12" Subwoofer 1600 Watts SVC 4-Ohm

Product Overview

Make room for deep bass in a tighter installation with the DS18 IXS12.4S shallow 12-inch subwoofer. This 4-ohm, single voice coil subwoofer handles 800W RMS and 1600W maximum power, with a 4.33-inch mounting depth for space-conscious car audio builds.

Key Features & Benefits

• Shallow-mount design: The 4.33-inch depth gives you more placement options in compact spaces.
• High power handling: 800W RMS and 1600W maximum handling suit builds planned around those ratings.
• Low-frequency response: Its 20–600 Hz frequency response covers a broad range of bass frequencies.

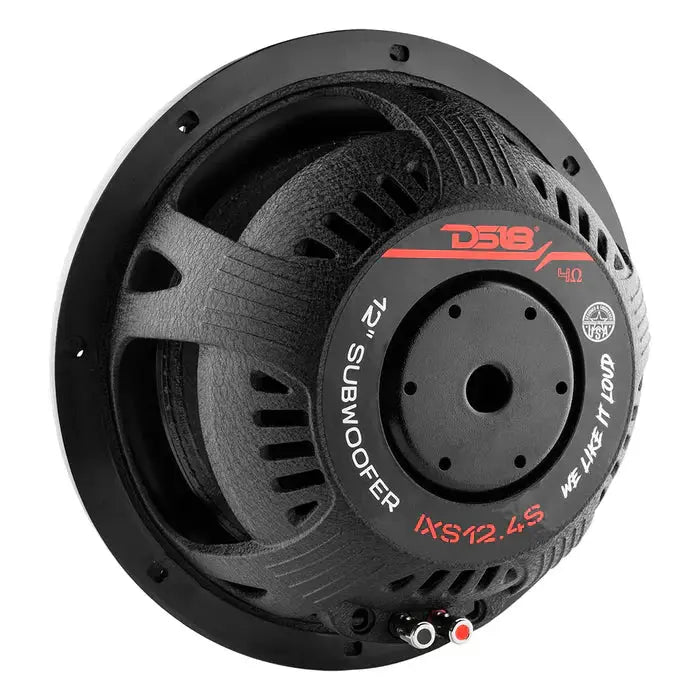

• Durable materials: An aluminum basket, ferrite magnet, and stitched rubber surround form the subwoofer’s construction.
• Sealed-enclosure guidance: A minimum volume of 28 L / 1 ft³ gives you a clear starting point for enclosure planning.

Technical Specifications

Why Choose This Product?

The IXS12.4S is designed for car audio installations where enclosure space is limited but bass output still matters. Its shallow profile can help you plan around restricted mounting areas, including trunks or under-seat spaces, while its stated sealed-enclosure volume and F3 give you useful reference points for a real build.

The 4-ohm impedance and 85 dB sensitivity help you assess how the subwoofer may fit into your amplifier and system plan. Match the amplifier to the subwoofer’s power and impedance ratings when choosing components.

Installation & Compatibility Notes

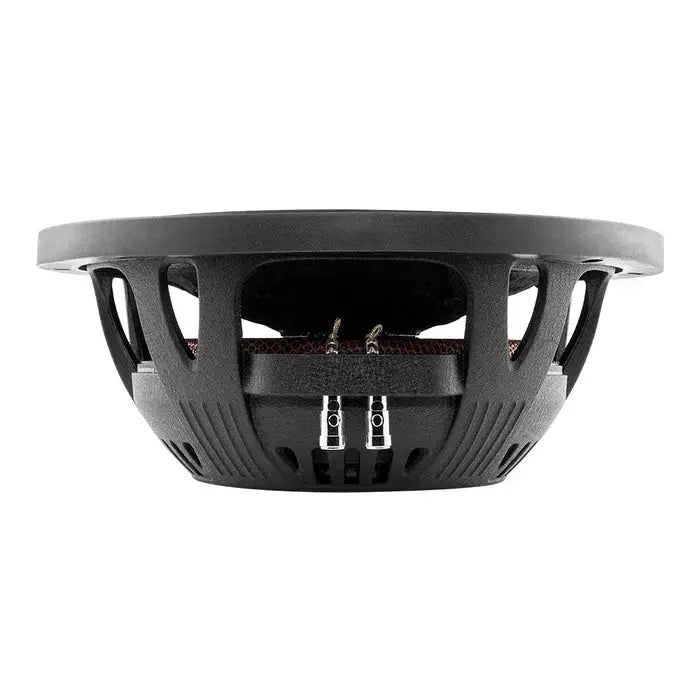

Check the available mounting area against the 4.33-inch mounting depth, 10.79-inch front cutout, and 12.6-inch overall diameter. Allow for the stated 0.93 L displacement when planning enclosure volume.

For a sealed enclosure, the stated minimum volume is 28 L / 1 ft³. Confirm your amplifier supports a 4-ohm load and plan around the subwoofer’s 800W RMS power handling.

Frequently Asked Questions

What does the 800W RMS rating mean?

It is the subwoofer’s RMS power-handling rating. Its maximum power-handling rating is 1600W.

What amplifier load does the IXS12.4S present?

This model has a nominal impedance of 4 ohms. Check that your amplifier is compatible with that load.

How much space does it need for mounting?

Plan for a 4.33-inch mounting depth, a 10.79-inch front cutout, and a 12.6-inch overall diameter.

What sealed enclosure volume is specified?

The listed minimum sealed enclosure volume is 28 L / 1 ft³.

What is the subwoofer made from?

It has a paper cone, stitched rubber surround, aluminum basket, and ferrite magnet.
