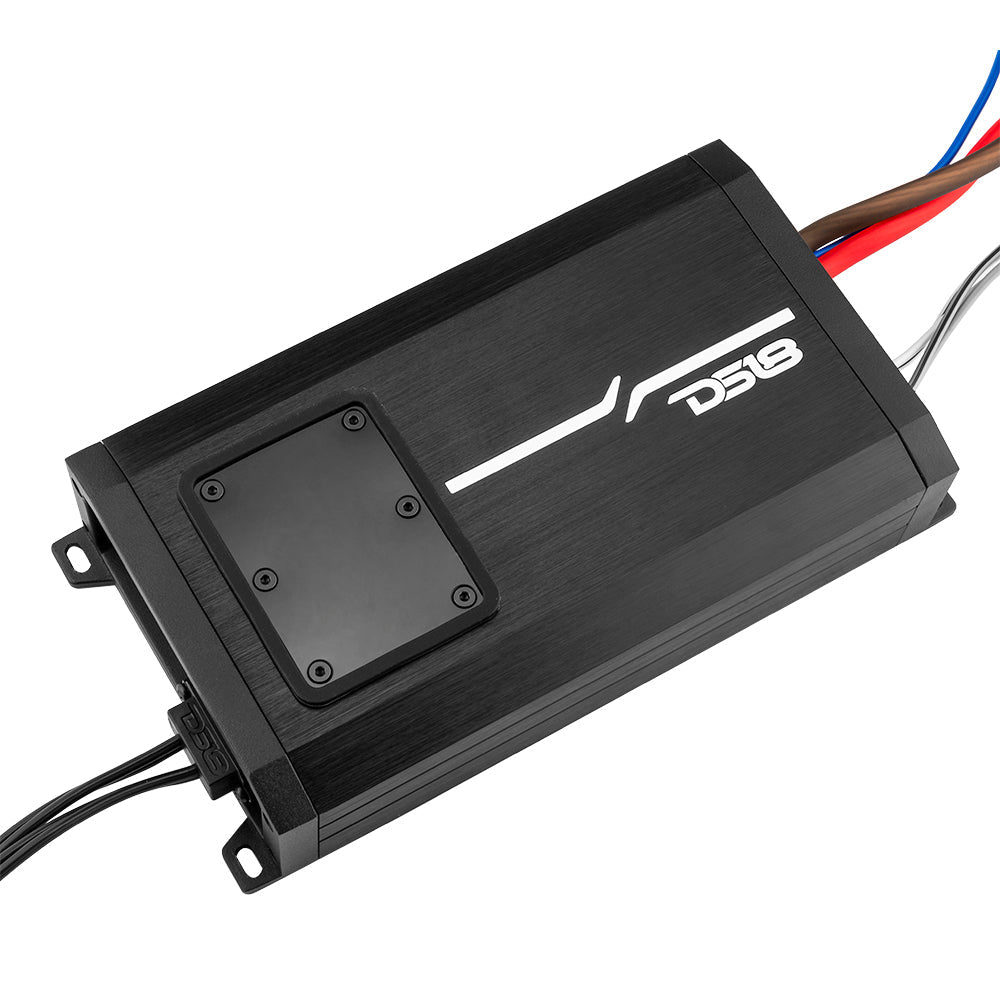

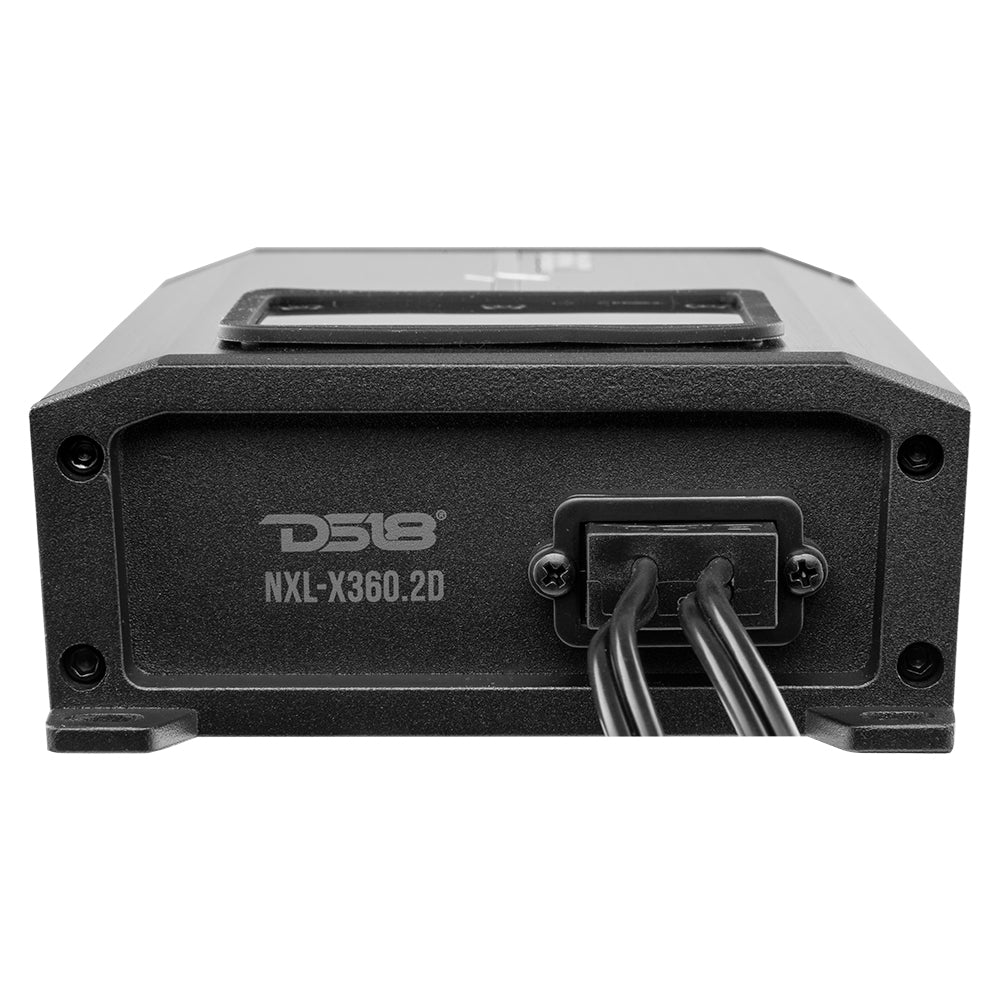

DS18 NXL-X360.2D 2-Channel Marine Amplifier
Key features
- 2-channel Class D amplification
- 250W RMS per channel at 2 ohms; 180W RMS per channel at 4 ohms
- Total Watts (Peak): 1000W
- RMS Power @ 4 ohm: 2 x 180W
- RMS Power @ 2 ohm: 2 x 250W
- RMS Power @ 4 ohm Bridge: 500W
DS18 NXL-X360.2D 2-Channel Marine Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add two-channel power to a marine audio system with the DS18 NXL-X360.2D 2-channel marine amplifier. Its Class D design delivers 250W RMS per channel at 2 ohms or 180W RMS per channel at 4 ohms, with separate amplified channels for powering multiple speakers from one unit.
Key Features & Benefits
- Two-channel output: Run multiple speakers from one amplifier.
- Class D amplification: A digital amplifier design for stereo, full-range audio.

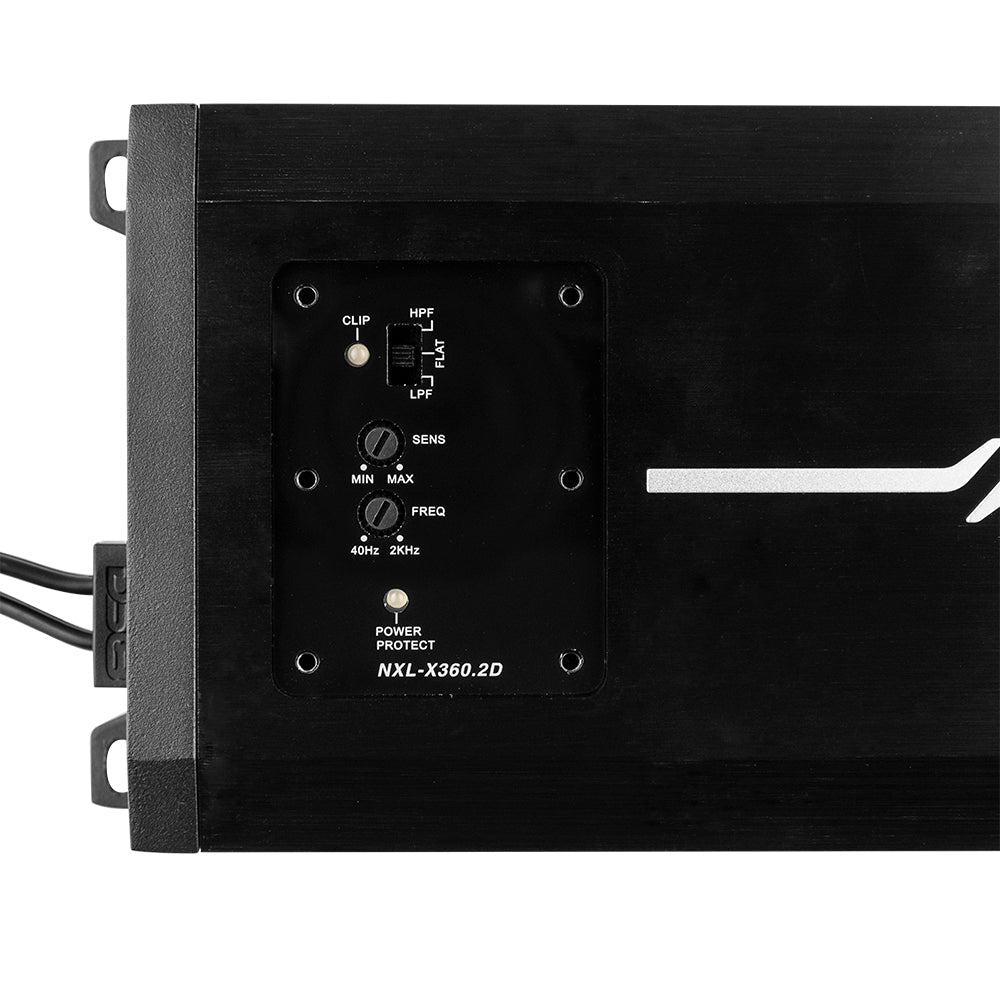

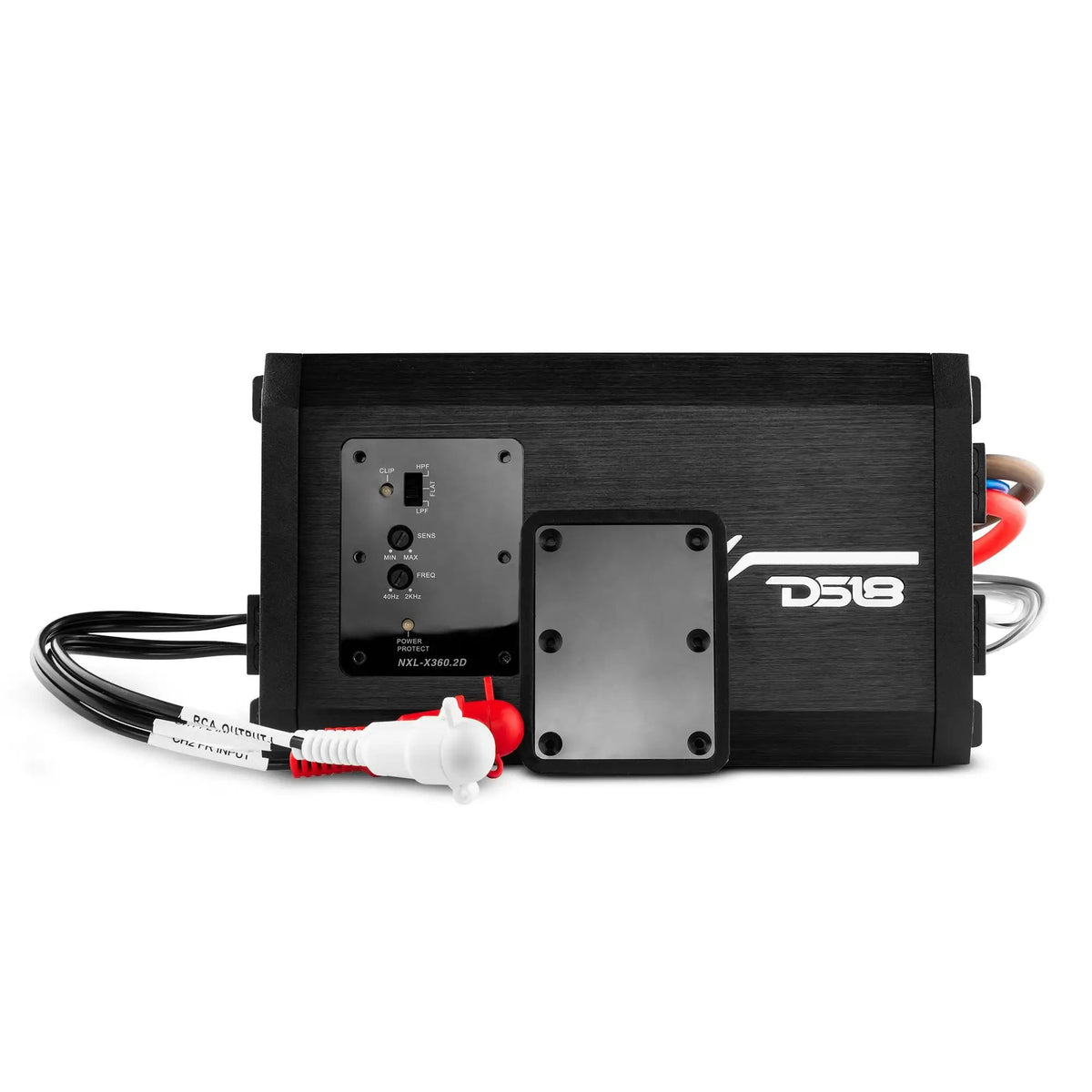

- Selectable crossover: Choose HPF, Full, or LPF to match your system setup.
- Protection features: Thermal, overload, short-circuit output, and voltage-input protection are built in.
- Compact dimensions: The 8.3-inch overall length helps you plan the mounting space.
Technical Specifications
| Specification | Value |
|---|---|
| Total Watts (Peak) | 1000W |
| RMS Power @ 4 ohm | 2 x 180W |
| RMS Power @ 2 ohm | 2 x 250W |
| Power @ 4 ohm Bridge | 500W |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio 1W@4Ω | > 82dB |
| Efficiency @ 4ohm | 0.84 |
| Input Impedance | 20KΩ |
| Channel Separation | 60dB |
| Total Harmonic Distortion (THD) | < 0.03% |
| Low Level Input Range | 200mV-5V |
| Selectable X-Over | Yes (HPF/Full/LPF) |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | N/A |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | No |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 2 |
| Minimum Impedance | 2 Ohms (Stereo) / 4 Ohm (Bridge) |
| Led Indicators | Power / Protection / Clip |
| Power Input Size | 8GA Tinned OFC |
| Fuse Size | 2 x 25A (50A) |
| Thermal Protection | Yes (75°C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (7-16V) |
| Body Color / Finish | Black Brushed Aluminum |
| Overall Length | 8.3" / 211mm |
| Overall Wide | 4.4" / 112mm |
| Overall Height | 1.77" / 45mm |
| Heatsink Length | 6.7" / 171mm |
| Gross Single Unit Weight | 1.6Kg |
Why Choose This Product?
The NXL-X360.2D gives you two amplified channels and selectable crossover modes in one compact marine amplifier. Its listed power ratings make it easier to compare the amplifier with your speakers and plan a system around the correct impedance.
Installation & Compatibility Notes
Check the mounting dimensions, wiring, and fuse requirements before installation. Match speaker impedance and crossover settings to your setup, follow the manufacturer instructions, and keep connections protected from water. A marine rating does not permit intentional submersion.
Frequently Asked Questions
What power does the NXL-X360.2D provide?
It is rated at 250W RMS per channel at 2 ohms and 180W RMS per channel at 4 ohms. The listed bridged output is 500W at 4 ohms.
What is the minimum impedance?
The listed minimum is 2 ohms in stereo or 4 ohms bridged. Match the speaker load to the selected configuration.
Can I adjust the crossover?
Yes. Select HPF, Full, or LPF, with a listed filter range of 40Hz-2KHz.
What space should I allow for installation?
The overall dimensions are 8.3" / 211mm long, 4.4" / 112mm wide, and 1.77" / 45mm high. Check these against your planned mounting location.
Can the amplifier be submerged?
No. Its marine rating does not permit intentional submersion, and connections should be kept protected from water.
