X 2-Channel Ultra Compact Full-Range Amplifier with Bluetooth Connectivity - 2 x 140 Watts Rms
X 2-Channel Ultra Compact Full-Range Amplifier with Bluetooth Connectivity - 2 x 140 Watts Rms is backordered and will ship as soon as it is back in stock.
Description
Description
-
Key Features
- Bluetooth 5.1 Streaming Built-In – Play music wirelessly straight from your phone
- 2-Channel Class D Power – 2×140W RMS @ 4Ω, 2×230W RMS @ 2Ω, or 380W bridged @ 4Ω
- Compact, High-Efficiency Design – Big output in a small, low-heat chassis
- Full Protection Circuitry – Thermal, overload, short-circuit, DC, and voltage protection
- Motorcycle & Powersports Ready – Water-resistant build for bikes, ATVs, UTVs, and marine
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Power
Total Watts (Peak)
1140W
RMS Power @ 4 ohm
2 x 140W
RMS Power @ 2 ohm
2 x 230W
RMS Power @ 4 ohm Bridge
380W
Audio
Frequency Response
20Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
80%
Damping Factor
200
Total Harmonic Distortion (THD)
0.20%
Low Level Input Range
0.2-5V

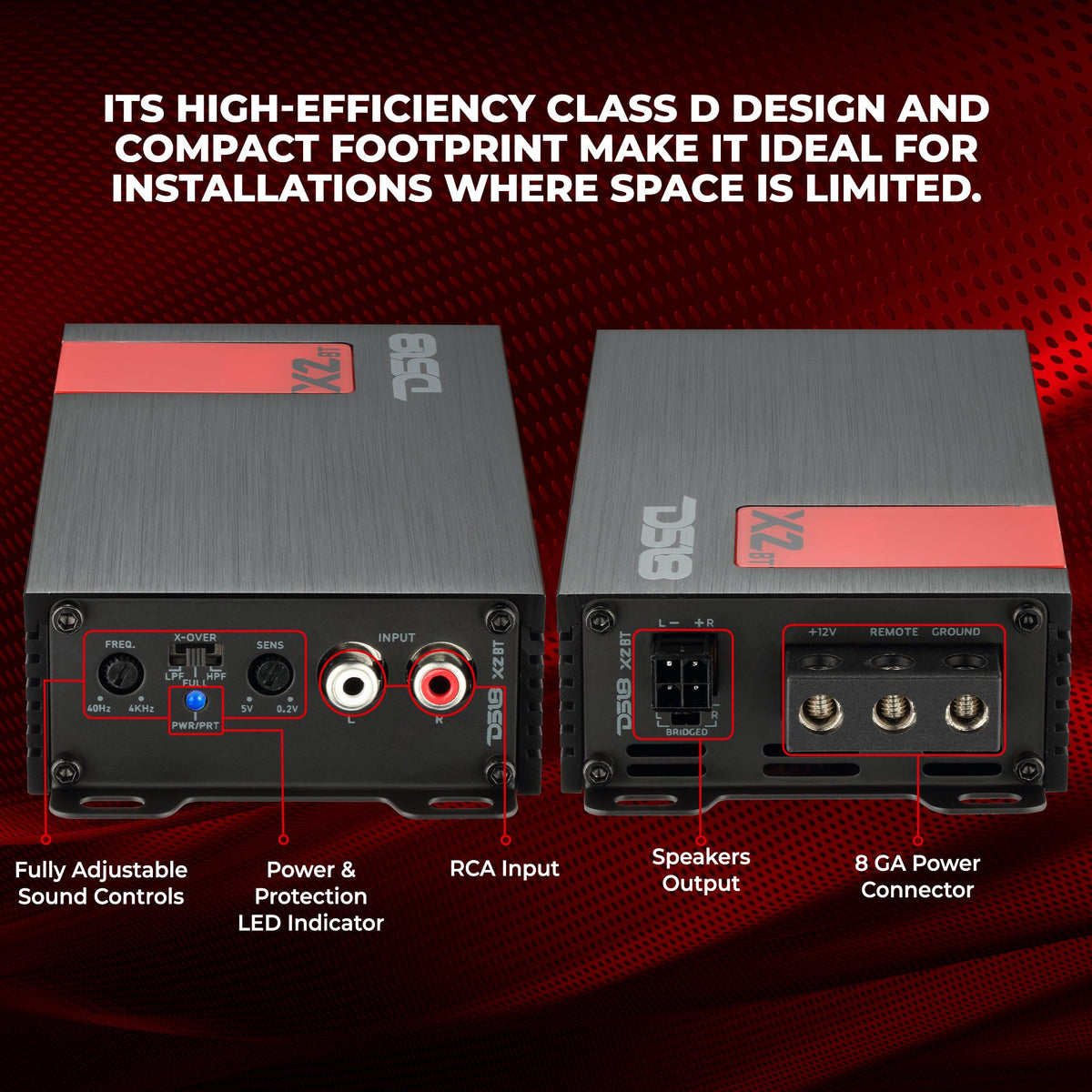

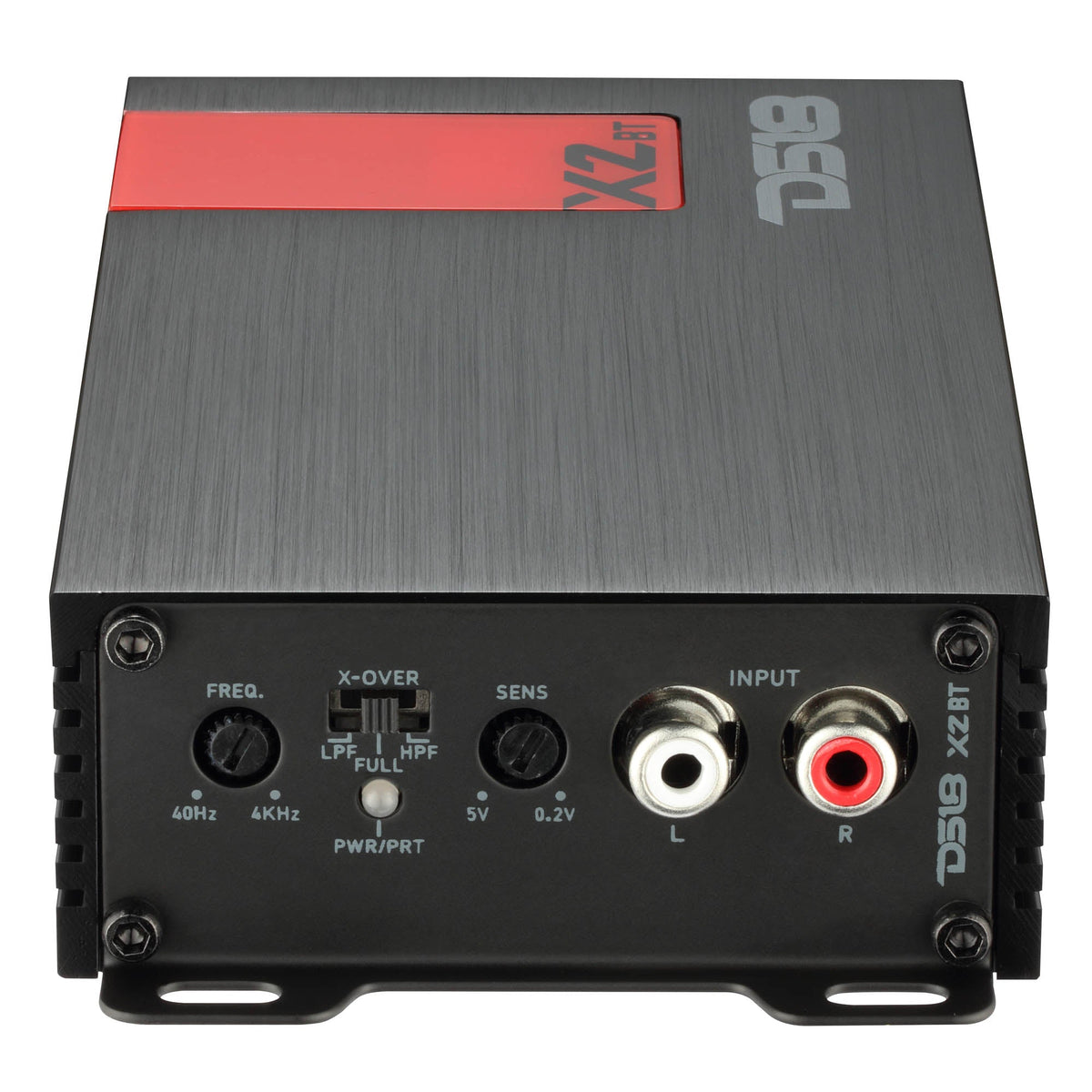

Selectable X-Over
LPF / FLAT / HPF
X-Over Filter Range
40Hz-400Hz
Features
Amplifier Class
Digital (D)
Amplifier Type
Stereo Full Range
Number of Channels
2
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge
Led Indicator
Power / Protect

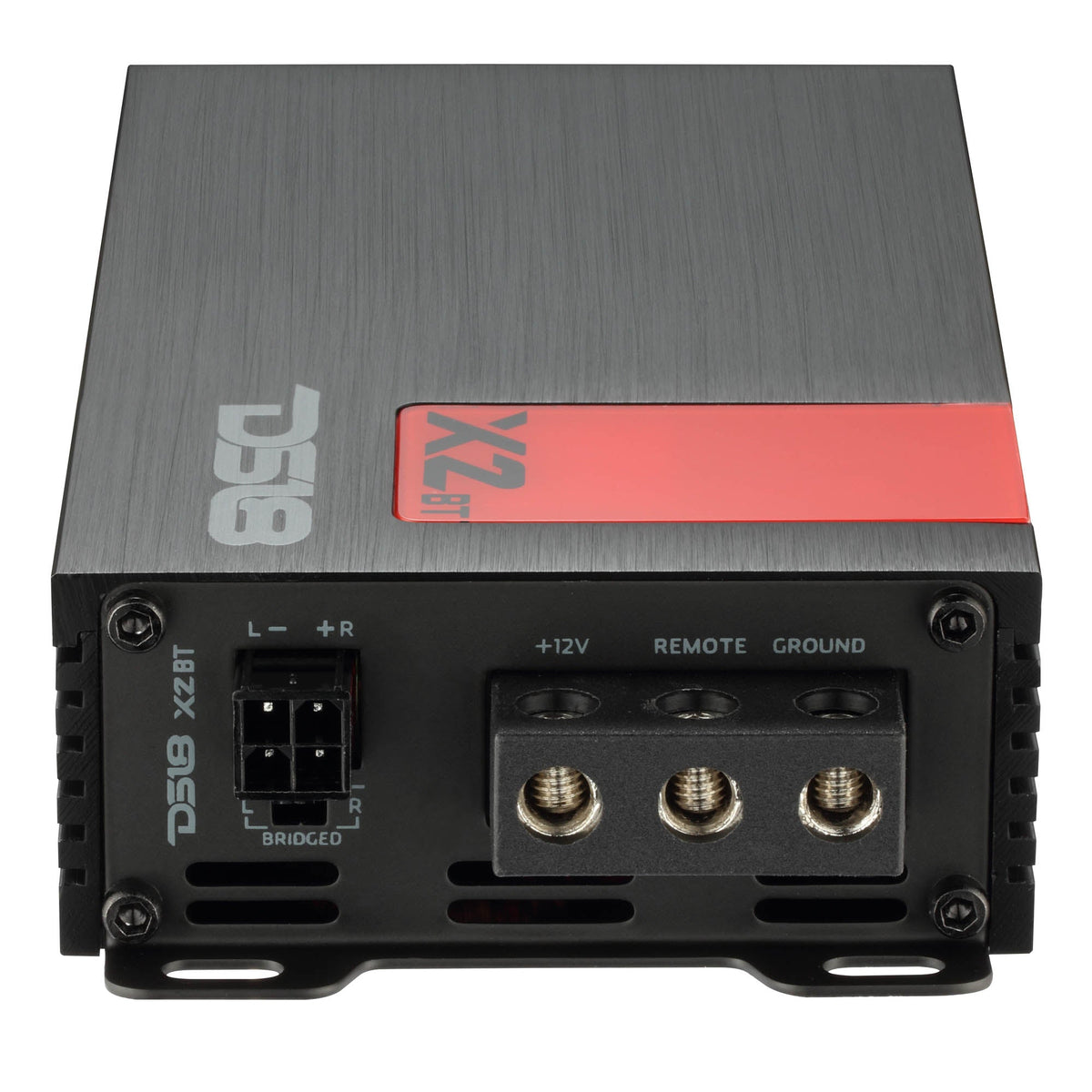

Power Input Terminal Size
8Ga
Fuse Size
40A
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Body Color / Finish
Brushed Black Aluminum
Ultra Compact Size to easy Installation for Any Applications
Yes

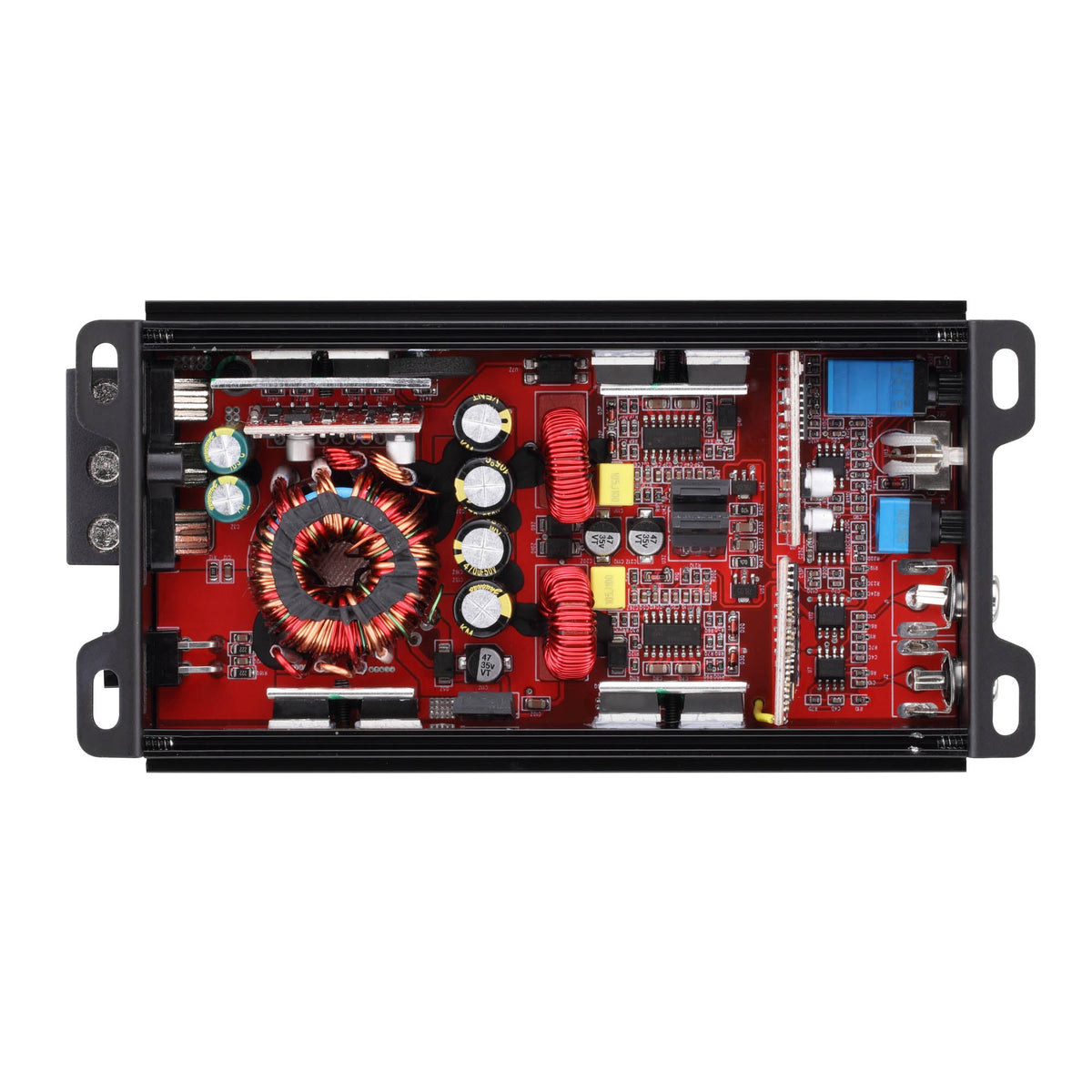

Stable / Reliable Four Layers Traces PCB Design with SMC technology
Yes
2 or 4 channel input selector
No
Quality Control Verification using Audio Precision Instruments
Yes
Audio input with automatic switching BT or RCA
Yes
Bluetooth Specifications
Version
5.1
Services
A2DP 1.3.1
Bluetooth Name
DS18 X2BT
Range (Up to)
60ft / 18m
Supported Devices
iOS / Android
Audio Codec
SBC / ACC

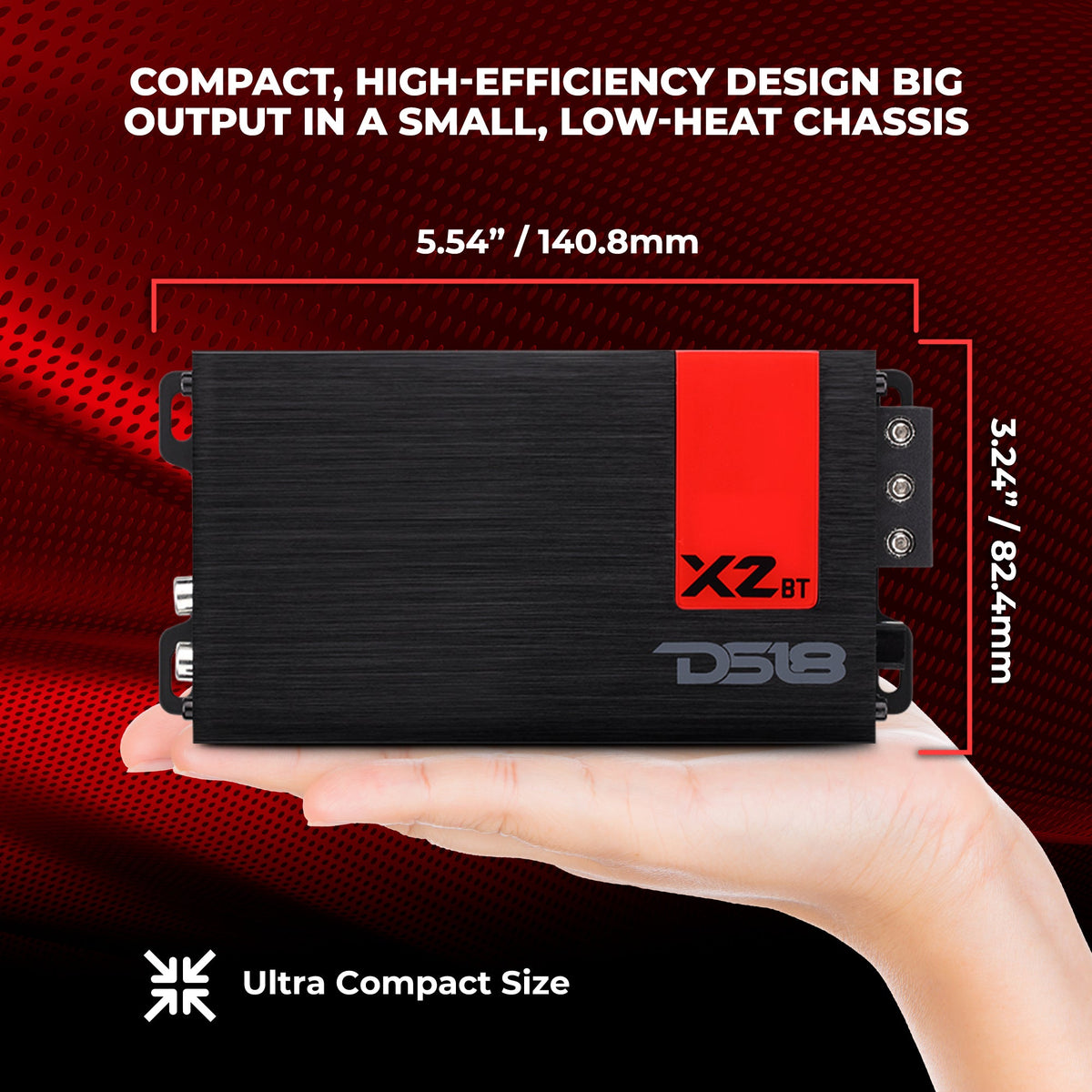

Measurement
Overall Length
5.54" / 140.8mm
Overall Width
3.24" / 82.4mm
Overall Height
1.37" / 34.8mm
Heatsink Length
4.75" / 120.8mm
-
Product Overview
Product Overview

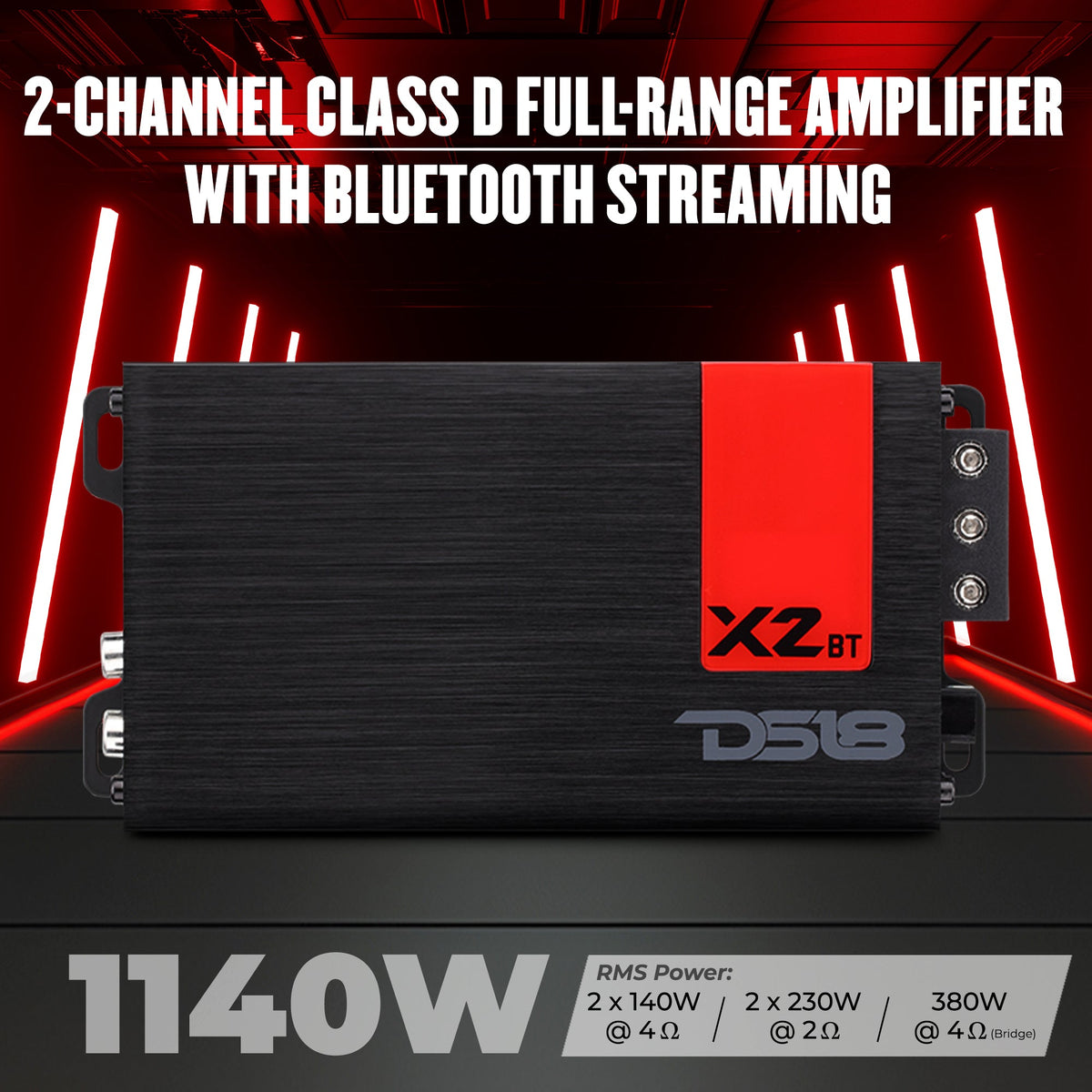

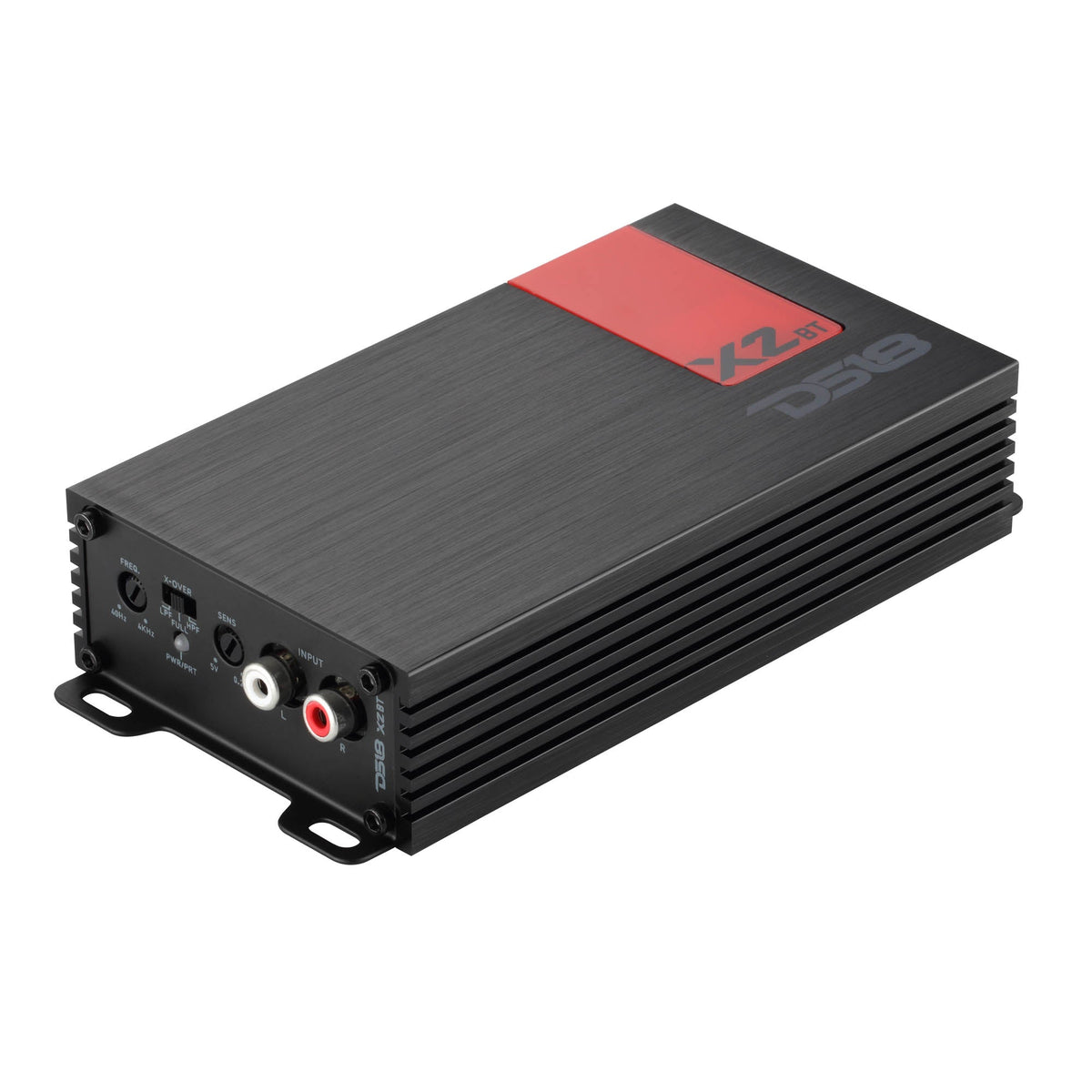

2-Channel Class D Full-Range Amplifier with Bluetooth Streaming
The latest addition to DS18’s X Series is the X2BT: an ultra-compact 2-channel amplifier engineered for modern audio systems that demand Bluetooth connectivity, digital tuning, and efficient power delivery in a tight package.
Built-In Bluetooth Streaming
Thanks to onboard Bluetooth 5.1, the X2BT allows you to stream high-quality audio directly from your phone or device. This means your music is always accessible!Full Range Flex
The X2BT is optimized for full-range performance, making it ideal for mids, highs, or even small subwoofer setups in tight spaces.Power Output @ 4Ω: 2 x 140W RMS
Power Output @ 2Ω: 2 x 230W RMS
Bridged @ 4Ω: 1 x 380W RMSCompact + Weather-Resistant
The rugged housing is designed for tough environments, with a compact chassis that fits anywhere. It’s perfect for powersports builds where space and reliability matter.Upgrade your ride with wireless control and clean power! DS18’s X2BT is the go-to amplifier for flexible, high-performance audio.
