FOX BOX 1994–2001 Dodge Ram 1500 Club Cab Dual 10-Inch Downfire Sub Box
Key features
- Two 10-inch downfiring mounting positions.
- 0.74 cubic foot of listed air volume per side.
- 6-inch mounting depth with a 7-inch-diameter magnet.
- Black spray-on bed-liner coating.
- Optional pair of 10-to-8-inch adapter rings.
FOX BOX 1994–2001 Dodge Ram 1500 Club Cab Dual 10-Inch Downfire Sub Box - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
FOX BOX 1994–2001 Dodge Ram 1500 Club Cab Dual 10-Inch Downfire Sub Box - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Two 10-inch downfiring mounting positions.
- 0.74 cubic foot of listed air volume per side.
- 6-inch mounting depth with a 7-inch-diameter magnet.
- Black spray-on bed-liner coating.
- Optional pair of 10-to-8-inch adapter rings.
Technical Specifications
| Model | DXC-210-94 |
|---|---|
| Vehicle application | 1994–2001 Dodge Ram 1500 Club Cab with compatible seat style |
| Excluded models | Dodge Ram 2500 and 3500 |
| Subwoofer configuration | Two 10-inch downfiring subwoofers; optional 8-inch adapter rings |
| Mounting cutout | 9.125 inches |
| Mounting depth | 6 inches with a 7-inch-diameter magnet |
| Internal air volume | 0.74 cu ft per side |
| Finish | Black spray-on bed-liner coating |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6 inches with a 7-inch-diameter magnet. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Fits 1500 models only. It cannot be made to fit the stated 2500 or 3500 applications.

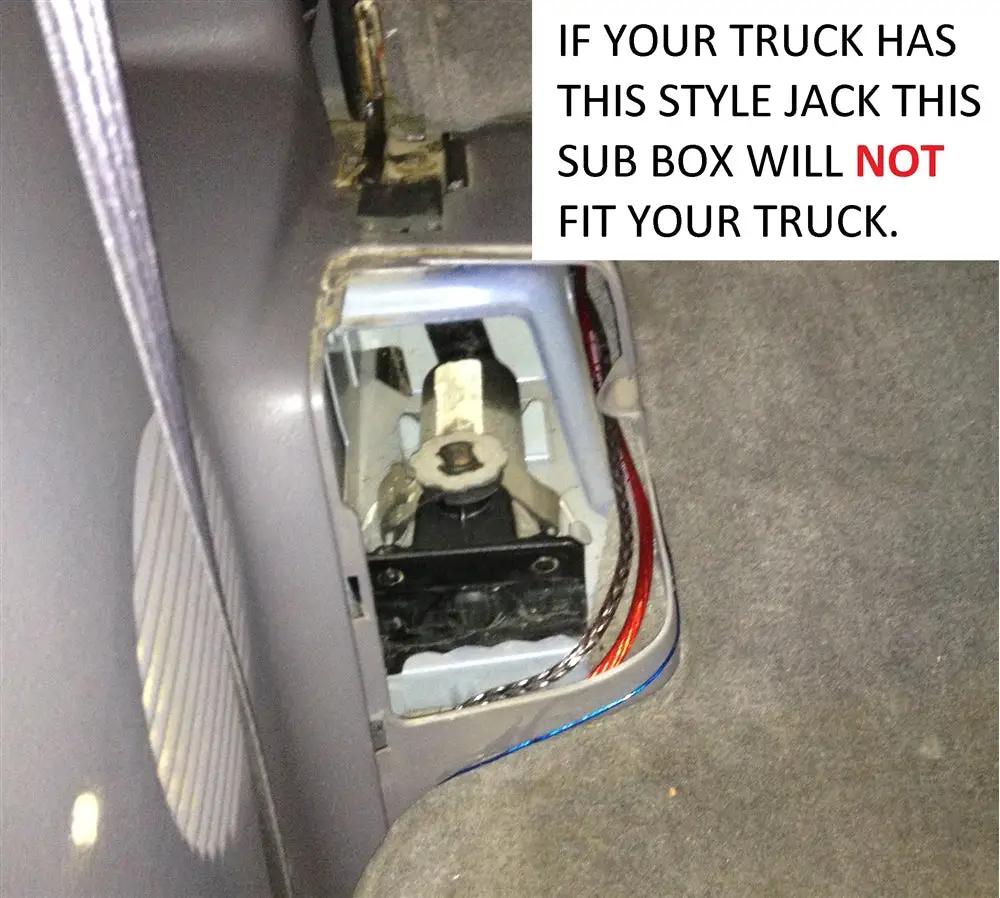

- Review the product fitment images and verify the rear-seat style before ordering. The jack shown as incompatible in the manufacturer’s fitment reference identifies an incompatible seat layout; removing that jack does not make the box fit.

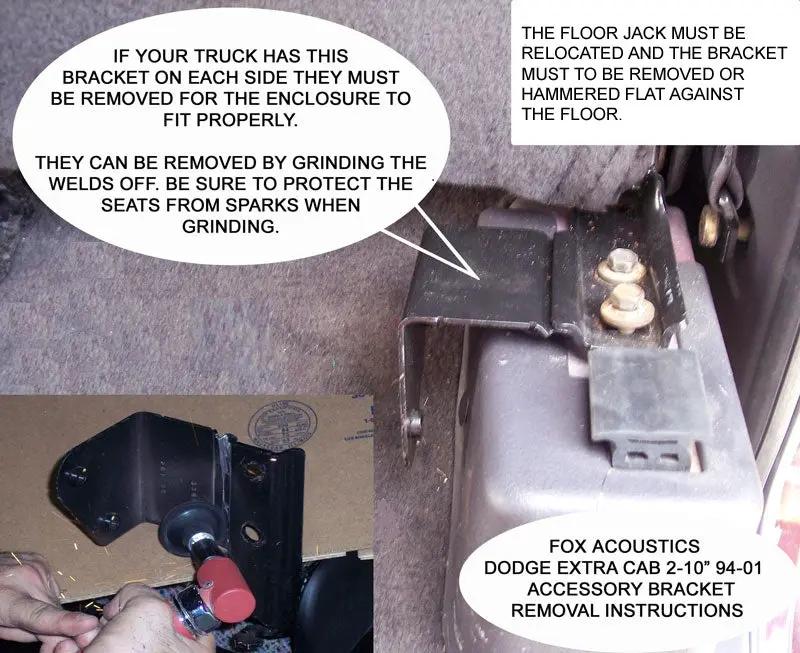

- For the compatible layout shown in the installation image, relocate the floor jack and remove its bracket or flatten that bracket against the floor. If the pictured accessory brackets are present on both sides, they must be removed.
- Bracket removal may involve welded attachments. Have a qualified installer verify the exact seat and bracket layout, assess the required modifications, and protect the seats and surrounding vehicle components before work begins.
- Match the selected subwoofers to the mounting cutout, depth and per-side airspace.
- If using 8-inch subwoofers, select the two-piece 10-to-8-inch adapter option and check driver requirements.
Frequently Asked Questions
Can I make it fit a 2500 or 3500?
No. The product description explicitly excludes both, even though those trucks can look similar.
Will removing the jack solve a fitment issue?
No. The incompatible jack arrangement is an identifier for a rear-seat style that does not fit; it is not the cause of the mismatch.
What is the mounting depth?
The listed depth is 6 inches with a 7-inch-diameter magnet.
Explore More
Compare more FOX BOX enclosures and accessories at 12 Volt Outlet.
Gallery note: Installation examples show vehicles and other equipment that are not included. Only the empty enclosure or accessory described in this listing is included.
