Fox Acoustics 2.5" Seat Lift Kit for 2007-2018 Chevy Silverado/GMC Sierra 1500/2500/3500 Crew & Extended Cab
Key features
- Two-position change combines a 2.5-inch lift with a 1-inch forward shift.
- Made-in-USA brackets are CNC laser-cut and formed on a CNC press brake.
- Powder-coated finish complements the factory interior.
- With the seat bottom raised, the seat back can fold forward for rear-wall access; lowering the bottom reengages the rear-wall hooks.
Fox Acoustics 2.5" Seat Lift Kit for 2007-2018 Chevy Silverado/GMC Sierra 1500/2500/3500 Crew & Extended Cab is backordered and will ship as soon as it is back in stock.
Fox Acoustics 2.5" Seat Lift Kit for 2007-2018 Chevy Silverado/GMC Sierra 1500/2500/3500 Crew & Extended Cab is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box seat-lift kit raises the rear seat 2.5 inches and shifts it forward 1 inch in the listed 2007-2018 GM 1500, 2500 and 3500 Crew Cab or Extended Cab trucks. The forward shift creates additional rear-wall clearance for an amplifier installation.
Key Features & Benefits
- Two-position change combines a 2.5-inch lift with a 1-inch forward shift.

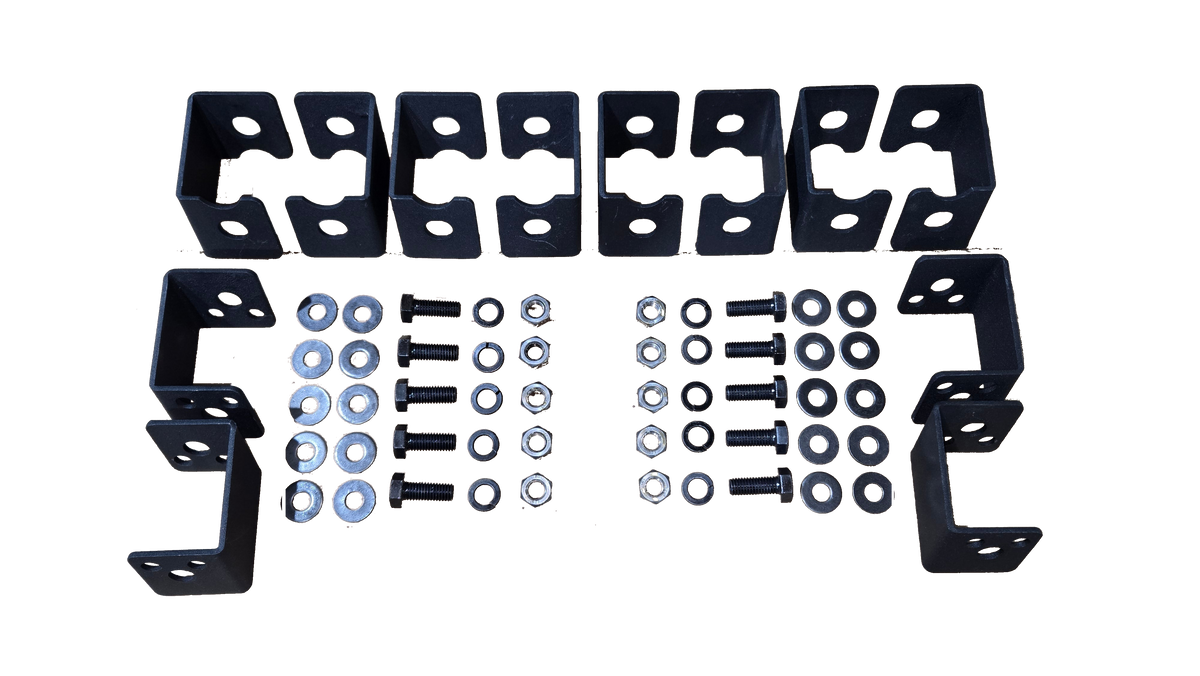

- Made-in-USA brackets are CNC laser-cut and formed on a CNC press brake.
- Powder-coated finish complements the factory interior.
- With the seat bottom raised, the seat back can fold forward for rear-wall access; lowering the bottom reengages the rear-wall hooks.
Technical Specifications
| Model | GM-07-25 |
|---|---|
| Vehicle fitment | 2007-2018 GM 1500/2500/3500 trucks; Crew Cab and Extended Cab |
| 2007 restriction | Late-2007 new body style only |
| Seat lift | 2.5 in. |
| Forward seat shift | 1 in. |
| Manufacturing | USA; CNC laser-cut and press-brake formed brackets |
| Finish | Powder coated |
| Tool noted by manufacturer | 18 mm ratchet |
Why Choose This Product?
The combination of vertical lift and forward movement is useful when the rear wall needs more working space. The fold-forward access arrangement also makes this kit more than a simple vertical spacer, provided the truck matches the listed cab and body style.

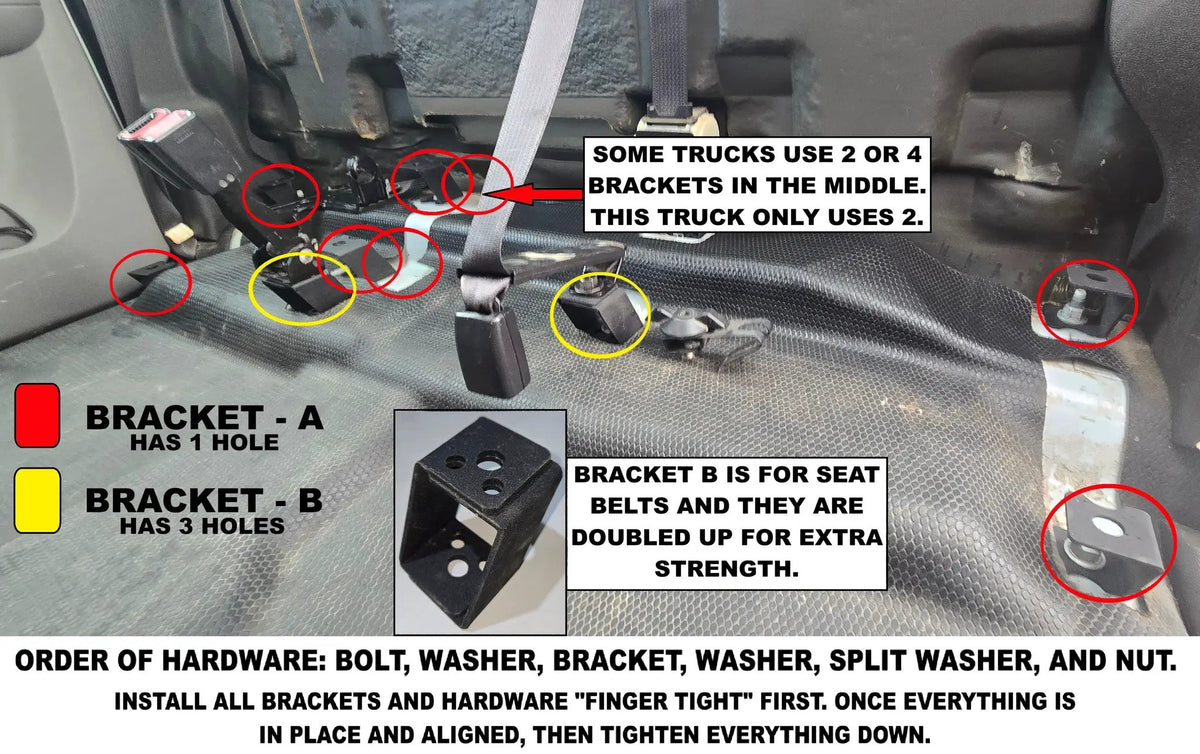

Installation & Compatibility Notes
- For 2007 trucks, verify the late-2007 new body style. Do not assume an earlier body style qualifies.
- The manufacturer recommends a second person to help lift and move the rear seat.
- Fox estimates a typical installation at 30-45 minutes with an 18 mm ratchet; actual time depends on the vehicle and installer.
- Follow the manufacturer's seat-hardware instructions and verify that the rear-wall hooks reengage when the seat bottom is lowered.
Frequently Asked Questions
Does it only raise the seat?
No. It raises the rear seat 2.5 inches and moves it forward 1 inch.
Will it fit every 2007 GM truck?
No. For 2007, Fox specifies the late-2007 new body style, along with the listed truck series and cab styles.
How does the rear-wall access work?
Fox describes raising the seat bottom before folding the seat back forward. Lowering the seat bottom reengages the rear-wall hooks.
Explore More
Compare vehicle-specific designs in our Fox Box enclosure collection.
Gallery note: Installation examples show vehicles and other equipment that are not included. Only the empty enclosure or accessory described in this listing is included.
