FOX BOX 2007+ GM Crew Cab Single 10-Inch Vented Subwoofer Enclosure
Key features
- Single 10-inch mounting position with a 9.2-inch cutout.
- 1.1-cubic-foot vented enclosure tuned to 36 Hz.
- 6.25-inch mounting depth with a 6.5-inch maximum magnet diameter.
- Optional one-piece 10-to-8-inch adapter ring.
- Current enclosure branding uses the FOX BOX logo.
FOX BOX 2007+ GM Crew Cab Single 10-Inch Vented Subwoofer Enclosure - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
FOX BOX 2007+ GM Crew Cab Single 10-Inch Vented Subwoofer Enclosure - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Single 10-inch mounting position with a 9.2-inch cutout.
- 1.1-cubic-foot vented enclosure tuned to 36 Hz.
- 6.25-inch mounting depth with a 6.5-inch maximum magnet diameter.
- Optional one-piece 10-to-8-inch adapter ring.
- Current enclosure branding uses the FOX BOX logo.
Technical Specifications
| Model | GM-CC-110-V-07 |
|---|---|
| Vehicle application | 2007 and newer GM 1500, 2500 and 3500 Crew Cab trucks |
| Enclosure type | Vented |
| Subwoofer configuration | One 10-inch subwoofer; optional 8-inch adapter ring |
| Mounting cutout | 9.2 inches |
| Mounting depth | 6.25 inches |
| Maximum magnet diameter | 6.5 inches |
| Baffle-to-floor clearance | 1.75 inches |
| Internal air volume | 1.1 cu ft |
| Tuning frequency | 36 Hz |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6.25 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Does not fit Extended Cab or Double Cab trucks.
- Verify the cutout, mounting depth and magnet diameter against the intended subwoofer.

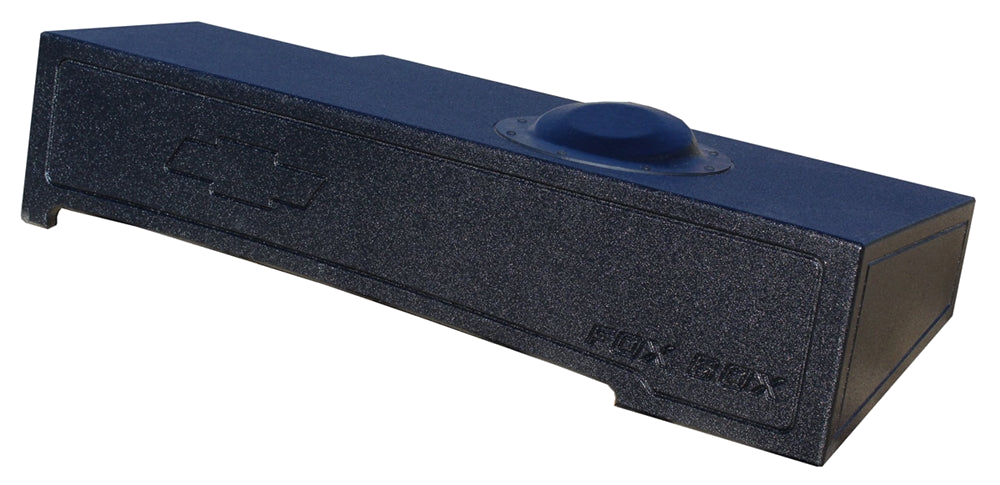

- The Chevy bowtie shown in older imagery has been replaced by the FOX BOX logo.
Frequently Asked Questions
Can I use an 8-inch sub?
An optional 10-to-8-inch adapter ring is offered. Check the selected driver’s airspace and mounting requirements.
What is the enclosure tuning?
The listed vent tuning is 36 Hz.
Will I receive Chevy bowtie branding?
The product description states that the Chevy bowtie has been replaced by the FOX BOX logo.
