FOX BOX 2019+ GM Crew Cab Dual 12-Inch Vented Subwoofer Enclosure
Key features

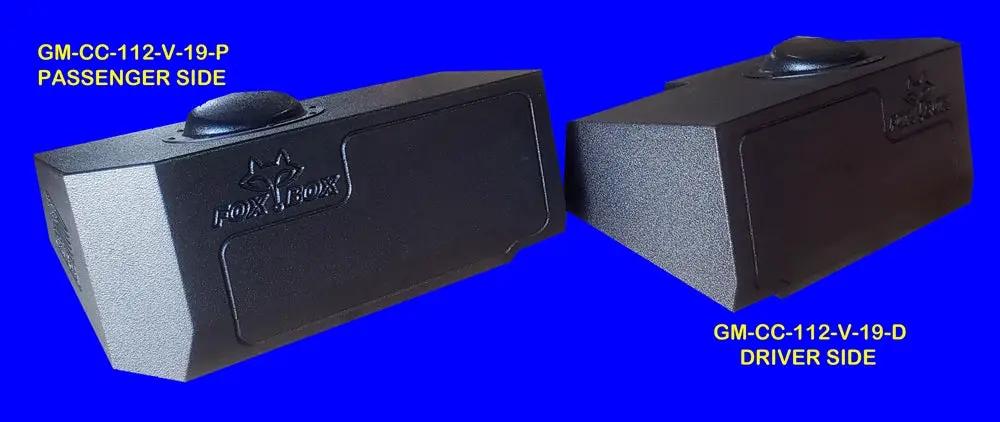

- Two-piece design includes driver- and passenger-side enclosure sections.
- Vented construction with a listed 16-square-inch rear-facing port.
- 7.5-inch mounting depth and 2.25-inch baffle-to-floor clearance.
- Optional two-piece 12-to-10-inch adapter-ring configuration.
- Black LINE-X finish; made in the USA.
FOX BOX 2019+ GM Crew Cab Dual 12-Inch Vented Subwoofer Enclosure - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
FOX BOX 2019+ GM Crew Cab Dual 12-Inch Vented Subwoofer Enclosure - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Two-piece design includes driver- and passenger-side enclosure sections.
- Vented construction with a listed 16-square-inch rear-facing port.
- 7.5-inch mounting depth and 2.25-inch baffle-to-floor clearance.
- Optional two-piece 12-to-10-inch adapter-ring configuration.
- Black LINE-X finish; made in the USA.
Technical Specifications
| Model | GM-CC-212-V-19 |
|---|---|
| Vehicle application | 2019 and newer GM 1500 Crew Cab; 2020 and newer GM 2500/3500 Crew Cab |
| Enclosure type | Vented; two-piece design |
| Subwoofer configuration | Two 12-inch subwoofers; optional 10-inch adapter rings |
| Mounting cutout | 11.15 inches |
| Mounting depth | 7.5 inches |
| Maximum magnet diameter | 7.5 inches |
| Baffle-to-floor clearance | 2.25 inches |
| Internal air volume | 1.8 cu ft per subwoofer |
| Tuning frequency | 33 Hz |
| Listed port area | 16 sq in |
| Finish | Black LINE-X spray-on bed-liner coating |
| Country of manufacture | USA |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 7.5 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Fits 2019 and newer GM 1500 Crew Cab; 2020 and newer GM 2500/3500 Crew Cab.
- Does not fit Extended Cab or Double Cab trucks.
- Remove the factory under-seat storage tray for installation.
- Choose the adapter-ring option only when using compatible 10-inch subwoofers. Check the subwoofer’s enclosure requirements and physical dimensions.
Frequently Asked Questions
Does this fit a 2019 GM 2500 or 3500?
The listed heavy-duty application begins with 2020 GM 2500/3500 Crew Cab trucks. The 2019 start year applies to the GM 1500 Crew Cab.
Can I install 10-inch subs?
Yes, a configuration with two 12-to-10-inch adapter rings is offered. The selected subs must still suit the enclosure airspace and mounting limits.
Is the box one piece?
No. It consists of one driver-side and one passenger-side enclosure section.
Explore More
Compare more FOX BOX enclosures and accessories at 12 Volt Outlet.

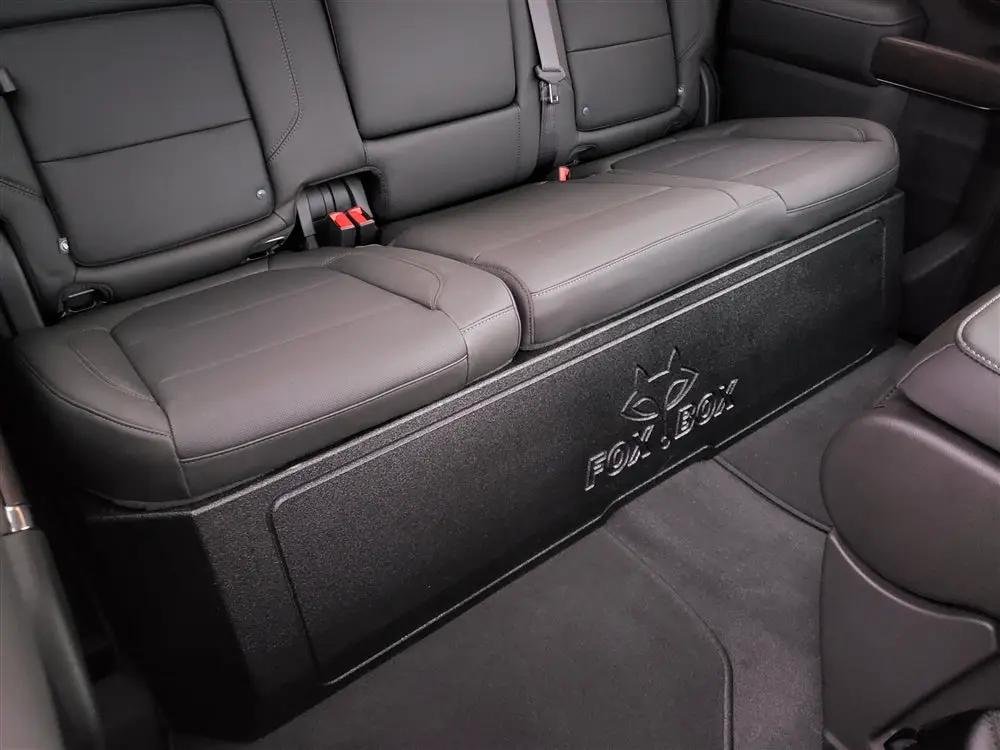

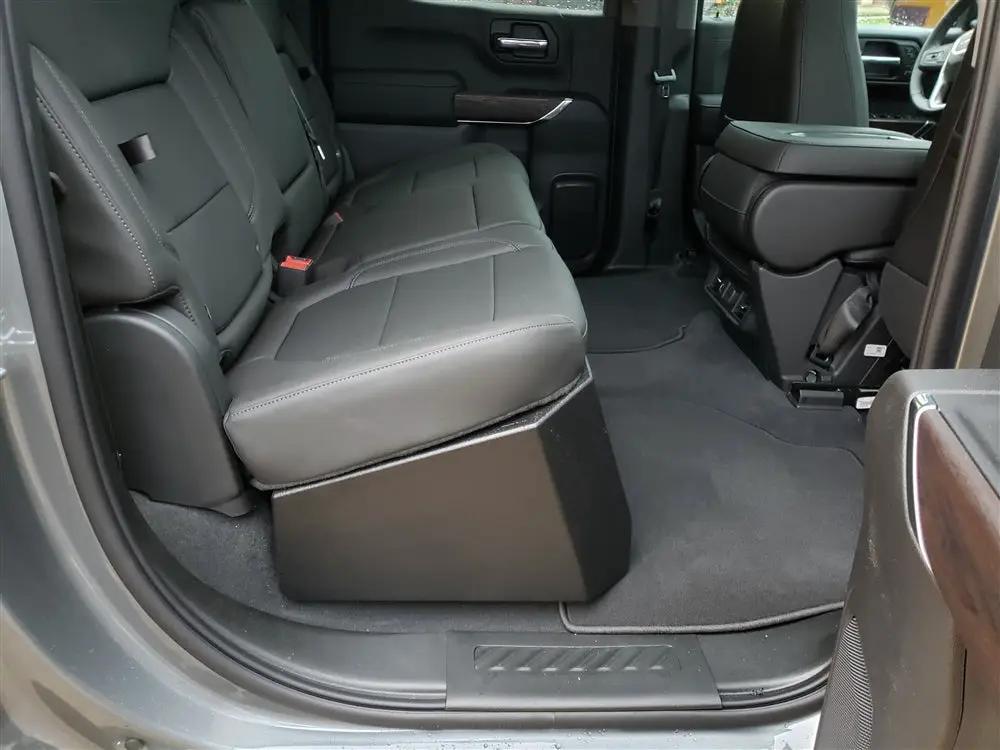

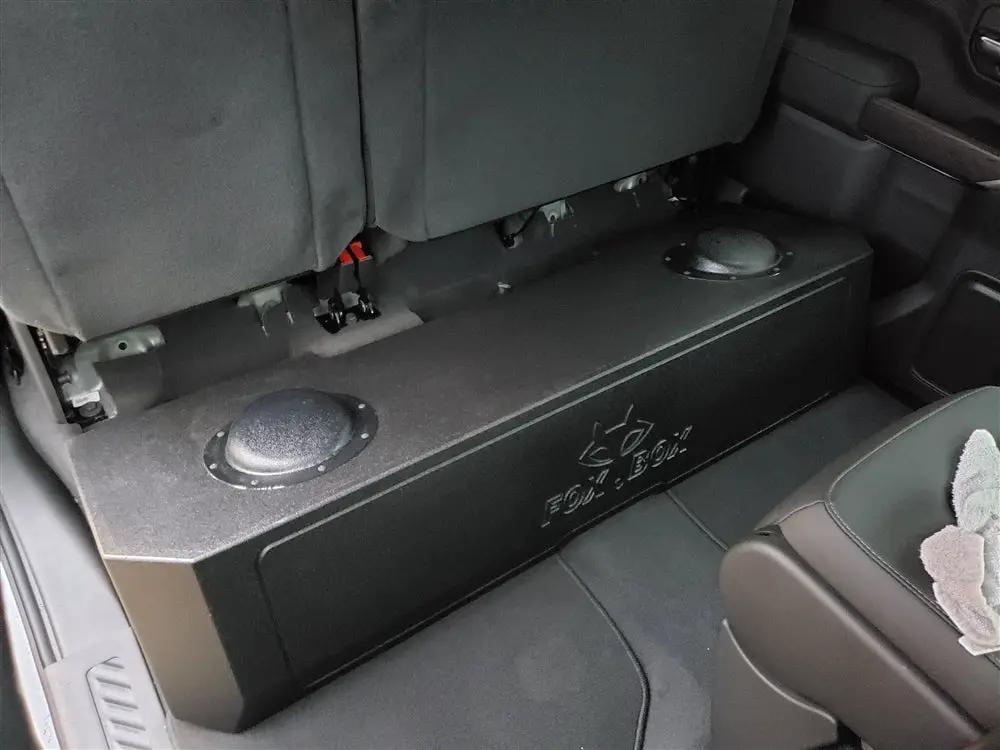

Gallery note: Installation examples show vehicles and other equipment that are not included. Only the empty enclosure or accessory described in this listing is included.
