FOX BOX 2019+ GM Crew Cab Single 12-Inch Vented Subwoofer Enclosure with Storage
Key features

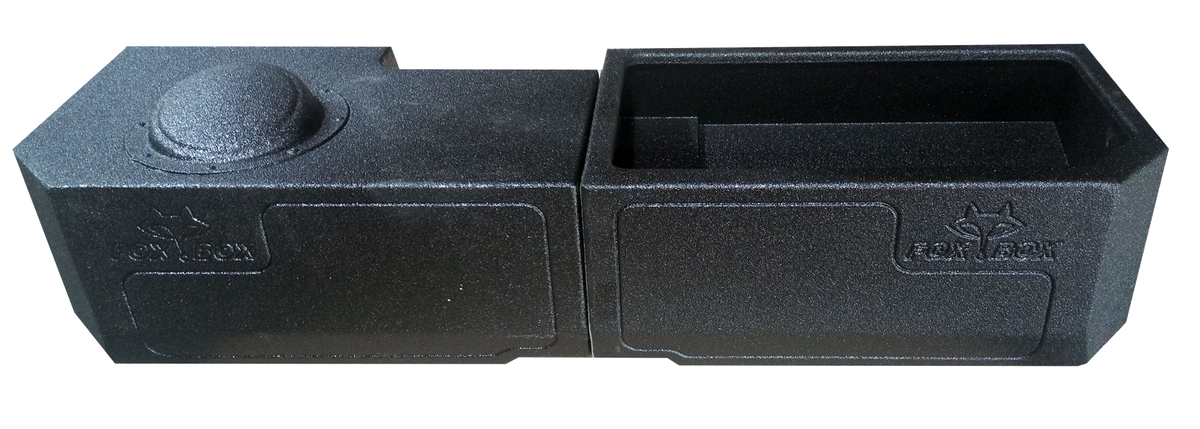

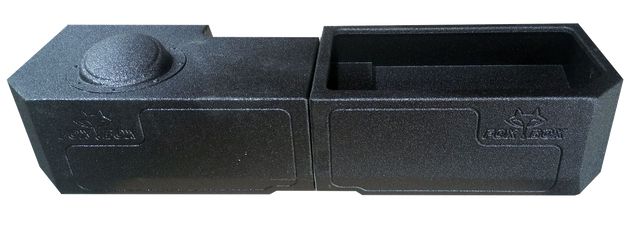

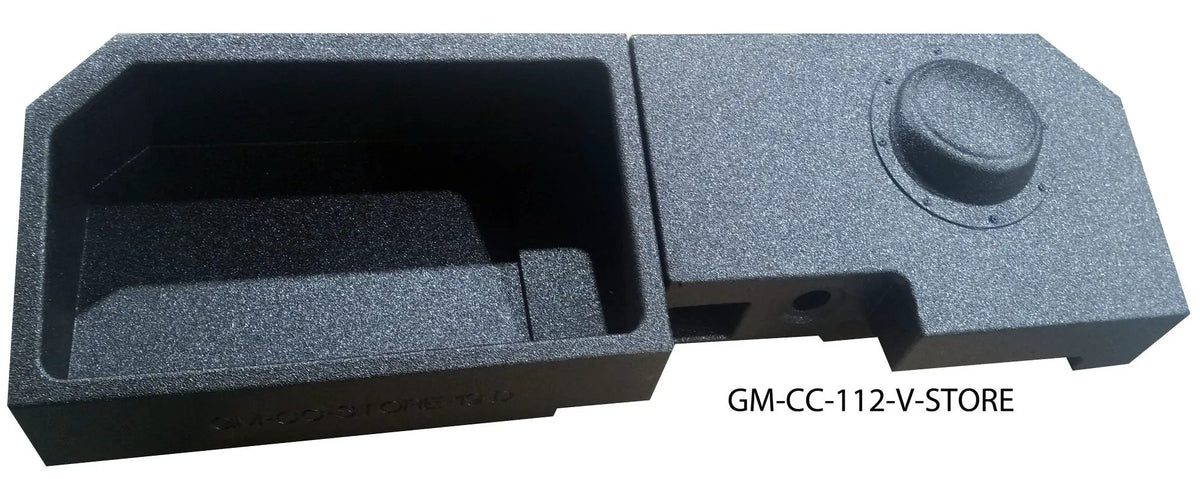

- Passenger-side subwoofer enclosure and driver-side storage module.
- 1.8 cubic feet of air volume with 33 Hz tuning.
- Included steel connector plates join the two sections.
- 16-square-inch rear-facing port and 2.25-inch floor clearance.
- Optional 12-to-10-inch adapter ring; black LINE-X finish.
FOX BOX 2019+ GM Crew Cab Single 12-Inch Vented Subwoofer Enclosure with Storage - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
FOX BOX 2019+ GM Crew Cab Single 12-Inch Vented Subwoofer Enclosure with Storage - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Passenger-side subwoofer enclosure and driver-side storage module.
- 1.8 cubic feet of air volume with 33 Hz tuning.
- Included steel connector plates join the two sections.
- 16-square-inch rear-facing port and 2.25-inch floor clearance.
- Optional 12-to-10-inch adapter ring; black LINE-X finish.
Technical Specifications
| Vehicle application | 2019 and newer GM 1500 Crew Cab; 2020 and newer GM 2500/3500 Crew Cab |
|---|---|
| Enclosure type | Vented; passenger-side sub box with driver-side storage |
| Subwoofer configuration | One 12-inch subwoofer; optional 10-inch adapter ring |
| Mounting cutout | 11.15 inches |
| Mounting depth | 7.5 inches |
| Maximum magnet diameter | 7.5 inches |
| Baffle-to-floor clearance | 2.25 inches |
| Internal air volume | 1.8 cu ft |
| Tuning frequency | 33 Hz |
| Port area | 16 sq in |
| Included assembly parts | Steel connector plates |
| Finish | Black LINE-X spray-on bed-liner coating |
| Country of manufacture | USA |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 7.5 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Fits 2019 and newer GM 1500 Crew Cab; 2020 and newer GM 2500/3500 Crew Cab.
- Not compatible with Extended Cab or Double Cab trucks.
- The factory under-seat storage tray must be removed. The supplied driver-side module provides the storage area in this assembly.
- Choose the optional adapter ring only for a compatible 10-inch subwoofer and verify its enclosure requirements.
Frequently Asked Questions
Which side holds the subwoofer?
The subwoofer enclosure is on the passenger side. The storage module is on the driver side.
Are the connecting plates included?
Yes. Steel connector plates are included to join the two sections.
Can the factory storage tray stay?
No. The factory under-seat storage tray must be removed for installation.
Explore More
Compare more FOX BOX enclosures and accessories at 12 Volt Outlet.

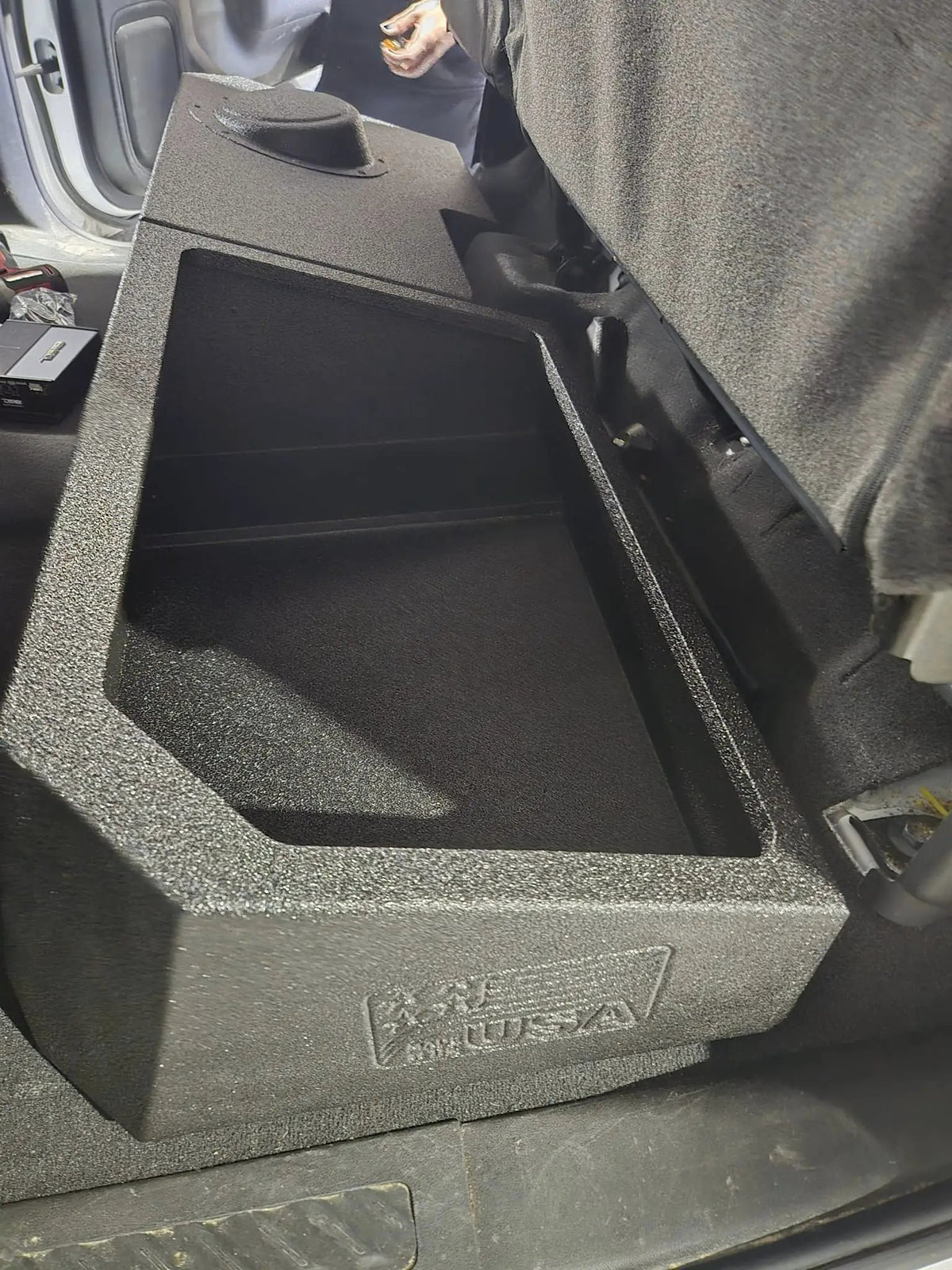

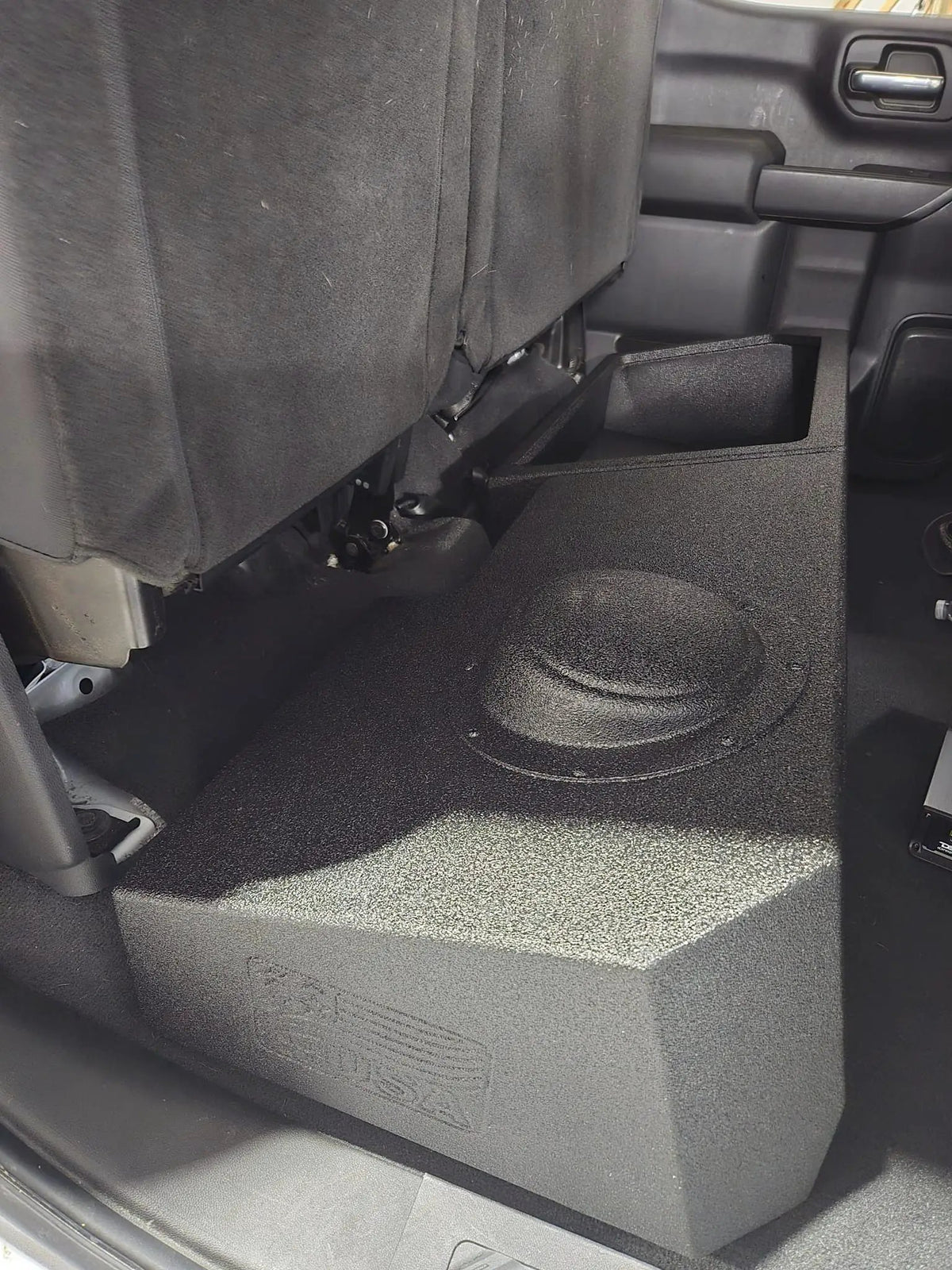

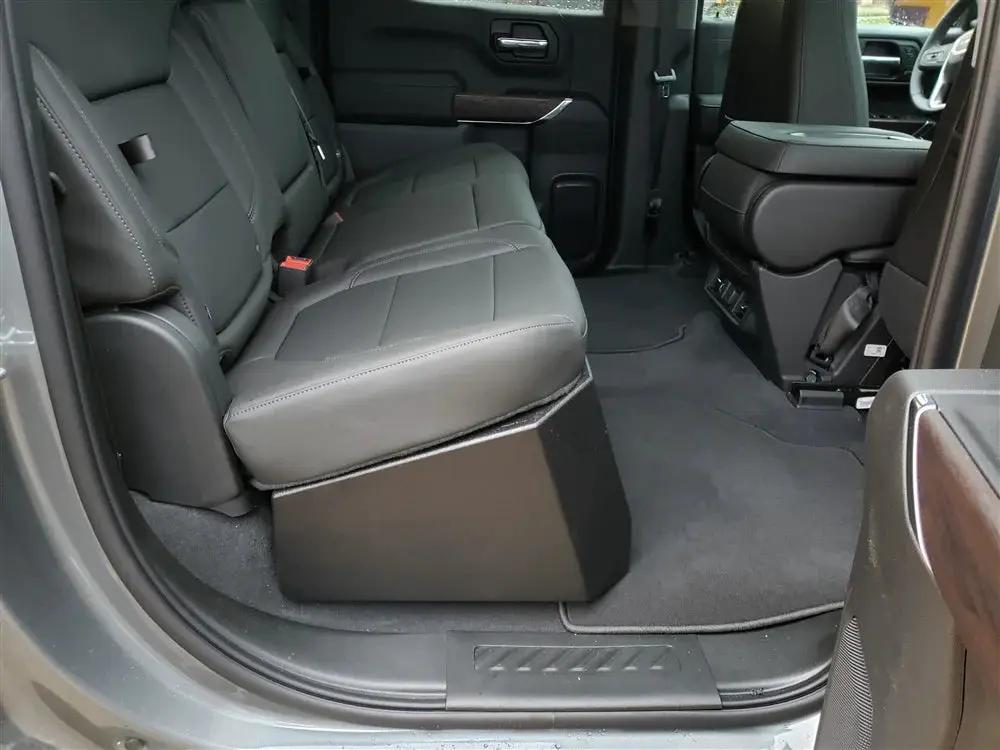

Gallery note: Installation examples show vehicles and other equipment that are not included. Only the empty enclosure or accessory described in this listing is included.
