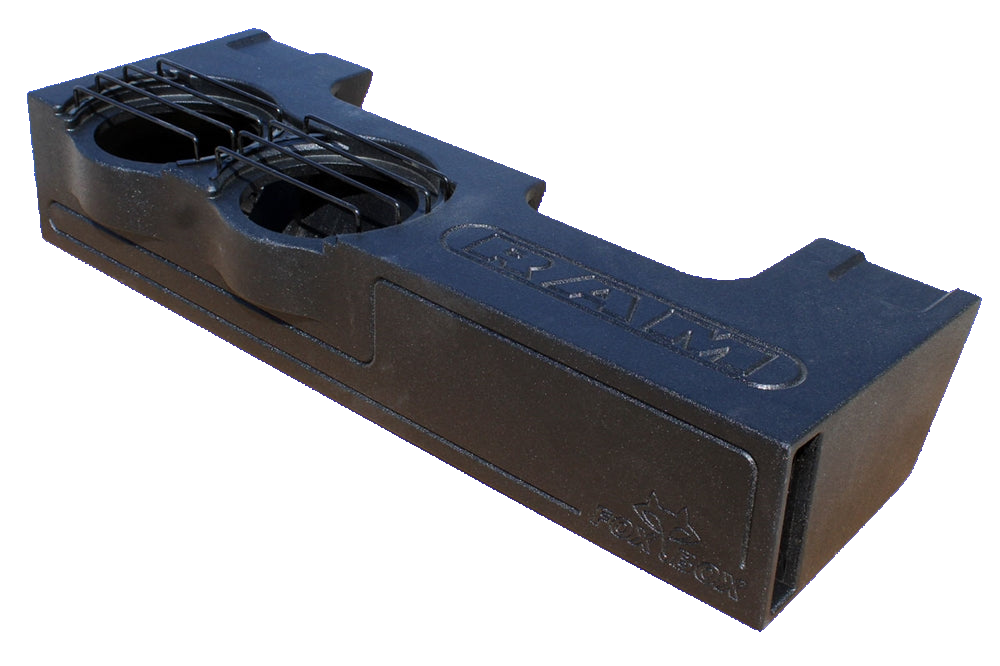

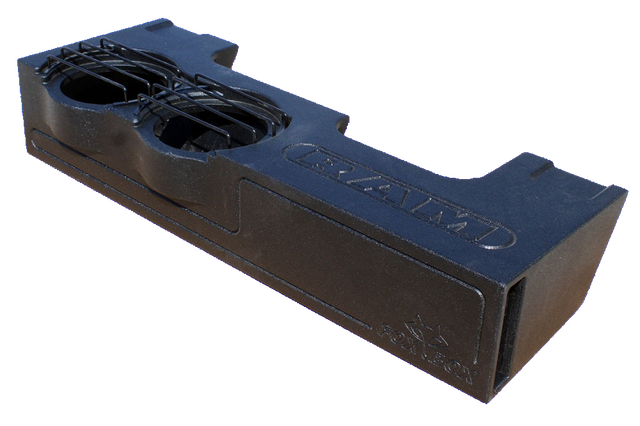

FOX BOX 2019+ Ram 5th-Gen Quad Cab Dual 10-Inch Vented Subwoofer Enclosure
Key features
- Fifth-generation Quad Cab application, distinct from Classic-body trucks.
- Two 10-inch openings in an undivided vented enclosure.
- 2.2 cubic feet of air volume and 35 Hz tuning.
- No seat lift required.

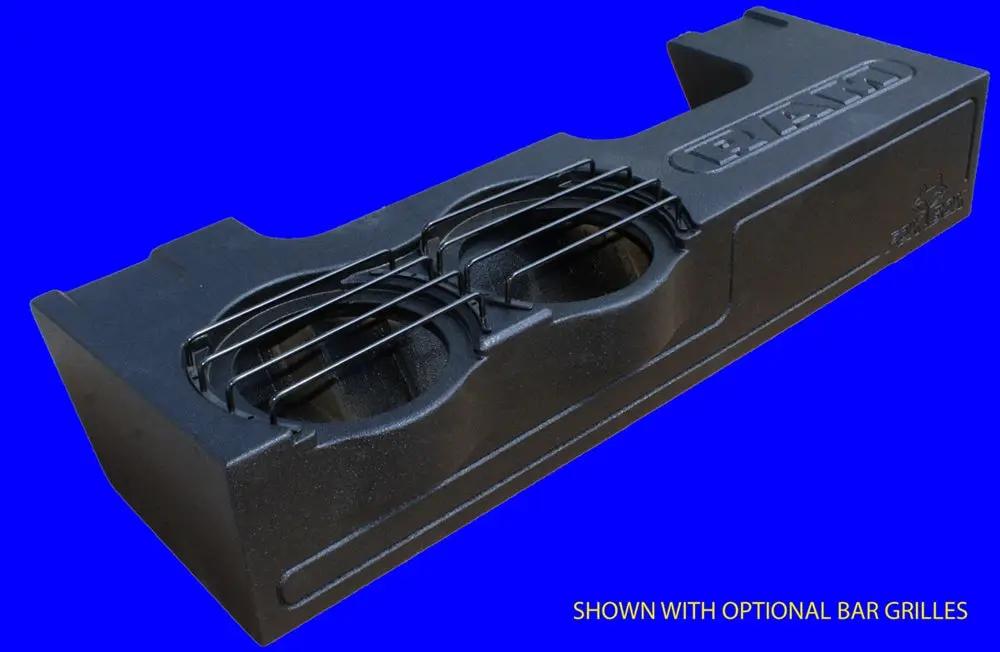

- Optional 10-inch grilles and two-piece 10-to-8-inch adapter configuration.
FOX BOX 2019+ Ram 5th-Gen Quad Cab Dual 10-Inch Vented Subwoofer Enclosure - 10" SPEAKER GRILLS 2PCS / NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
FOX BOX 2019+ Ram 5th-Gen Quad Cab Dual 10-Inch Vented Subwoofer Enclosure - 10" SPEAKER GRILLS 2PCS / NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Fifth-generation Quad Cab application, distinct from Classic-body trucks.
- Two 10-inch openings in an undivided vented enclosure.
- 2.2 cubic feet of air volume and 35 Hz tuning.
- No seat lift required.
- Optional 10-inch grilles and two-piece 10-to-8-inch adapter configuration.
Technical Specifications
| Model | DQC-210-V-19 |
|---|---|
| Vehicle application | 2019 and newer fifth-generation Ram Quad Cab |
| Excluded application | Classic-body Ram |
| Enclosure type | Vented; undivided |
| Subwoofer configuration | Two 10-inch subwoofers; optional 8-inch adapter rings |
| Mounting cutout | 9.125 inches |
| Mounting depth | 6.75 inches with a 6-inch-diameter magnet |
| Internal air volume | 2.2 cu ft shared |
| Tuning frequency | 35 Hz |
| Seat lift | Not required |
| Physical options | Two 10-inch speaker grilles; two 10-to-8-inch adapter rings |
| Finish | Black spray-on bed-liner coating |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6.75 inches with a 6-inch-diameter magnet. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Does not fit Classic-body Ram trucks. Verify that the truck is the fifth-generation Quad Cab application.
- Subwoofers with larger frames may require the installer to trim the mounting opening. Compare the cutout, depth and magnet dimensions before selecting a subwoofer.
- No seat-lift kit is required for the stated application.
- Grilles and adapter rings depend on the selected options; verify compatibility when combining an adapter and grille choice.
Frequently Asked Questions
Will this fit a Ram Classic?
No. Classic-body trucks are specifically excluded.
Do I need to lift the rear seat?
No seat lift is required for this enclosure’s stated application.
Is the airspace divided?
No. The two subwoofer positions share the listed 2.2-cubic-foot interior.
