Fox Box 2022-Up Non-Hybrid Toyota Tundra CrewMax Quad 10-Inch Subwoofer Enclosure
Key features
- Four 10-inch openings share 2.4 cubic feet of net, undivided airspace.

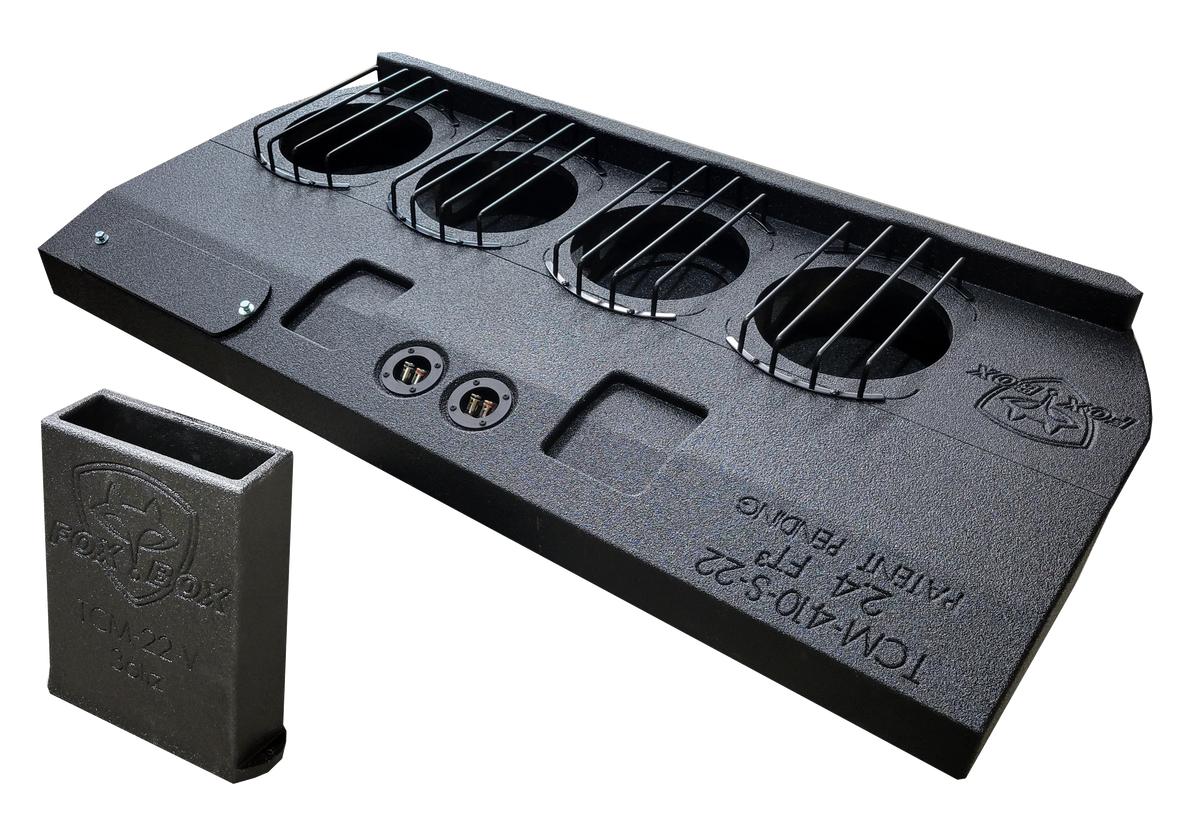

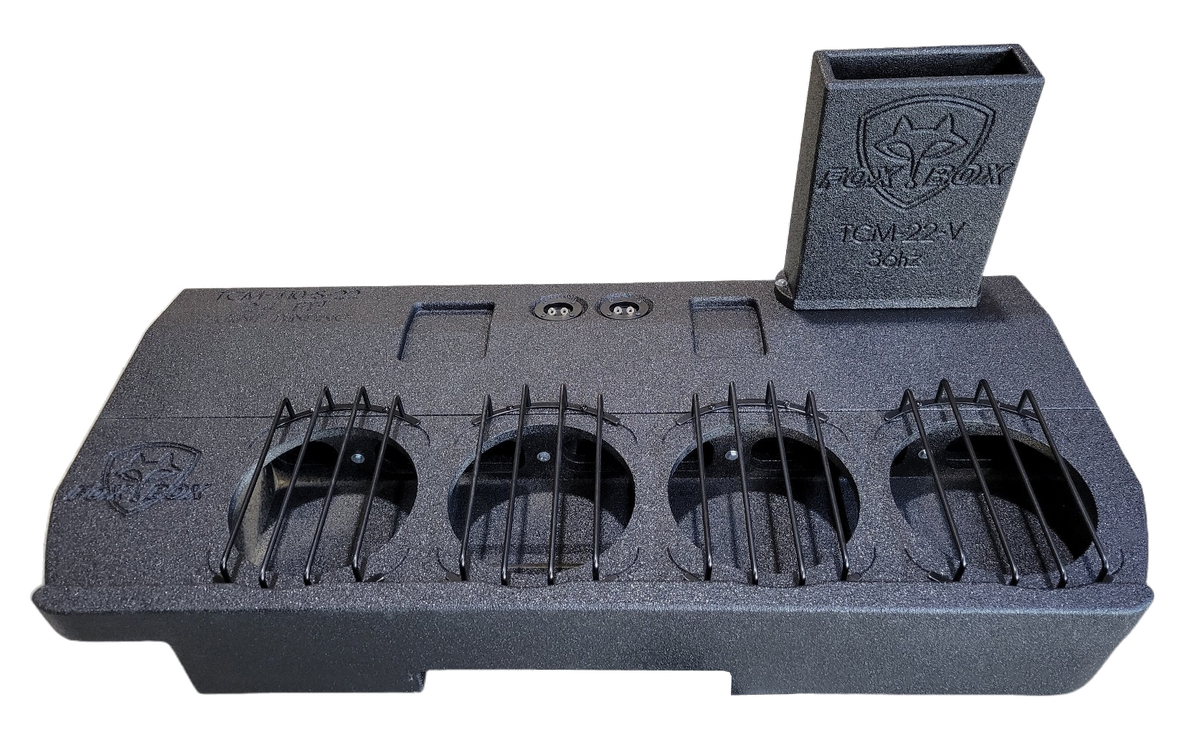

- The sealed/vented design uses an external port-module and block-off arrangement shown in the manufacturer photos; vented operation is listed at 36 Hz.
- Two-piece construction allows the enclosure sections to be assembled in the truck; foam weather stripping is provided.
- Optional 13-by-32-inch amp rack mounts to the passenger-side rear wall.
- Optional bar grilles support round subs up to 11.25 inches in outside diameter.
- Black spray-applied bed-liner coating completes the enclosure.
Fox Box 2022-Up Non-Hybrid Toyota Tundra CrewMax Quad 10-Inch Subwoofer Enclosure - Amp rack / Grilles is backordered and will ship as soon as it is back in stock.
Fox Box 2022-Up Non-Hybrid Toyota Tundra CrewMax Quad 10-Inch Subwoofer Enclosure - Amp rack / Grilles is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box enclosure is supplied empty and is shaped for 2022-up Toyota Tundra CrewMax; non-hybrid only. Its physical layout is four 10-inch positions; sealed or vented use listed.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Four 10-inch openings share 2.4 cubic feet of net, undivided airspace.
- The sealed/vented design uses an external port-module and block-off arrangement shown in the manufacturer photos; vented operation is listed at 36 Hz.
- Two-piece construction allows the enclosure sections to be assembled in the truck; foam weather stripping is provided.
- Optional 13-by-32-inch amp rack mounts to the passenger-side rear wall.
- Optional bar grilles support round subs up to 11.25 inches in outside diameter.
- Black spray-applied bed-liner coating completes the enclosure.
Technical Specifications
| Model | TCM-410-V-22 |
|---|---|
| Vehicle fitment | 2022-up Toyota Tundra CrewMax; non-hybrid only |
| Configuration | Four 10-inch positions; sealed or vented use listed |
| Net air volume | 2.4 cu. ft. |
| Chambers | Undivided |
| Port tuning | 36 Hz when configured for vented use |
| Mounting cutout | 9.15 in. |
| Mounting depth | 4 in. |
| Optional amp rack | 13 × 32 in.; passenger-side rear-wall mounting |
| Optional bar grilles | Round subwoofers only; up to 11.25-in. outside diameter |
| Seat position | Front edge rests on enclosure rim approximately 3/4 in. higher |
| Finish | Black spray-applied bed-liner coating |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 4 in.. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Does not fit hybrid models.
- Remove under-seat and behind-seat storage compartments, the rubber mat and jute padding for proper fit.
- The front edge of the rear seat sits on the box rim approximately 3/4 inch higher than before.
- Fox lists JL Audio TW3 10-inch use as requiring cutout enlargement to 9.7 inches; Kicker L7 10T use requires cutting the opening square.
- Fox lists JL Audio TW3 and Sundown SML-10 for vented or sealed use, and Alpine Type-R Shallow and Kicker L7 10T for sealed use. Confirm the exact driver revision and enclosure configuration before installation.

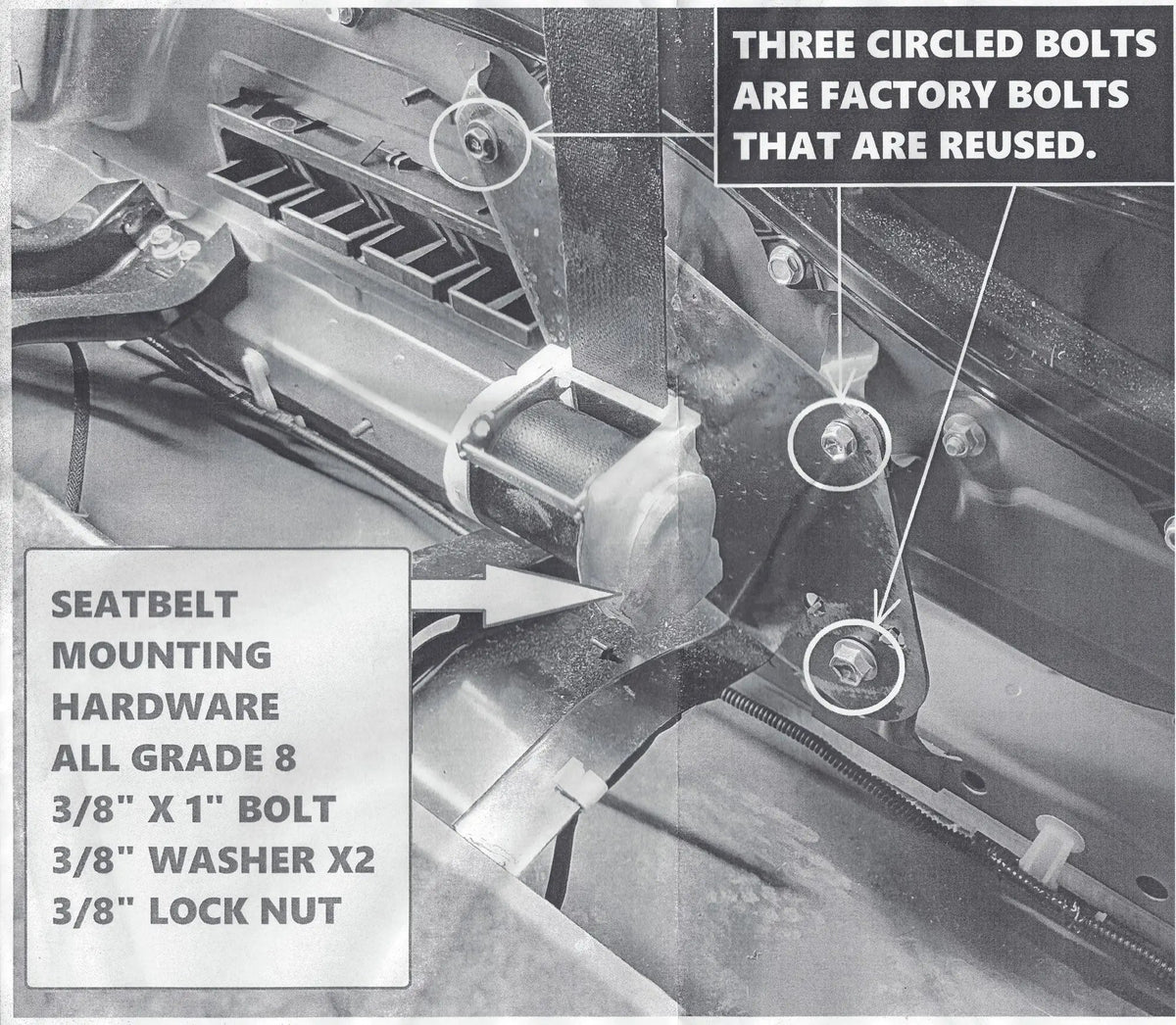

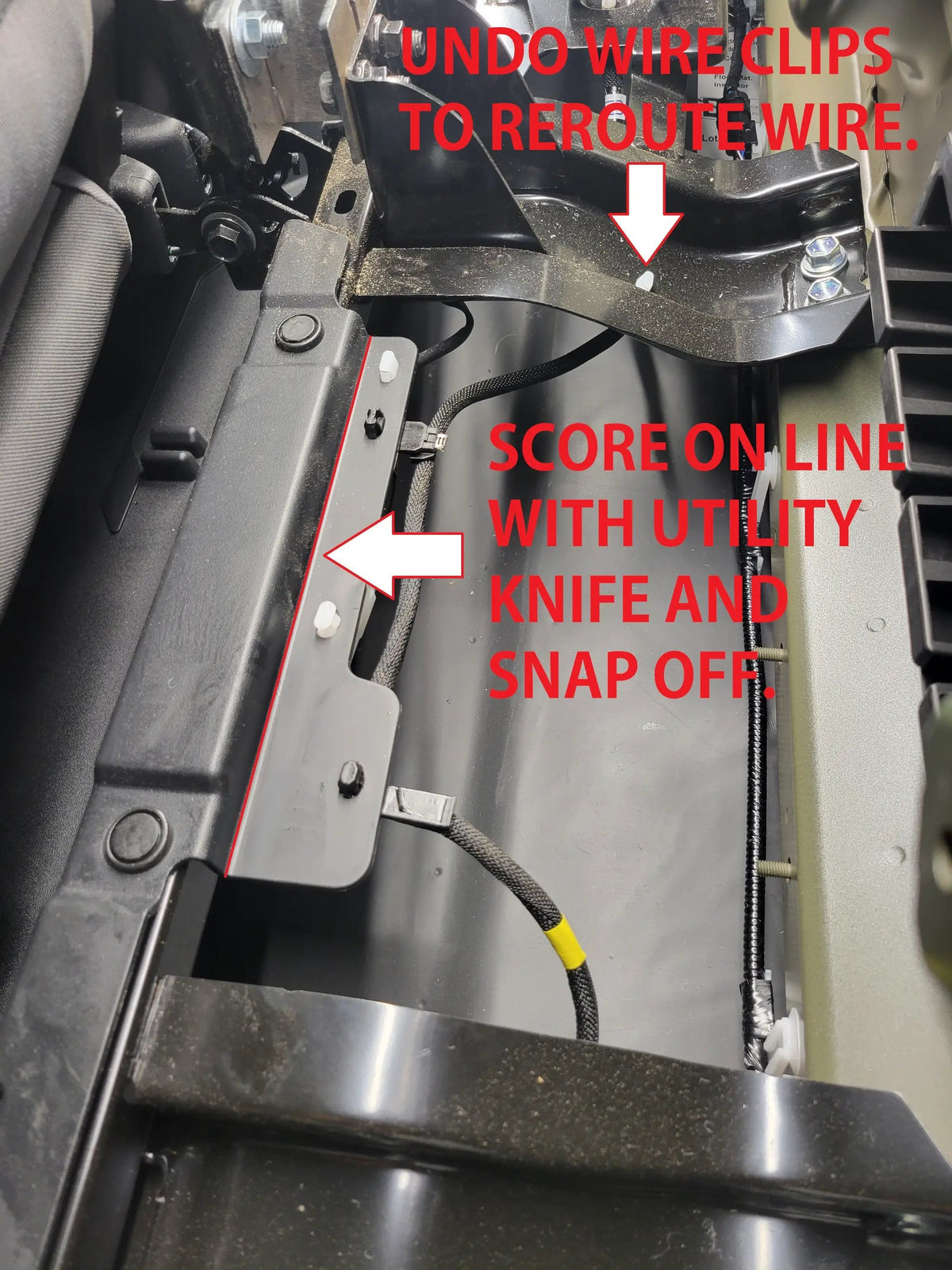

- The manufacturer installation images also show wiring rerouting, trimming an under-seat plastic edge and seat-belt mounting work. Have a qualified installer follow the complete vehicle-specific instructions before fitting the enclosure.
Frequently Asked Questions
Will it work in a hybrid CrewMax?
No. The listed fitment is expressly limited to non-hybrid trucks.
Do the optional grilles fit square subwoofers?
No. The listed bar grilles are for round drivers with an outside diameter no greater than 11.25 inches.
Are the amp rack and grilles standard equipment?
They are selectable physical options. Choose the rack and grille combination required for your installation.
Can this enclosure run sealed or vented?
Fox lists sealed operation or 36 Hz vented operation. The manufacturer photos show an external port module and a block-off plate; match the configuration to the selected subwoofer.
Explore More
Compare vehicle-specific designs in our Fox Box enclosure collection.

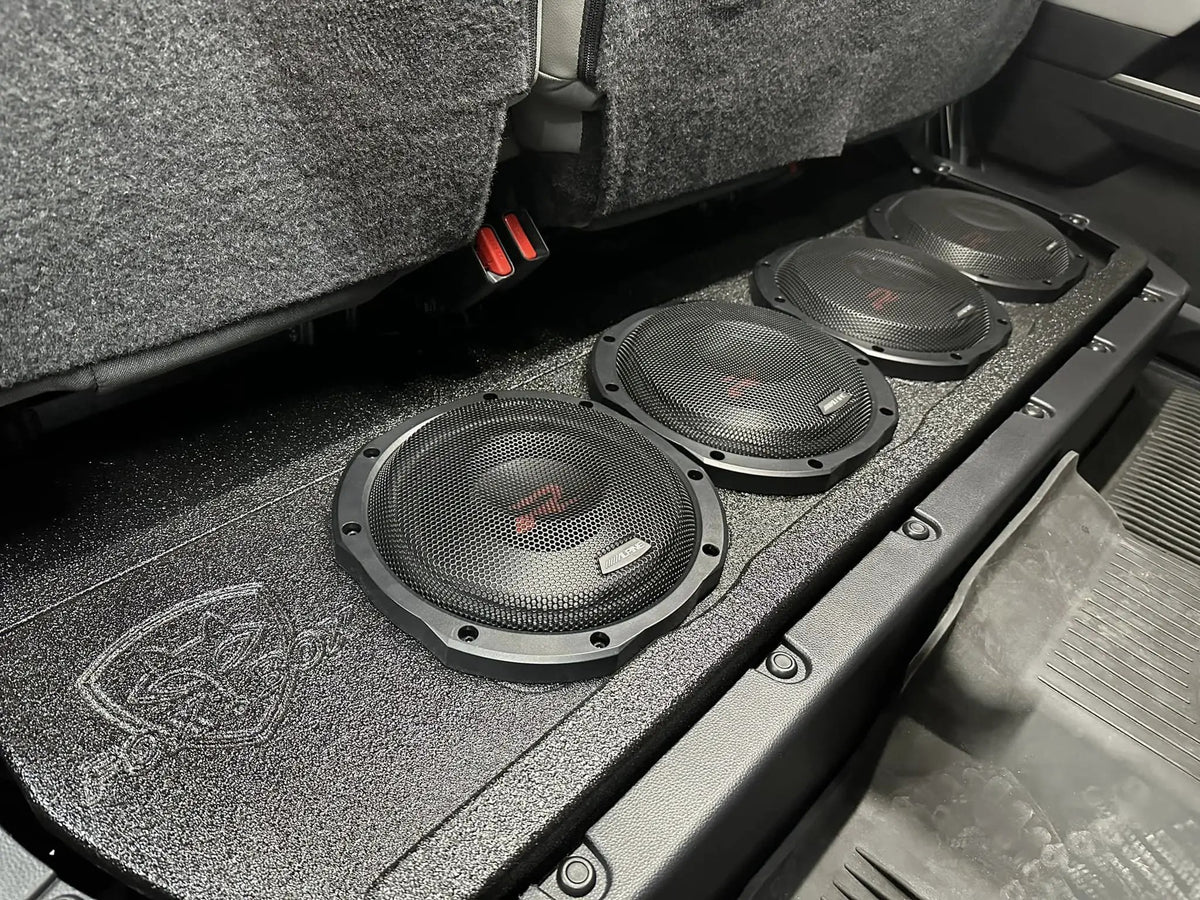

Gallery note: Installation examples show vehicles and other equipment that are not included. Only the empty enclosure or accessory described in this listing is included.
