Fox Box F150-SC-210-V-09 2009+ Ford F-150 SuperCrew Dual 10-Inch Ported Sub Box
Key features
- Dual 10-inch layout for the listed F-150 SuperCrew application.
- Undivided 2.15-cubic-foot enclosure tuned to 35 Hz.
- 6.25-inch mounting depth with a 7-inch-diameter magnet.
- Black bed-liner finish; factory power inverter remains unaffected.
Fox Box F150-SC-210-V-09 2009+ Ford F-150 SuperCrew Dual 10-Inch Ported Sub Box is backordered and will ship as soon as it is back in stock.
Fox Box F150-SC-210-V-09 2009+ Ford F-150 SuperCrew Dual 10-Inch Ported Sub Box is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

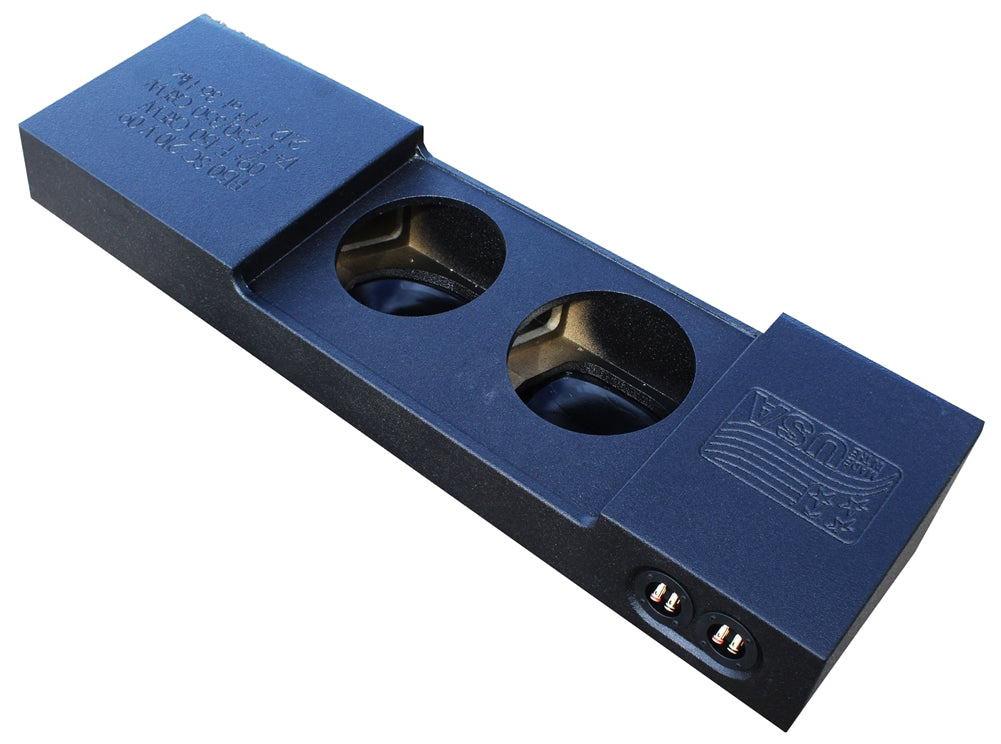

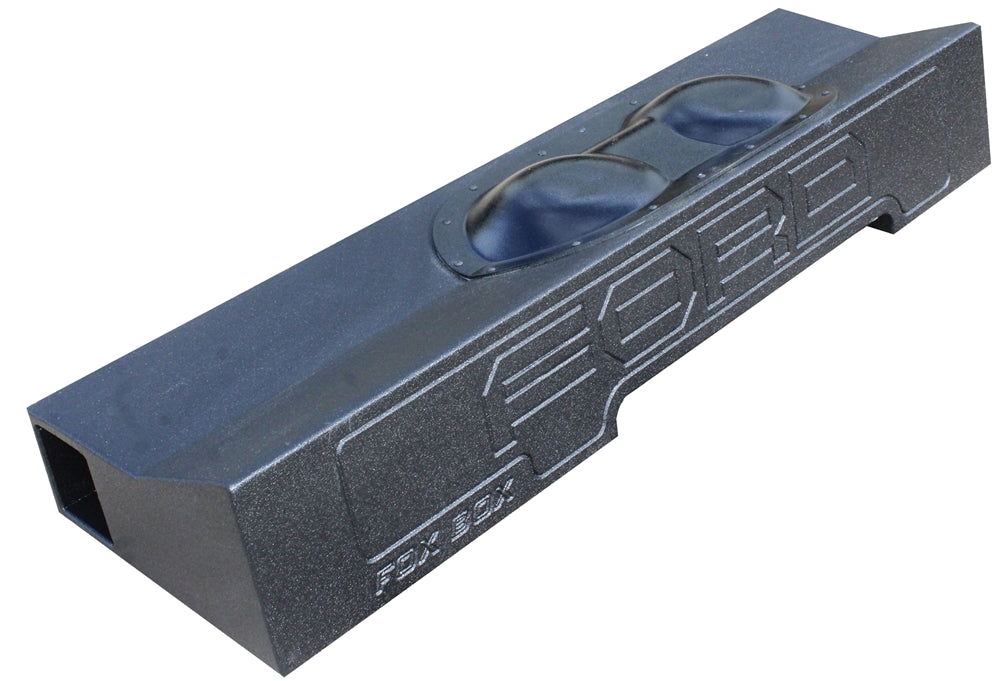

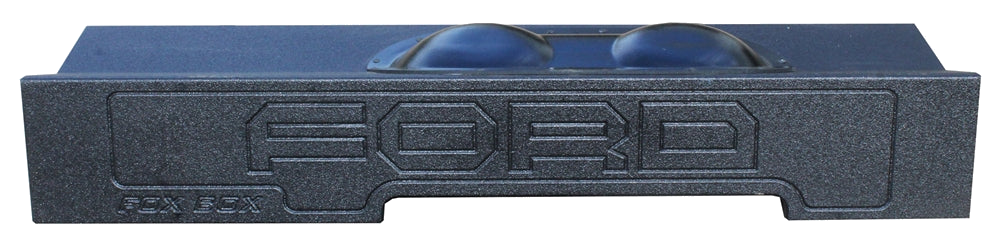

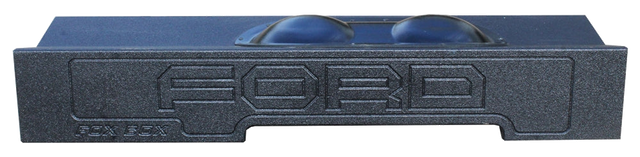

This Fox Box enclosure is supplied empty and is shaped for 2009+ Ford F-150 SuperCrew. Its physical layout is two 10-inch mounting openings; vented; undivided chamber.
Enclosure-only listing. Subwoofers, amplifier and wiring are not included.
Key Features & Benefits
- Dual 10-inch layout for the listed F-150 SuperCrew application.
- Undivided 2.15-cubic-foot enclosure tuned to 35 Hz.
- 6.25-inch mounting depth with a 7-inch-diameter magnet.
- Black bed-liner finish; factory power inverter remains unaffected.
Technical Specifications
| Model | F150-SC-210-V-09 |
|---|---|
| Vehicle fitment | 2009+ Ford F-150 SuperCrew |
| Configuration | Two 10-inch mounting openings; vented; undivided chamber |
| Air volume | 2.15 cu. ft. |
| Port tuning | 35 Hz |
| Mounting hole diameter | 9.125 inches |
| Subwoofer mounting depth | 6.25 inches with a 7-inch-diameter magnet |
| Magnet diameter | 7 inches at the stated mounting depth |
| Finish | Black spray-applied bed-liner coating |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6.25 inches with a 7-inch-diameter magnet; opening diameter: 9.125 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Verify the truck is a SuperCrew; this listing does not establish SuperCab fitment.
- Larger subwoofer frames require trimming of the mounting openings by the installer.
- Check the driver cutout, depth, magnet diameter and recommended ported airspace together before ordering.
Frequently Asked Questions
Will it affect the factory power inverter?
No. The manufacturer states the enclosure does not affect it.
Is the chamber divided?
No. Both subwoofers share the 2.15-cubic-foot enclosure.
Will every 10-inch subwoofer fit?
No. Check the 9.125-inch cutout and stated depth/magnet limit; larger frames may require trimming.
