Fox Box JT-210-V Jeep Gladiator Dual 10-Inch Ported Sub Box with Seat Lift
Key features
- Two 10-inch openings with room for compatible full-depth drivers.
- Included kit raises the seat 2 inches and shifts it 1 inch forward.
- Laser-cut stainless-steel logo inserts can be removed for custom powder coating.
- Mud floor mats do not require cutting; optional 10-to-8-inch adapter rings are listed.
Fox Box JT-210-V Jeep Gladiator Dual 10-Inch Ported Sub Box with Seat Lift - 10" - NO ADAPTER RINGS is backordered and will ship as soon as it is back in stock.
Fox Box JT-210-V Jeep Gladiator Dual 10-Inch Ported Sub Box with Seat Lift - 10" - NO ADAPTER RINGS is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

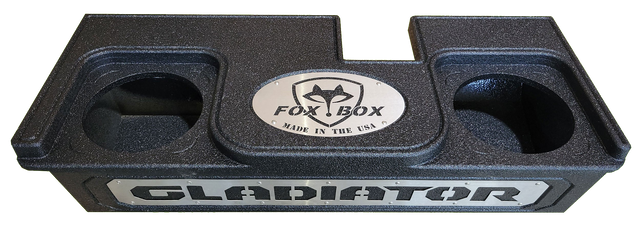

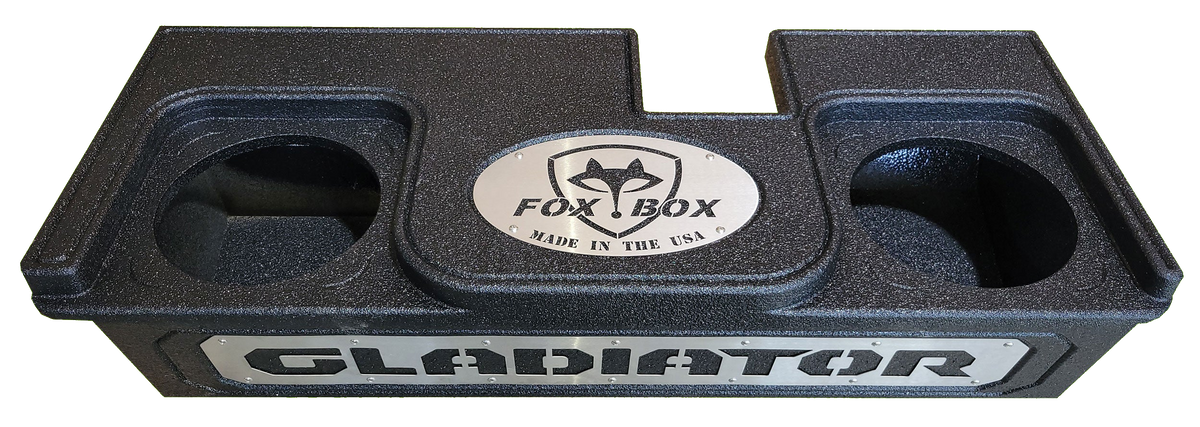

This Fox Box enclosure is supplied empty and is shaped for Jeep JT Gladiator truck. Its physical layout is two 10-inch mounting openings; vented.
Enclosure-only listing. Subwoofers, amplifier and wiring are not included.
Key Features & Benefits
- Two 10-inch openings with room for compatible full-depth drivers.
- Included kit raises the seat 2 inches and shifts it 1 inch forward.
- Laser-cut stainless-steel logo inserts can be removed for custom powder coating.
- Mud floor mats do not require cutting; optional 10-to-8-inch adapter rings are listed.
Technical Specifications
| Model | JT-210-V |
|---|---|
| Vehicle fitment | Jeep JT Gladiator truck |
| Configuration | Two 10-inch mounting openings; vented |
| Air volume | 2.0 cu. ft. net; 2.3 cu. ft. total |
| Port tuning | 35 Hz |
| Mounting hole diameter | 9.15 inches |
| Subwoofer mounting depth | 7 inches with an 8-inch-diameter magnet |
| Magnet diameter | 8 inches at the stated mounting depth |
| Finish | Black textured coating |
| Baffle countersink | 1.25 inches |
| Required seat change | 2 inches up; 1 inch forward |
| Physical options | 10-inch openings without adapters, or two 10-to-8-inch adapter rings |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 7 inches with an 8-inch-diameter magnet; opening diameter: 9.15 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Remove the factory plastic storage wall and relocate the jack.

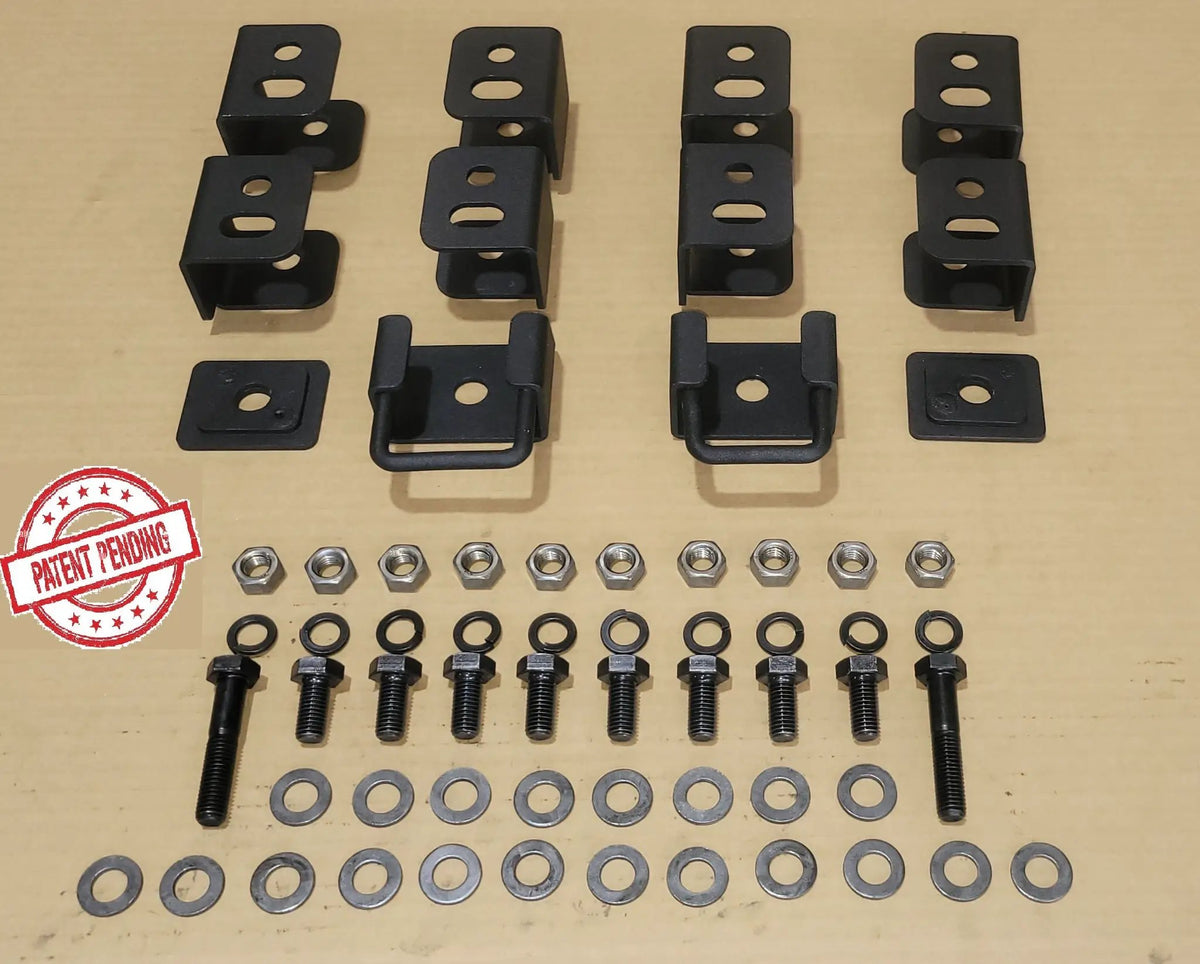

- Install the included seat kit; it moves the seat 2 inches up and 1 inch forward.
- Oversized subwoofer frames can require trimming. An installer can cut the openings for square subs; that modification is not part of the standard round cutout.
- The baffle is countersunk 1.25 inches. The manufacturer recommends grilles for high-excursion subs; grilles are not established as included.
- Net volume is stated after accounting for the port and 0.05 cubic feet per driver. Check the displacement of your actual subs.
Frequently Asked Questions
Is the seat lift included?
Yes. The required 2-inch lift and 1-inch forward-shift kit is included.
Do I need shallow-mount subwoofers?
The source says full-depth subs can be used. Each driver still needs to fit the 7-inch depth, 8-inch magnet diameter and mounting opening.
Can I use 8-inch subwoofers?
The source offers a two-piece 10-to-8-inch adapter-ring option. Confirm driver suitability for the enclosure before choosing it.
