FOX BOX Ram Quad & Crew Cab Dual 8-Inch Vented Passenger-Side Sub Box
Key features
- Passenger-side layout for two 8-inch subwoofers.
- 1.85-cubic-foot vented enclosure tuned to 34 Hz.
- 6-inch mounting depth with a 6.25-inch maximum magnet diameter.
- Required 1-inch seat-lift kit included.
- Optional enclosure configuration with a cup holder kit.
FOX BOX Ram Quad & Crew Cab Dual 8-Inch Vented Passenger-Side Sub Box - Without Cup Holder Kit is backordered and will ship as soon as it is back in stock.
FOX BOX Ram Quad & Crew Cab Dual 8-Inch Vented Passenger-Side Sub Box - Without Cup Holder Kit is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

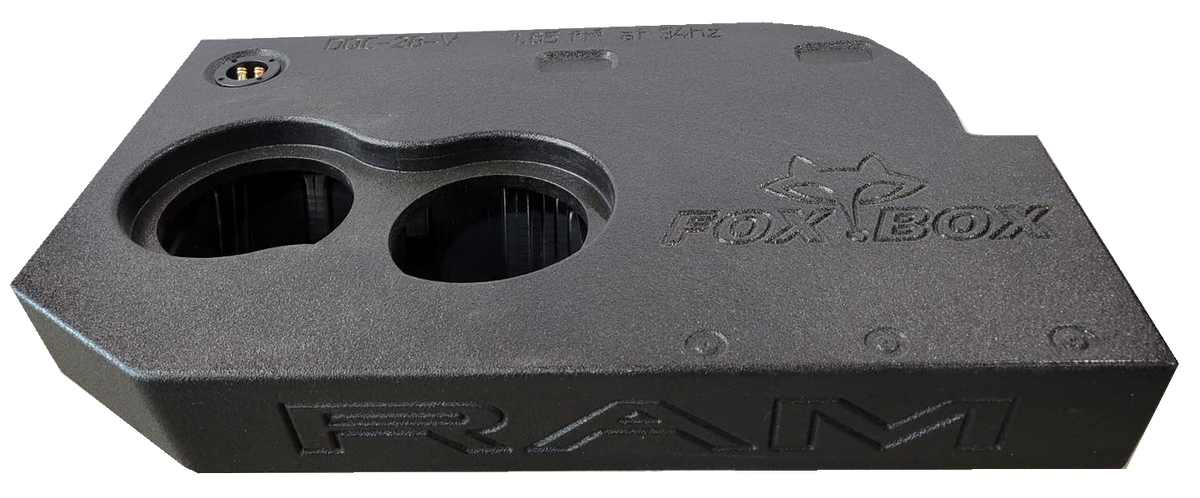

This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Passenger-side layout for two 8-inch subwoofers.
- 1.85-cubic-foot vented enclosure tuned to 34 Hz.
- 6-inch mounting depth with a 6.25-inch maximum magnet diameter.
- Required 1-inch seat-lift kit included.
- Optional enclosure configuration with a cup holder kit.
Technical Specifications
| Model | DQC-28-V-P |
|---|---|
| Vehicle application | 2002–2018 third- and fourth-generation Ram 1500/2500/3500 Quad and Crew Cab; 2019 and newer fifth-generation 2500/3500 Quad and Crew Cab; 2019 and newer Classic-body 1500/2500/3500 Quad and Crew Cab |
| Excluded application | Fifth-generation Ram 1500 |
| Enclosure type | Vented; passenger side |
| Subwoofer configuration | Two 8-inch mounting openings |
| Mounting cutout | 7.25 inches |
| Mounting depth | 6 inches |
| Maximum magnet diameter | 6.25 inches |
| Internal air volume | 1.85 cu ft |
| Tuning frequency | 34 Hz |
| Required seat lift | 1 inch; kit included |
| Physical option | Cup holder kit |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Does not fit the fifth-generation Ram 1500. Check the body generation as well as the year and cab style; a 2019 or newer Classic is a different application from the fifth-generation 1500.
- The included 1-inch seat-lift kit is required for proper fit.
- Subwoofers with larger frames may require the installer to trim the mounting opening. Compare the cutout, depth and magnet dimensions before selecting a subwoofer.
- A cup holder kit is part of the corresponding optional enclosure configuration, not an assumed inclusion with the base box.
Frequently Asked Questions
How many subs does it hold?
It is designed for two 8-inch subwoofers in the passenger-side enclosure.
Does it need a seat lift?
Yes. The included 1-inch kit is required.
Are cup holders standard?
The source lists a base enclosure and a separate enclosure-with-cup-holder-kit option. Select the latter if you want that accessory.
Explore More
Compare more FOX BOX enclosures and accessories at 12 Volt Outlet.
Gallery note: Installation examples show vehicles and other equipment that are not included. Only the empty enclosure or accessory described in this listing is included.
